Nissan Xterra. Manual - part 467





HAC-66

< PRECAUTION >

[MANUAL AIR CONDITIONER]

PRECAUTIONS

If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, your options are:

• Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant into

the atmosphere.

• Explain that recovery of the contaminated refrigerant could damage your service equipment and refrigerant

supply.

• Suggest the customer return the vehicle to the location of previous service where the contamination may

have occurred.

• If you choose to perform the repair, recover the refrigerant using only dedicated equipment and contain-

ers. Do not recover contaminated refrigerant into your existing service equipment. If your facility does

not have dedicated recovery equipment, you may contact a local refrigerant product retailer for available ser-

vice. This refrigerant must be disposed of in accordance with all federal and local regulations. In addition,

replacement of all refrigerant system components on the vehicle is recommended.

• If the vehicle is within the warranty period, the air conditioner warranty is void. Please contact NISSAN Cus-

tomer Affairs for further assistance.

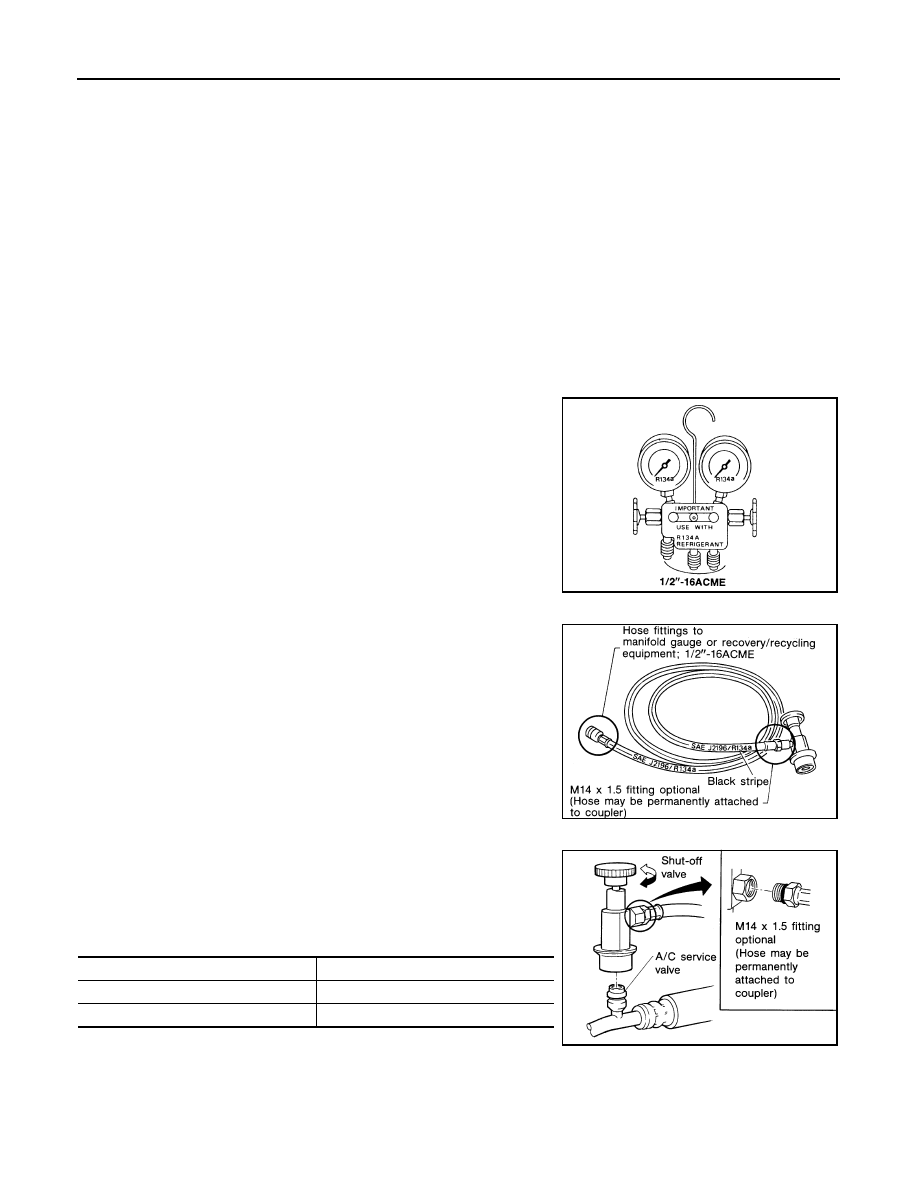

Precaution for Service Equipment

INFOID:0000000009482503

MANIFOLD GAUGE SET

Be certain that the gauge face indicates R-134a or 134a. Make sure

the gauge set has 1/2

″-16 ACME threaded connections for service

hoses. Confirm the set has been used only with refrigerant HFC-

134a (R-134a) along with specified oil.

SERVICE HOSES

Be certain that the service hoses display the markings described

(colored hose with black stripe). All hoses must include positive shut-

off devices (either manual or automatic) near the end of the hoses

opposite the manifold gauge.

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to a

CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will

not properly connect to the CFC-12 (R-12) system. However, if an

improper connection is attempted, discharging and contamination

may occur.

SHA533D

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

SYSTEM DESCRIPTION  ..............................

6

INTERIOR ROOM LAMP CONTROL SYSTEM

.....

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

7

Component Description .............................................

8

ILLUMINATION CONTROL SYSTEM .................

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ...........................................

10

DIAGNOSIS SYSTEM (BCM)  ............................

11

COMMON ITEM .........................................................

11

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

11

INT LAMP  ..................................................................

11

INT LAMP : CONSULT Function (BCM - INT
LAMP) .....................................................................

12

BATTERY SAVER .....................................................

12

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER)  .................................................

13

DTC/CIRCUIT DIAGNOSIS  .........................

14

POWER SUPPLY AND GROUND CIRCUIT ......

14

BCM ...........................................................................

14

BCM : Diagnosis Procedure ....................................

14

BATTERY SAVER OUTPUT/POWER SUP-
PLY CIRCUIT  .....................................................

16

Description ...............................................................

16

Component Function Check  ....................................

16

Diagnosis Procedure  ...............................................

16

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

18

Description ...............................................................

18

Component Function Check  ....................................

18

Diagnosis Procedure  ...............................................

18

CARGO LAMP CONTROL CIRCUIT ................

20

Description ...............................................................

20

Component Function Check  ....................................

20

Diagnosis Procedure  ...............................................

20

IGNITION KEYHOLE ILLUMINATION CON-
TROL CIRCUIT  .................................................

22

Description ...............................................................

22

Component Function Check  ....................................

22

Diagnosis Procedure  ...............................................

22

ECU DIAGNOSIS INFORMATION ..............

24

BCM (BODY CONTROL MODULE)  .................

24

Reference Value ......................................................

24

Terminal Layout .......................................................

27

Physical Values  .......................................................

27

Fail Safe ..................................................................

32

DTC Inspection Priority Chart ...............................

32

DTC Index ...............................................................

33

WIRING DIAGRAM ......................................

35

INTERIOR ROOM LAMP  ..................................

35

Wiring Diagram ........................................................

35

ILLUMINATION .................................................

46

Wiring Diagram ........................................................

46

SYMPTOM DIAGNOSIS  ..............................

56

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

56

DIAGNOSIS AND REPAIR WORKFLOW

INL-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009483111

OVERALL SEQUENCE

AWLIA1837GB
