INSUFFICIENT HEATING

Is the inspection result normal?

YES

>> System OK.

NO

>> Repair or replace as necessary. Retest.

9.

CHECK HEATER HOSES

Check heater hoses for proper installation.
Is the inspection result normal?

YES

>> System OK.

NO

>> 1. Back flush heater core.

2. Drain the water from the system.

3. Refill system with new engine coolant. Refer to

CO-11, "Changing Engine Coolant"

.

4. GO TO 10 to retest.

10.

CHECK HEATER HOSE TEMPERATURES

1. Start engine and warm it up to normal operating temperature.

2. Touch both the inlet and outlet heater hoses. The inlet hose should be hot and the outlet hose should be

warm.

Is the inspection result normal?

YES

>> System OK.

NO

>> Replace heater core. Refer to

VTL-17, "Removal and Installation"

.

NOISE

HAC-63

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NOISE

Component Function Check

INFOID:0000000009482500

SYMPTOM: Noise

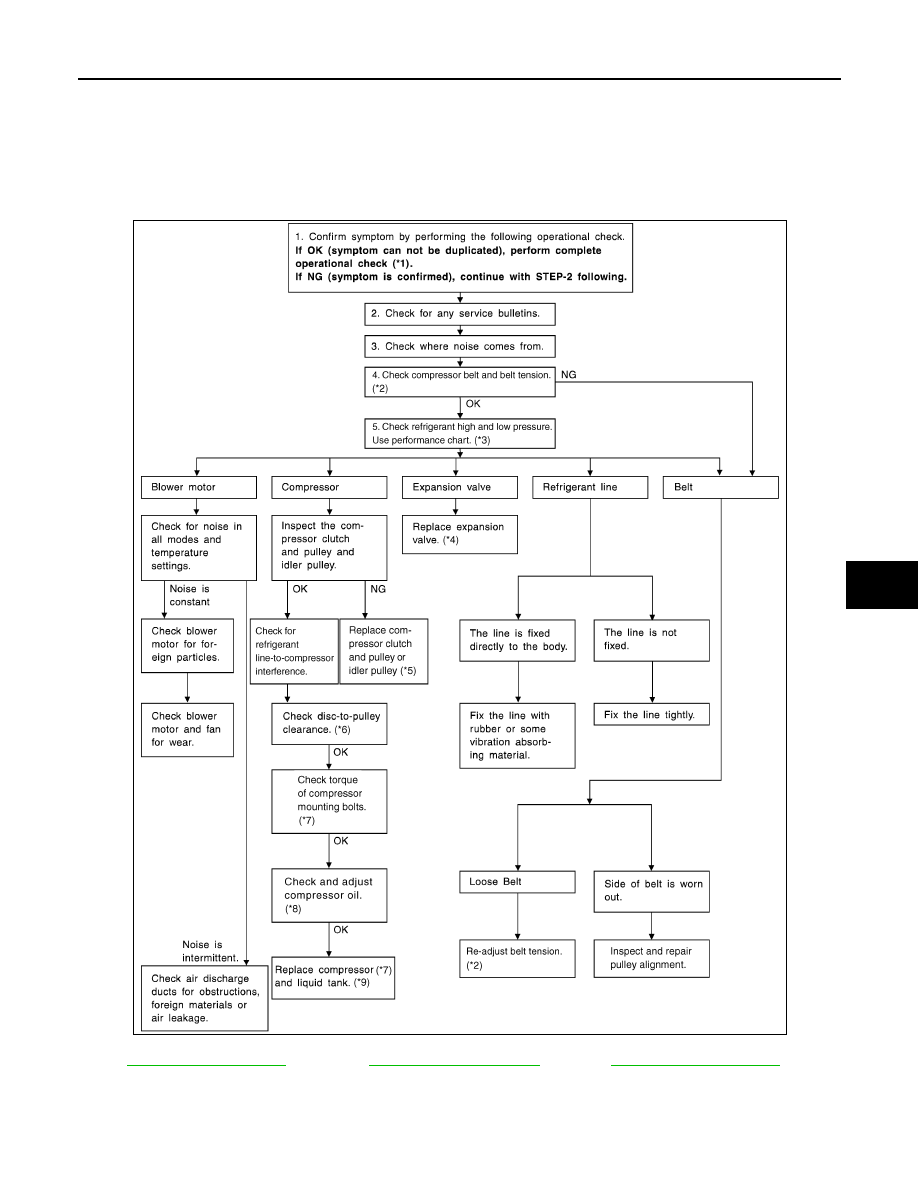

INSPECTION FLOW

*1

HAC-4, "Operational Check"

*2

EM-13, "Checking Drive Belts"

 *3

HAC-56, "Performance Chart"

AWIIA1001GB

HAC-64

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

NOISE

*4

HA-37, "Removal and Installation"

*5

HA-28, "Removal and Installation of
Compressor Clutch"



*6

HA-28, "Removal and Installation of
Compressor Clutch"

*7

HA-27, "Removal and Installation of
Compressor"

*8

HA-18, "Maintenance of Oil Quantity
in Compressor"



*9

HA-35, "Removal and Installation of
Condenser"

PRECAUTIONS

HAC-65

< PRECAUTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009482501

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Working with HFC-134a (R-134a)

INFOID:0000000009482502

WARNING:

• CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. If the refrigerants

are mixed compressor failure is likely to occur. Refer to

HA-3, "Contaminated Refrigerant"

. To deter-

mine the purity of HFC-134a (R-134a) in the vehicle and recovery tank, use Refrigerant Recovery/

Recycling Recharging equipment and Refrigerant Identifier.

• Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. If

oil other than that specified is used, compressor failure is likely to occur.

• The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following

handling precautions must be observed:

- When removing refrigerant components from a vehicle, immediately cap (seal) the component to

minimize the entry of moisture from the atmosphere.

- When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just

before connecting the components. Connect all refrigerant loop components as quickly as possible

to minimize the entry of moisture into system.

- Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without

proper sealing, oil will become moisture saturated and should not be used.

- Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.

Remove HFC-134a (R-134a) from the A/C system using certified service equipment meeting require-

ments of SAE J2210 [HFC-134a (R-134a) recycling equipment], or J2209 [HFC-134a (R-134a) recy-

cling equipment], If accidental system discharge occurs, ventilate work area before resuming

service. Additional health and safety information may be obtained from refrigerant and oil manufac-

turers.

- Do not allow A/C oil to come in contact with styrofoam parts. Damage may result.

CONTAMINATED REFRIGERANT
