GW-14

< UNIT REMOVAL AND INSTALLATION >

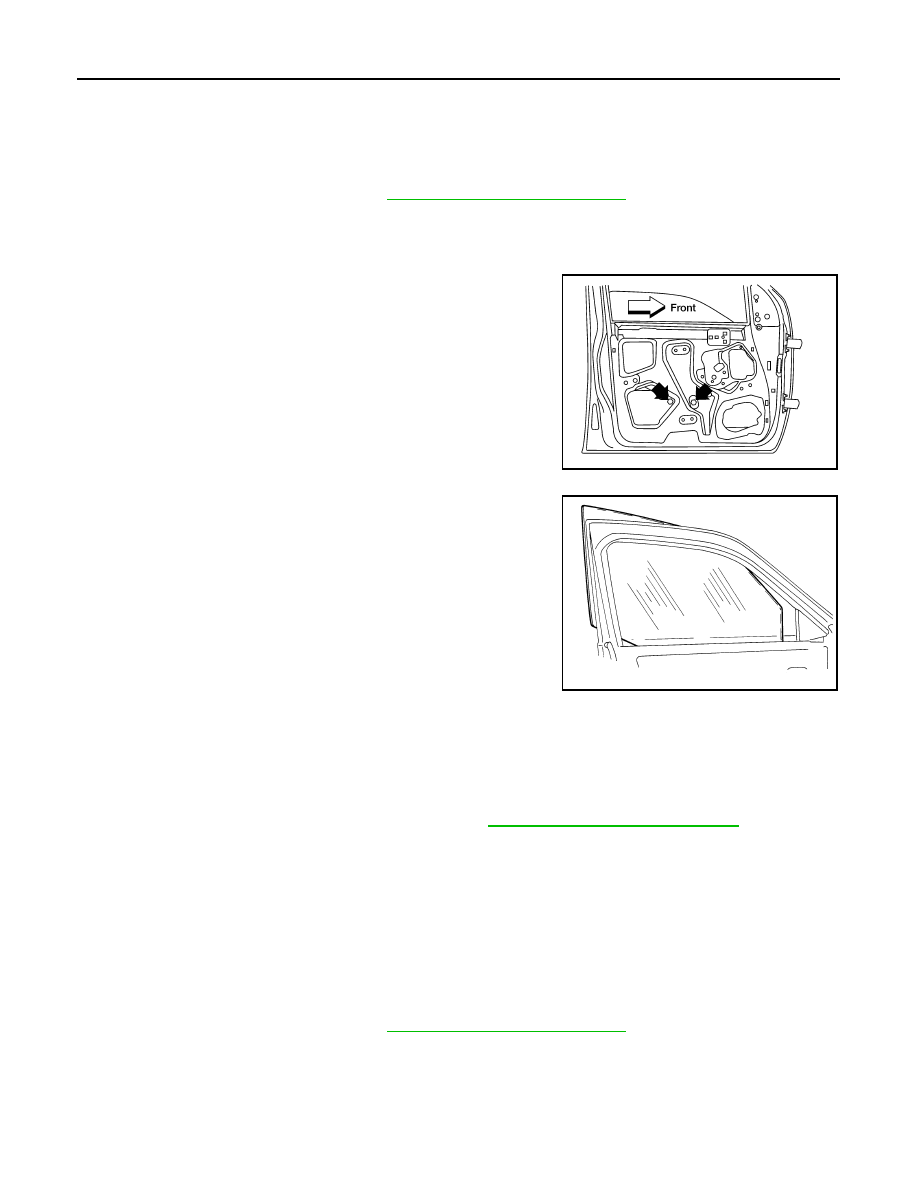

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

Front Door Glass

INFOID:0000000009484312

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear bracket and the vapor barrier.
3. Remove the window inside seals covering the glass bolts.
4. Temporarily reconnect the power window switch.
5. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

6. Remove the glass bolts.

7. While holding the door window, raise it at the rear and pull the

glass out of the sash toward the outside of the door.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass for proper fit. Follow the FITTING INSPECTION procedure.

• On the driver door, perform system initialization. Refer to

PWC-61, "Removal and Installation"

.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to correct the glass position.

Front Door Glass Regulator

INFOID:0000000009484313

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Partially remove the vapor barrier and position aside.
3. Remove the inside window seals covering the glass bolts.
4. Temporarily reconnect the power window switch.

LIIA1686E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

FRONT DOOR GLASS AND REGULATOR

GW-15

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

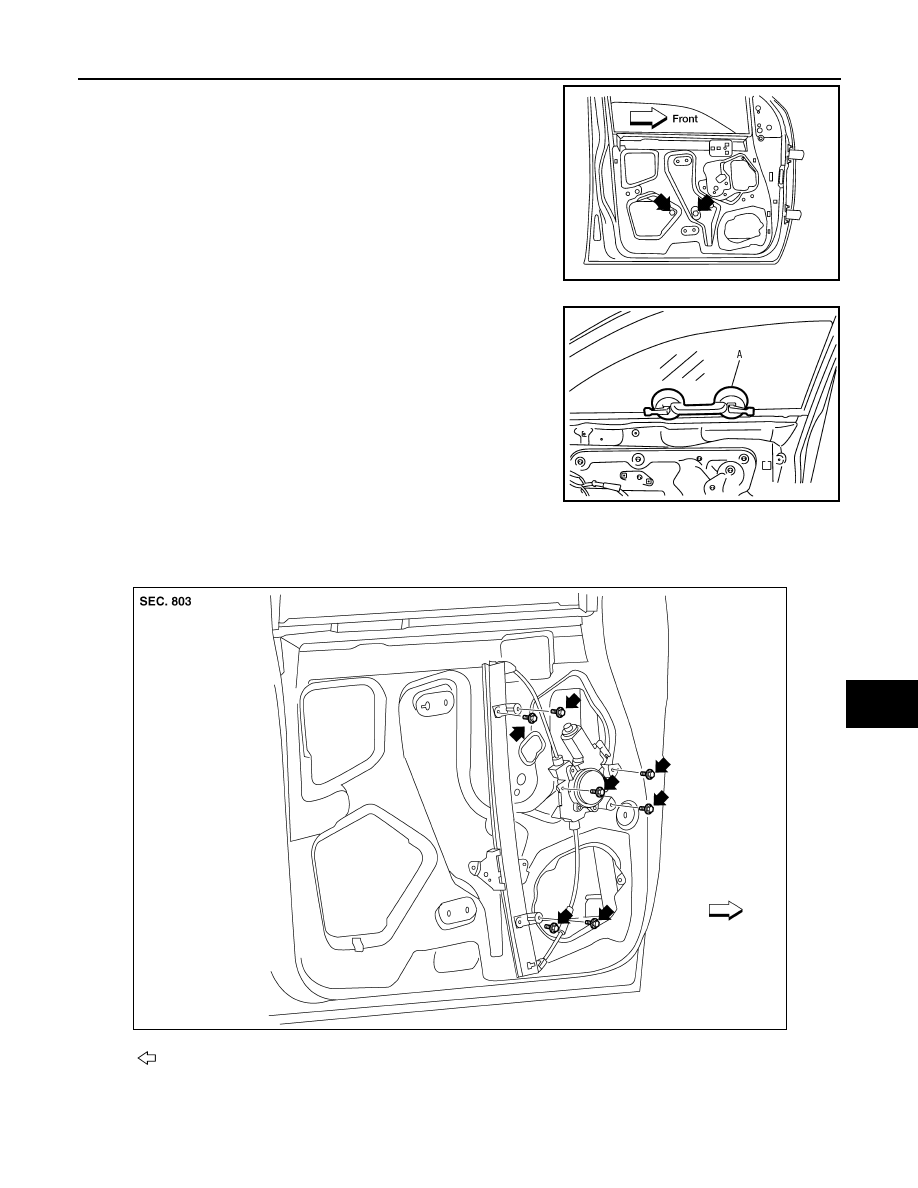

5. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

6. Remove the glass bolts.

7. Raise the front door glass and hold it in place with suitable tool

(A).

8. Disconnect the harness connector from the regulator assembly.
9. Remove the bolts and the regulator assembly.

DISASSEMBLY AND ASSEMBLY

Remove the regulator motor from the regulator assembly.

INSPECTION AFTER REMOVAL

LIIA1686E

PIIB3510J

Front

WIIA1033E

GW-16

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

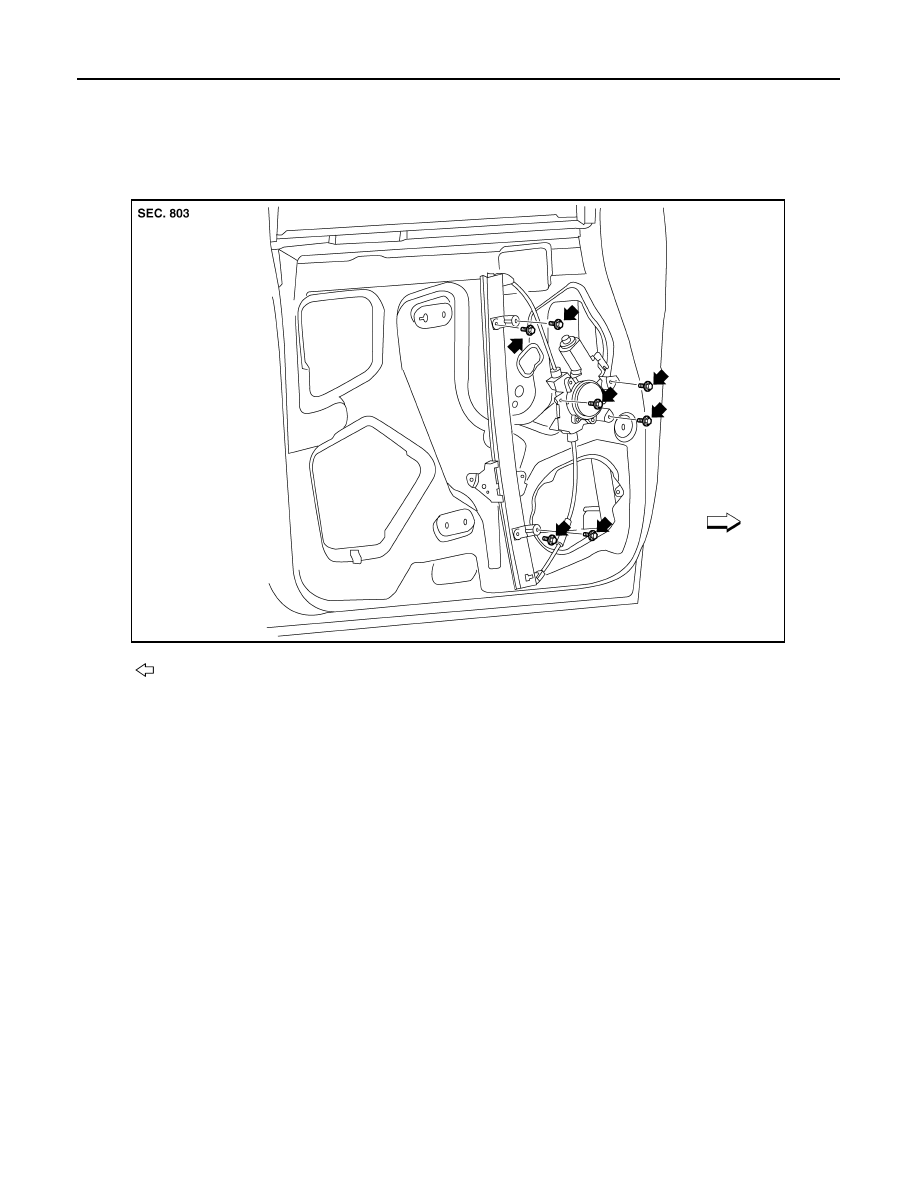

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

INSTALLATION

1. Install the regulator assembly.
a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor to

install the assembly in the door.

b. Install the top front regulator bolt.
c.

Install the bottom front regulator bolt.

d. Install the bottom rear regulator bolt.
e. Tighten the top rear regulator bolt.
f.

Install the top window motor bolt.

g. Install the lower window motor bolt
h. Install the rear window motor bolt.

2. Connect the harness connector to the regulator assembly.

Front

Regulator and motor bolts : 5.1 N·m (0.52 kg-m, 45 in-lb)

WIIA1033E

FRONT DOOR GLASS AND REGULATOR

GW-17

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

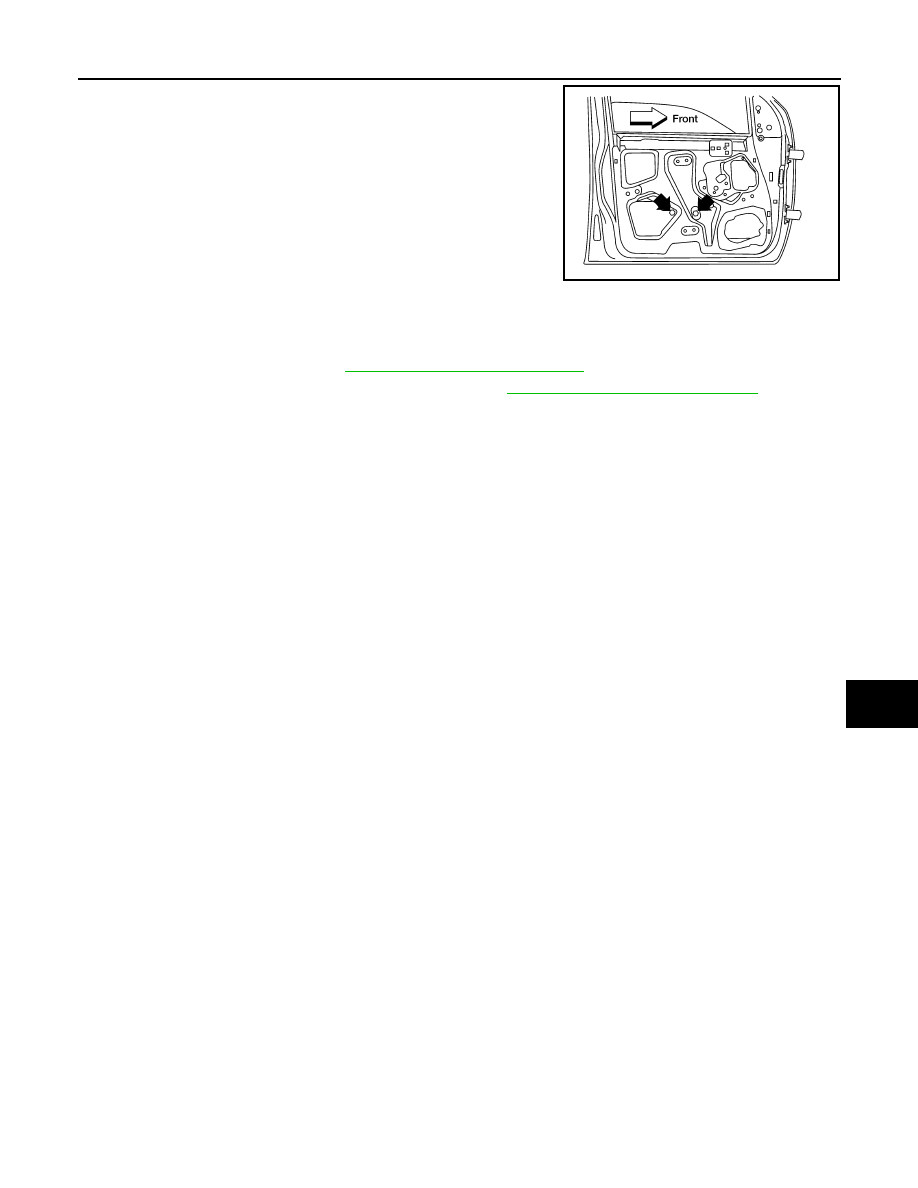

3. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten glass bolts.

4. Check the glass for proper fit.
5. Install the window inside seals over the glass bolt holes.
6. Install the vapor barrier.
7. Install front door finisher. Refer to

INT-14, "Removal and Installation"

.

8. On the driver door, perform system initialization. Refer to

PWC-61, "Removal and Installation"

.

Glass mounting bolts : 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1686E
