EXT-18

< REMOVAL AND INSTALLATION >

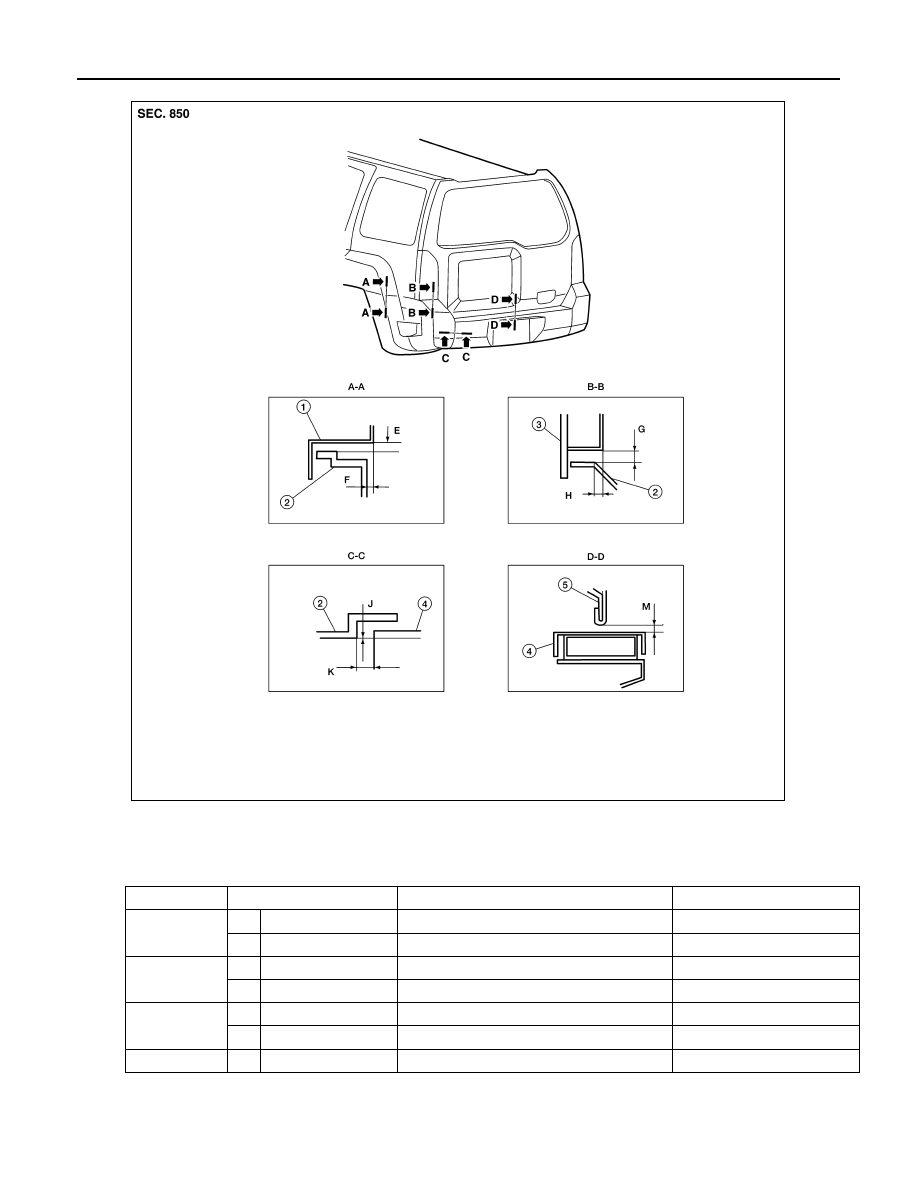

REAR BUMPER

Units: mm (in)

1.

Rear body side outer LH

2.

Rear bumper fascia

3.

Rear combination lamp

4.

Rear bumper

5.

Back door assembly

ALKIA1954ZZ

Portion

Measurement

Standard

Difference (MAX)

A-A

E

Clearance

1.0 (0.04)

± 1.0 (0.04)

F

Surface height

—

—

B–B

G

Clearance

2.0 (0.08)

± 1.5 (0.06)

H

Surface height

—

 —

C-C

J

Clearance

15.0 (0.59)

± 3.0 (0.12)

K

Surface height

0.0 (0.00)

± 3.0 (0.12)

D-D

M

Clearance

12.0 (0.47)

± 5.0 (0.20)

FRONT GRILLE

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

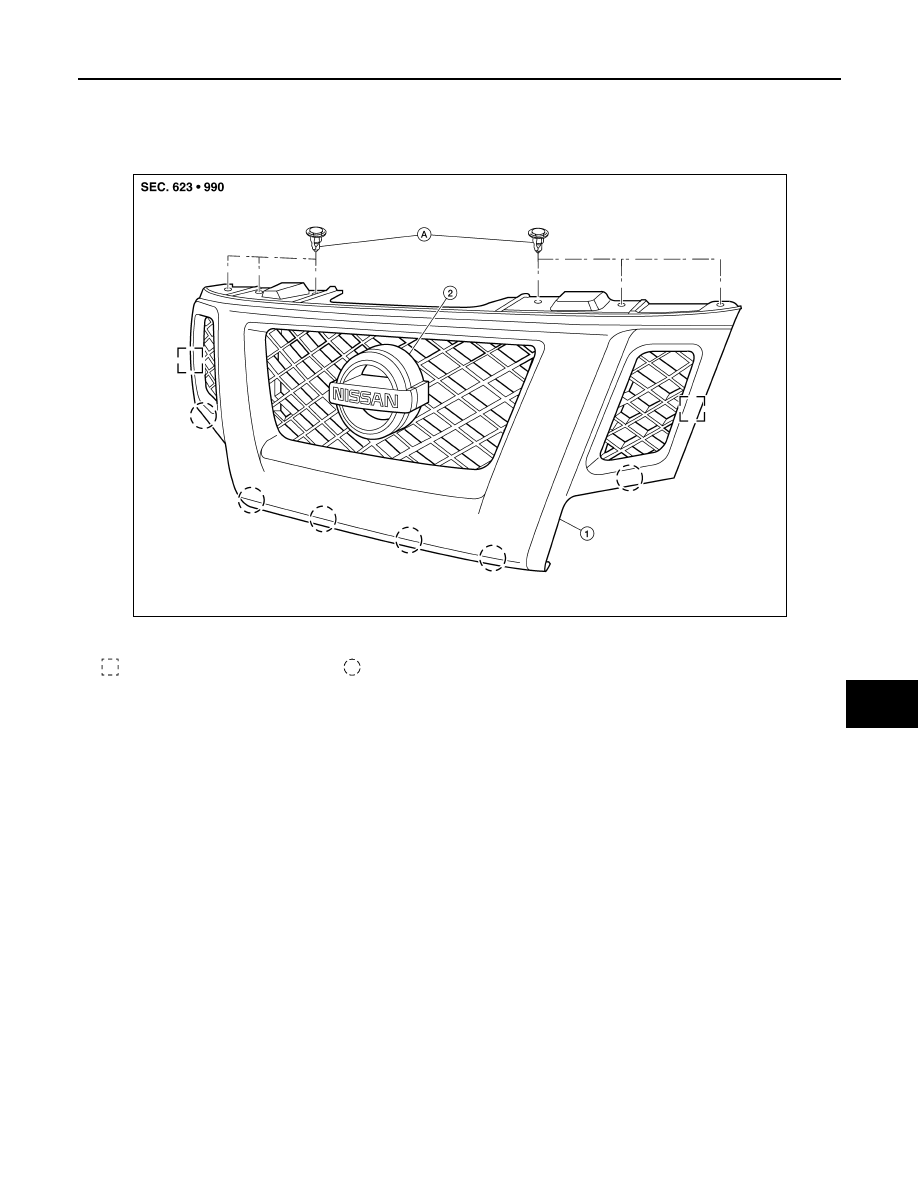

FRONT GRILLE

Removal and Installation

INFOID:0000000009483701

REMOVAL

1. Release upper clips from the front grille.
2. Release the pawls and clips at lower edge and sides, then remove the front grille from front bumper

assembly.

3. Remove the front emblem, if necessary.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front grille

2.

Front emblem

A.

C205 clips

Metal clip

Pawl

ALKIA1729ZZ

EXT-20

< REMOVAL AND INSTALLATION >

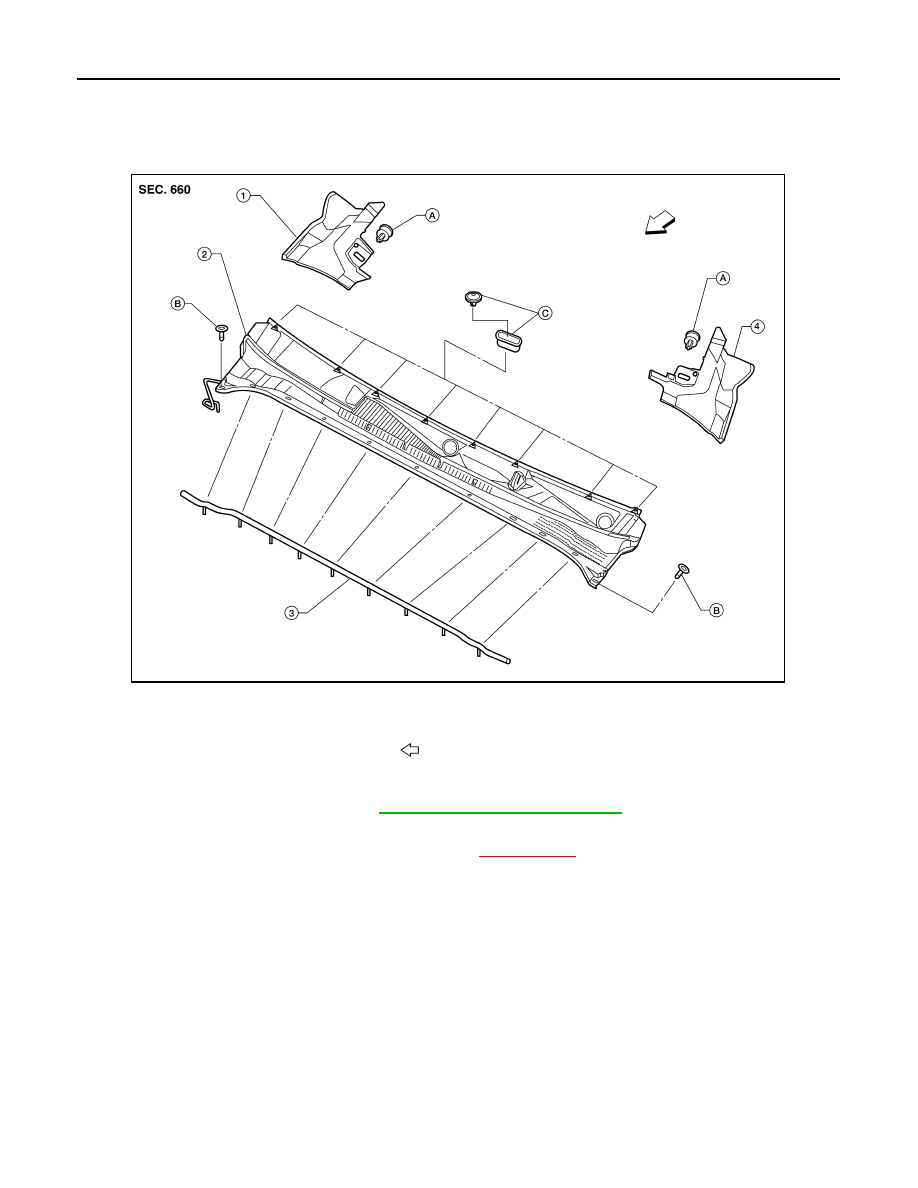

COWL TOP

COWL TOP

Removal and Installation

INFOID:0000000009483702

REMOVAL

1. Remove the front wiper arms. Refer to

WW-67, "Removal and Installation"

.

2. Remove the cowl top seal.
3. Remove the rubber seal and audio antenna. Refer to

XX-XX, "*****"

.

4. Remove the cowl top clips and lift the cowl top, disconnect the washer tubes from the washer nozzles and

remove the cowl top.

5. Release the clips and remove the cowl top extensions (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

1.

Cowl top extension (RH)

2.

Cowl top

3.

Cowl top seal

4.

Cowl top extension (LH)

A.

Clip C205

B.

Clip C103

C.

Grommet CF110

Front

AWKIA0063ZZ

FRONT FENDER

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

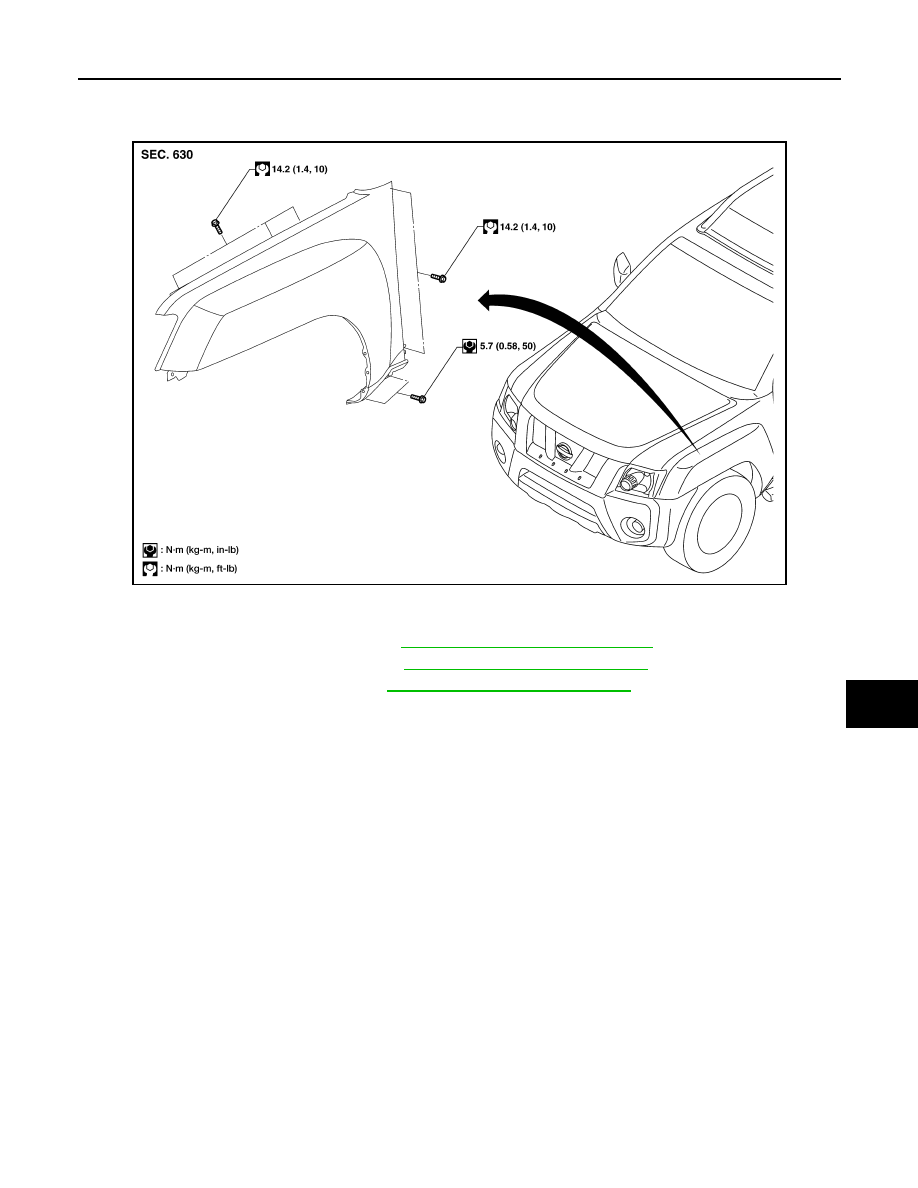

FRONT FENDER

Removal and Installation

INFOID:0000000009483703

REMOVAL

1. Remove front combination lamp. Refer to

EXL-157, "Removal and Installation"

.

2. Remove mudguard (if equipped). Refer to

EXT-24, "Removal and Installation"

.

3. Remove front fender protector. Refer to

EXT-22, "Removal and Installation"

.

4. Remove hood prop rod and hood prop rod hold down clip.

CAUTION:

Support the hood striker with a suitable tool to prevent it from falling.

5. Remove front fender bolts from hoodledge and dash side panel.
6. Remove front fender bolts from rocker panel and radiator core support member.
7. Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2135E
