REMOVAL AND INSTALLATION

FRONT BUMPER

Removal and Installation

INFOID:0000000009483699

ALKIA1728GB

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL

NOTE:

Removal of engine under cover is not required for front bumper fascia removal only.
1. Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

2. Remove front bumper valance.
3. Partially remove front fender protector. Refer to

EXT-22, "Removal and Installation"

.

4. Disconnect the harness connectors the from fog lamps (if equipped).
5. Remove front bumper fascia.
6. Remove first crossmember assembly.
7. Remove front bumper fascia bracket.

INSTALLATION

Installation is in the reverse order of removal.

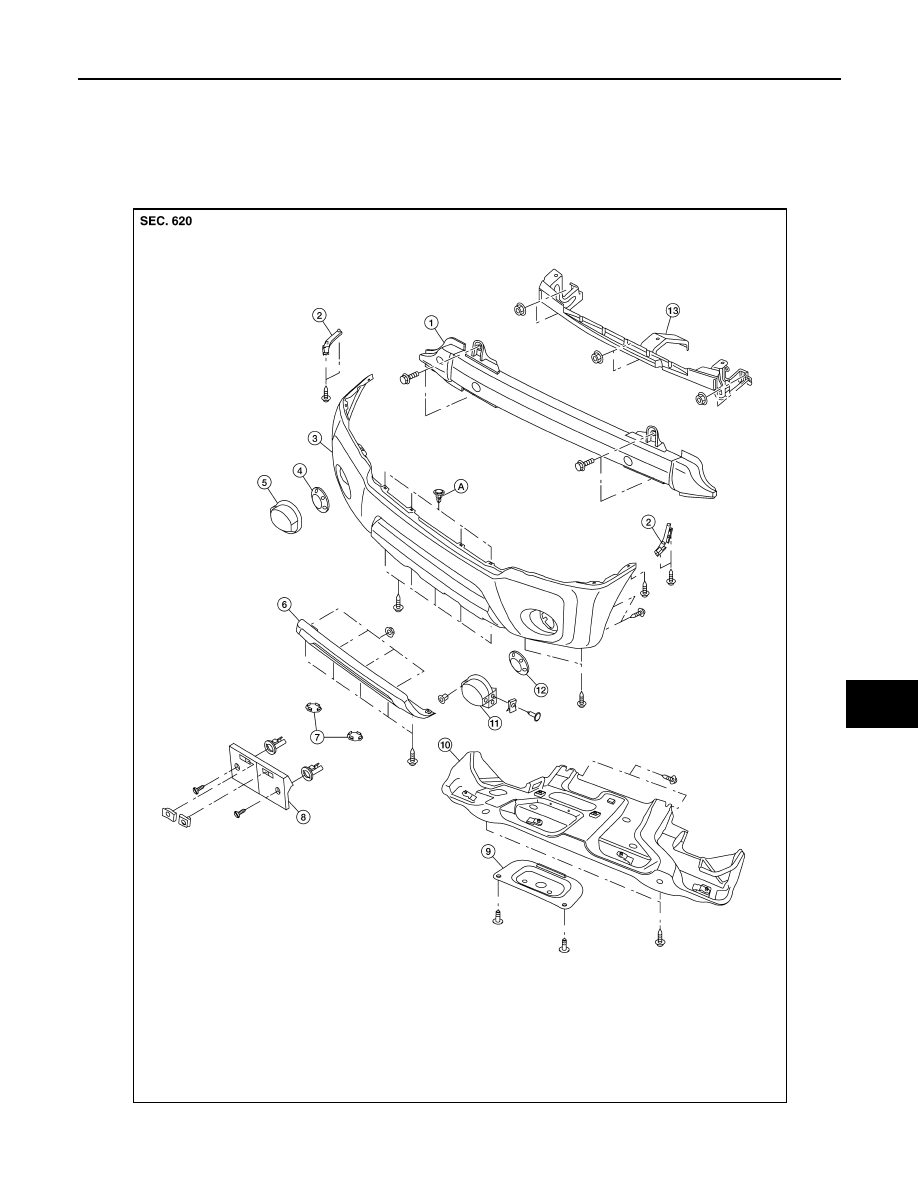

Units: mm (in)

1.

First crossmember assembly

2.

Front fascia side bracket (LH/RH)

3.

Front bumper fascia

4.

Fog lamp opening finisher (RH) (if
equipped)

5.

Fog lamp (RH) (if equipped)

6.

Front bumper valance

7.

Access plug

8.

Front license plate bracket

9.

Engine under cover access
door

10. Engine under cover (if equipped)

11. Fog lamp (LH) (if equipped)

12. Fog lamp opening finisher (LH)

(if equipped)

13. Front bumper fascia bracket

A.

Clip C205

1.

Front combination lamp

2.

Front bumper fascia

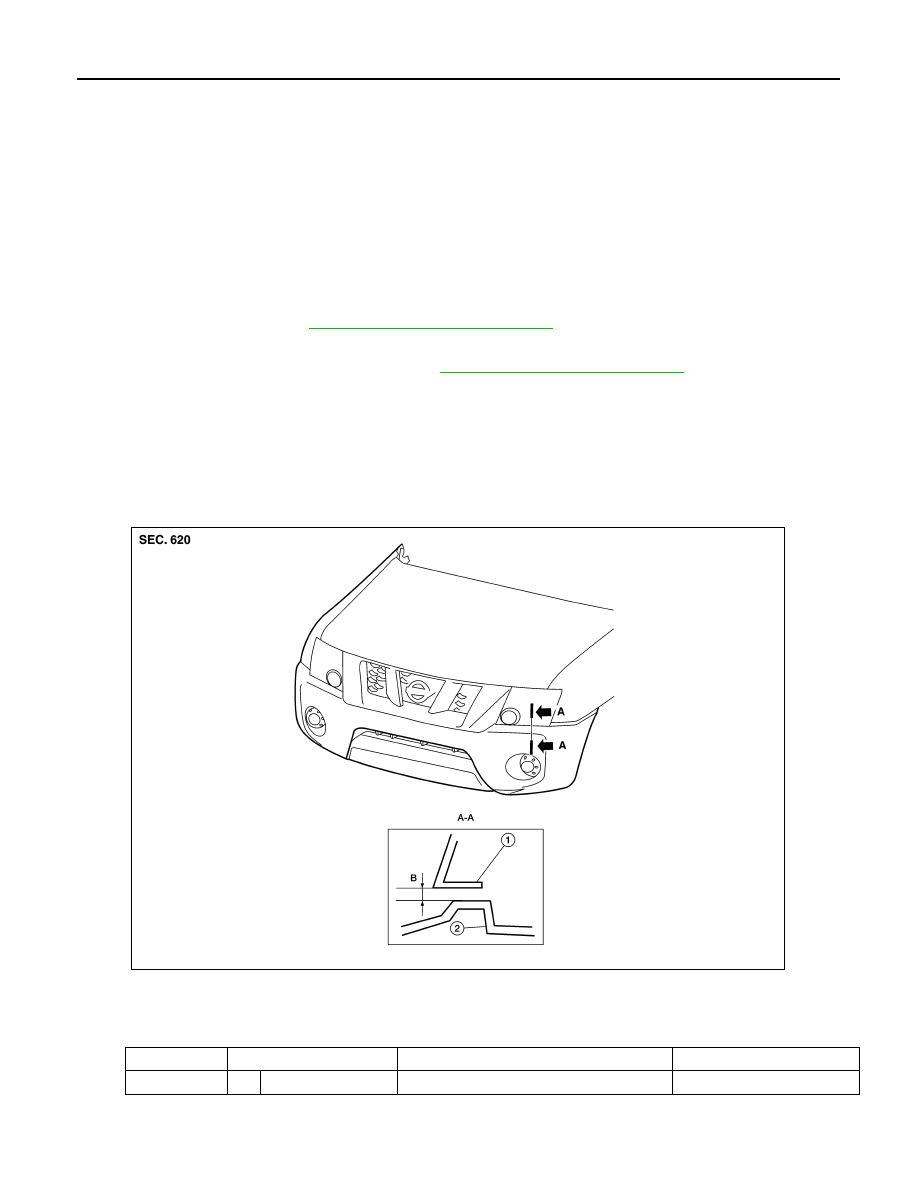

ALKIA1953ZZ

Portion

Measurement

Standard

Difference (MAX)

A-A

B

Clearance

3.0 (0.12)

± 1.5 (0.06)

REAR BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR BUMPER

Removal and Installation

INFOID:0000000009483700

REMOVAL

1. Remove the rear fender protectors (LH/RH). Refer to

EXT-22, "Removal and Installation"

.

2. Remove the rear bumper fascia (LH/RH) front screws at wheel opening.
3. Release the rear bumper fascia clips and remove rear bumper fascia (LH/RH).
4. Remove the rear bumper fascia lower stay bolts and side step plate bracket (LH/RH).
5. Remove the license lamps and harness.
6. Remove the rear bumper to frame bolts and rear bumper.
7. Remove the center step pad.
8. Remove the rear bumper side step pads (LH/RH).
9. Remove the rear bumper side steps (LH/RH).
10. Remove the drafter duct from lower side of LH quarter panel.

INSTALLATION

Installation is in the reverse order of removal.

• Apply sealant to clips securing rear bumper side step plate during installation.

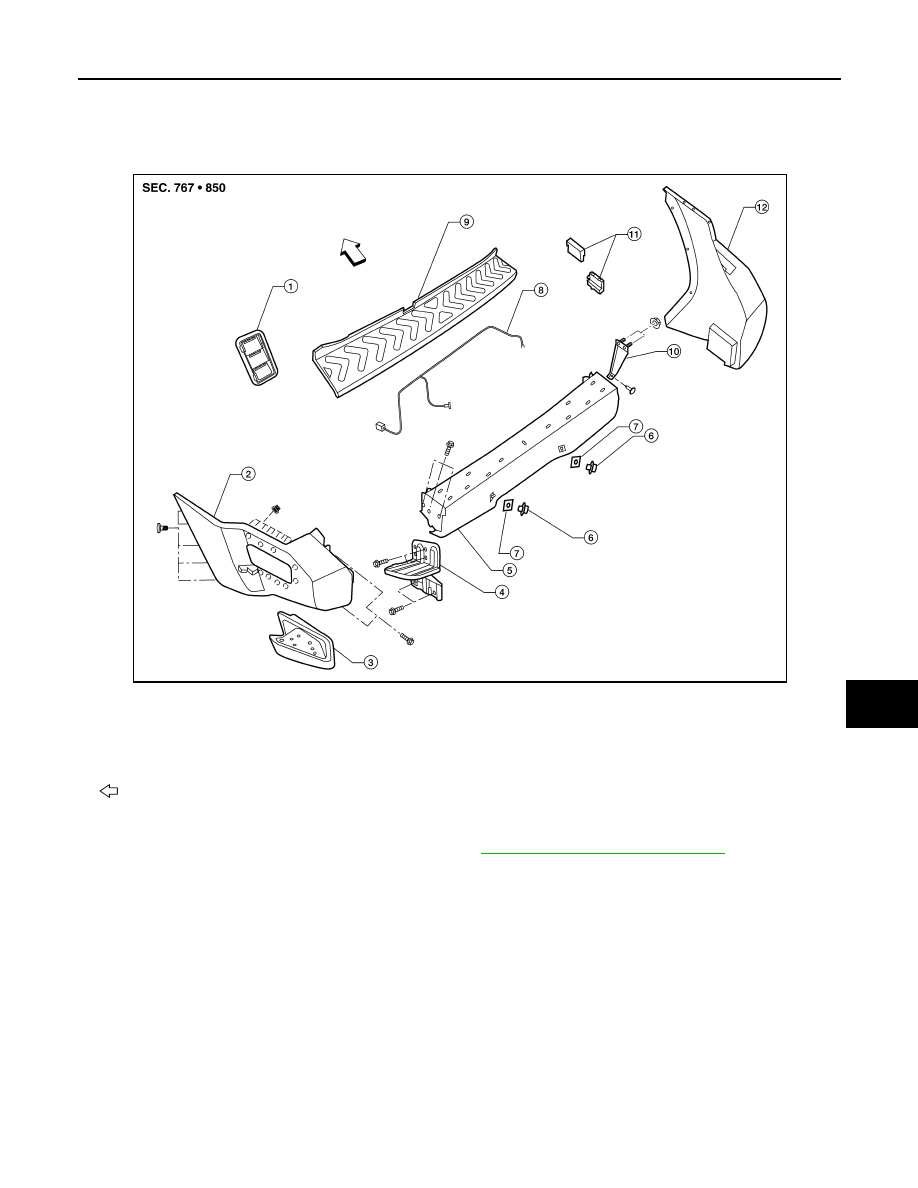

1.

Drafter duct

2.

Rear bumper fascia (LH)

3.

Rear bumper side step

4.

Rear bumper side step bracket

5.

Rear bumper

6.

License lamp

7.

Gasket

8.

License lamp harness

9.

Center step pad

10. Rear bumper fascia lower stay (LH/RH)

11. Rear bumper fascia clip

12. Rear bumper fascia (RH)

Front

AWKIA1584ZZ
