EXL-168

< REMOVAL AND INSTALLATION >

OFF-ROAD LAMPS

OFF-ROAD LAMPS

Removal and Installation

INFOID:0000000009484970

OFF ROAD LAMPS

Removal

1. Remove the screws.
2. Remove the off road lamp cover.
3. Disconnect the harness connector from the off road lamp assembly and remove.

Installation

Installation is in the reverse order of removal.

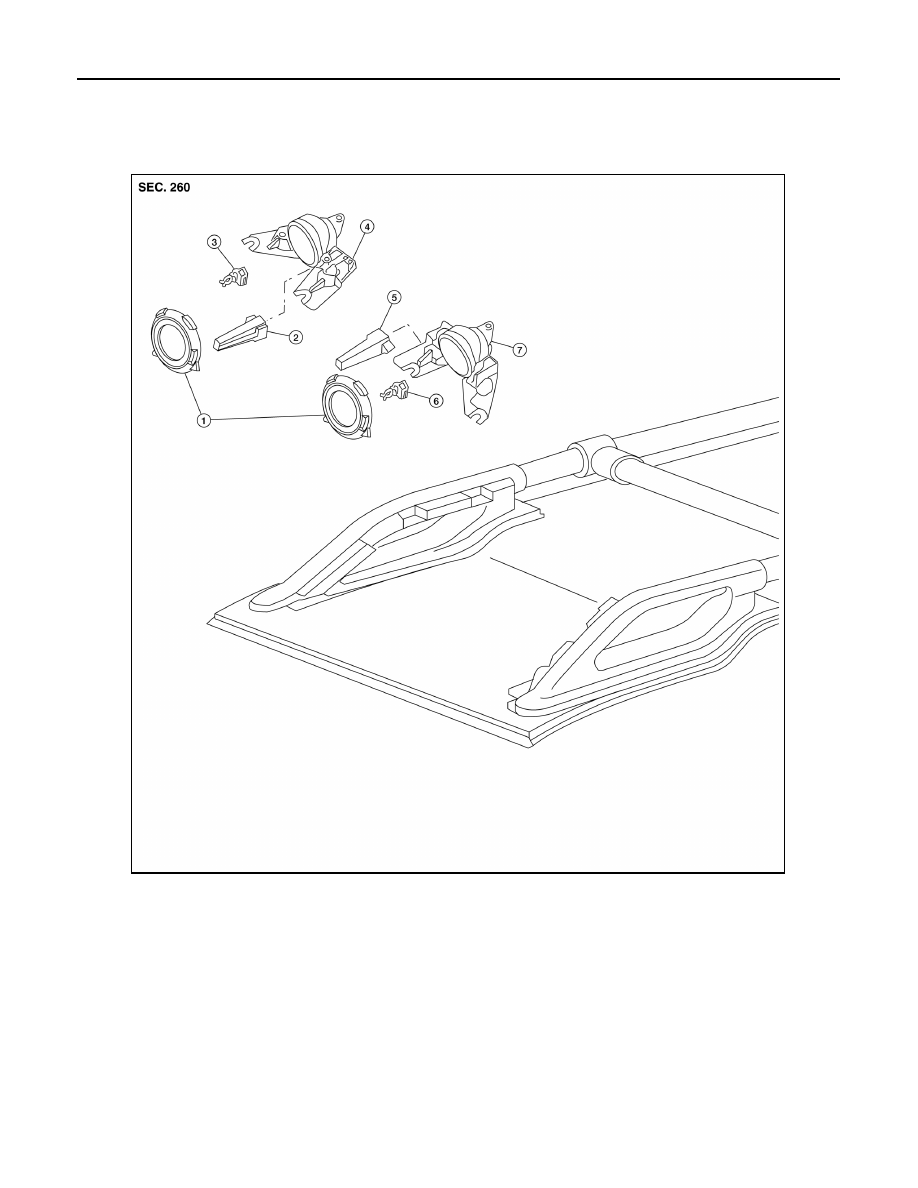

1.

Off road lamp covers

2.

Sensor cover (RH)

3.

Off road lamp bulb (RH)

4.

Off road lamp assembly (RH)

5.

Sensor cover (LH)

6.

Off road lamp bulb (LH)

7.

Off road lamp assembly (LH)

AWLIA1818ZZ

OFF-ROAD LAMPS

EXL-169

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

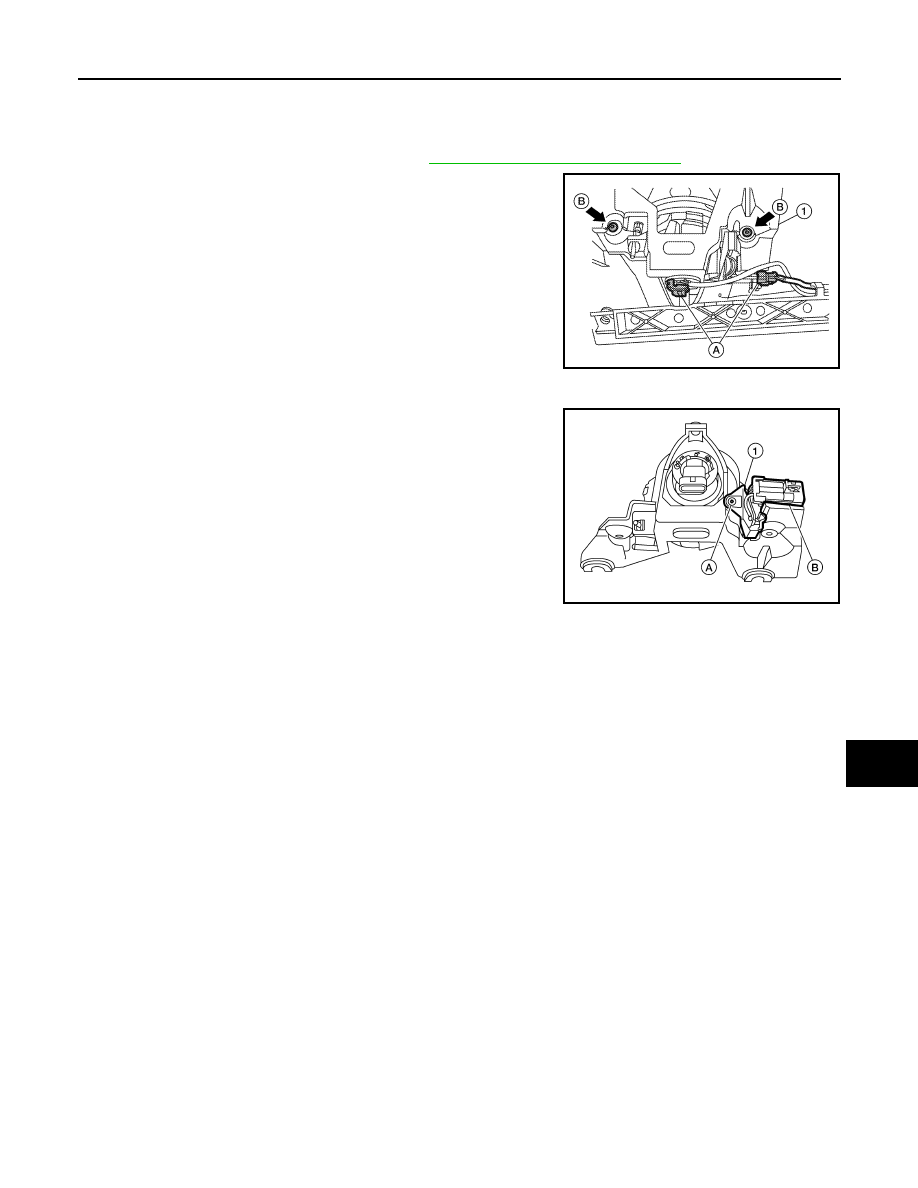

Disassembly and Assembly

INFOID:0000000009484971

Disassembly

1. Remove the off road lamp assembly. Refer to

EXL-168, "Removal and Installation"

2. Disconnect the harness connectors (A).
3. Remove the screws (B) and the lamp assembly (1).

4. Remove the harness bracket.
5. Remove the screw (A). Unclip the connector from the lamp

assembly (B) and remove the lamp cover sensor (1).

6. Remove the off road lamp bulb.

Assembly

Assembly is in the reverse order of disassembly.

ALKIA1736GB

ALKIA1737GB

EXL-170

< SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Bulb Specifications

INFOID:0000000009484972

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Front combination lamp

Headlamp (Halogen low beam)

55

Headlamp (Halogen high beam)

65

Park/Turn lamp

8/28

Front side marker lamp

3.8

Rear combination lamp

Stop/Tail lamp

27/8

Rear turn signal lamp

27

Back-up lamp

18

Frong fog lamp

55

License plate lamp

5

High-mounted stop lamp

–

Off road lights

60

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Service Notice  ...........................................................

2

Precaution for Procedure without Cowl Top Cover ......

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tools .......................................

4

CLIP LIST  ............................................................

5

Descriptions for Clips  ................................................

5

SYMPTOM DIAGNOSIS  ...............................

9

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

9

Work Flow  .................................................................

9

Generic Squeak and Rattle Troubleshooting  ..........

10

Diagnostic Worksheet  .............................................

13

REMOVAL AND INSTALLATION ...............

15

FRONT BUMPER  ...............................................

15

Removal and Installation  .........................................

15

REAR BUMPER  ................................................

17

Removal and Installation  .........................................

17

FRONT GRILLE  ................................................

19

Removal and Installation  .........................................

19

COWL TOP  .......................................................

20

Removal and Installation  .........................................

20

FRONT FENDER ...............................................

21

Removal and Installation  .........................................

21

FENDER PROTECTOR  ....................................

22

Removal and Installation  .........................................

22

MUDGUARD .....................................................

24

Removal and Installation  .........................................

24

RUNNING BOARDS  .........................................

25

Removal and Installation  .........................................

25

ROOF RACK  .....................................................

26

Removal and Installation  .........................................

26

DOOR OUTSIDE MOLDING  .............................

27

Removal and Installation  .........................................

27

SIDE GUARD MOLDING ..................................

28

Removal and Installation  .........................................

28
