Nissan Xterra. Manual - part 419

EXL-164

< REMOVAL AND INSTALLATION >

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

High-Mounted Stop Lamp

INFOID:0000000009484965

BULB REPLACEMENT

The high-mounted stop lamp bulbs are not serviceable.

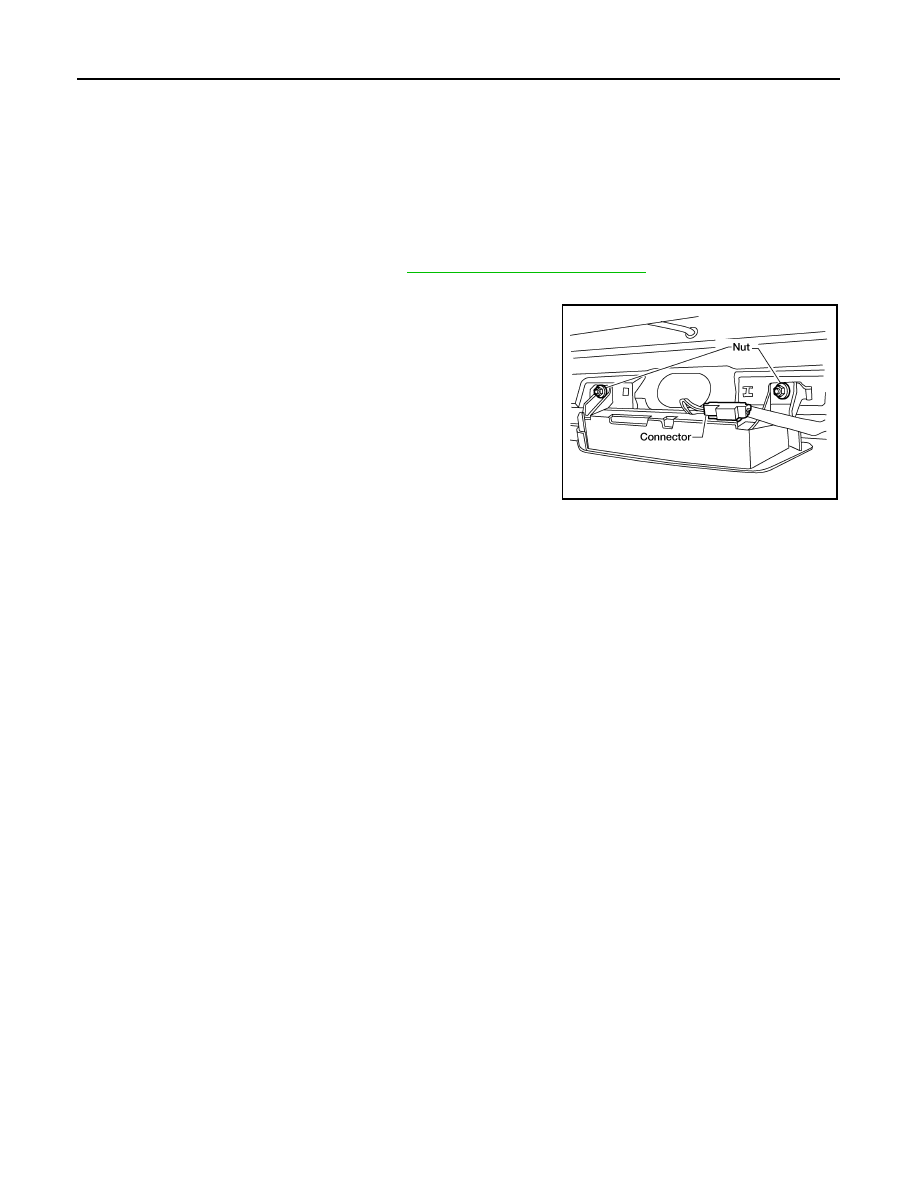

REMOVAL AND INSTALLATION

Removal

1. Remove back door upper finisher. Refer to

INT-26, "Removal and Installation"

2. Disconnect the harness connector from the high-mounted stop lamp.
3. Remove nuts and the high-mounted stop lamp.

Installation

Installation is in the reverse order of removal.

LKIA0576E

LICENSE PLATE LAMP

EXL-165

< REMOVAL AND INSTALLATION >

EXL

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000009484966

REMOVAL

1. Turn bulb socket counterclockwise and remove.
2. Remove license plate lamp bulb.

IINSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000009484967

REMOVAL

1. Remove license lamp finisher.
2. Disconnect the harness connector from the license plate lamp.
3. Remove license plate lamp screw and license plate lamp.

INSTALLATION

Installation is in the reverse order of removal.

EXL-166

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

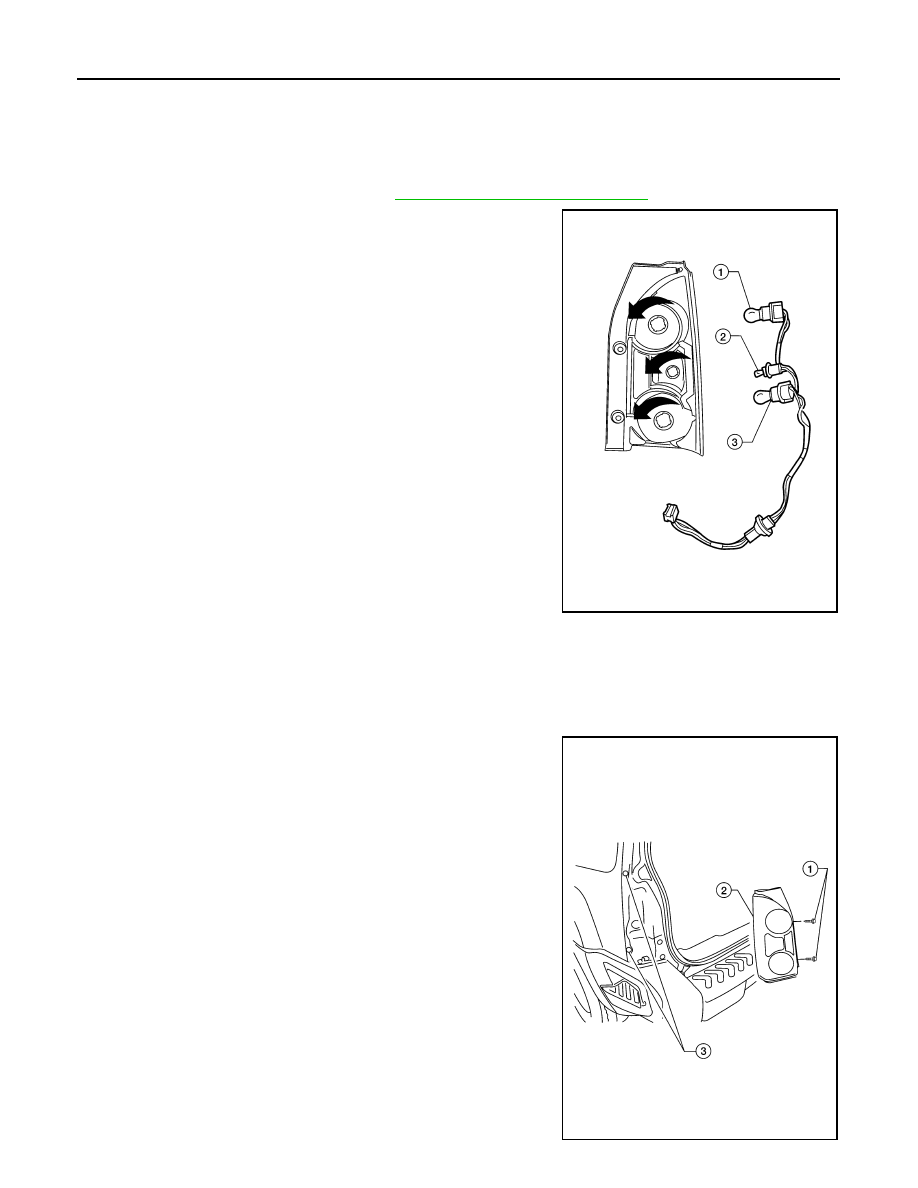

Bulb Replacement

INFOID:0000000009484968

REMOVAL

1. Remove rear combination lamp. Refer to

EXL-166, "Removal and Installation"

2. Rotate each bulb socket (1, 2, 3) counterclockwise and remove.
3. Pull bulb straight out away from socket to release.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000009484969

REMOVAL

1. Remove rear combination lamp bolts (1).

• Rear combination lamp locator (3)

2. Pull the lamp assembly (2) rearward to remove from the vehicle.
3. Disconnect the harness connector from the rear combination

lamp and remove.

WKIA3963E

WKIA3994E

REAR COMBINATION LAMP

EXL-167

< REMOVAL AND INSTALLATION >

EXL

INSTALLATION

Installation is in the reverse order of removal.
