Nissan Xterra. Manual - part 295

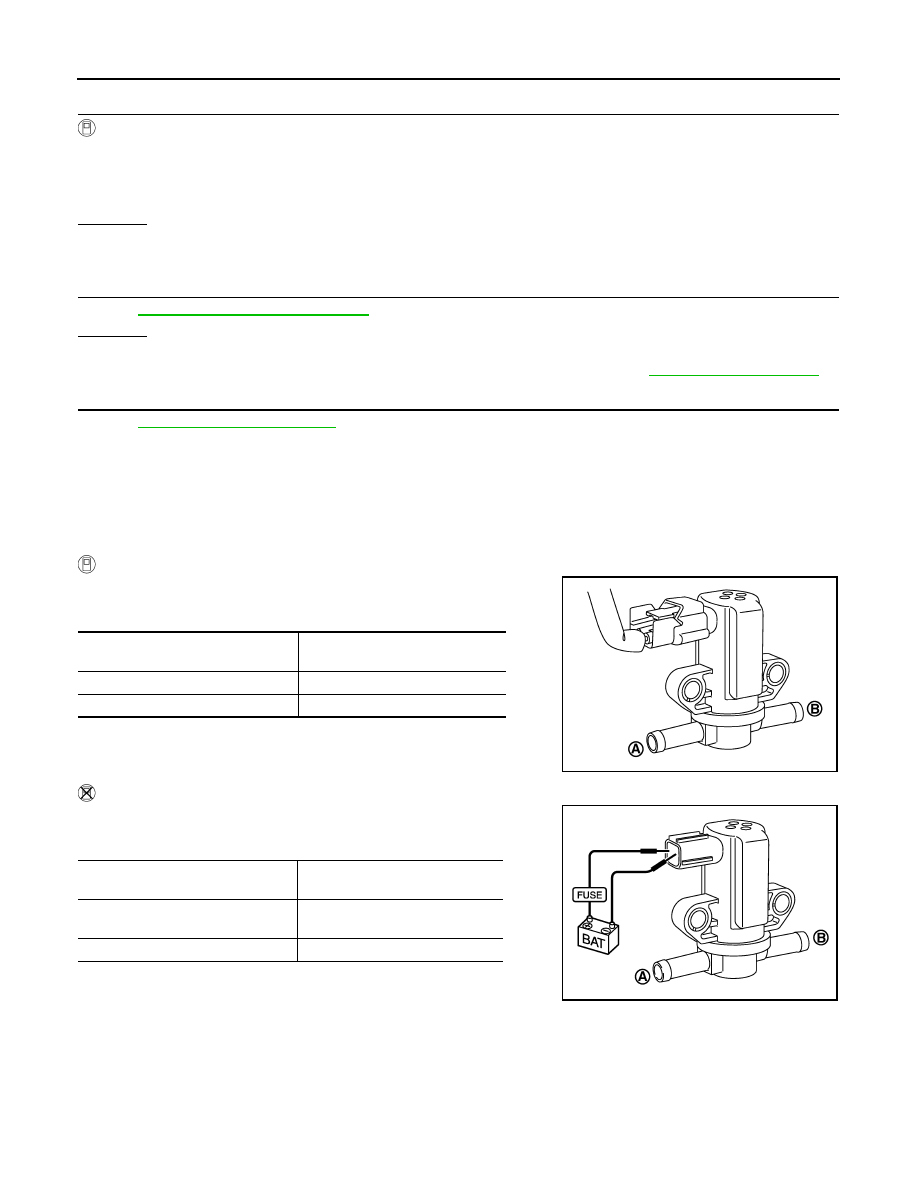

EC-306

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

4.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

 With CONSULT

1. Reconnect all harness connectors disconnected.

2. Start engine.

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT. Check that engine speed varies

according to the valve opening.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-306, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EM-25, "Exploded View"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009484009

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

 With CONSULT

Check air passage continuity of EVAP canister purge volume control

solenoid valve under the following conditions.

 Without CONSULT

Check air passage continuity of EVAP canister purge volume control

solenoid valve under the following conditions.

Condition

(PURG VOL CONT/V value)

Air passage continuity

between (A) and (B)

100%

Yes

0%

No

PBIB2058E

Condition

Air passage continuity

between (A) and (B)

12V direct current supply between
terminals 1 and 2

Yes

No supply

No

PBIB2059E

P0447 EVAP CANISTER VENT CONTROL VALVE

EC-307

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

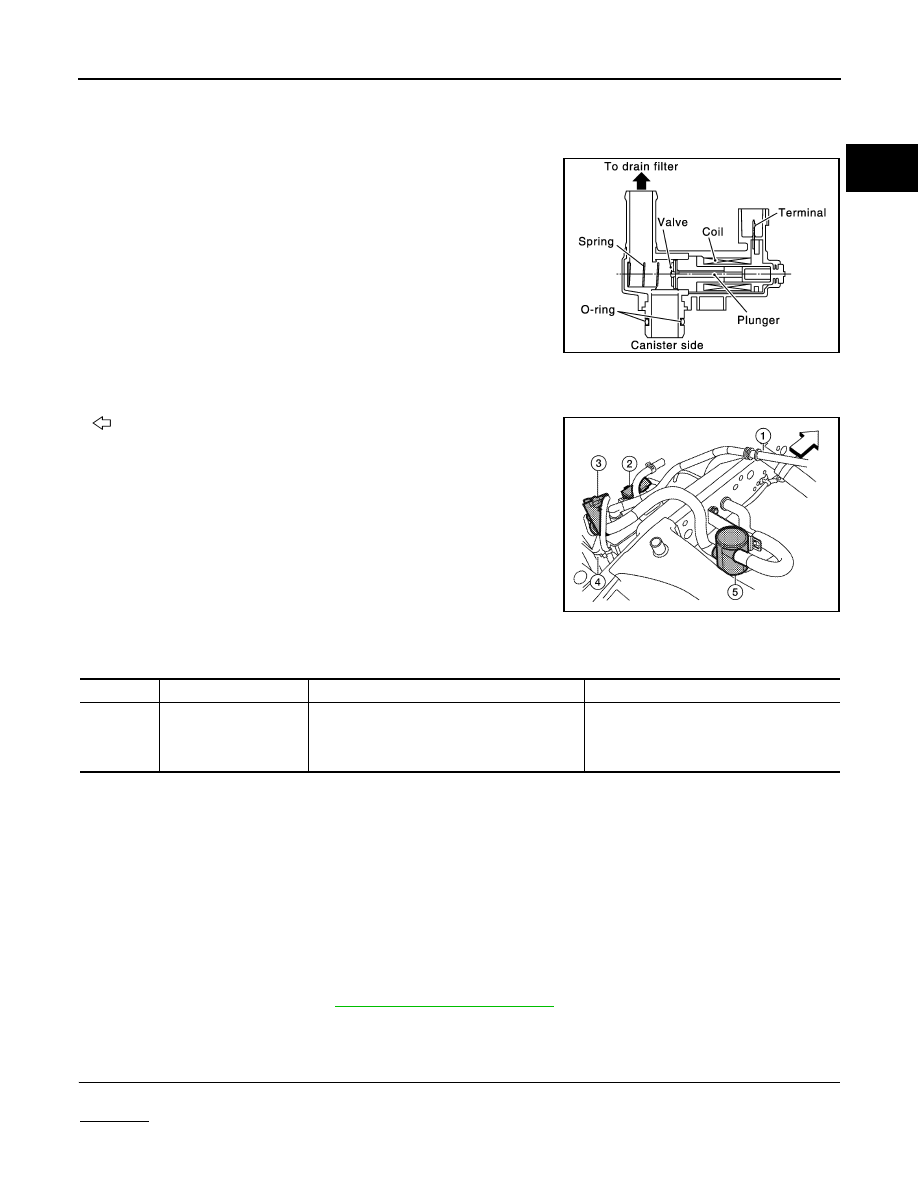

P0447 EVAP CANISTER VENT CONTROL VALVE

Component Description

INFOID:0000000009484010

The EVAP canister vent control valve (3) is located on the EVAP

canister (4) and is used to seal the canister vent.

This solenoid valve responds to signals from the ECM. When the

ECM sends an ON signal, the coil in the solenoid valve is energized.

A plunger will then move to seal the canister vent. The ability to seal

the vent is necessary for the on board diagnosis of other evaporative

emission control system components.

This solenoid valve is used only for diagnosis, and usually remains

opened.

When the vent is closed, under normal purge conditions, the evapo-

rative emission control system is depressurized and allows EVAP

Control System diagnosis.

• Fuel filler pipe (1)

• EVAP control system pressure sensor (2)

• Drain filter (5)
•

: Vehicle front

On Board Diagnosis Logic

INFOID:0000000009484011

DTC Confirmation Procedure

INFOID:0000000009484012

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm battery voltage is more than 11V at idle.

1. Start engine and wait at least 8 seconds.

2. Check 1st trip DTC.

3. If 1st trip DTC is detected, go to

EC-307, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009484013

1.

INSPECTION START

Do you have CONSULT?
Yes or No

Yes

>> GO TO 2.

PBIB3642E

AWBIA0223ZZ

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0447
0447

EVAP canister vent con-
trol valve circuit open

An improper voltage signal is sent to ECM
through EVAP canister vent control valve.

• Harness or connectors

(The valve circuit is open or shorted.)

• EVAP canister vent control valve
• Drain filter

EC-308

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

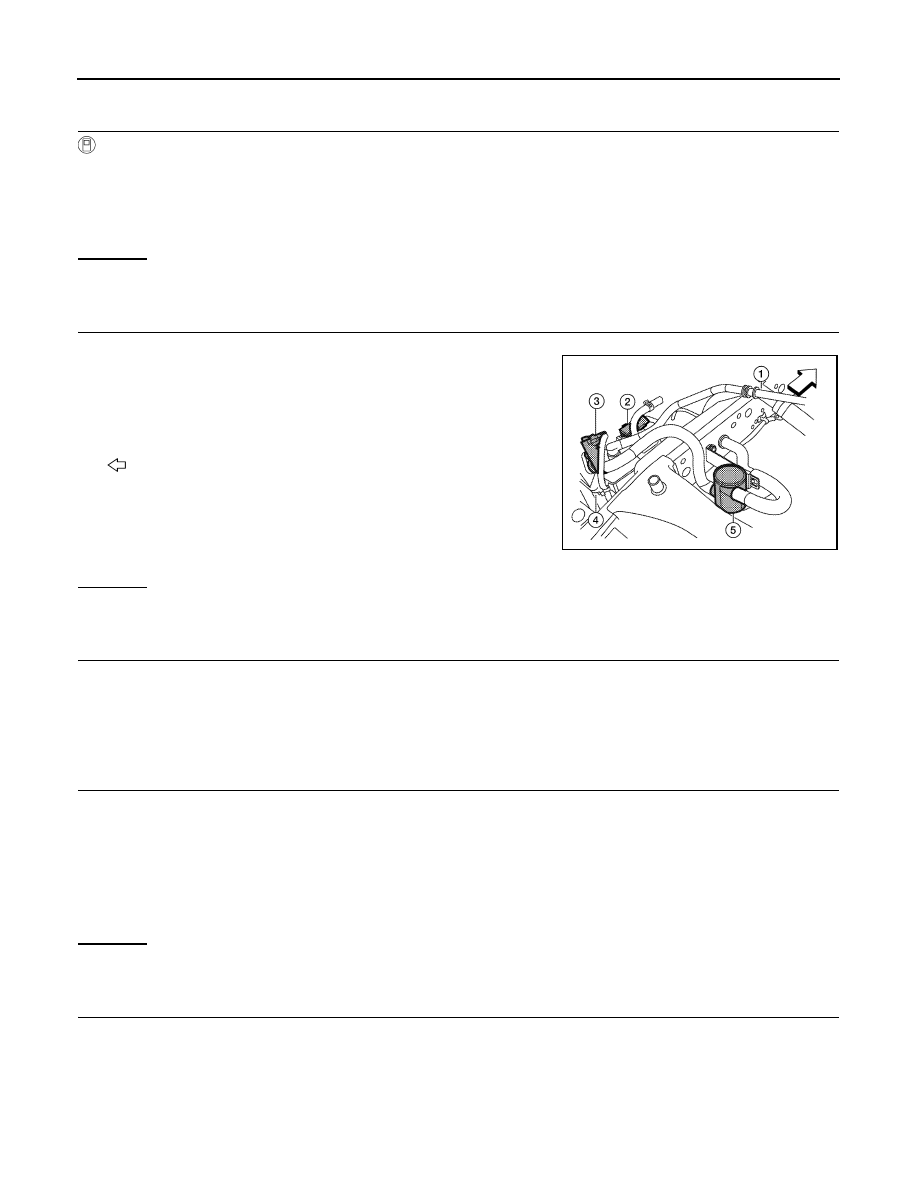

P0447 EVAP CANISTER VENT CONTROL VALVE

No

>> GO TO 3.

2.

CHECK EVAP CANISTER VENT CONTROL VALVE CIRCUIT

With CONSULT

1. Turn ignition switch OFF and then ON.

2. Select “VENT CONTROL/V” in “ACTIVE TEST” mode with CONSULT.

3. Touch “ON/OFF” on CONSULT screen.

4. Check for operating sound of the valve.

Clicking noise should be heard.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 3.

3.

CHECK EVAP CANISTER VENT CONTROL VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect EVAP canister vent control valve (3) harness con-

nector.

-

Fuel filler pipe (1)

-

EVAP control system pressure sensor (2)

-

EVAP canister (4)

-

Drain filter (5)

-

: Vehicle front

3. Turn ignition switch ON.

4. Check voltage between EVAP canister vent control valve termi-

nal 1 and ground with CONSULT or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors E41, C1

• Harness for open or short between EVAP canister vent control valve and IPDM E/R

>> Repair harness or connectors.

5.

CHECK EVAP CANISTER VENT CONTROL VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between ECM terminal 106 and EVAP canister vent control valve terminal 2.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors C1, E41

• Harness for open or short between EVAP canister vent control valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

Voltage: Battery voltage

AWBIA0223ZZ

Continuity should exist.

P0447 EVAP CANISTER VENT CONTROL VALVE

EC-309

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

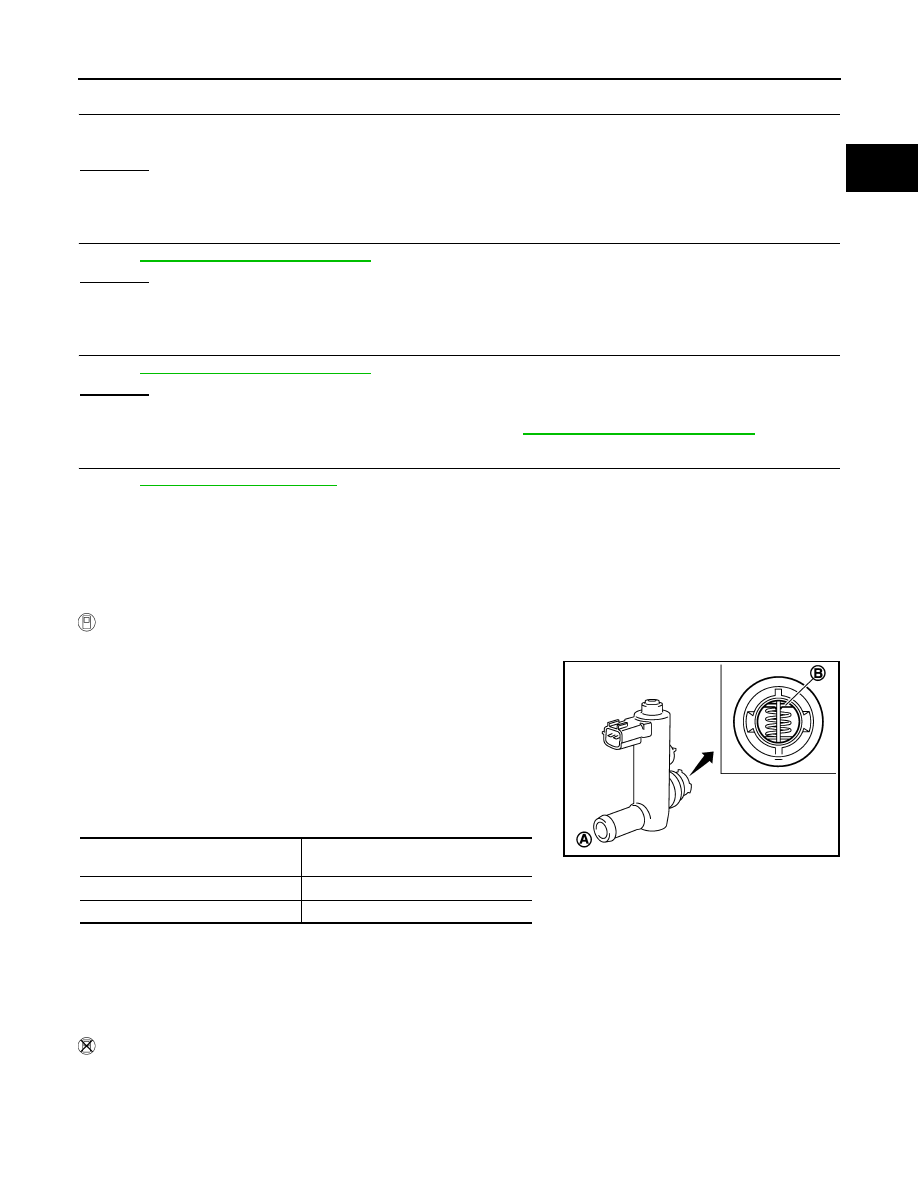

7.

CHECK RUBBER TUBE FOR CLOGGING

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
OK or NG

OK

>> GO TO 8.

NG

>> Clean the rubber tube using an air blower.

8.

CHECK DRAIN FILTER

Refer to

EC-309, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Replace drain filter.

9.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-309, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Replace EVAP canister vent control valve. Refer to

FL-16, "Removal and Installation"

.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009484014

EVAP CANISTER VENT CONTROL VALVE

 With CONSULT

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for rust.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.
5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time.

Make sure that new O-ring is installed properly.

Operation takes less than 1 second.

If NG, go to next step.

7. Clean the air passage (portion A to B) of EVAP canister vent control valve using an air blower.
8. Perform step 6 again.
9. If NG, replace EVAP canister vent control valve.

 Without CONSULT

1. Remove EVAP canister vent control valve from EVAP canister.

Condition VENT CONTROL/V

Air passage continuity

 between (A) and (B)

ON

No

OFF

Yes

PBIB1033E
