Nissan Xterra. Manual - part 218





DLK-114

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

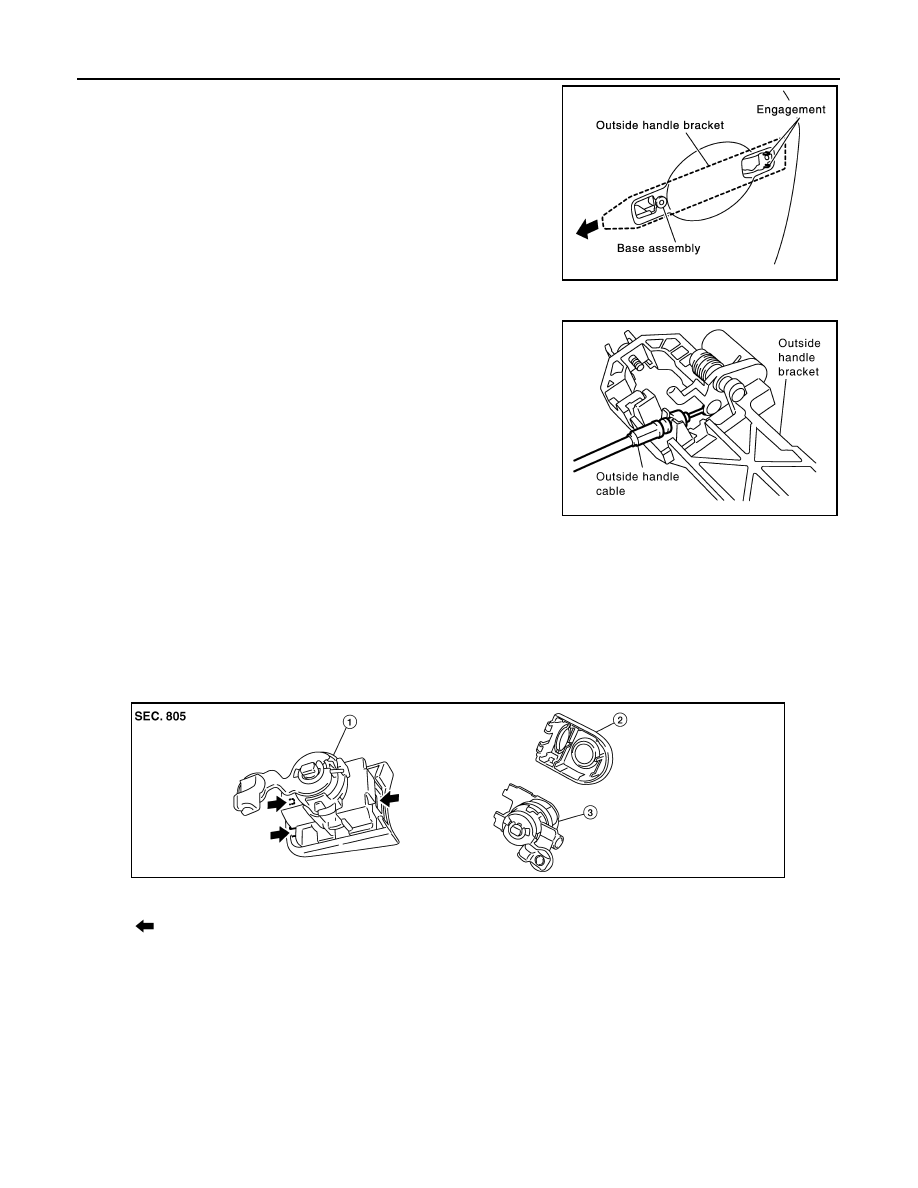

9. While pulling door outside handle bracket, slide toward rear of

vehicle to remove door outside handle bracket and door lock

assembly as shown.

10. Disconnect the harness connector from door lock actuator.
11. Separate the door outside handle cable connection from the

door outside handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

• Do not twist the door lock cable when installing the front door lock.

Disassembly and Assembly

INFOID:0000000009485098

DOOR KEY CYLINDER ASSEMBLY

Release the key cylinder escutcheon pawls to remove the door key cylinder.

PIIA3558E

PIIA5059E

1.

Door key cylinder assembly

2.

Door key cylinder escutcheon

3.

Door key cylinder

Pawl

WIIA1057E

REAR DOOR LOCK

DLK-115

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

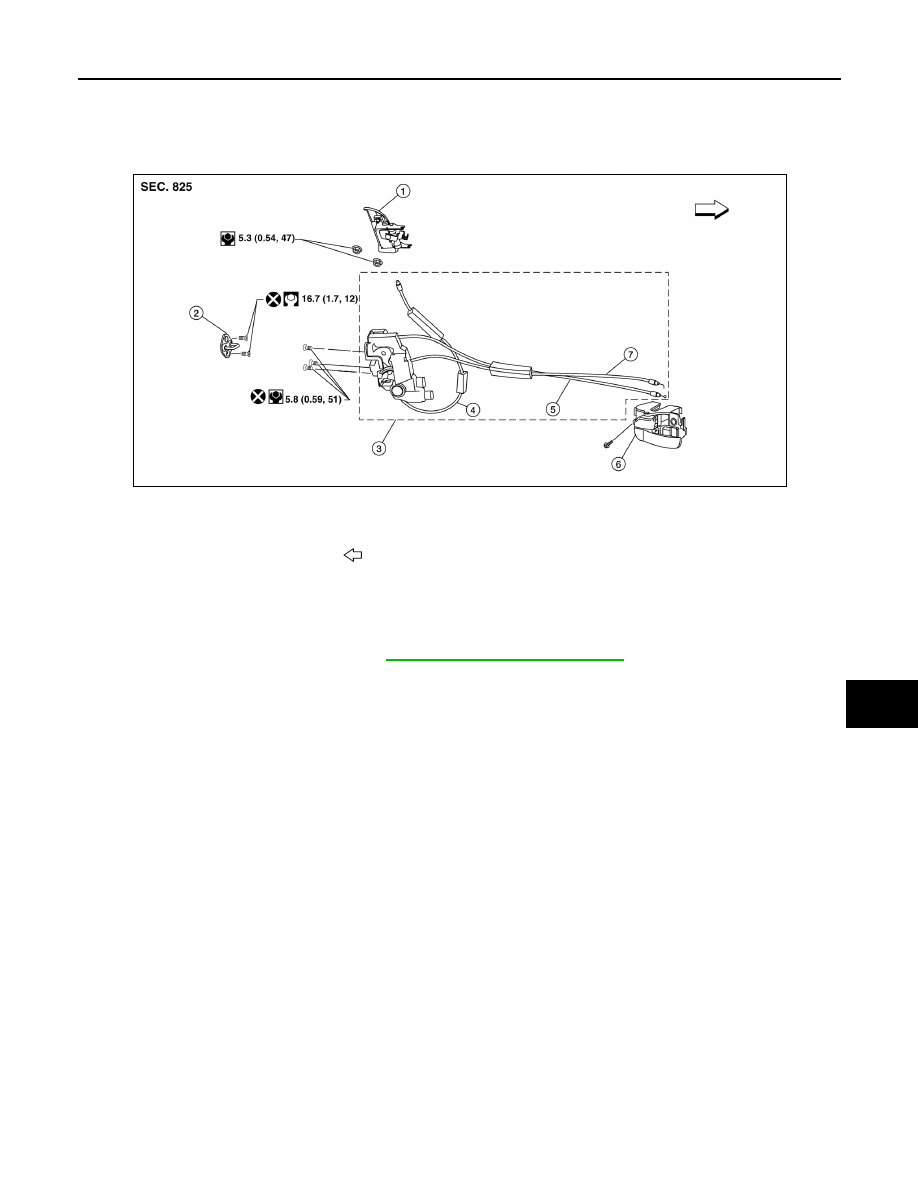

REAR DOOR LOCK

Component Structure

INFOID:0000000009485099

Removal and Installation

INFOID:0000000009485100

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Position the vapor shield aside.
3. Remove the rear door arm rest bracket.
4. Remove door grommets and door outside handle nuts from the hole.
5. Remove door outside handle.
6. Disconnect the door outside handle cable connection.
7. Remove the inside door handle.
8. Disconnect the door lock and door inside handle cables from the inside door handle.
9. Disconnect the harness connector from door lock actuator and remove the assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not twist the door outside handle cable, door inside handle cable and door lock cable during instal-

lation.

1.

Door outside  handle

2.

Rear door striker

3.

Rear door lock assembly

4.

Door outside  handle cable

5.

Inside door handle cable

6.

Inside door handle assembly

7.

Door lock cable

Front

AWKIA1794GB

DLK-116

< REMOVAL AND INSTALLATION >

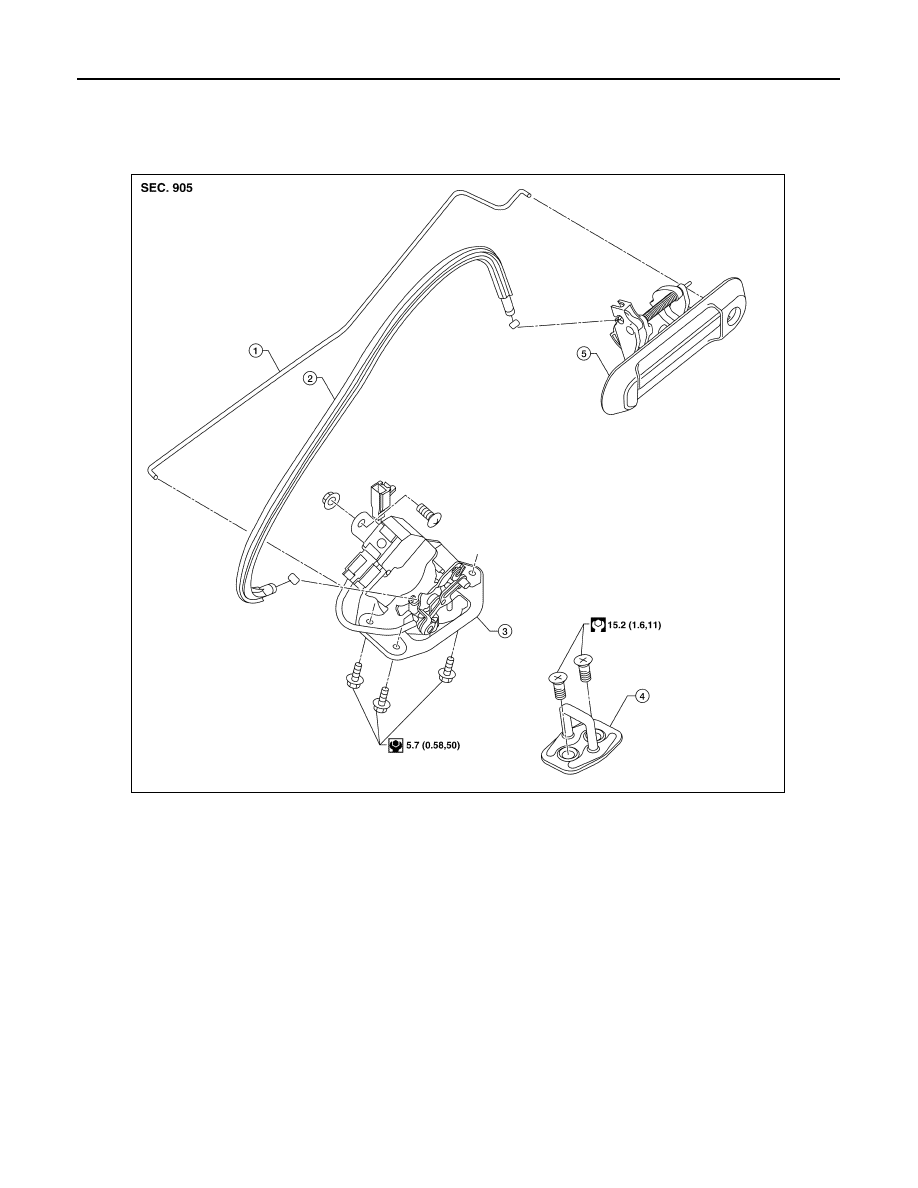

BACK DOOR LOCK

BACK DOOR LOCK

Component Structure

INFOID:0000000009485101

1.

Back door lock rod

2.

Back door latch cable

3.

Back door latch

4.

Back door striker

5.

Back door release handle

WIIA0870E

EC-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EC

A

EC

N

O

P

CONTENTS

ENGINE CONTROL SYSTEM

VQ40DE

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

8

Precaution for Procedure without Cowl Top Cover ......

8

On Board Diagnosis (OBD) System of Engine and
A/T ...........................................................................
..

8

Precaution .................................................................

9

PREPARATION ...........................................

12

PREPARATION ..................................................

12

Special Service Tool  ...............................................

12

Commercial Service Tool  ........................................

13

SYSTEM DESCRIPTION  .............................

14

ENGINE CONTROL SYSTEM ............................

14

System Diagram ......................................................

14

Engine Control Component Parts Location .............

15

MULTIPORT FUEL INJECTION SYSTEM .........

23

System Description  .................................................

23

ELECTRIC IGNITION SYSTEM  .........................

26

System Description  .................................................

26

AIR CONDITIONING CUT CONTROL  ...............

27

Input/Output Signal Chart ........................................

27

System Description  .................................................

27

AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ...............................................................

28

System Description  .................................................

28

Component Description ...........................................

29

CAN COMMUNICATION ....................................

30

System Description  .................................................

30

COOLING FAN CONTROL ...............................

31

Description ...............................................................

31

EVAPORATIVE EMISSION SYSTEM ...............

32

Description ...............................................................

32

INTAKE VALVE TIMING CONTROL  ................

35

Description ...............................................................

35

FUEL FILLER CAP WARNING SYSTEM .........

36

System Diagram .....................................................

36

System Description ..................................................

36

INTAKE MANIFOLD RUNNER CONTROL  ......

38

System Description ..................................................

38

VARIABLE INDUCTION AIR SYSTEM  ............

39

Description ...............................................................

39

Vacuum Hose Drawing ............................................

41

ON BOARD DIAGNOSTIC (OBD) SYSTEM  ....

42

Diagnosis Description ..............................................

42

GST (Generic Scan Tool)  ........................................

42

DIAGNOSIS SYSTEM (ECM)  ...........................

43

DIAGNOSIS DESCRIPTION ......................................

43

DIAGNOSIS DESCRIPTION : 1st Trip Detection
Logic and Two Trip Detection Logic  ........................

43

DIAGNOSIS DESCRIPTION : DTC and Freeze
Frame Data ..............................................................

43

DIAGNOSIS DESCRIPTION : Counter System  ......

44

DIAGNOSIS DESCRIPTION : Driving Pattern  ........

47

DIAGNOSIS DESCRIPTION : System Readiness
Test (SRT) Code  .....................................................

48

DIAGNOSIS DESCRIPTION : Permanent Diag-
nostic Trouble Code (Permanent DTC)  ...................

49

DIAGNOSIS DESCRIPTION : Malfunction Indica-
tor Lamp (MIL)  .........................................................

50

On Board Diagnosis Function ..................................

50

CONSULT Function .................................................

53

ECU DIAGNOSIS INFORMATION ..............

63
