DLK-110

< REMOVAL AND INSTALLATION >

DOOR

Installation

Installation is in the reverse order of removal.

• Align the front door. Refer to

DLK-107, "Fitting Adjustment"

.

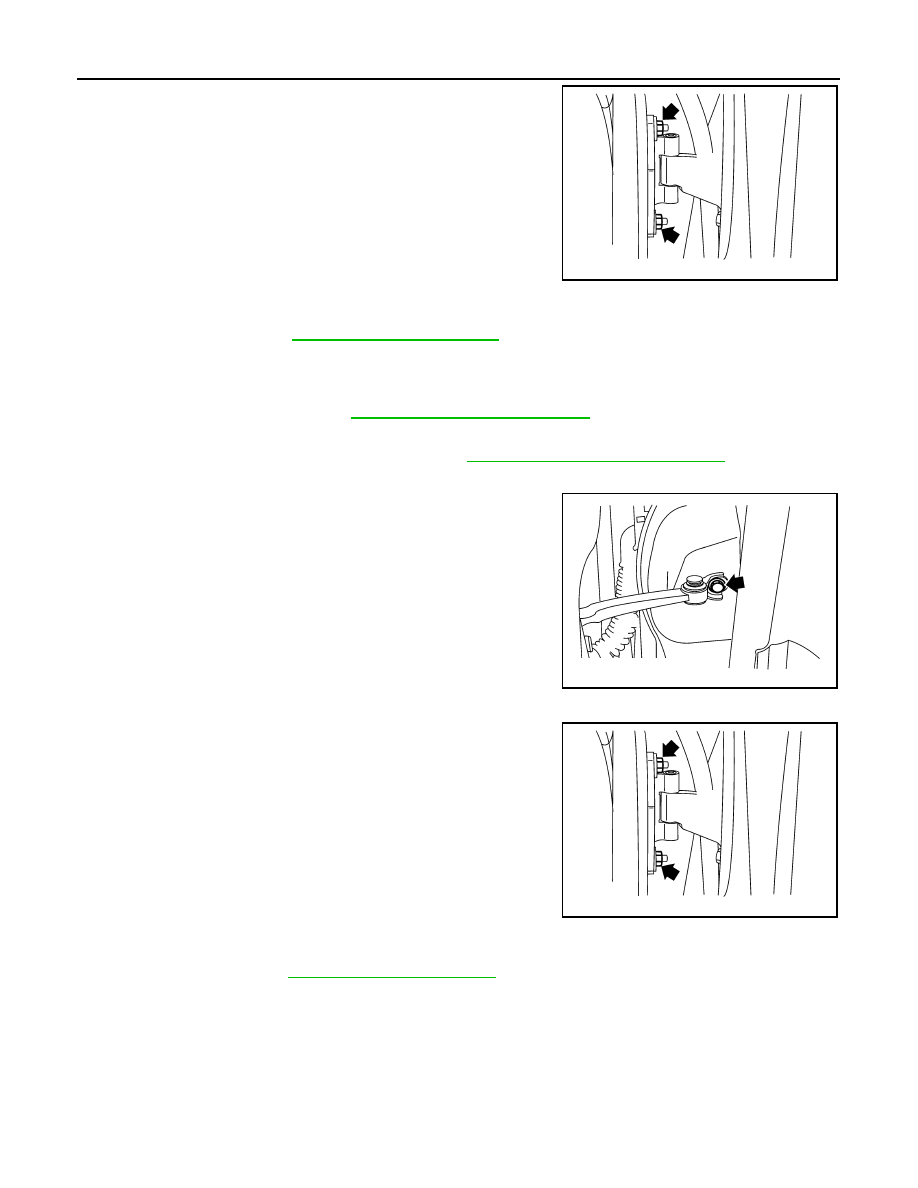

REAR DOOR

Removal

1. Remove the door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the inner seal.
3. Remove the rear door glass and regulator. Refer to

GW-18, "Rear Door Glass Regulator"

.

4. Remove the door harness.
5. Remove the check link bolt from the hinge pillar.

6. Remove the door-side hinge nuts, and remove the door assembly.

Installation

Installation is in the reverse order of removal.

• Align the rear door. Refer to

DLK-107, "Fitting Adjustment"

.

Door hinge nuts

25.8 N·m (2.6 kg-m, 19 ft-lb)

LIIA1727E

Check link to hinge pillar
bolt

14.7 N·m (1.5 kg-m, 11 ft-lb)

LIIA1726E

Door hinge nuts

25.8 N·m (2.6 kg-m, 19 ft-lb)

LIIA1727E

DOOR

DLK-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

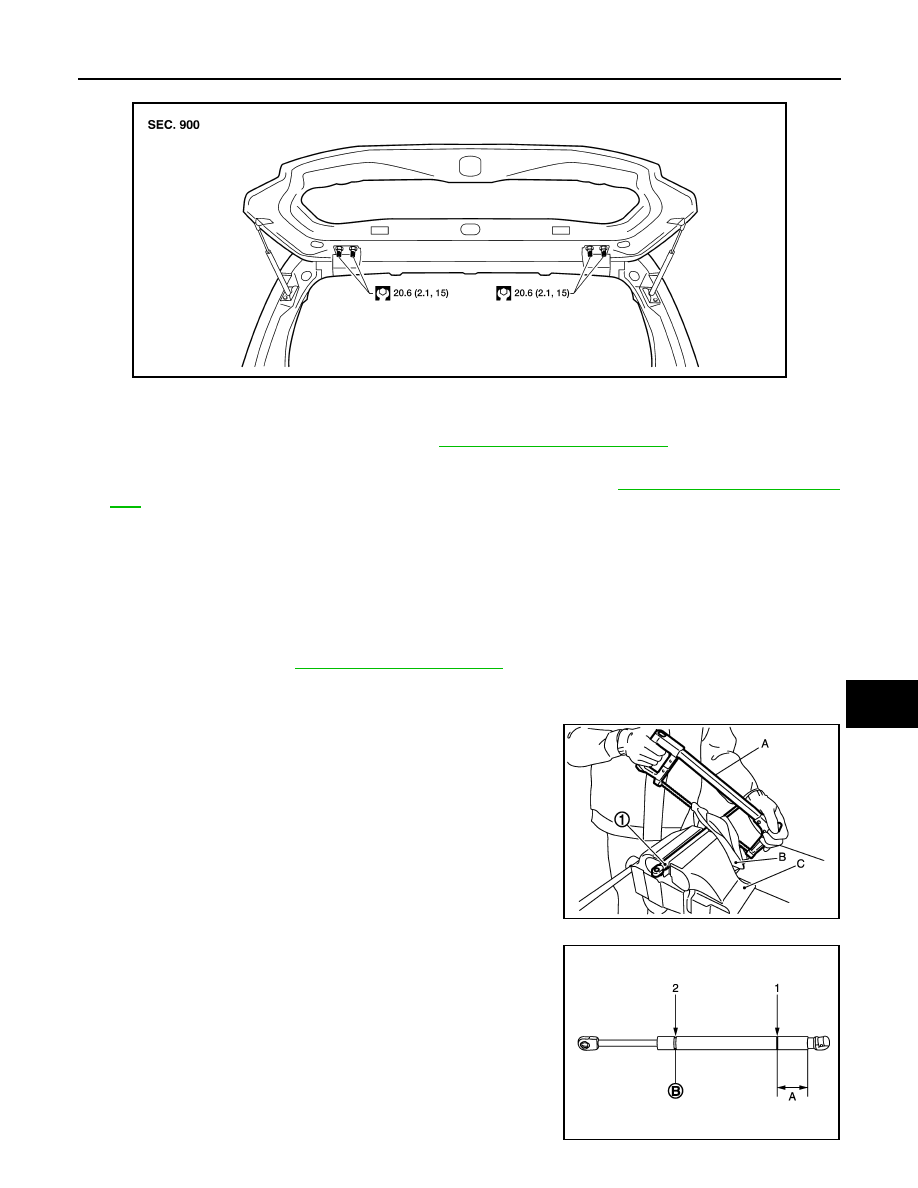

BACK DOOR

Removal

1. Remove the glass hatch.
2. Remove the back door lock assembly. Refer to

DLK-116, "Component Structure"

.

3. Remove the back door wire harness.
4. Remove the rear washer nozzle and hose from the back door. Refer to

WW-76, "Removal and Installa-

tion"

5. Support the back door.
6. Remove the back door stays.
7. Remove the door side nuts and the back door assembly.

CAUTION:

Two technicians should be used to avoid damaging the back door during removal.

Installation

Installation is in the reverse order of removal.

• Align the back door. Refer to

DLK-107, "Fitting Adjustment"

.

Back Door Stay Disposal

INFOID:0000000009485095

1. Fix back door stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the back door stay, in

numerical order as shown.

CAUTION:

• When cutting a hole on back door stay, always cover a

hacksaw using a shop cloth (B) to avoid scattering metal

fragments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

WIIA1056E

JMKIA3336ZZ

A: 20 mm (0.787 in)
B: Cut at the groove.

JMKIA3609ZZ

DLK-112

< REMOVAL AND INSTALLATION >

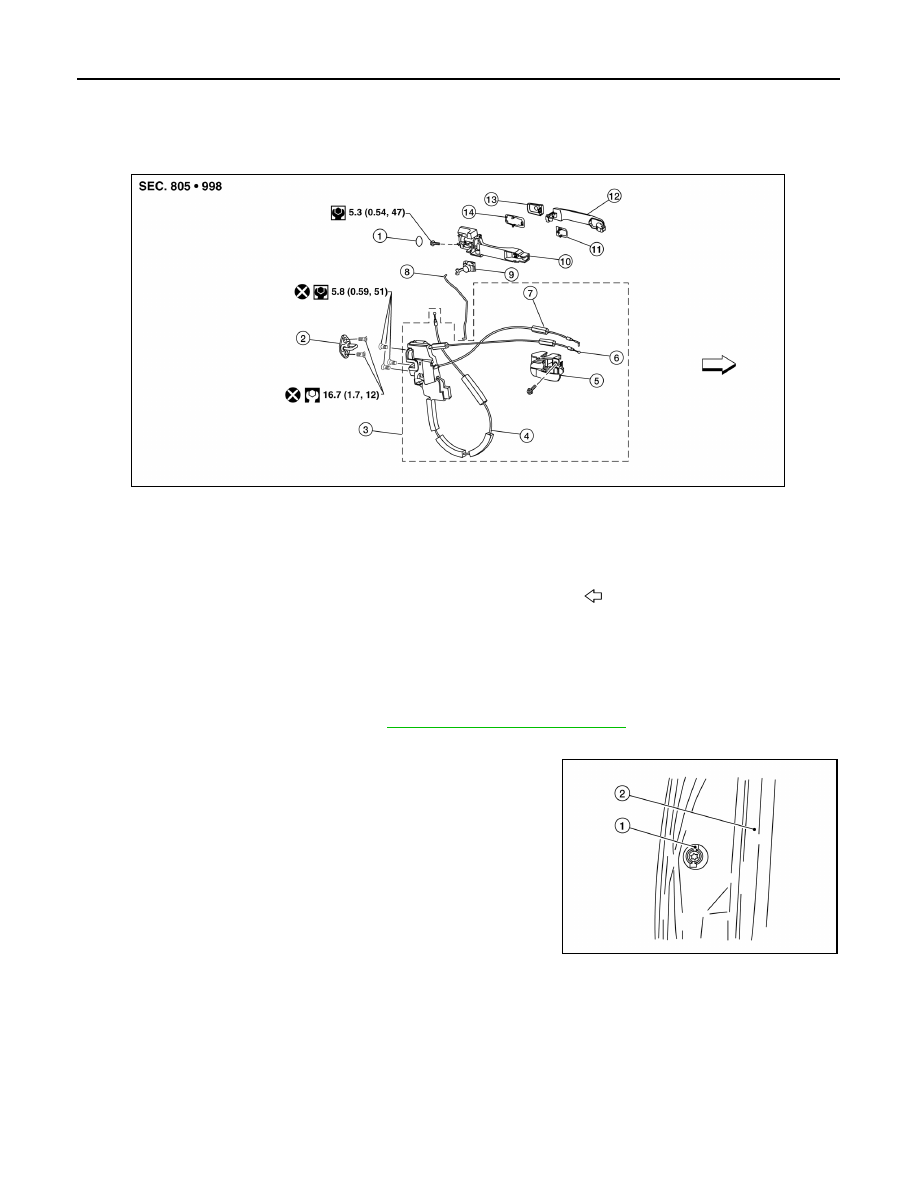

FRONT DOOR LOCK

FRONT DOOR LOCK

Component Structure

INFOID:0000000009485096

Removal and Installation

INFOID:0000000009485097

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

2. Remove the front door glass rear run channel.
3. Remove door side grommet and door key cylinder assembly

(driver side) or door outside handle escutcheon (passenger

side) bolts from grommet hole.

(1): Weatherstrip

(2): Bolt

1.

Grommet

2.

Front door striker

3.

Door lock assembly

4.

Door outside handle cable

5.

Inside handle assembly

6.

Inside handle cable

7.

Door lock cable

8.

Key cylinder rod (Driver side only)

9.

Door key cylinder

10. Door outside handle bracket

11. Front gasket

12. Door outside handle

13. Door key cylinder assembly (Driver

side) door outside handle escutch-
eon (Passenger side)

14. Rear gasket

Front

AWKIA1793GB

AWKIA2017ZZ

FRONT DOOR LOCK

DLK-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

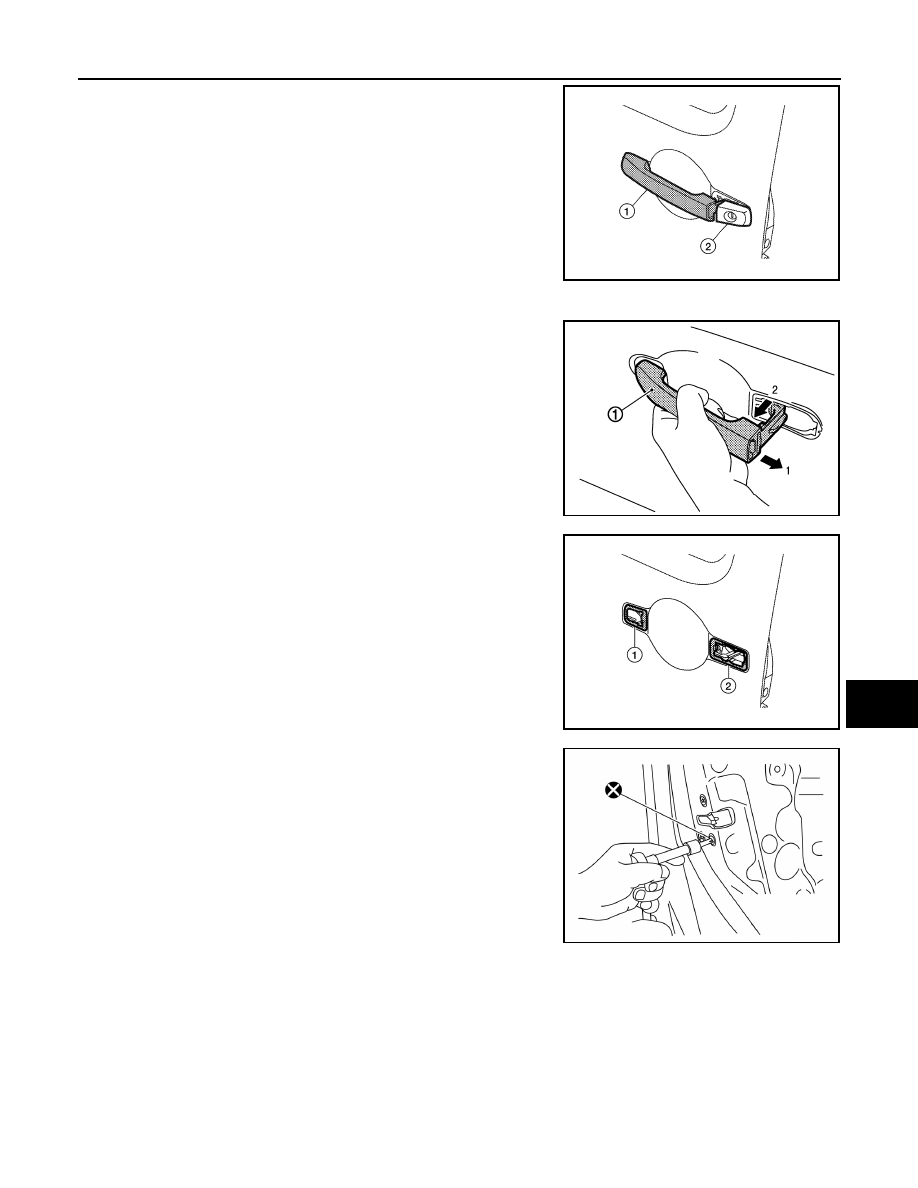

4. While pulling the door outside handle (1), remove door key cylin-

der assembly or escutcheon (2).

5. Separate the door key cylinder rod from the door key cylinder assembly (if equipped).
6. While pulling door outside handle (1), slide toward rear of vehi-

cle to remove door outside handle.

7. Remove the front gasket (1) and rear gasket (2).

8. Remove the bolts and the door lock assembly.

CAUTION:

Do not reuse bolts.

ALKIA0956ZZ

JMKIA0524ZZ

ALKIA0924ZZ

AWKIA2018ZZ
