MAP LAMP AND IGNITION KEYHOLE ILLUMINATION FUNCTION

MAP LAMP AND IGNITION KEYHOLE ILLUMINATION FUNCTION

Diagnosis Procedure

INFOID:0000000009485069

1.

CHECK MAP LAMP OPERATION

When room lamp switch is in "DOOR" position, open the driver or passenger door.

Map lamp and ignition keyhole illumination should illuminate.
Is the inspection result normal?

YES

>> Map lamp circuit is OK.

NO

>> Check map lamp circuit. Refer to

INL-3, "Work Flow"

.

KEYFOB ID SET UP WITH CONSULT

DLK-55

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB ID SET UP WITH CONSULT

ID Code Entry Procedure

INFOID:0000000009485070

KEYFOB ID SET UP WITH CONSULT

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A spe-

cific ID code can be erased with CONSULT. However, when the ID code of a lost keyfob is not known,

all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining

and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If

five ID codes are stored in memory when an additional code is registered, only the oldest code is

erased. If less than five codes are stored in memory when an additional code is registered, the new

ID code is added and no ID codes are erased.

• Entry of a maximum of five ID codes is allowed. When more than five codes are entered, the oldest ID

code will be erased.

• Even if the same ID code that is already in memory is input, the same ID code can be entered. The

code is counted as an additional code.

1. Turn ignition switch ON.
2. Select “BCM”.
3. Select “MULTI REMOTE ENT”.
4. Select “WORK SUPPORT”.
5. You can register, erase or confirm a keyfob ID code. To register a new code, select the following option

and follow CONSULT instructions:

• “REMO CONT ID REGIST”

Use this mode to register a keyfob ID code.

NOTE:

Register the ID code when keyfob or BCM is replaced, or when additional keyfob is required.

• “REMO CONT ID ERASUR”

Use this mode to erase a keyfob ID code.

• “REMO CONT ID CONFIR”

Use this mode to confirm if a keyfob ID code is registered or not.

DLK-56

< DTC/CIRCUIT DIAGNOSIS >

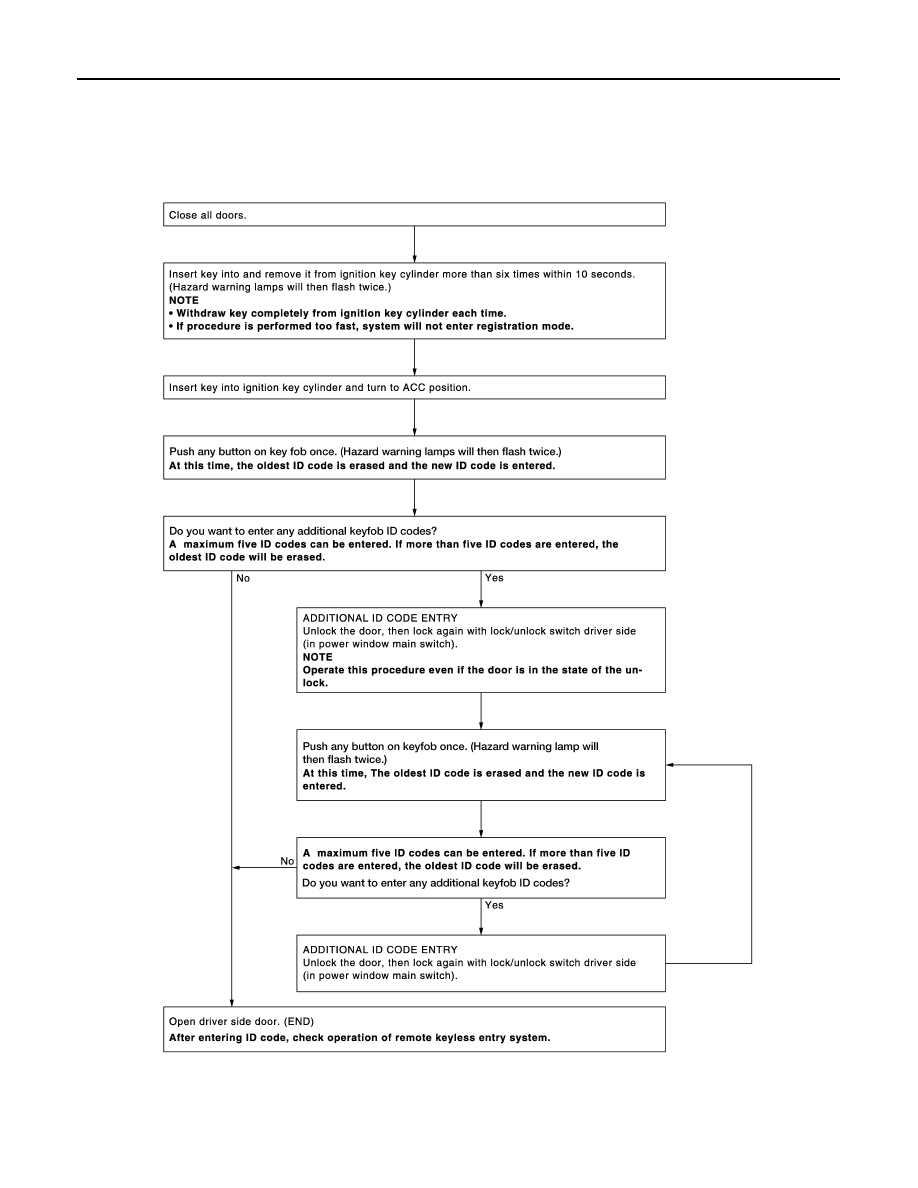

KEYFOB ID SET UP WITHOUT CONSULT

KEYFOB ID SET UP WITHOUT CONSULT

ID Code Entry Procedure

INFOID:0000000009485071

KEYFOB ID SET UP WITHOUT CONSULT

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID

code can be erased with CONSULT. However, when the ID code of a lost keyfob is not known, all controller

LIIA1670E

KEYFOB ID SET UP WITHOUT CONSULT

DLK-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs

must be re-registered.

To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased, the

ID codes of all remaining and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID

codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less

than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added

and no ID codes are erased.

• If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code

entry” for each new keyfob.

• Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code

will be erased.

• Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is

counted as an additional code.
