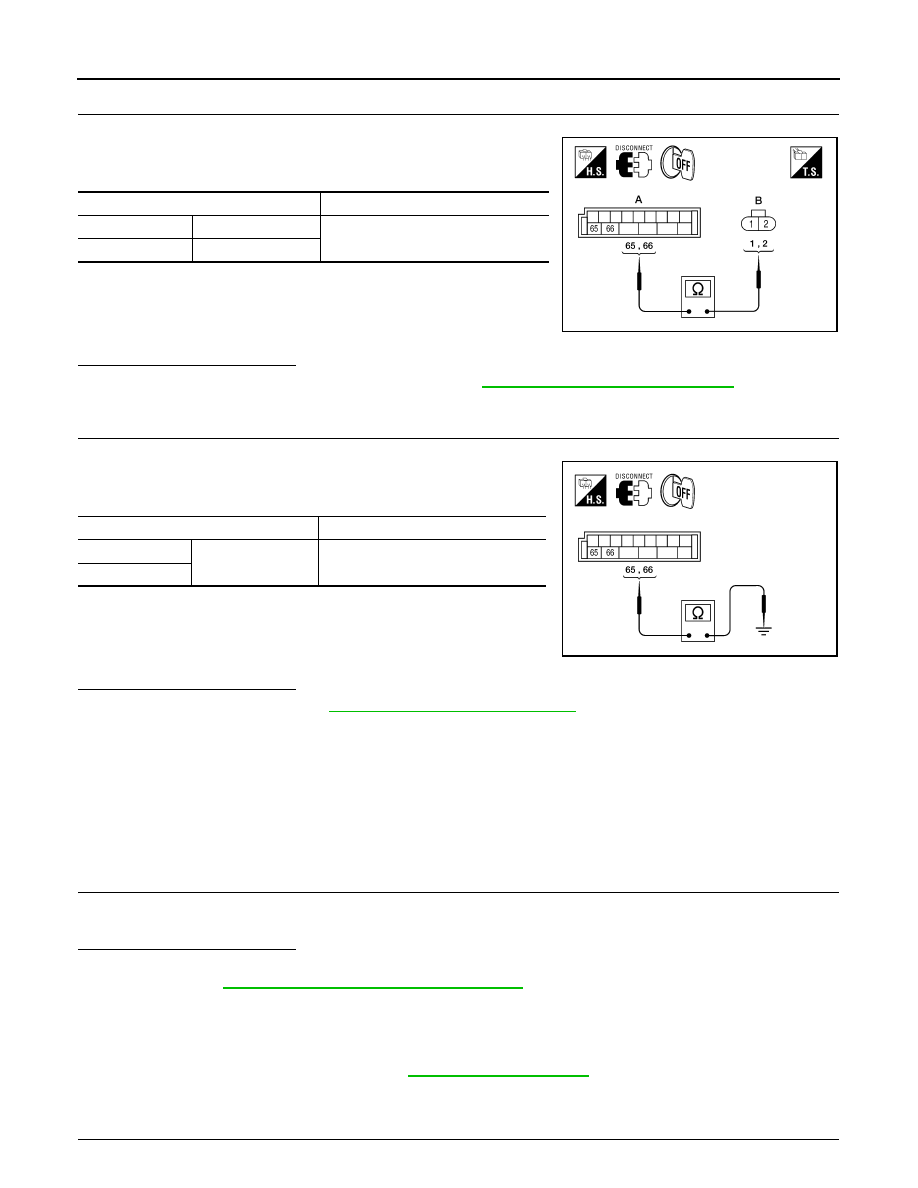

DLK-38

< DTC/CIRCUIT DIAGNOSIS >

DOOR LOCK ACTUATOR

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and front door lock actuator RH.

2. Check continuity between BCM connector (A) M20 terminals 65,

66 and front door lock actuator RH (B) D114 terminals 1, 2.

Is the inspection result normal?

YES

>> Replace front door lock actuator RH. Refer to

DLK-112, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and front door lock actuator RH.

2. Check continuity between BCM connector M20 terminals 65, 66

and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-50, "Removal and Installation"

.

NO

>> Repair or replace harness.

REAR LH
REAR LH : Description

INFOID:0000000009485043

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

INFOID:0000000009485044

1.

CHECK FUNCTION

1. Use CONSULT to perform Active Test "DOOR LOCK".

2. Touch “ALL LCK” or “ALL ULK” to check that it works normally.
Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-38, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000009485045

Regarding Wiring Diagram information, refer to

DLK-69, "Wiring Diagram"

.

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

Terminal

Continuity

65

2

Yes

66

1

ALKIA1192ZZ

Terminals

Continuity

65

Ground

No

66

ALKIA0631ZZ

DOOR LOCK ACTUATOR

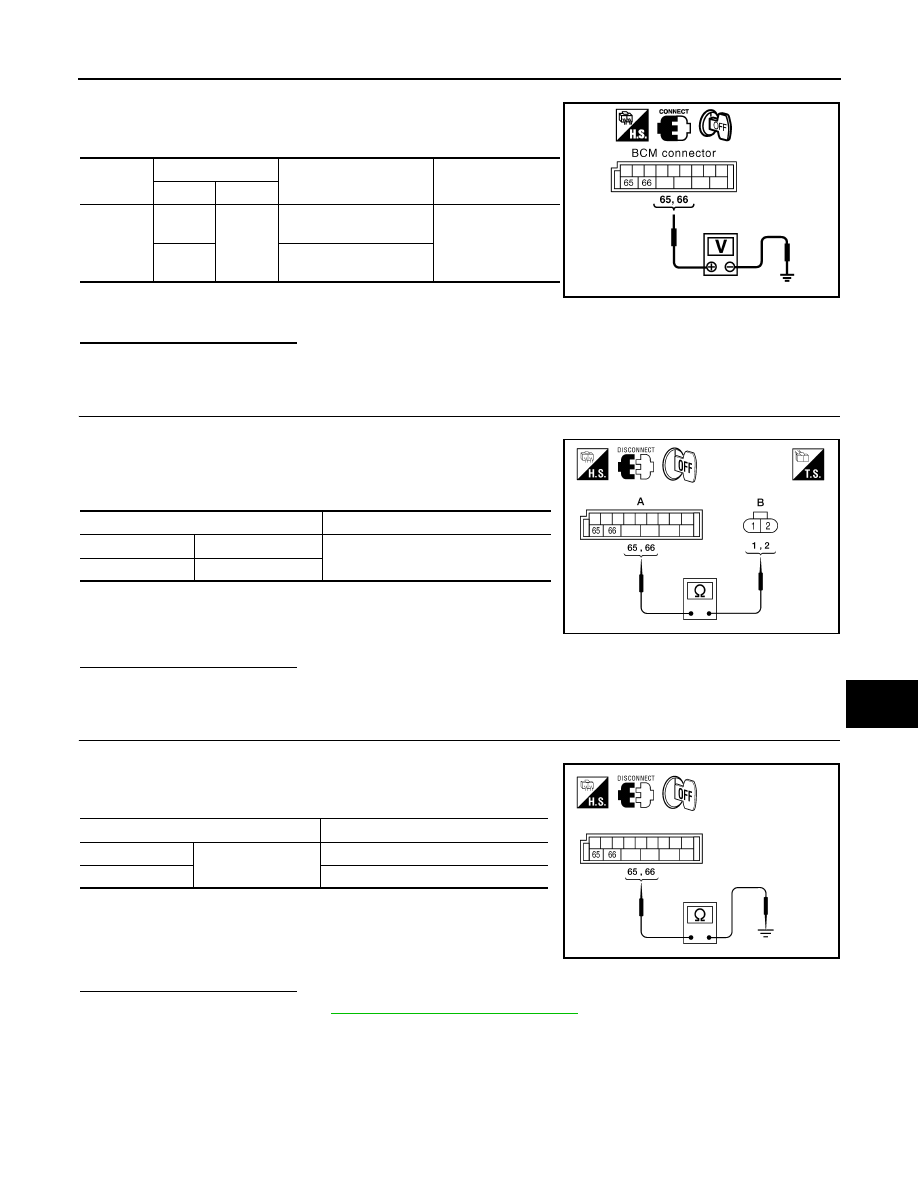

DLK-39

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1. Turn ignition switch OFF.

2. Check voltage between BCM connector M20 terminals 65, 66

and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> GO TO 3

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and rear door lock actuator LH.

2. Check continuity between BCM connector (A) M20 terminals 65,

66 and rear door lock actuator LH connector (B) D205 terminals

1, 2.

Is the inspection result normal?

YES

>> Replace rear door lock actuator LH.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and each door lock actuator.

2. Check continuity between BCM connector M20 terminals 65, 66

and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-50, "Removal and Installation"

.

NO

>> Repair or replace harness.

REAR RH
REAR RH : Description

INFOID:0000000009485046

Locks/unlocks the door with the signal from BCM.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

65

Ground

Door lock/unlock switch
is turned to LOCK

0

→ Battery voltage

for 300 ms

66

Door lock/unlock switch
is turned to UNLOCK

LIIA1048E

Terminals

Continuity

65

2

Yes

66

1

ALKIA1192ZZ

Terminals

Continuity

65

Ground

No

66

No

ALKIA0631ZZ

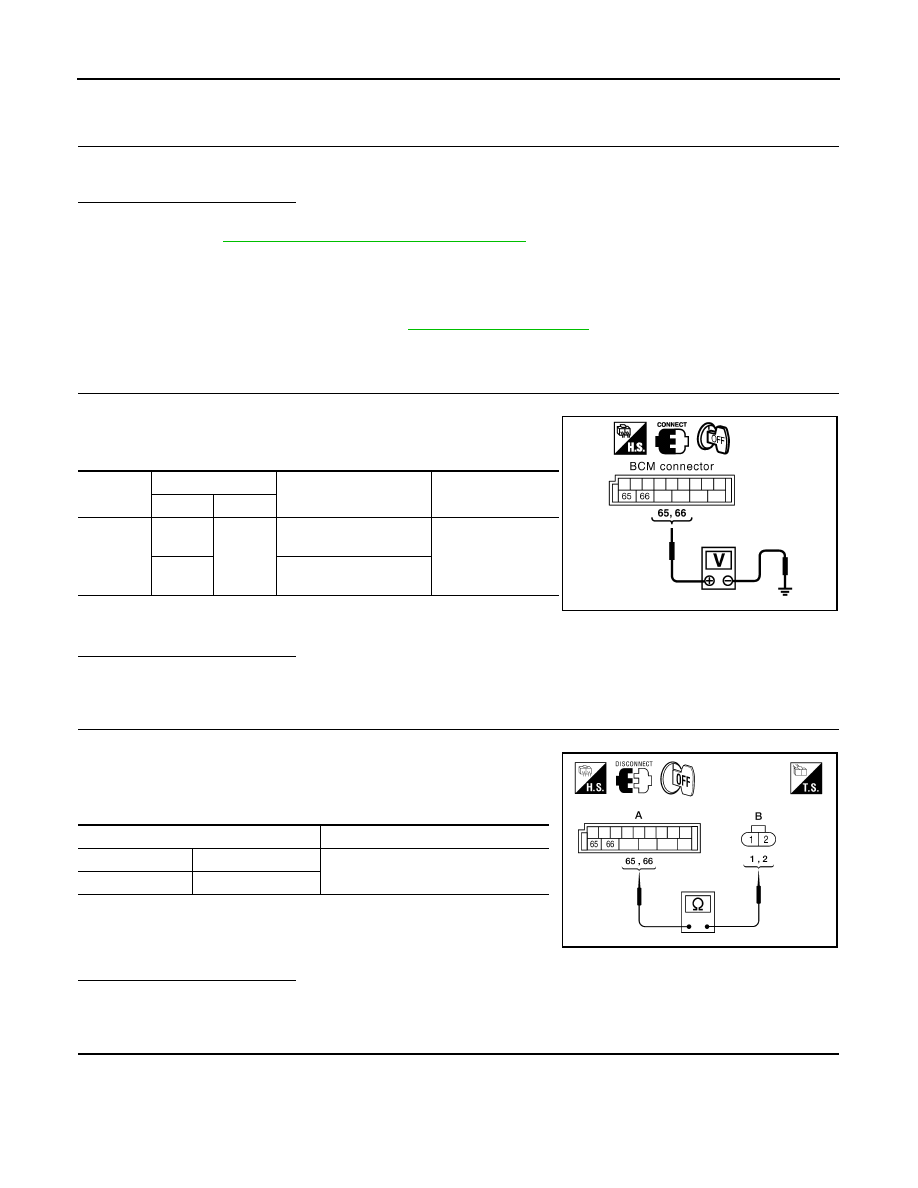

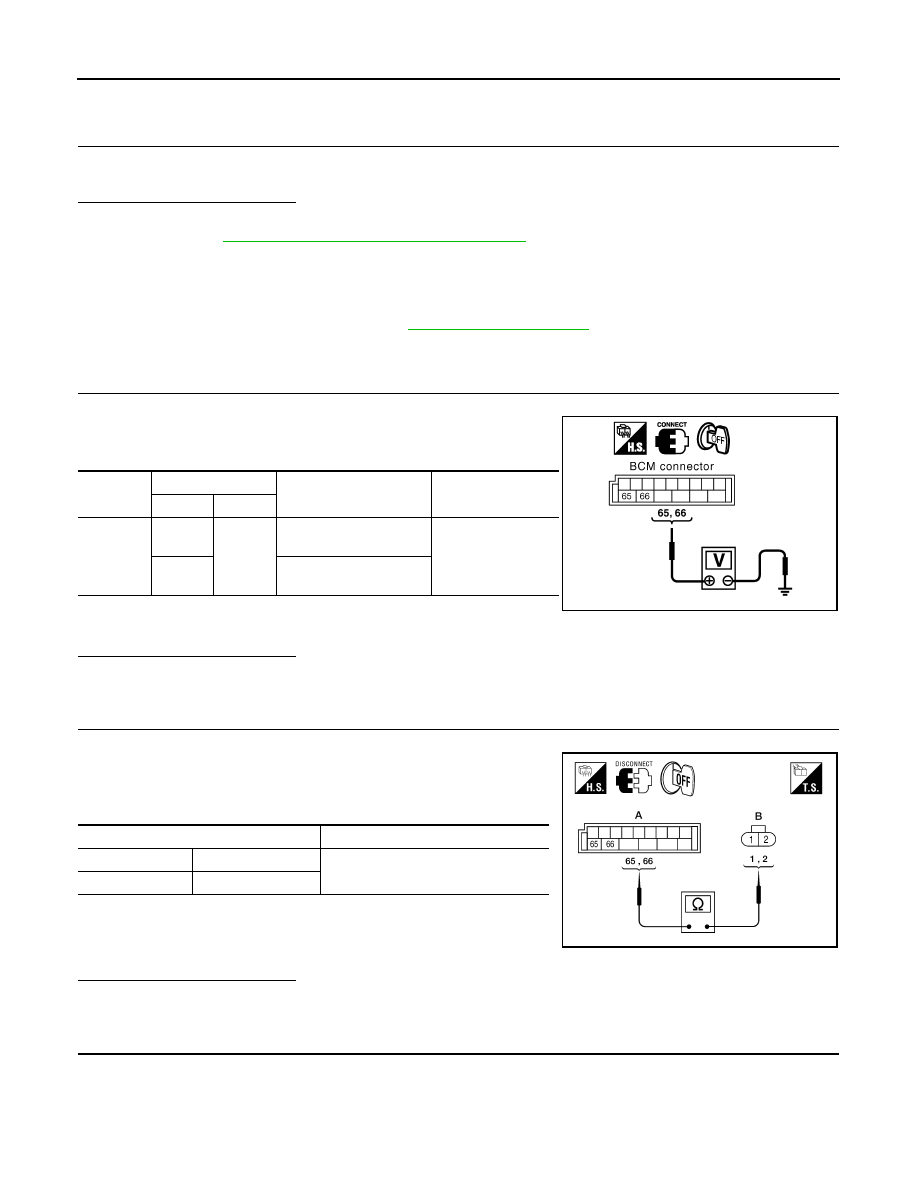

DLK-40

< DTC/CIRCUIT DIAGNOSIS >

DOOR LOCK ACTUATOR

REAR RH : Component Function Check

INFOID:0000000009485047

1.

CHECK FUNCTION

1. Use CONSULT to perform Active Test "DOOR LOCK".

2. Touch “ALL LCK” or “ALL ULK” to check that it works normally.
Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-40, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000009485048

Regarding Wiring Diagram information, refer to

DLK-69, "Wiring Diagram"

.

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between BCM connector M20 terminals 65, 66

and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> GO TO 3

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and rear door lock actuator RH.

2. Check continuity between BCM connector (A) M20 terminals 65,

66 and rear door lock actuator RH connector (B) D305 terminals

1, 2.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and rear door lock actuator RH.

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

65

Ground

Door lock/unlock switch
is turned to LOCK

0

→ Battery voltage

for 300 ms

66

Door lock/unlock switch
is turned to UNLOCK

LIIA1048E

Terminals

Continuity

65

2

Yes

66

1

ALKIA1192ZZ

DOOR LOCK ACTUATOR

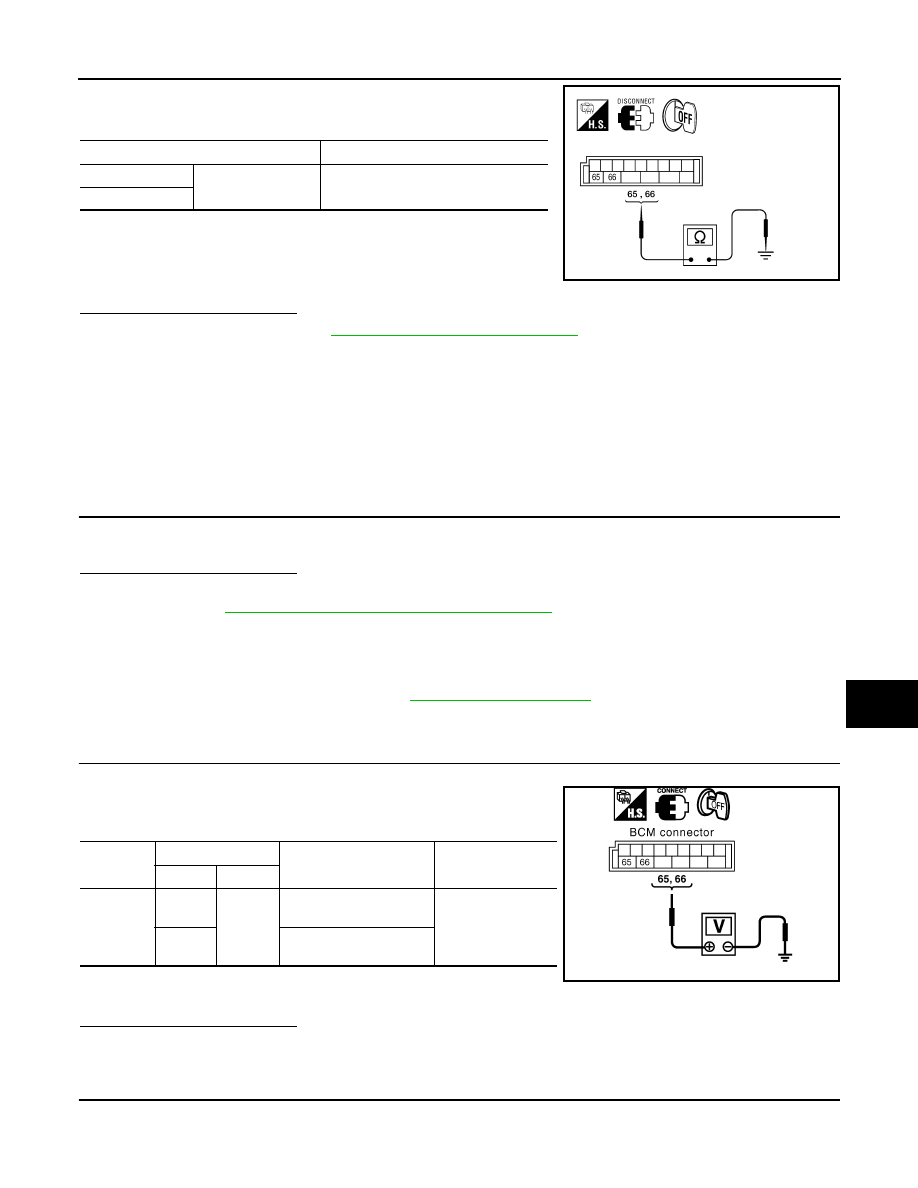

DLK-41

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Check continuity between BCM connector (A) M20 terminals 65,

66 and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-50, "Removal and Installation"

.

NO

>> Repair or replace harness.

BACK DOOR
BACK DOOR : Description

INFOID:0000000009485049

Locks/unlocks the door with the signal from BCM.

BACK DOOR : Component Function Check

INFOID:0000000009485050

1.

CHECK FUNCTION

1. Use CONSULT to perform Active Test DOOR LOCK.

2. Touch “ALL LCK” or “ALL ULK” to check that it works normally.
Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-41, "BACK DOOR : Diagnosis Procedure"

.

BACK DOOR : Diagnosis Procedure

INFOID:0000000009485051

Regarding Wiring Diagram information, refer to

DLK-69, "Wiring Diagram"

.

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between BCM connector M20 terminals 65, 66

and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> GO TO 3

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1. Disconnect BCM and back door lock actuator.

Terminals

Continuity

65

Ground

No

66

ALKIA0631ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

65

Ground

Door lock/unlock switch
is turned to LOCK

0

→ Battery voltage

for 300 ms

66

Door lock/unlock switch
is turned to UNLOCK

LIIA1048E
