CL-6

< PERIODIC MAINTENANCE >

CLUTCH PEDAL

PERIODIC MAINTENANCE

CLUTCH PEDAL

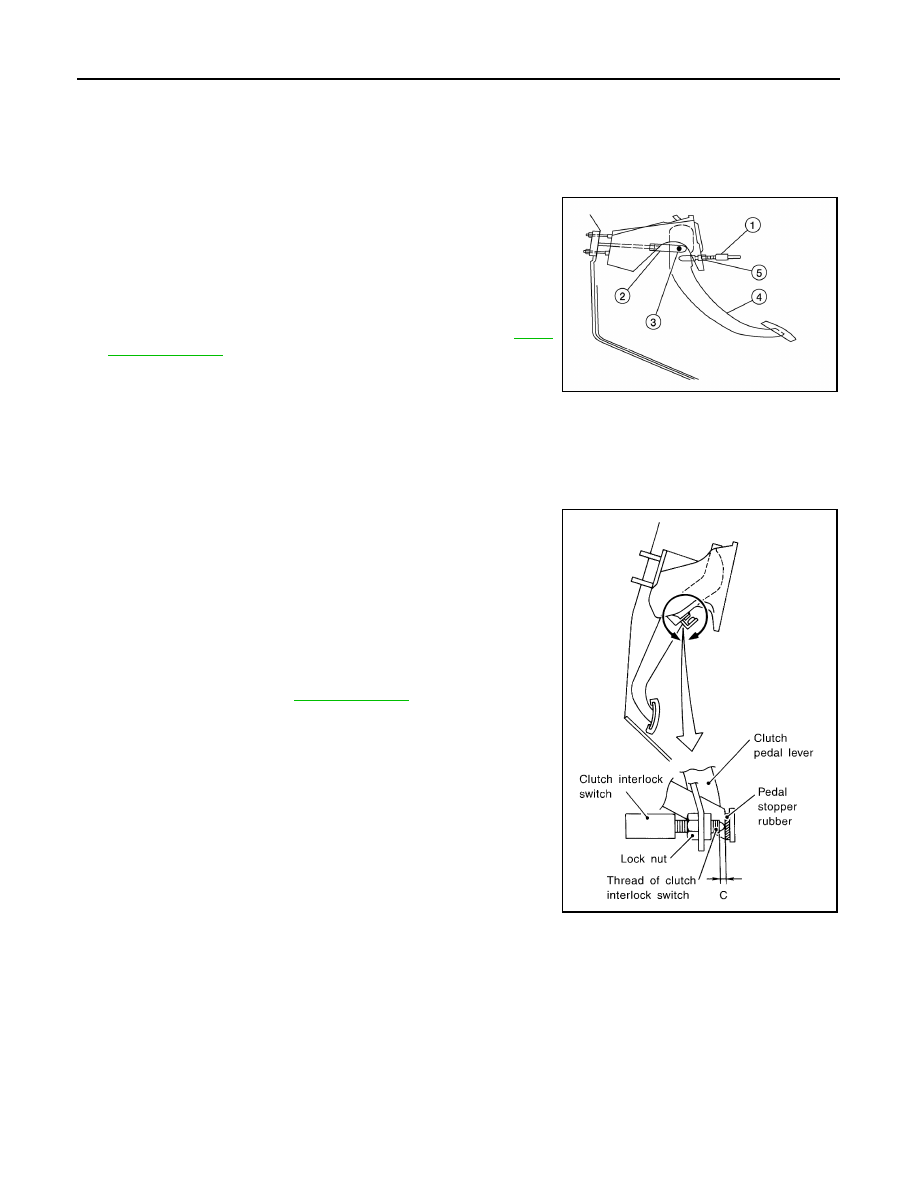

On-Vehicle Inspection and Adjustment

INFOID:0000000009483535

1. Check to see if the clevis pin (3) floats freely in the bore of the

clutch pedal (4). It should not be bound by the clevis (2) or clutch

pedal (4).

a. If the clevis pin (3) is not free, check that the ASCD clutch switch

(1) is not applying pressure to the clutch pedal (4) causing the

clevis pin (3) to bind. To adjust, loosen the lock nut (5) and turn

the ASCD clutch switch (1).

b. Tighten the lock nut (5) to the specified torque. Refer to

CL-8,

"Exploded View"

.

c.

Verify that the clevis pin (3) floats in the bore of the clutch pedal

(4). It should not be bound by the clutch pedal (4).

d. If the clevis pin (3) is still not free, remove the clevis pin (3) and check for deformation or damage.

Replace clevis pin (3) if necessary. Leave clevis pin (3) removed for step 2.

2. Check clutch pedal stroke for free range of movement.
a. With the clevis pin removed, manually move the clutch pedal up and down to determine if it moves freely.
b. If any sticking is noted, replace the assembly.
3. Adjust clearance (C) while depressing clutch pedal fully.

4. Check clutch hydraulic and system components (clutch master

cylinder, clutch operating cylinder, clutch withdrawal lever and

clutch release bearing) for sticking or binding.

a. If any sticking or binding noted, repair or replace related parts as

necessary.

b. If hydraulic system repair was necessary, bleed the clutch

hydraulic system. Refer to

CL-7, "Bleeding"

Clearance (C)

: 0.1 - 1.0 mm (0.004 - 0.039 in)

AWDIA0931ZZ

SCL800

CLUTCH FLUID

CL-7

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH FLUID

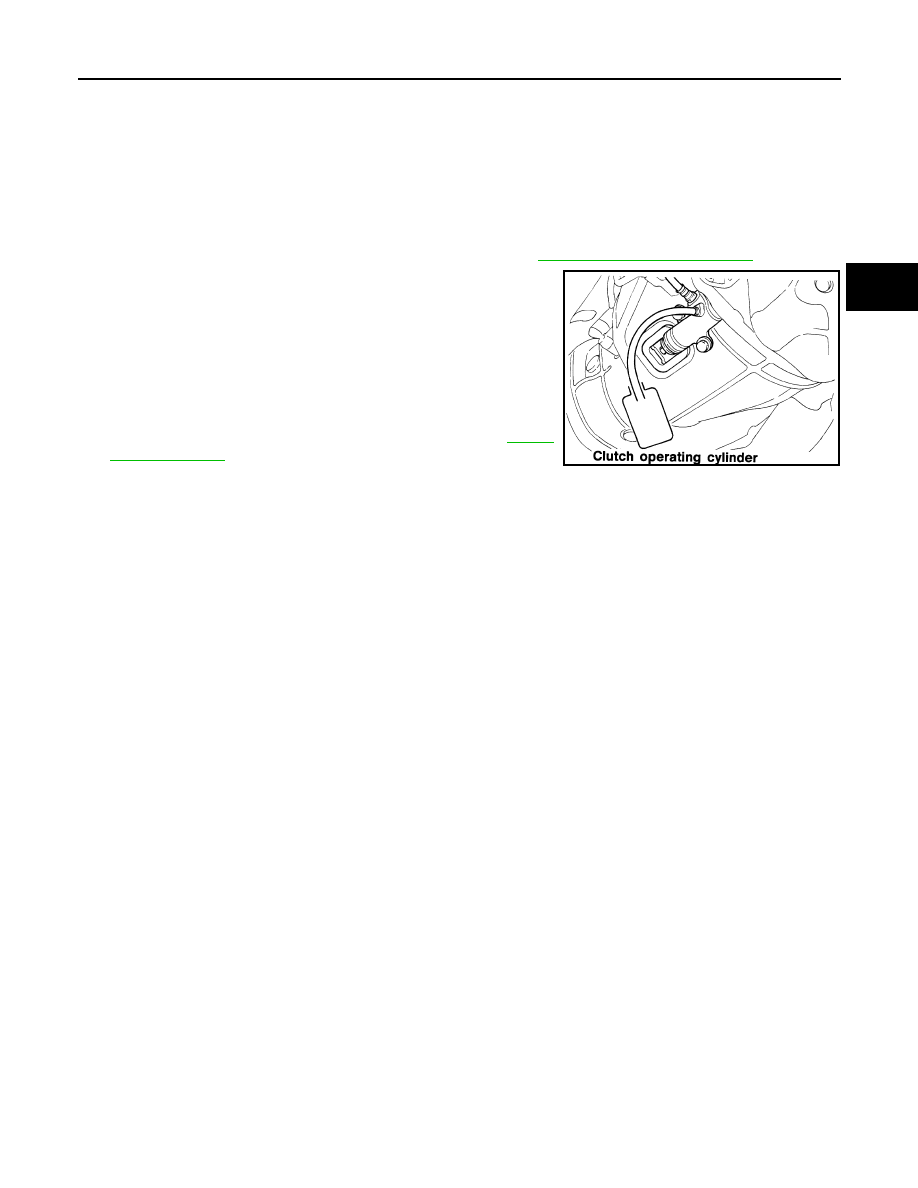

Bleeding

INFOID:0000000009483536

CAUTION:

Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected

area with water.

NOTE:

Monitor the fluid level in the reservoir tank to make sure it does not empty.
1. Top off reservoir with new recommended brake fluid. Refer to

MA-12, "Fluids and Lubricants"

.

2. Connect a transparent vinyl tube and container to the air bleeder

valve on the clutch operating cylinder.

3. Fully depress the clutch pedal several times.
4. With the clutch pedal depressed, open the bleeder valve to

release the air.

5. Close the bleeder valve.
6. Repeat steps 3 to 5 until clear brake fluid comes out of the air

bleeder valve.

7. Tighten the air bleeder to the specified torque. Refer to

CL-10,

"Exploded View"

.

SCL203-A

CL-8

< REMOVAL AND INSTALLATION >

CLUTCH PEDAL

REMOVAL AND INSTALLATION

CLUTCH PEDAL

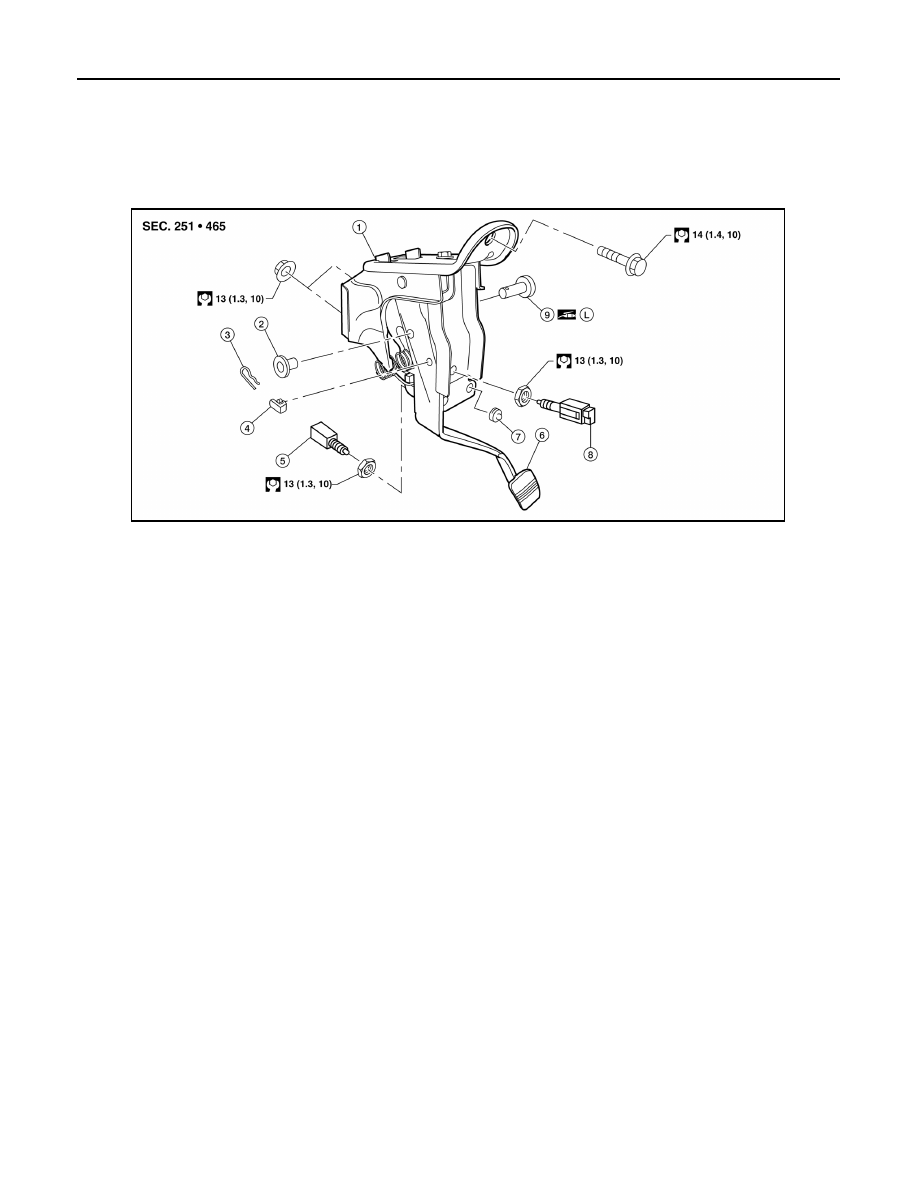

Exploded View

INFOID:0000000009483537

Removal and Installation

INFOID:0000000009483538

REMOVAL

1. Remove the clutch pedal bracket nuts from inside the engine compartment.
2. Disconnect the clutch interlock switch and ASCD clutch switch, then remove the wiring harness from the

pedal assembly.

3. Remove the snap pin and clevis pin.
4. Remove the pedal bracket bolt and then remove the clutch pedal assembly.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Tighten the ASCD clutch switch lock nut to the specified torque after installing the clutch pedal assembly in the

vehicle and adjusting the pedal free play.

Inspection

INFOID:0000000009483539

INSPECTION AFTER REMOVAL

• Inspect the clutch pedal for bends, damage, or cracked welds. Replace if necessary.

• Make sure that the assist spring and return spring have not lost their tension. Replace if necessary.

1.

Bracket

2.

Bushing

3.

Snap pin

4.

Pedal stopper rubber

5.

Clutch interlock switch

6.

Clutch pedal

7.

Stopper rubber

8.

ASCD clutch switch

9.

Clevis pin

L.

Apply wheel bearing grease

AWDIA0892GB

CLUTCH MASTER CYLINDER

CL-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

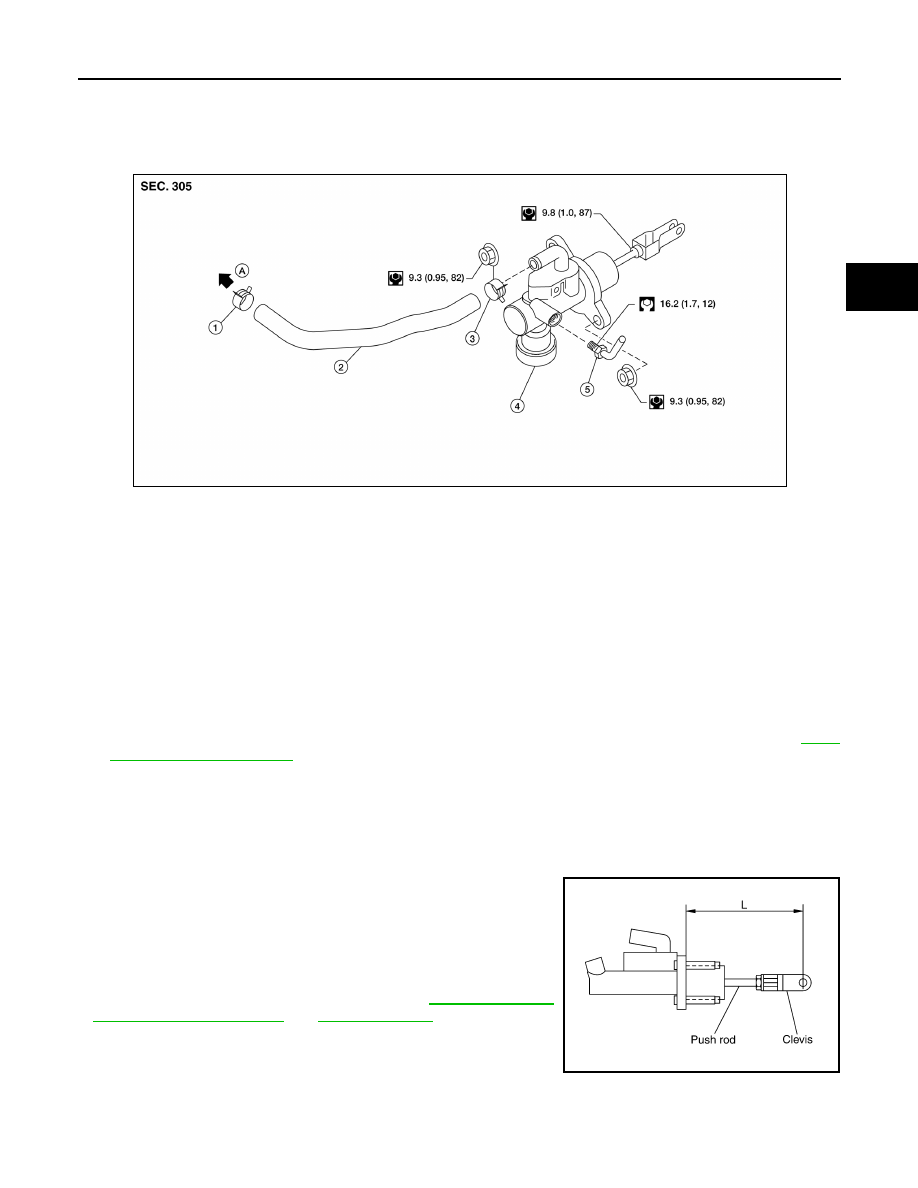

CLUTCH MASTER CYLINDER

Exploded View

INFOID:0000000009483540

Removal and Installation

INFOID:0000000009483541

CAUTION:

Do not spill brake fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected

area with water.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the snap pin and clevis pin from the clevis, and separate it from the clutch pedal. Refer to

CL-8,

"Removal and Installation"

.

2. Remove the hose clamp and reservoir hose from the clutch master cylinder.
3. Remove the clutch tube using suitable tool.
4. Remove the clutch master cylinder nuts, and remove the clutch master cylinder from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

• Before installation, check the position of the clevis and push rod. If

(L) is outside standard length, adjust the position of the clevis and

push rod.

• After installation, inspect and adjust the clutch pedal as necessary,

then bleed the clutch hydraulic system. Refer to

CL-6, "On-Vehicle

Inspection and Adjustment"

 and

CL-7, "Bleeding"

.

1.

Clamp

2.

Reservoir hose

3.

Clamp

4.

Cylinder body

5.

Clutch tube

A.

To reservoir tank

AWDIA0936GB

Length (L)

: 120.5 mm (4.74 in)

SCIA5158E
