PRECAUTIONS

BRC-109

< PRECAUTION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

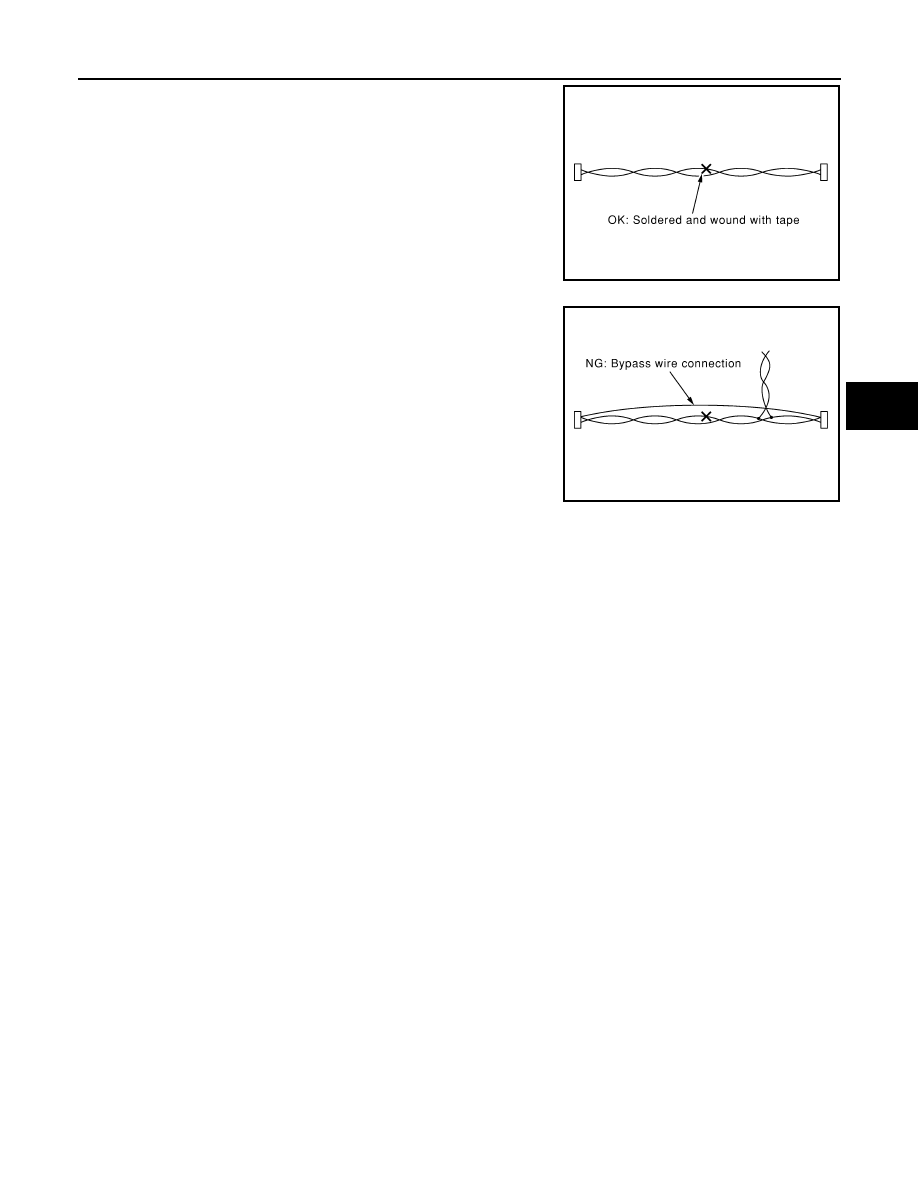

• Area to be repaired must be soldered and wrapped with tape.

Make sure that fraying of twisted wire is within 110 mm (4.33 in).

• Do not make a bypass connection to repaired area. (If the circuit is

bypassed, characteristics of twisted wire will be lost.)

PKIA0306E

PKIA0307E

BRC-110

< PREPARATION >

[TYPE 1]

PREPARATION

PREPARATION

PREPARATION

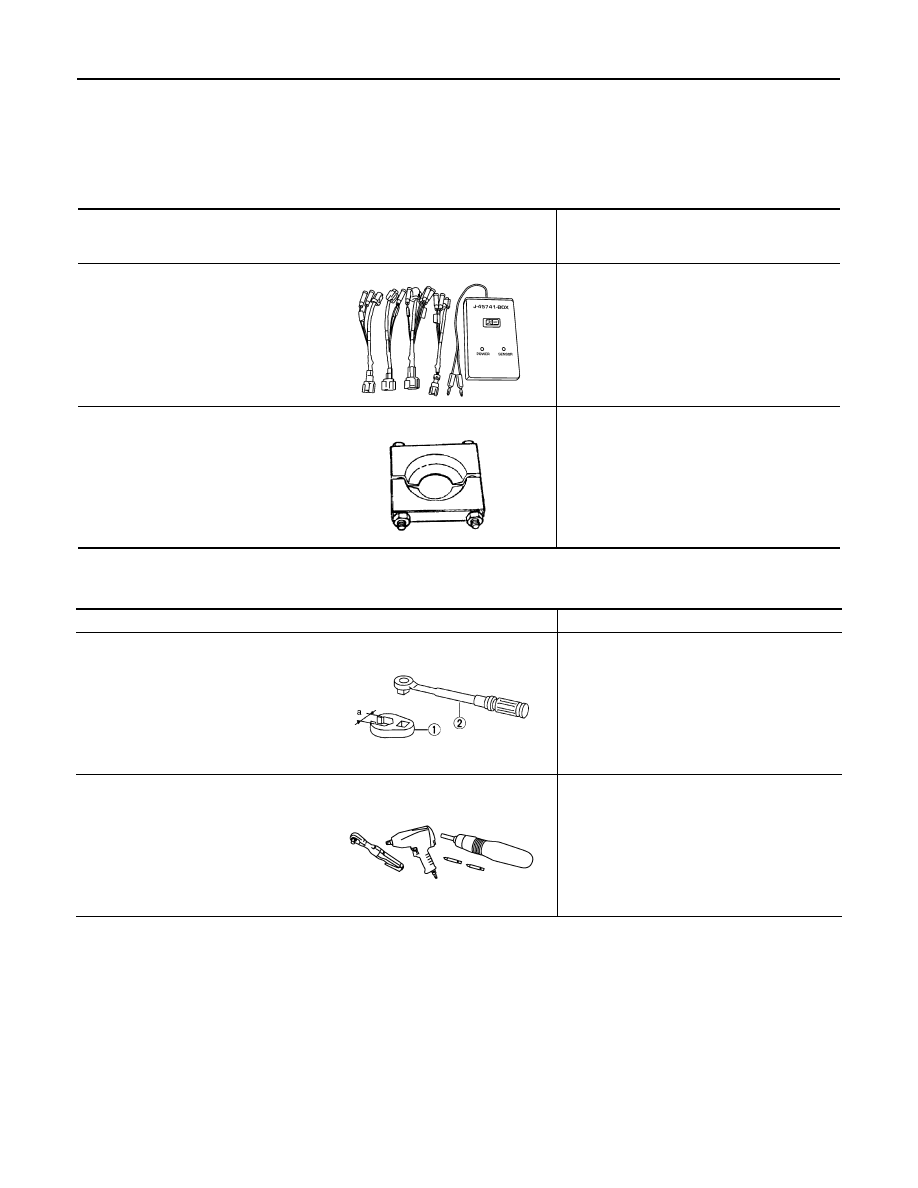

Special Service Tool

INFOID:0000000009482703

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009482704

Tool number
(TechMate No.)
Tool name

Description

—

(J-45741)
ABS active wheel sensor tester

Checking operation of ABS active wheel sen-
sors

ST30031000
(

—

)

Bearing puller

Removing sensor rotor

WFIA0101E

ZZA0700D

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

Removing and installing brake piping
a: 10 mm (0.39 in)/12 mm (0.47 in)

Power tool

Loosening nuts, screws and bolts

S-NT360

PIIB1407E

WHEEL SENSORS

BRC-111

< UNIT REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

UNIT REMOVAL AND INSTALLATION

WHEEL SENSORS

Removal and Installation

INFOID:0000000009482705

REMOVAL

1. Remove the front disc rotor, if removing the front wheel sensor. Refer to

BR-34, "Removal and Installation

of Brake Caliper and Disc Rotor"

.

2. Remove the wheel sensor bolt(s).
3. Pull the wheel sensor straight out, being careful to turn it as little as possible.

CAUTION:

• Be careful not to damage the wheel sensor edge and sensor rotor teeth.

• Do not pull on the wheel sensor harness.

4. Disconnect the wheel sensor harness connector, then remove the wheel sensor harness from the mounts

to remove the wheel sensors.

INSTALLATION

Installation is in the reverse order of removal.

• Before installing the wheel sensors do the following:

- Inspect and replace the wheel sensor if damaged.

- Clean the wheel sensor hole and mating surface with brake cleaner and a lint-free cloth. Be careful that dirt

and debris do not enter the hub and bearing assembly or the rear axle.

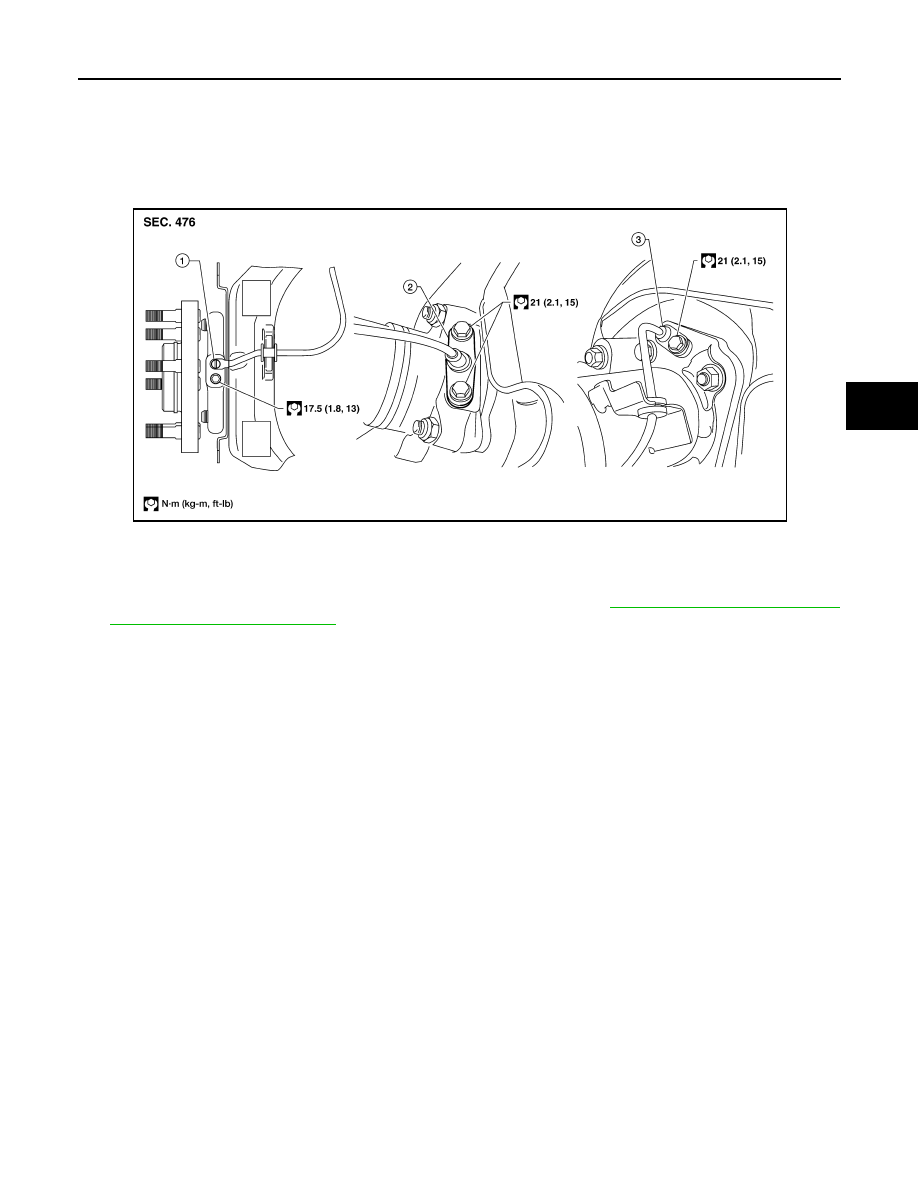

1.

Front wheel sensor

2.

Rear wheel sensor (C200)

3.

Rear wheel sensor (M226)

WFIA0339E

BRC-112

< UNIT REMOVAL AND INSTALLATION >

[TYPE 1]

SENSOR ROTOR

SENSOR ROTOR

Removal and Installation

INFOID:0000000009482706

FRONT

The wheel sensor rotors are built into the wheel hubs and are not removable. If damaged, replace wheel hub

and bearing assembly. Refer to

FAX-8, "Removal and Installation"

.

REAR (C200)

Removal and Installation

It is necessary to disassemble the rear axle to replace the sensor rotor. Perform the axle shaft assembly

removal procedure to replace sensor rotor. Refer to

RAX-8, "Removal and Installation"

.

REAR (M226)

Removal

NOTE:

It is necessary to disassemble the rear axle to replace the sensor rotor.
1. Remove the axle shaft assembly. Refer to

RAX-20, "Removal and Installation"

.

2. Pull the sensor rotor off of the axle shaft using Tool and a suitable press.

Installation

1. Install the new sensor rotor on the axle shaft using a suitable

length steel tube and a press. Make sure the sensor rotor is fully

seated.

CAUTION:

Do not reuse the sensor rotor.

2. Install the axle shaft assembly. Refer to

RAX-20, "Removal and

Installation"

.

CAUTION:

Do not reuse the axle oil seal.

Tool number

: ST30031000 (

—

)

WFIA0341E
