BCS

BCM (BODY CONTROL MODULE)

BCS-43

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

C1712: [CHECKSUM ERR] FL

—

X

WT-17

C1713: [CHECKSUM ERR] FR

—

X

WT-17

C1714: [CHECKSUM ERR] RR

—

X

WT-17

C1715: [CHECKSUM ERR] RL

—

X

WT-17

C1716: [PRESSDATA ERR] FL

—

X

WT-19

C1717: [PRESSDATA ERR] FR

—

X

WT-19

C1718: [PRESSDATA ERR] RR

—

X

WT-19

C1719: [PRESSDATA ERR] RL

—

X

WT-19

C1720: [CODE ERR] FL

—

X

WT-17

C1721: [CODE ERR] FR

—

X

WT-17

C1722: [CODE ERR] RR

—

X

WT-17

C1723: [CODE ERR] RL

—

X

WT-17

C1724: [BATT VOLT LOW] FL

—

X

WT-17

C1725: [BATT VOLT LOW] FR

—

X

WT-17

C1726: [BATT VOLT LOW] RR

—

X

WT-17

C1727: [BATT VOLT LOW] RL

—

X

WT-17

C1729: VHCL SPEED SIG ERR

—

X

WT-21

C1735: IGNITION SIGNAL

—

X

WT-22

CONSULT display

Fail-safe

Low tire pressure
warning lamp ON

Reference page

BCS-44

< WIRING DIAGRAM >

BCM (BODY CONTROL MODULE)

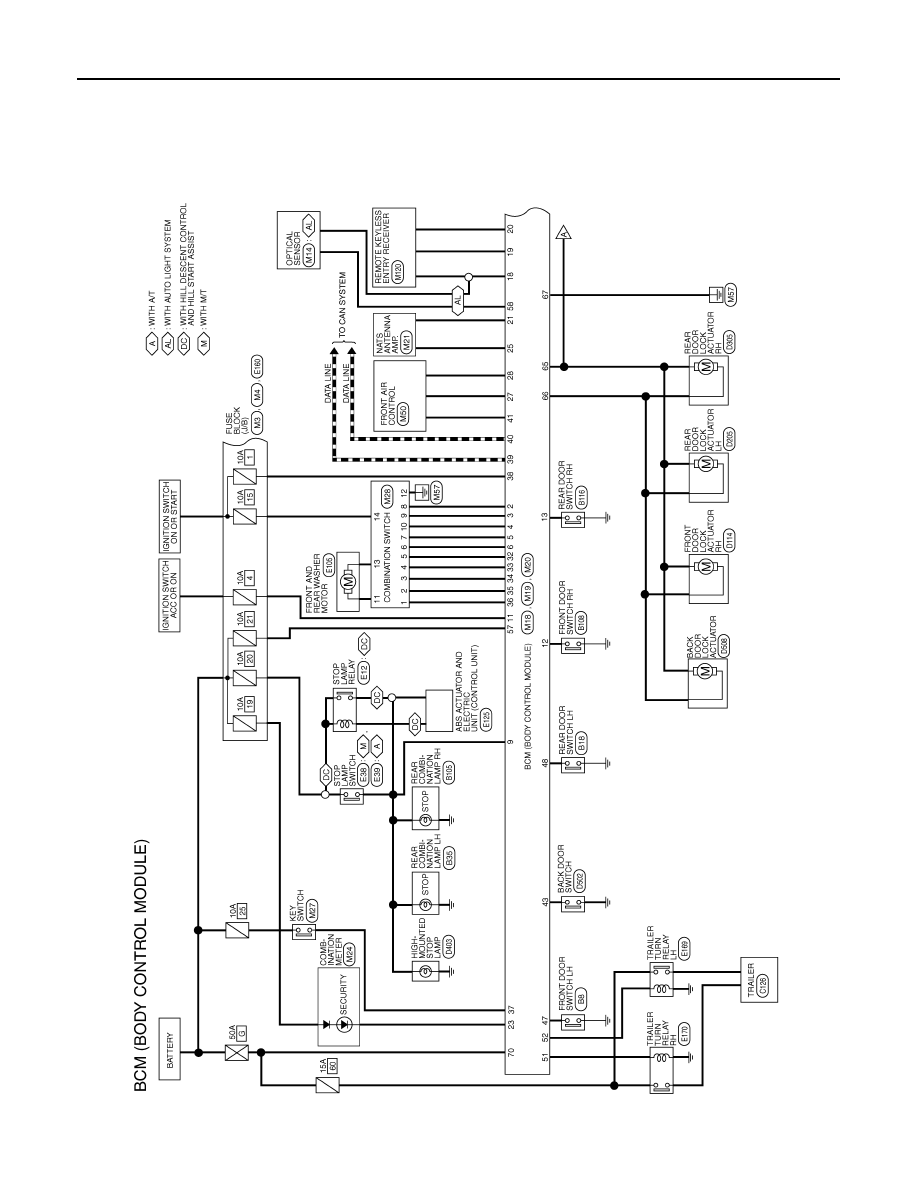

WIRING DIAGRAM

BCM (BODY CONTROL MODULE)

Wiring Diagram

INFOID:0000000009482965

ABMWA2352GB

BCS

BCM (BODY CONTROL MODULE)

BCS-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

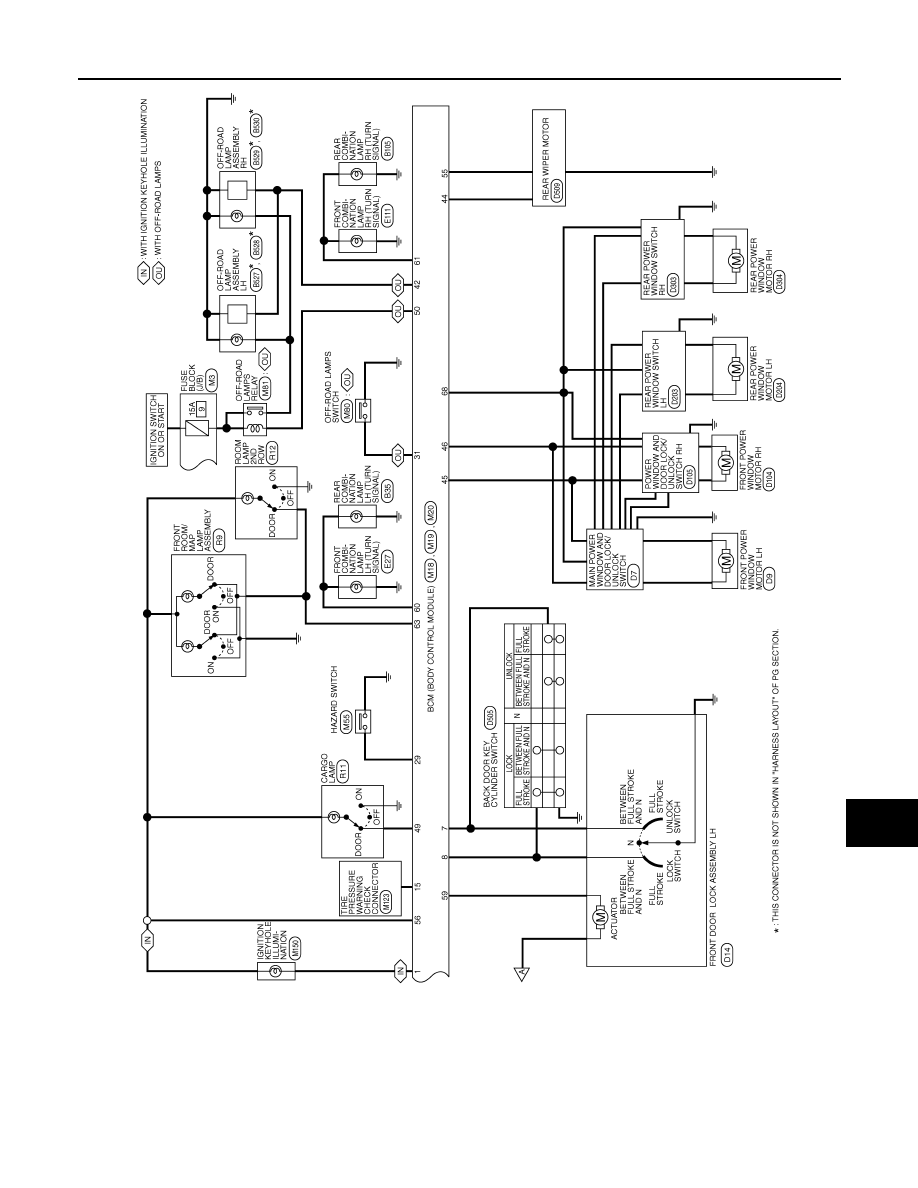

ABMWA2353GB

BCS-46

< WIRING DIAGRAM >

BCM (BODY CONTROL MODULE)

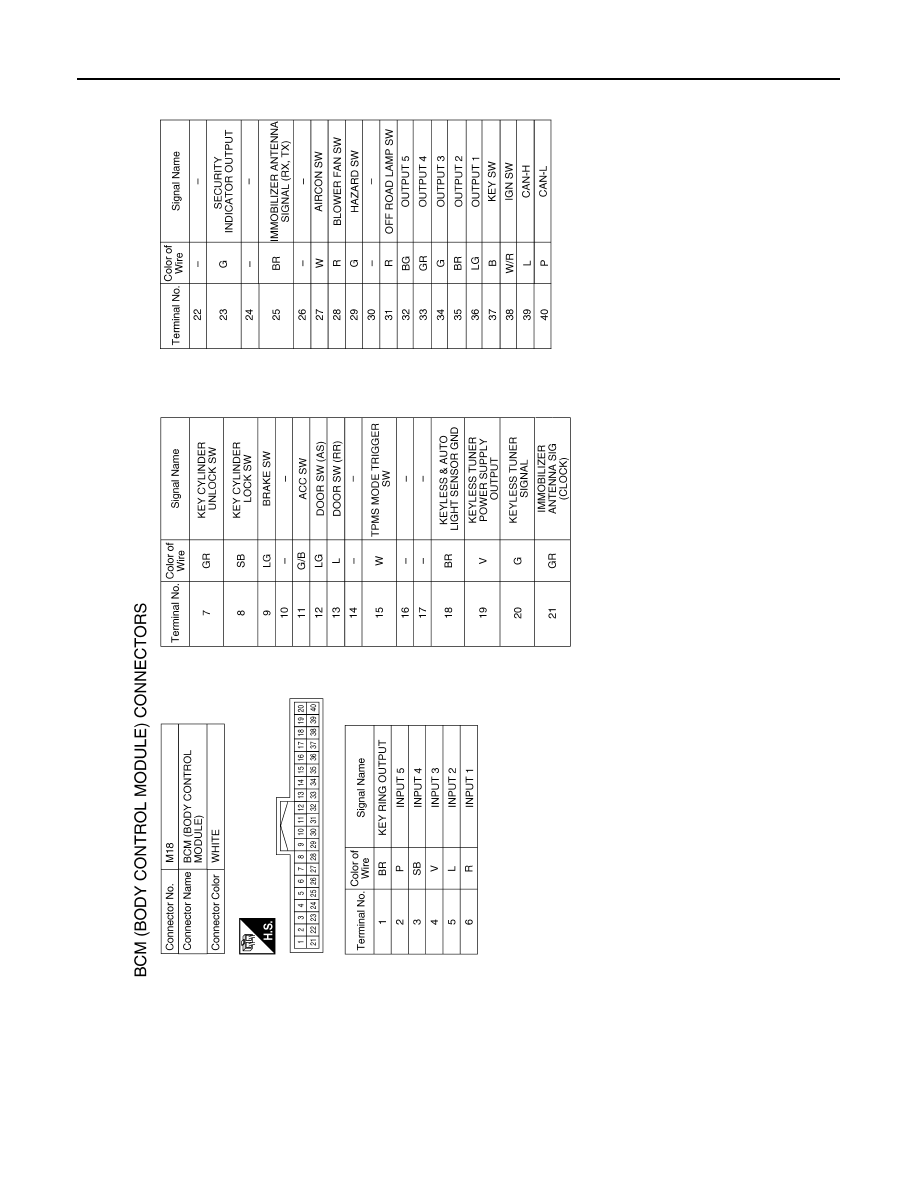

ABMIA5573GB
