AUDIO ANTENNA

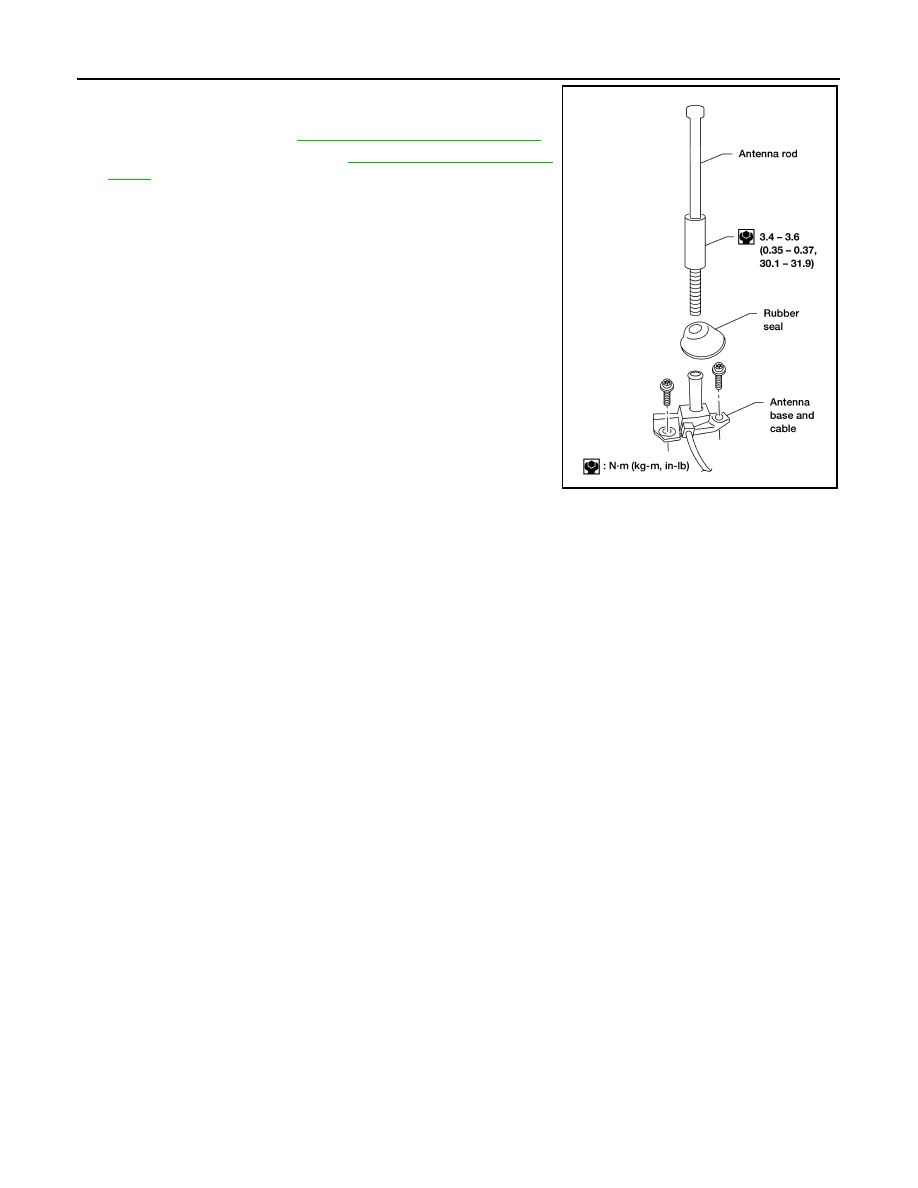

3. Remove antenna rod.
4. Remove rubber seal.
5. Remove cowl top. Refer to

EXT-20, "Removal and Installation"

.

6. Remove fender protector. Refer to

EXT-22, "Removal and Instal-

lation"

.

7. Remove antenna base bolts.
8. Remove antenna base and cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Always properly tighten the antenna rod during installation or the antenna rod may bend or break dur-

ing vehicle operation.

AEL610C

AV

AUXILIARY INPUT JACK

AV-229

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000009485333

Removal

1. Remove the center console. Refer to

IP-21, "Removal and Installation"

.

2. Push the pawl from the back of the center console to remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

AV-230

< REMOVAL AND INSTALLATION >

[NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009485334

REMOVAL

1. Remove the roof console. Refer to

INT-21, "Removal and Installation"

.

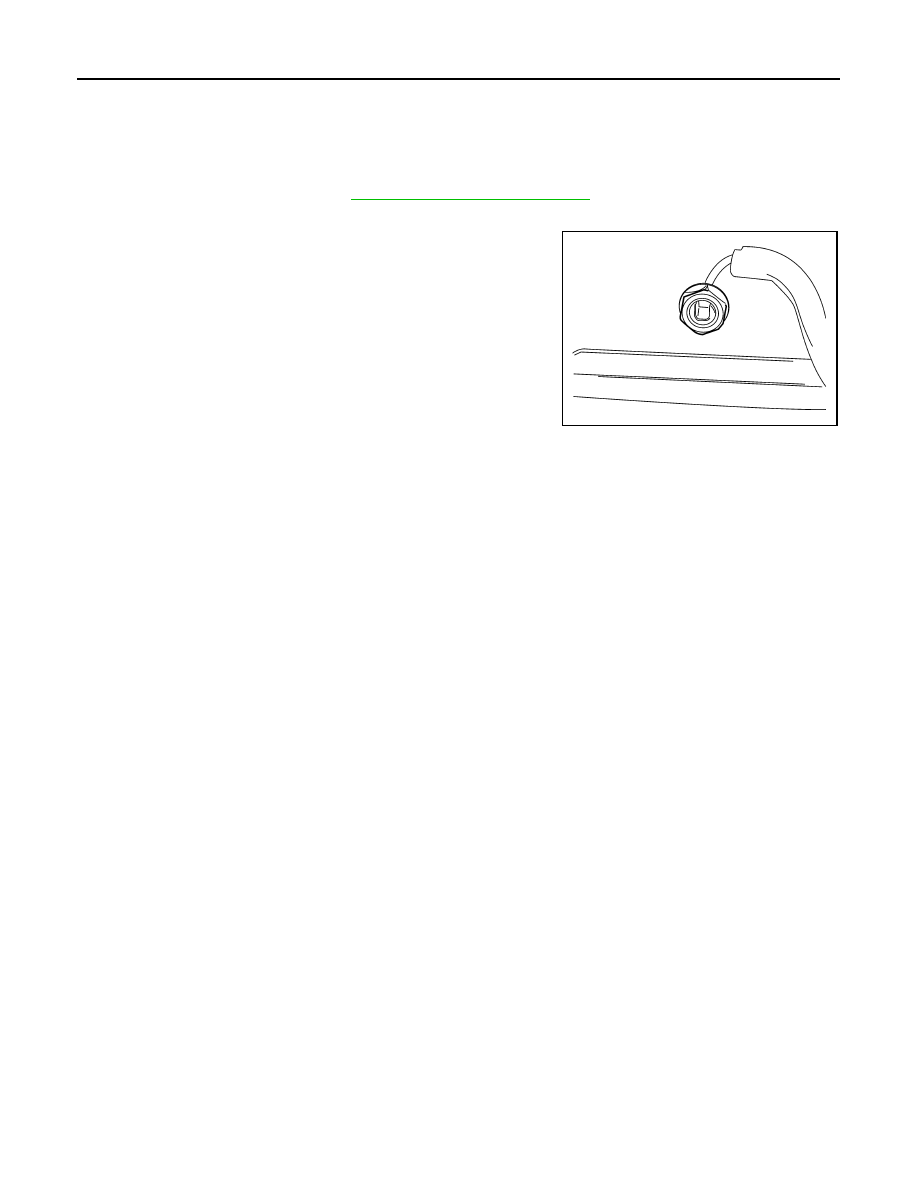

2. Disconnect the harness connector from the satellite radio antenna.
3. Remove the satellite radio antenna nut.
4. Remove the satellite radio antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

AV

GPS ANTENNA

AV-231

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000009485335

REMOVAL

1. Remove the combination meter. Refer to

MWI-84, "Removal and Installation"

.

2. Remove the GPS antenna screw and the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.
