SUBWOOFER

SUBWOOFER

Removal and Installation

INFOID:0000000009485328

REMOVAL

1. Position the LH rear seat cushion in the folded up position.
2. Remove storage box (RH). Refer to

INT-23, "Component"

.

3. Remove the subwoofer screws.
4. Disconnect the harness connector from the subwoofer and remove.

INSTALLATION

Installation is in the reverse order of removal.

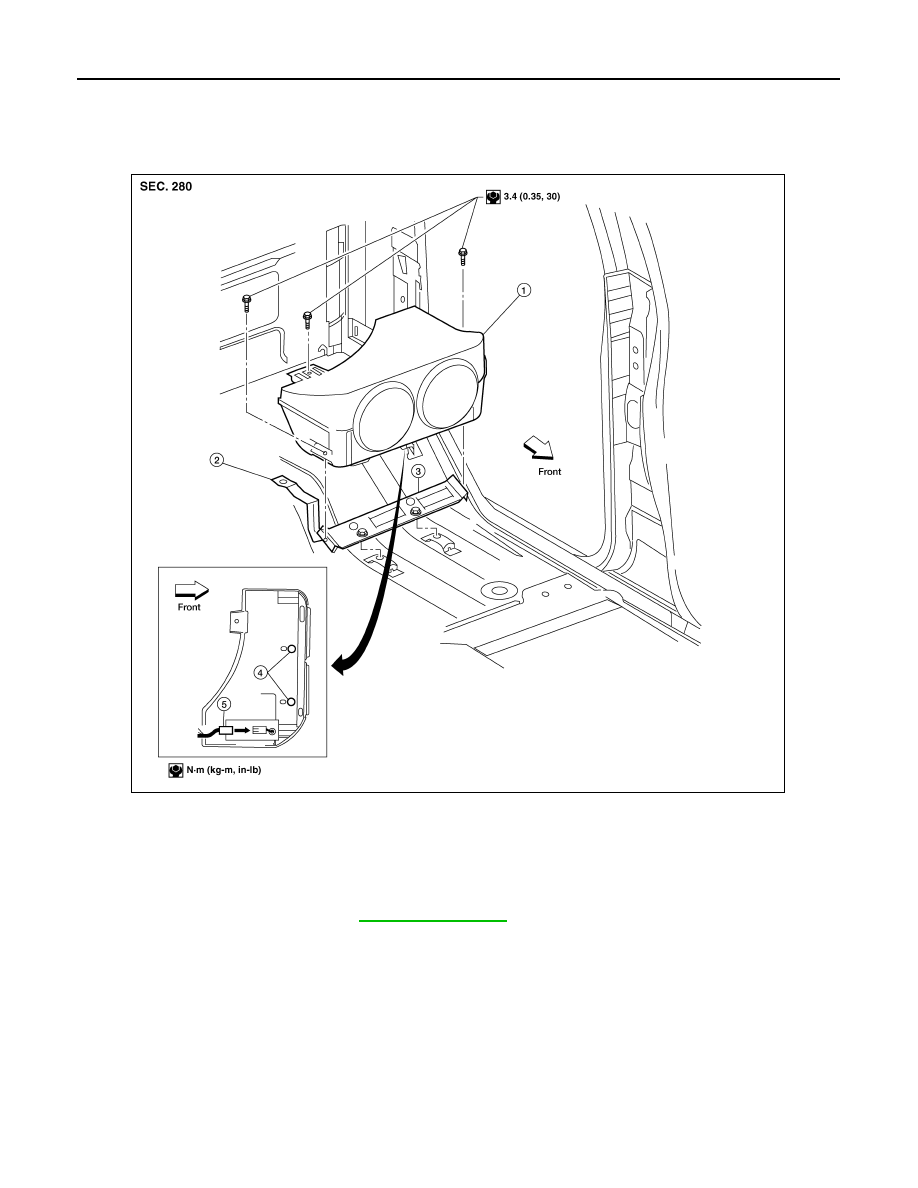

1.

Subwoofer

2.

Bracket

3.

Locating pin plate

4.

Locating pin

5.

Connector

LKIA0639E

AV

STEERING SWITCH

AV-225

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000009485329

REMOVAL

1. Remove the driver air bag module. Refer to

SR-11, "Removal and Installation"

.

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the harness connectors from the steering wheel audio control switches.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.

: Pawl

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

INSTALLATION

Installation is in the reverse order of removal.

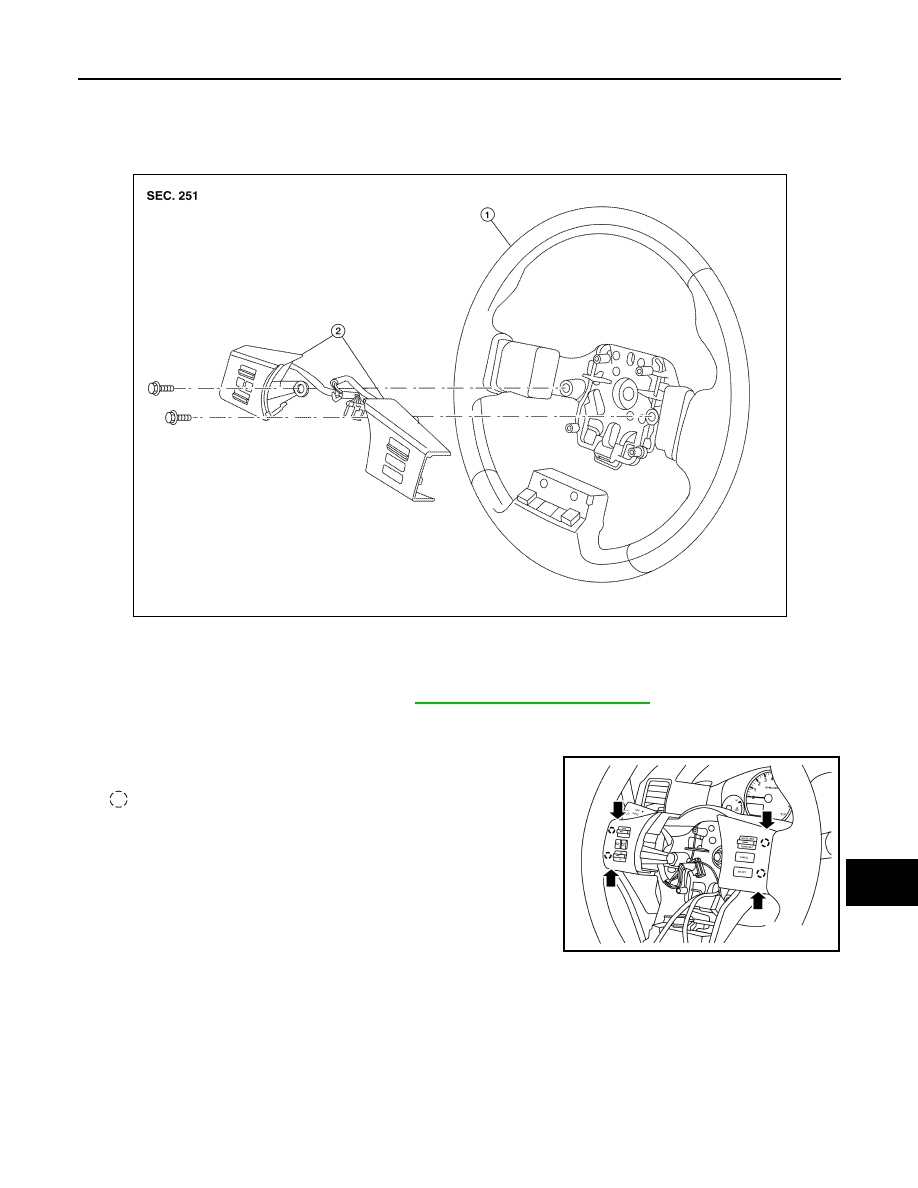

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

AV-226

< REMOVAL AND INSTALLATION >

[NAVIGATION]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000009485330

REMOVAL

1. Remove the roof console. Refer to

INT-21, "Removal and Installation"

.

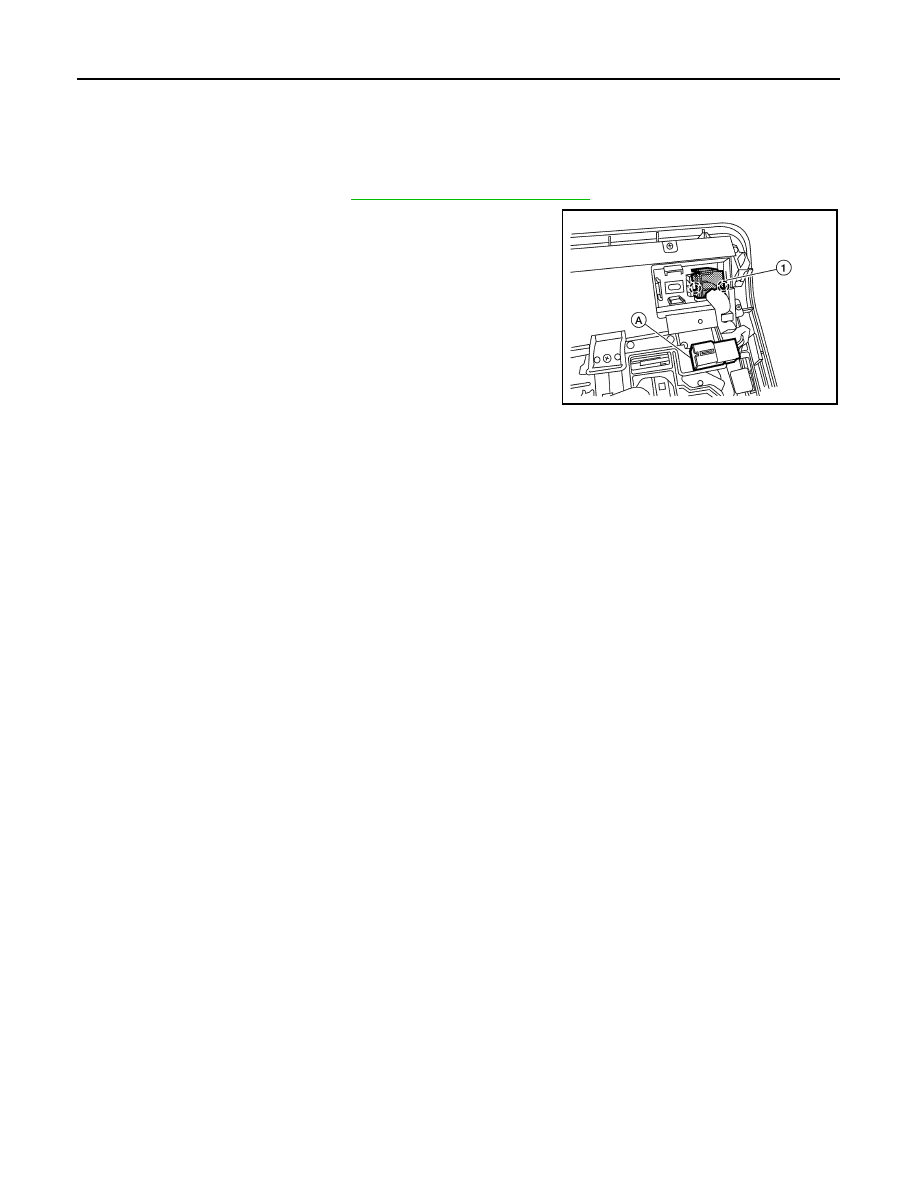

2. Release the pawls that retain the Bluetooth microphone (1) to

the roof console.

3. Disconnect the harness connector (A) from the Bluetooth micro-

phone (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA2931ZZ

AV

AUDIO ANTENNA

AV-227

< REMOVAL AND INSTALLATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

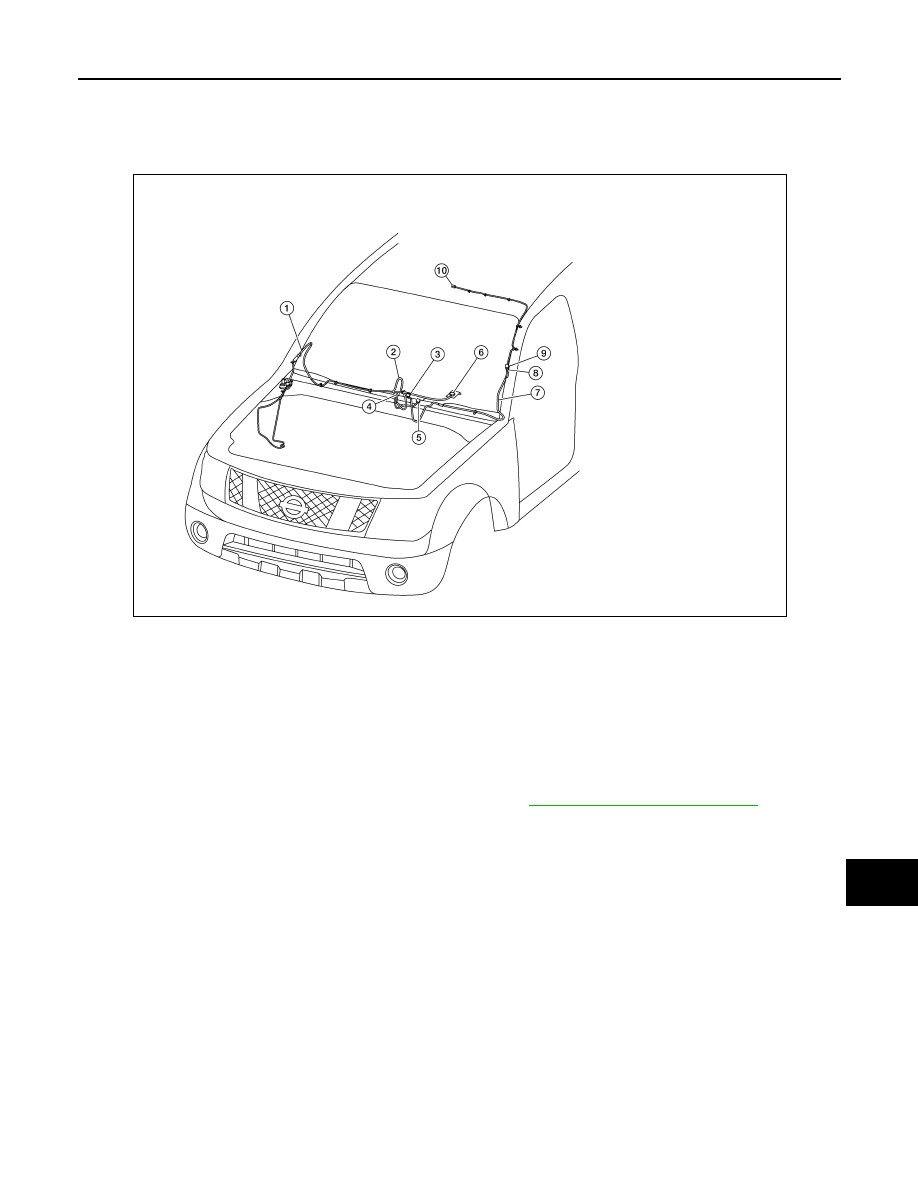

Location of Antenna

INFOID:0000000009485331

Removal and Installation

INFOID:0000000009485332

REMOVAL

1. Remove instrument lower panel RH and glove box. Refer to

IP-19, "Removal and Installation"

.

2. Disconnect audio antenna cable from antenna feeder.

1.

Coaxial antenna feeder

2.

GPS antenna feeder

3.

M100

4.

M99

5.

M38

6.

GPS antenna

7.

Satellite antenna feeder

8.

M67

9.

M500

10. M501

AWNIA2971ZZ
