Nissan Xterra. Manual - part 35





AV-132

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION]

AUDIO AMP.

AUDIO AMP.

Reference Value

INFOID:0000000009485266

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA1623ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

1

 (Y)

Ground Battery

Input

–

–

Battery voltage

2

 (W)

18

(G)

Subwoofer

Output

ON

Receive audio signal

3

(BR/W)

19

(BR)

Subwoofer

Output

ON

Receive audio signal

4

 (B)

Ground

Ground

–

ON

–

–

9

(G/W)

Ground

Amp. ON signal

Input

ON

–

Greater than 6.5 V

11

(G)

27

 (B)

Rear door speaker LH

Output

ON

Receive audio signal

SKIA0177E

SKIA0177E

SKIA0177E

AV

AUDIO AMP.

AV-133

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

12

(GR)

28

(BG)

Rear door speaker RH

Output

ON

Receive audio signal

13

 (W)

29

(P)

Front tweeter RH

Output

ON

Receive audio signal

14

(Y)

30

(GR)

Front tweeter LH

Output

ON

Receive audio signal

15

(BR)

31

(L)

Front door speaker LH

Output

ON

Receive audio signal

16

(LG)

32

(R)

Front door speaker RH

Output

ON

Receive audio signal

17

(R/B)

Ground Battery

Input

–

–

Battery voltage

20

(B)

Ground Ground

–

ON

–

–

21

 (Y)

5

(R)

Audio sound signal front
RH

Input

ON

Receive audio signal

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AV-134

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION]

AUDIO AMP.

22

(W)

6

(B)

Audio sound signal front LH Input

ON

Receive audio signal

23

(L)

7

(B/W)

Audio sound signal rear RH

Input

ON

Receive audio signal

24

(P)

8

(B/R)

Audio sound signal rear LH

Input

ON

Receive audio signal

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

AV

NAVIGATION SYSTEM

AV-135

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

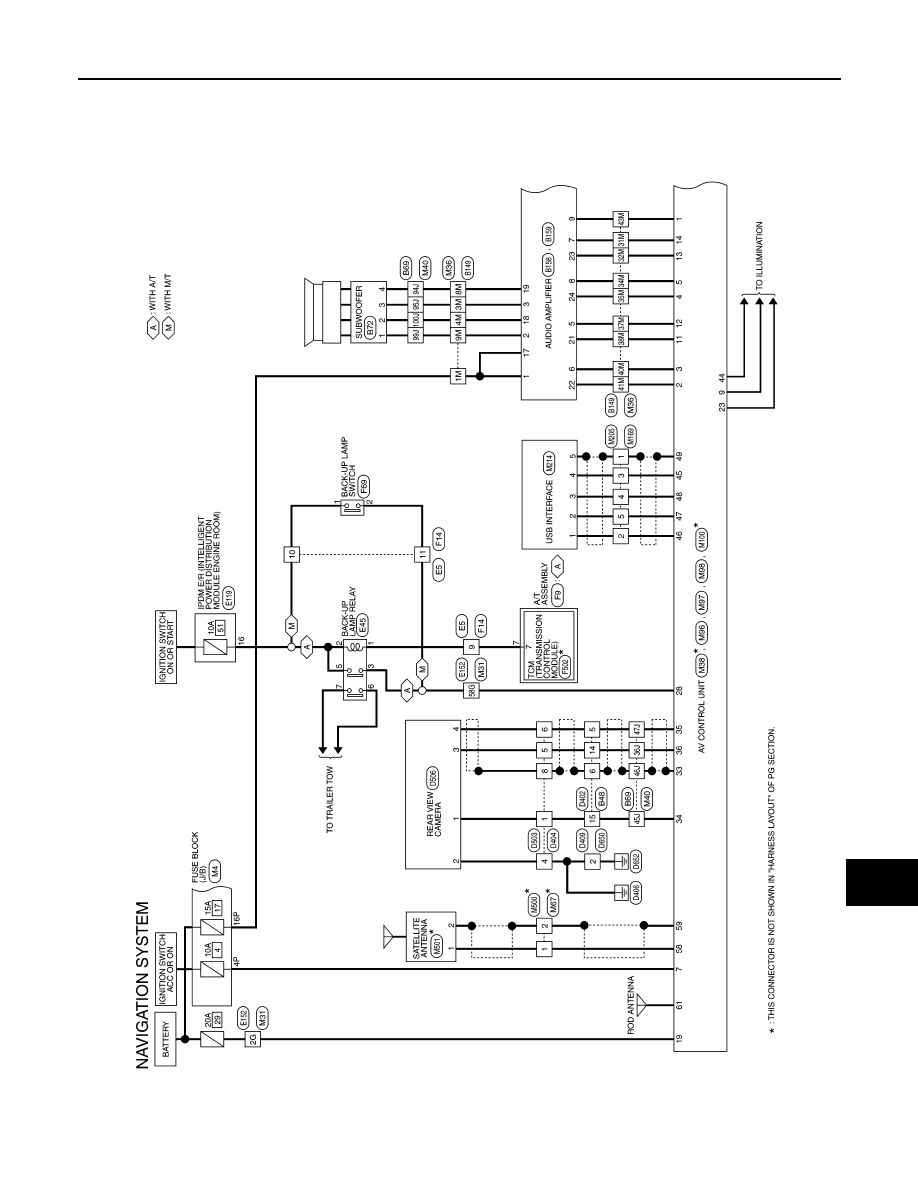

WIRING DIAGRAM

NAVIGATION SYSTEM

Wiring Diagram

INFOID:0000000009485267

ABNWA2110GB
