REAR WIPER ARM

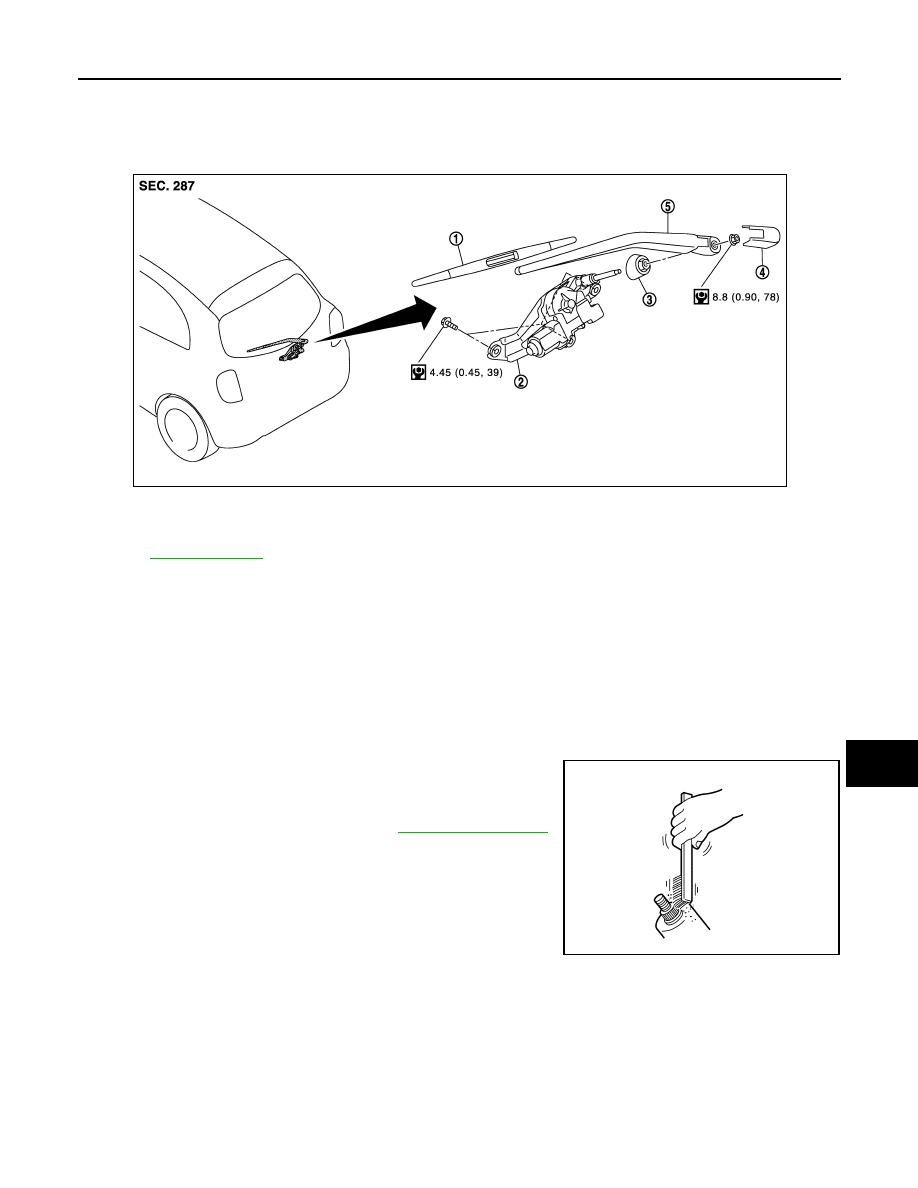

Exploded View

INFOID:0000000006067404

Removal and Installation

INFOID:0000000006067405

REMOVAL

1.

Operate rear wiper to the auto stop position.

2.

Remove rear wiper arm cover.

3.

Remove rear wiper arm mounting nut.

4.

Raise rear wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nut
from being loosened.

2.

Operate rear wiper motor to the auto stop position.

3.

Adjust rear wiper blade position. Refer to

WW-57, "Adjustment"

.

4.

Install rear wiper arm by tightening the mounting nut.

5.

Inject washer fluid.

6.

Operate rear wiper to the auto stop position.

7.

Check that rear wiper blades stop at the specified position.

8.

Install rear wiper arm cover.

Adjustment

INFOID:0000000006067406

REAR WIPER BLADE POSITION ADJUSTMENT

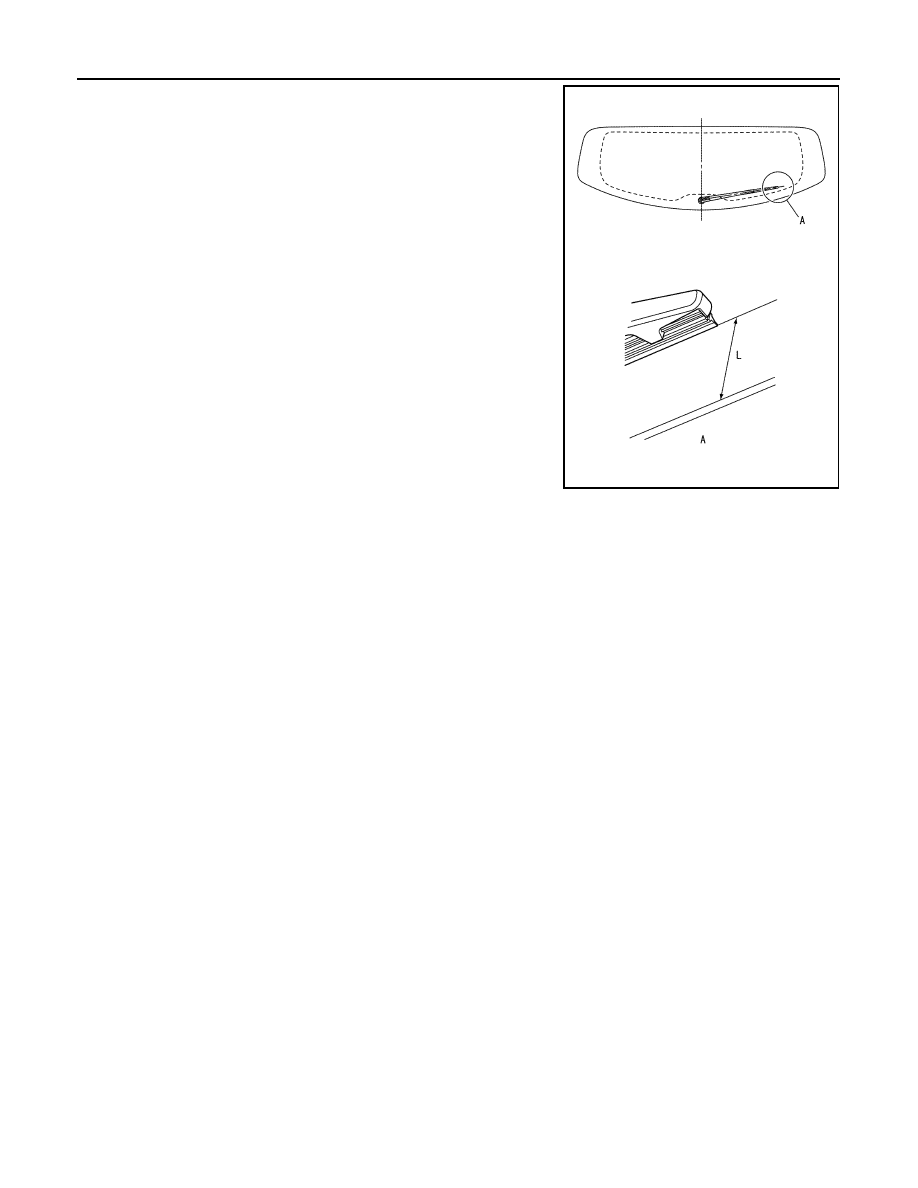

Clearance between the end of back door glass and the top of wiper blade center.

1.

Rear wiper blade

2.

Rear wiper motor

3.

pivot seal

4.

Rear wiper arm cover

5.

Rear wiper arm

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA1002GB

SKIA0082J

WW-58

< REMOVAL AND INSTALLATION >

REAR WIPER ARM

Standard clearance

L

: 54.5

±

7.5 mm (2.146

±

 0.295 in)

JPLIA1236ZZ

REAR WIPER MOTOR

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER MOTOR

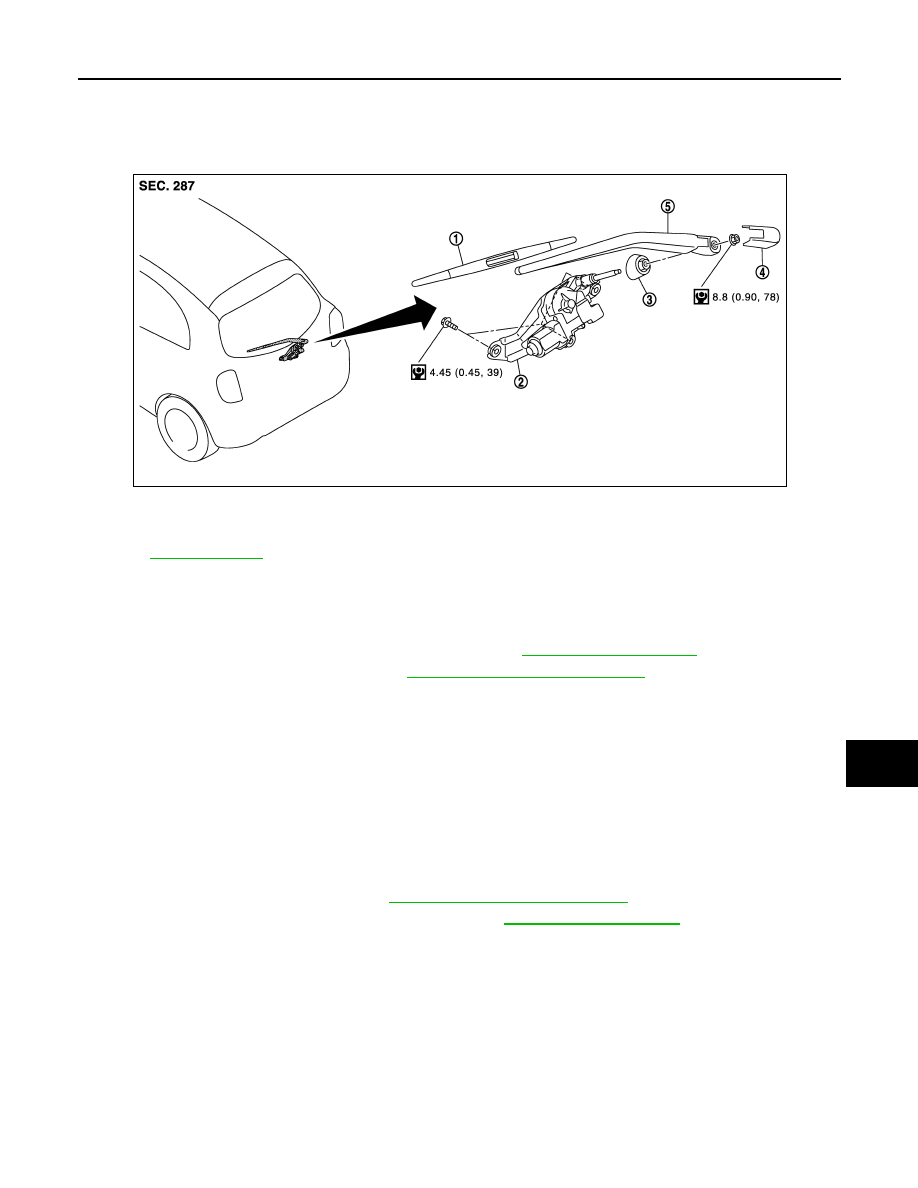

Exploded View

INFOID:0000000006067407

Removal and Installation

INFOID:0000000006067408

REMOVAL

1.

Remove rear wiper arm cover and rear wiper arm. Refer to

WW-57, "Exploded View"

.

2.

Remove back door finisher lower. Refer to

INT-33, "Removal and Installation"

.

3.

Disconnect rear wiper motor connector.

4.

Remove rear wiper motor mounting bolts.

5.

Remove rear wiper motor from the vehicle.

6.

Remove pivot seal.

INSTALLATION

1.

Install pivot seal.

2.

Install rear wiper motor to the vehicle.

3.

Connect rear wiper motor connector.

4.

Operate rear wiper to the auto stop position.

5.

Install back door finisher lower. Refer to

INT-33, "Removal and Installation"

.

6.

Install rear wiper arm cover and rear wiper arm. Refer to

WW-57, "Exploded View"

.

1.

Rear wiper blade

2.

Rear wiper motor

3.

Pivot seal

4.

Rear wiper arm cover

5.

Rear wiper arm

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA1002GB

WW-60

< REMOVAL AND INSTALLATION >

REAR WASHER NOZZLE AND TUBE

REAR WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000006067409

Removal and Installation

INFOID:0000000006067410

REMOVAL

1.

Apply protective tape (B) around rear nozzle to protect the
painted surface from damage.

2.

Push pawls with a flat-bladed screwdriver (A) wrapped into a
protective tape.

3.

Remove rear washer tube from rear washer nozzle (1).

INSTALLATION

Install in the reverse order of removal.

1.

Rear washer nozzle

2.

Grommet

3.

Rear washer tube

4.

Washer tank

: Clip

JMLIA1065ZZ

: Pawl

JMLIA1003ZZ
