FRONT WIPER ARM

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

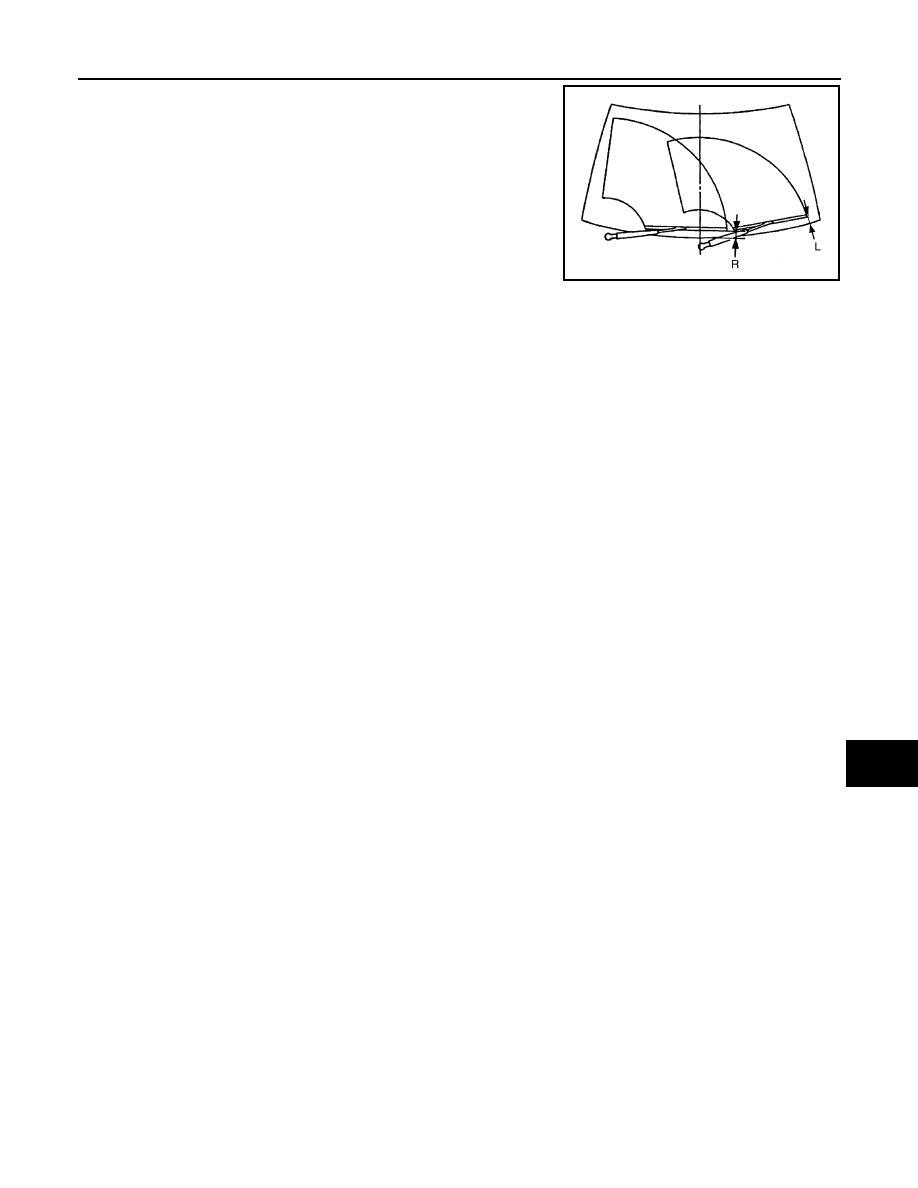

Standard clearance

R

: 37.1

±

 7.5 mm (1.461

±

 0.295 in)

L

: 28.4

±

 7.5 mm (1.118

±

 0.295 in)

JPLIA0136ZZ

WW-54

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

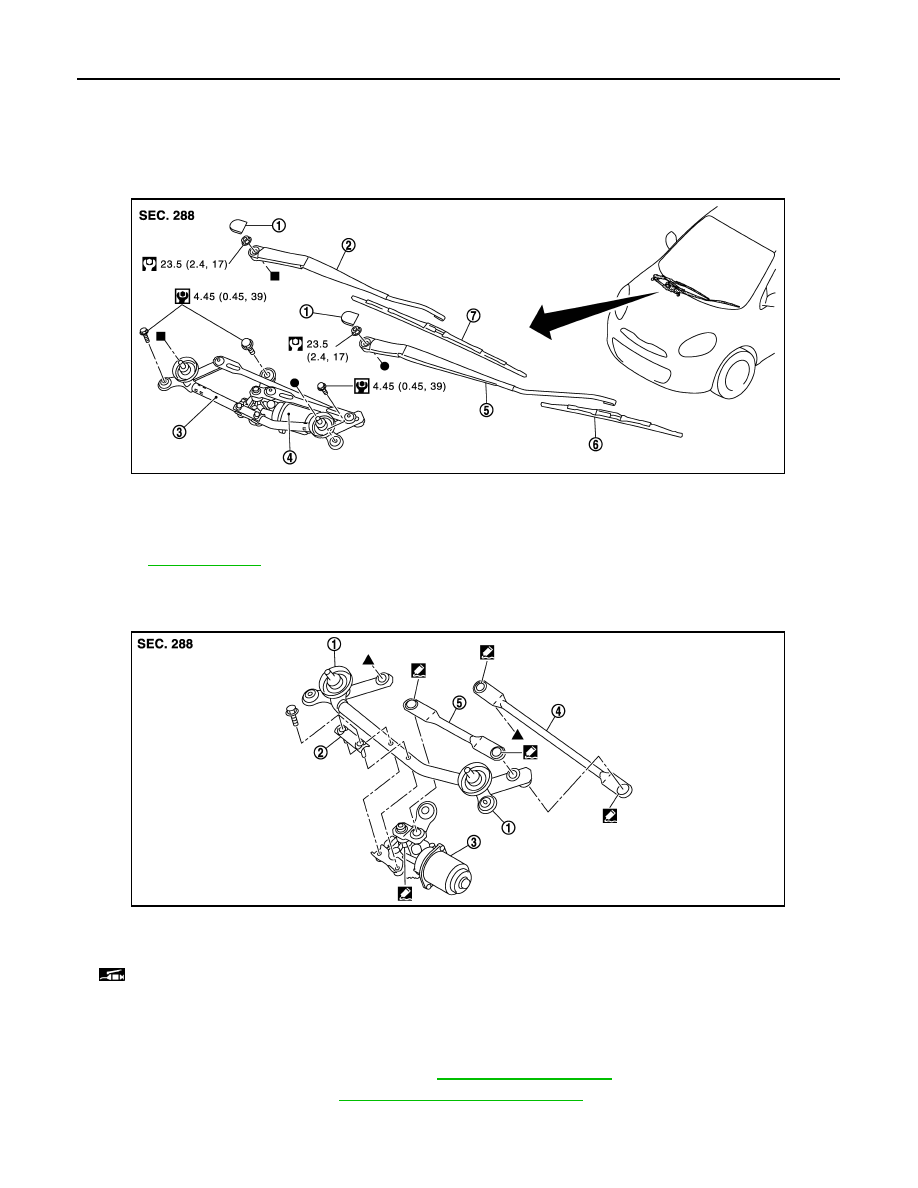

Exploded View

INFOID:0000000006067398

REMOVAL VIEW

DISASSEMBLY VIEW

Removal and Installation

INFOID:0000000006067399

REMOVAL

1.

Remove front wiper arm (LH and RH). Refer to

WW-52, "Exploded View"

.

2.

Remove cowl top cover. Refer to

EXT-15, "Removal and Installation"

.

3.

Disconnect front wiper motor connector.

4.

Remove mounting bolts front wiper drive assembly.

1.

Front wiper arm cap RH

2.

Front wiper arm RH

3.

Front wiper drive

4.

Front wiper motor

5.

Front wiper arm LH

6.

Front wiper blade LH

6.

Front wiper blade (RH)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA1000GB

1.

Shaft seal

2.

Bracket Front wiper frame

3.

Front wiper motor

4.

Front wiper linkage 2

5.

Front wiper linkage 1

: Multi

−

purpose grease or an equivalent

JMLIA1001ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

5.

Remove front wiper drive assembly from the vehicle.

INSTALLATION

1.

Install front wiper drive assembly to the vehicle.

2.

Connect front wiper motor connector.

3.

Operate front wiper to move it to the auto stop position.

4.

Install cowl top cover. Refer to

EXT-15, "Removal and Installation"

.

5.

Install front wiper arms. Refer to

WW-52, "Exploded View"

.

Disassembly and Assembly

INFOID:0000000006067400

DISASSEMBLY

1.

Remove front wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Never bend the linkage or damage the plastic part of the ball joint when removing the front wiper
linkage.

2.

Remove front wiper motor mounting screws, and then remove the front wiper motor from the front wiper
frame.

ASSEMBLY

1.

Connect front wiper motor connector.

2.

Operate front wiper to move it to the auto stop position.

3.

Disconnect front wiper motor connector.

4.

Install front wiper motor to front wiper frame.

5.

Install front wiper linkage 1 to the front wiper motor and the front wiper frame.

6.

Install front wiper linkage 2 to the front wiper frame.

CAUTION:

• Never drop front wiper motor or cause it to come into contact with other parts.
• Be careful for the grease condition at the front wiper motor and front wiper linkage joint

(retainer). Apply multi

−

purpose grease or an equivalent if necessary.

WW-56

< REMOVAL AND INSTALLATION >

WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000006067403

Refer to

WW-47, "Removal and Installation"

.
