DIAGNOSIS SYSTEM (IPDM E/R)
WW-25
< SYSTEM DESCRIPTION >
C
D
E
F
G
H
I
J
K
M
A
B
WW
N
O
P
ACTIVE TEST
Test item
HORN CHIRP
[Off/On]
NOTE:
This item is indicated, but not monitored.
CRNRNG LMP REQ
[Off/On]
NOTE:
This item is indicated, but not monitored.
Monitor Item
[Unit]
MAIN SIG-
NALS
Description
Test item
Operation
Description
CORNERING LAMP
LH
NOTE:
This item is indicated, but cannot be tested.
RH
HORN
On
Operates horn relay for 20 ms.

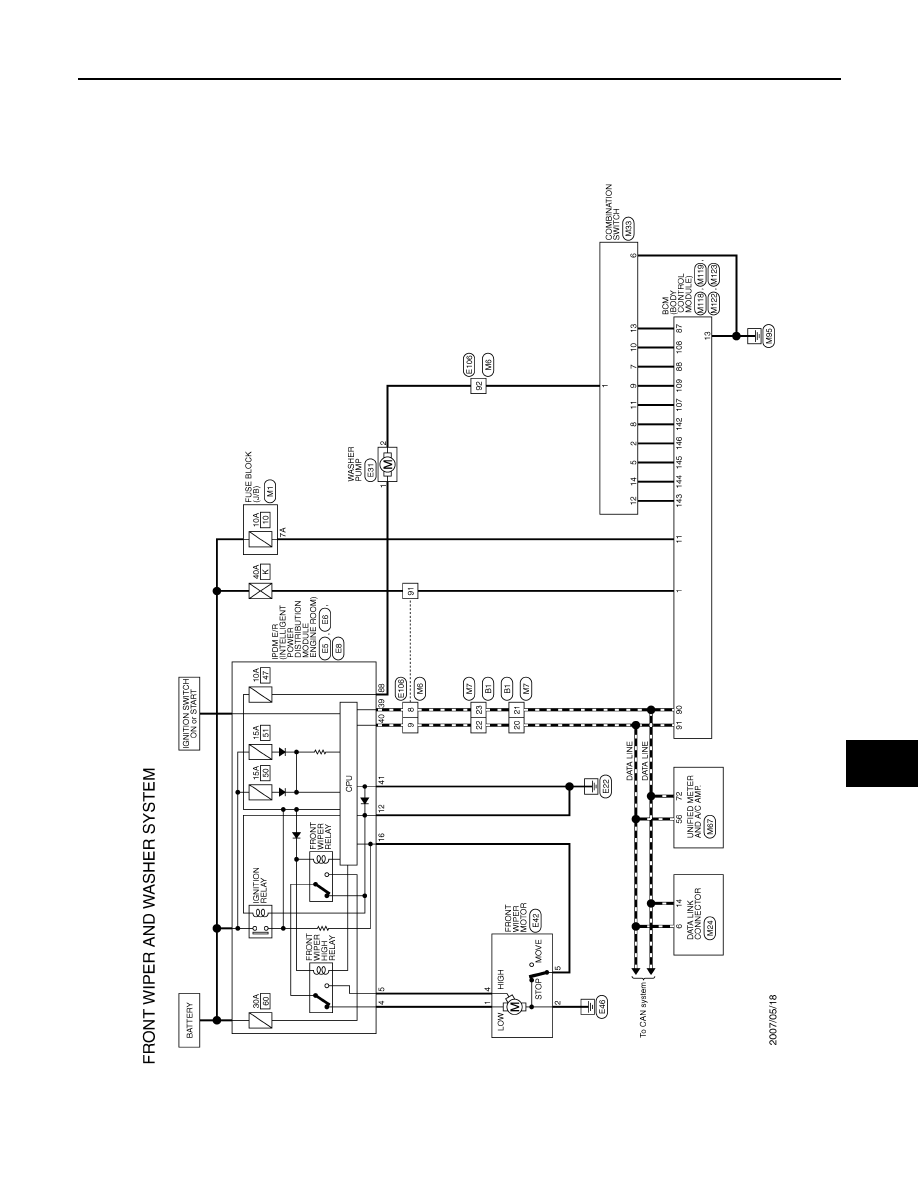

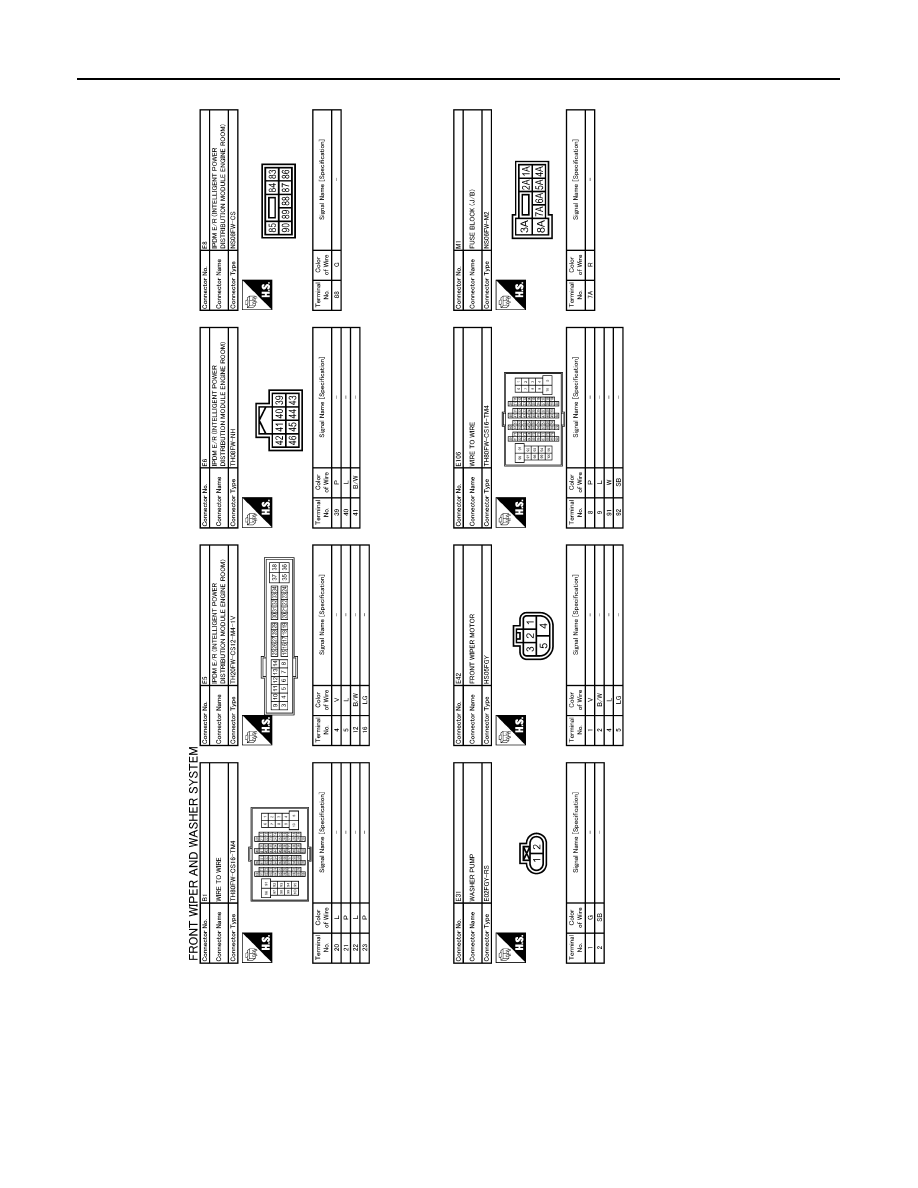

FRONT WIPER
Off
OFF
Lo
Operates the front wiper relay.
Hi
Operates the front wiper relay and front wiper high relay.
MOTOR FAN
1
OFF
2
Operates the cooling fan relay (LO operation).
3
Operates the cooling fan relay (MID operation).
4
Operates the cooling fan relay (HI operation).
HEAD LAMP WASHER
Off
NOTE:
This item is indicated, but cannot be tested.
EXTERNAL LAMPS
Off
OFF
TAIL
Operates the tail lamp relay.
Lo
Operates the headlamp low relay.
Hi
Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.
Fog
NOTE:
This item is indicated, but cannot be tested.
