DIAGNOSIS SYSTEM (BCM)

SEC-135

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

THEFT ALM : CONSULT-III Function (BCM - THEFT)

INFOID:0000000006014770

ACTIVE TEST

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000006014771

ACTIVE TEST

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. Security indicator lamp will be
turned on when “ON” on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

This test is able to check horn operation. Horn will be activated for 0.5 seconds after “ON” on
CONSULT-III screen is touched.

HEADLAMP (HI)

This test is able to check headlamp (HI) operation. Headlamps (HI) will be activated for 0.5
seconds after “ON” on CONSULT-III screen is touched.

FLASHER

This test is able to check hazard warning lamp operation. Hazard warning lamps will be acti-
vated after “LH” or “RH” on CONSULT-III screen is touched.

Test item

Description

THEFT IND

This test is able to check security indicator lamp operation. Security indicator lamp will be
turned on when “ON” on CONSULT-III screen is touched.

SEC-136

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000006014772

ECU

Reference

BCM

BCS-72, "Reference Value"

BCS-85, "Fail-safe"

BCS-85, "DTC Inspection Priority Chart"

BCS-86, "DTC Index"

NISSAN ANTI-THEFT SYSTEM

SEC-137

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

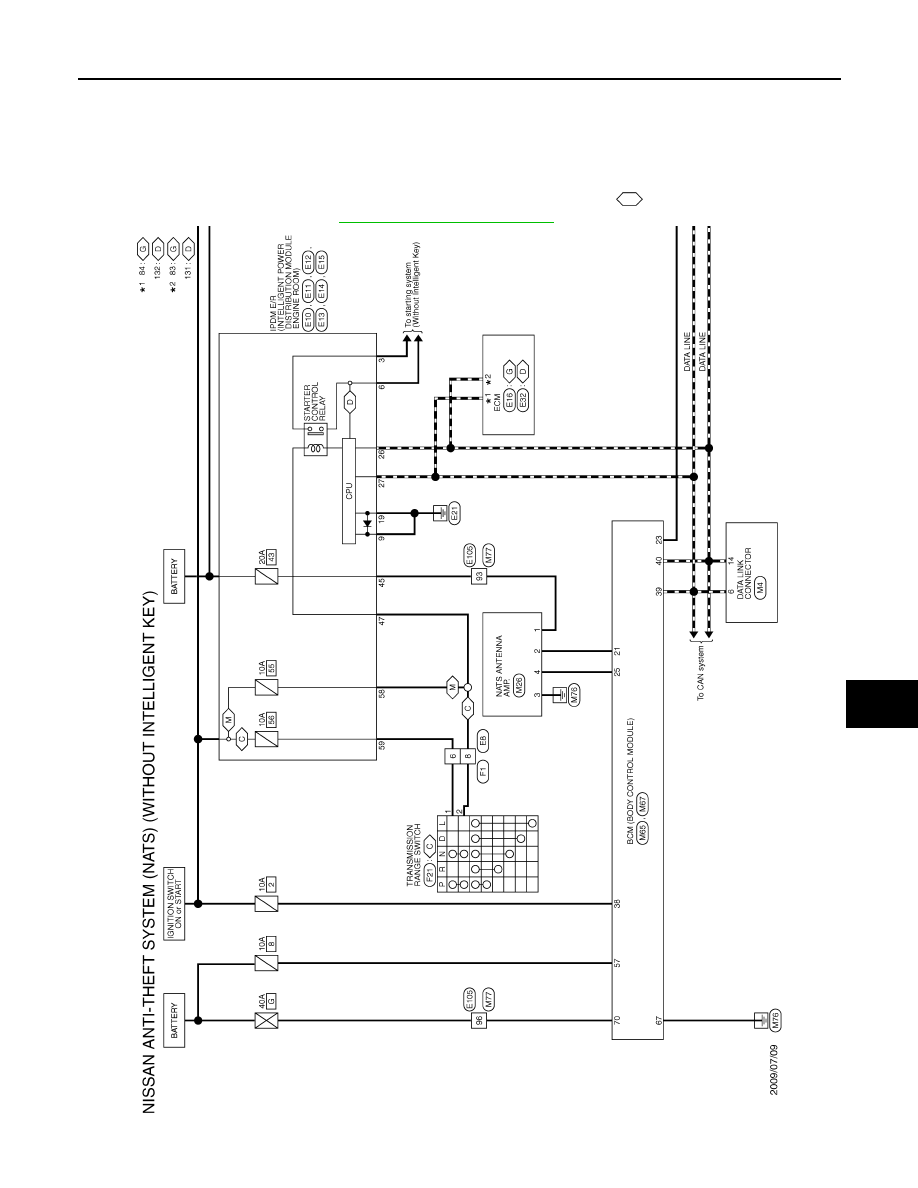

WIRING DIAGRAM

NISSAN ANTI-THEFT SYSTEM

Wiring Diagram

INFOID:0000000006014773

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCKWM3227GB

SEC-138

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

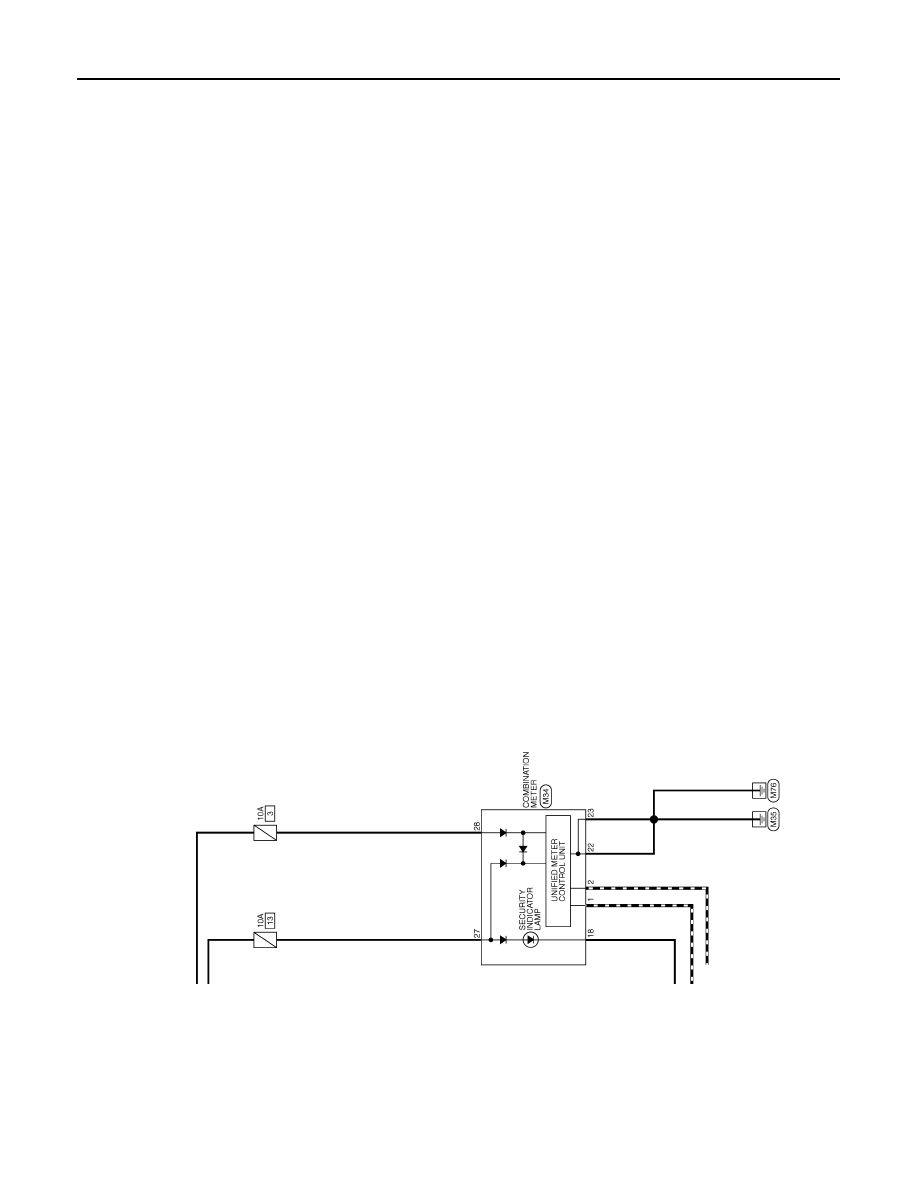

NISSAN ANTI-THEFT SYSTEM

JCKWM3228GB
