DIAGNOSIS SYSTEM (BCM)

SEC-23

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

WORK SUPPORT

ACTIVE TEST

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000006038496

DATA MONITOR

PUSH SW

Indicates [ON/OFF] condition of push-button ignition switch

UNLK SEN -DR

Indicates [ON/OFF] condition of driver door UNLOCK status.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-BK

Indicates [ON/OFF] condition of back door switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from door lock/unlock switch LH and RH.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from door lock/unlock switch LH and RH.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder.

KEY CYL UN-SW

Indicates [ON/OFF] condition of unlock signal from door key cylinder.

TR/BD OPEN SW

NOTE:
This is displayed even when it is not equipped.

TRNK/HAT MNTR

NOTE:
This is displayed even when it is not equipped.

RKE-LOCK

Indicates [ON/OFF] condition of LOCK signal from Intelligent Key.

RKE-UNLOCK

Indicates [ON/OFF] condition of UNLOCK signal from Intelligent Key.

RKE-TR/BD

NOTE:
This is displayed even when it is not equipped.

Monitored Item

Description

Service Item

Description

SECURITY ALARM SET

NOTE:
Never use this item, if displayed.

THEFT ALM TRG

NOTE:
Never use this item, if displayed.

SIREN SET

NOTE:
Never use this item, if displayed.

SECURITY ALARM SET (SIREN)

NOTE:
Never use this item, if displayed.

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. Security indicator lamp is turned on
when “ON” on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

NOTE:
This item cannot be tested, if displayed.

HEADLAMP(HI)

NOTE:
This item cannot be tested, if displayed.

FLASHER

NOTE:
This item cannot be tested, if displayed.

SEC-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

WORK SUPPORT

Monitor item

Content

CONFRM ID ALL

Indicates [YET] at all time.
Switches to [DONE] when a registered Intelligent Key backside is contacted to push-button ignition
switch.

CONFIRM ID4

CONFIRM ID3

CONFIRM ID2

CONFIRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID NG]
when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

PUSH SW

Indicates [ON/OFF] condition of push-button ignition switch.

Test item

Description

THEFT IND

This test is able to check security indicator lamp operation.
Security indicator lamp is turned on when “ON” on CONSULT-III screen touched.

Service item

Description

CONFIRM DONGLE ID

It is possible to check that dongle unit is applied to the vehicle.

BCM, IPDM E/R

SEC-25

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000006038498

ECU

Reference

BCM

Reference Value

BCS-18, "Reference Value"

Fail-safe

BCS-37, "Fail-safe"

DTC Inspection Priority Chart

BCS-39, "DTC Inspection Priority Chart"

DTC Index

BCS-40, "DTC Index"

IPDM E/R

Reference Value

PCS-15, "Reference Value"

Fail-safe

PCS-20, "Fail-Safe"

DTC Index

PCS-22, "DTC Index"

SEC-26

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

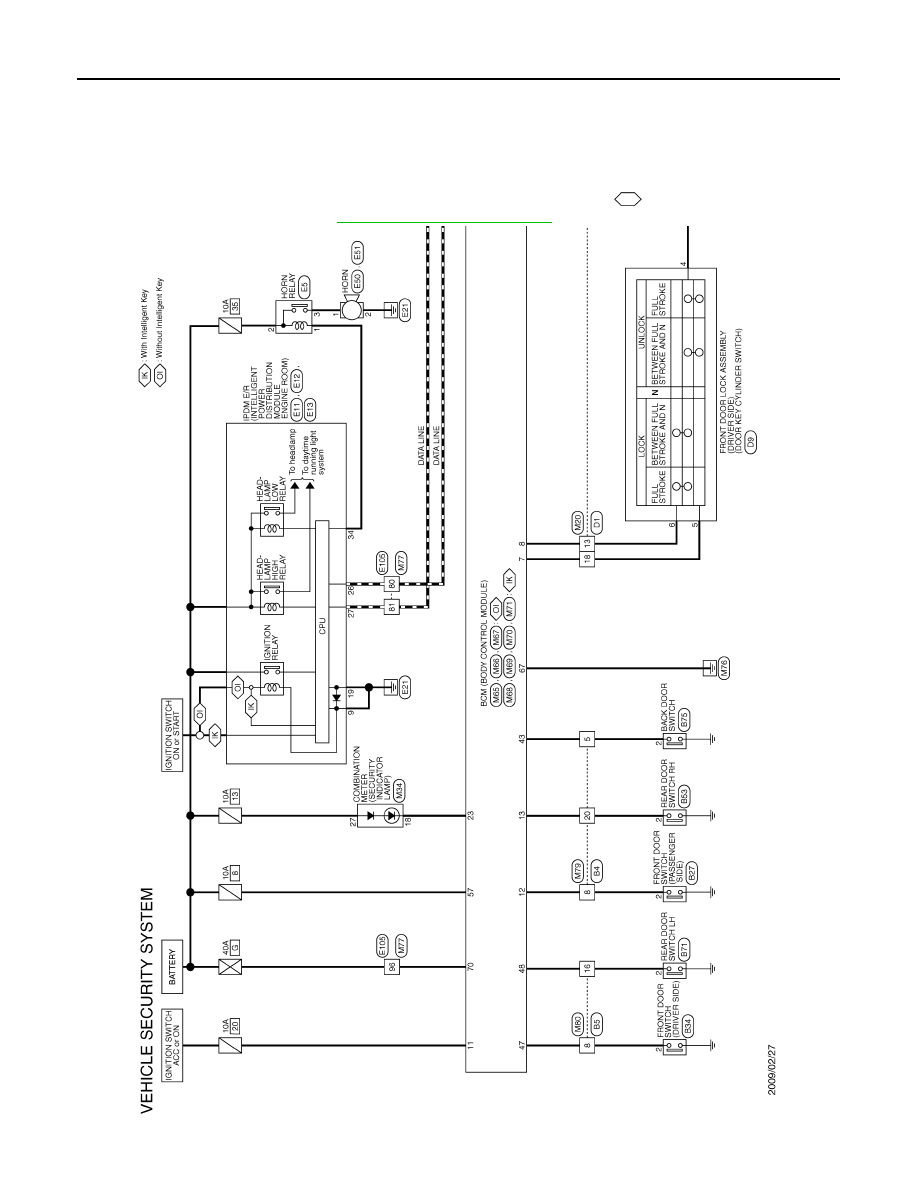

WIRING DIAGRAM

SECURITY CONTROL SYSTEM

Wiring Diagram

INFOID:0000000006038501

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCKWM2841GB
