REAR SUSPENSION BEAM

RSU-11

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REAR SUSPENSION BEAM

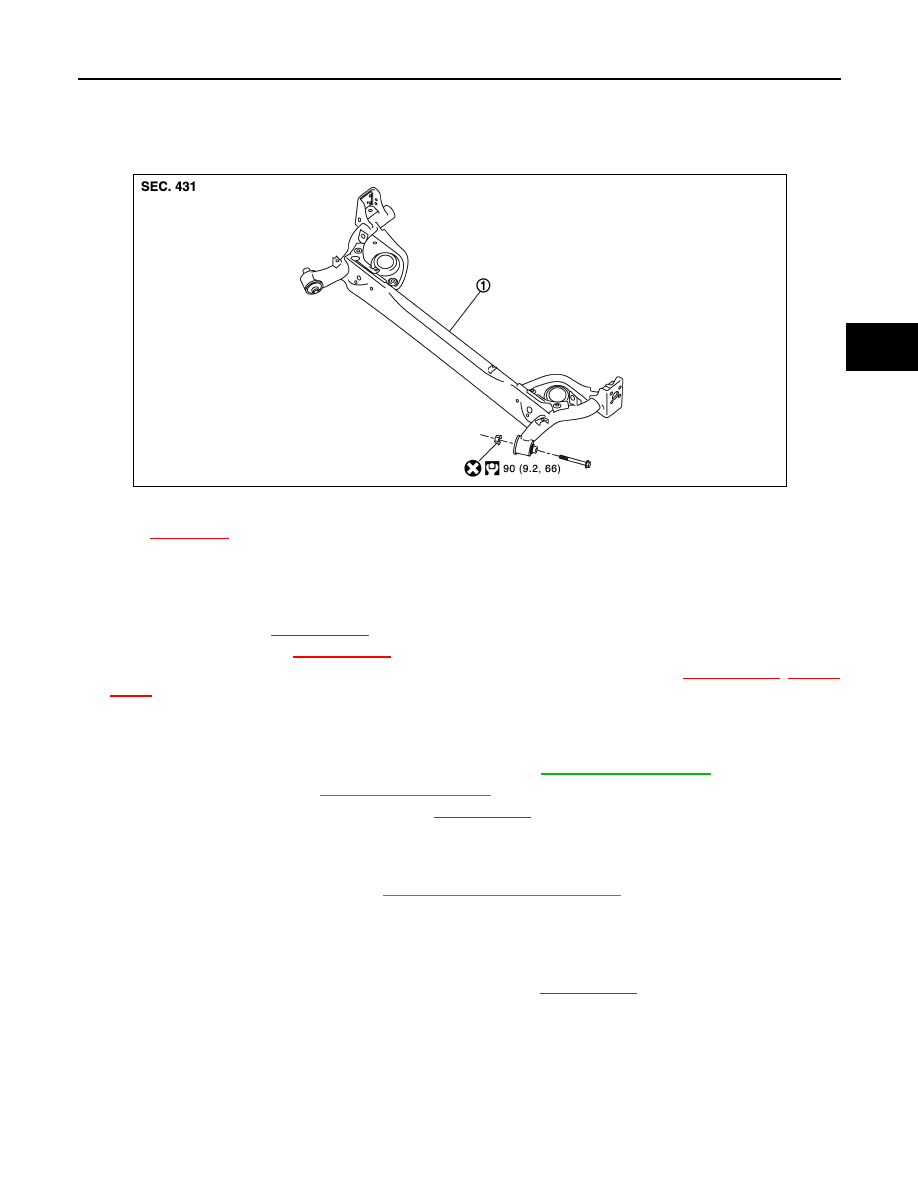

Exploded View

INFOID:0000000006044860

Removal and Installation

INFOID:0000000006044861

REMOVAL

1.

Remove tires. Refer to

XX-XX, "*****"

.

2.

Drain brake fluid. Refer to

XX-XX, "*****"

.

3.

Remove parking brake cable and brake drum from rear suspension beam. Refer to

XX-XX, "*****"

XX-XX,

"*****"

.

4.

Set suitable jack under rear suspension beam.

CAUTION:

Check the stable condition when using a jack.

5.

Remove shock absorber mounting bolts (lower side). Refer to

RSU-7, "Exploded View"

.

6.

Remove coil springs. Refer to

RSU-9, "Exploded View"

.

7.

Separate brake hose and brake tube. Refer to

XX-XX, "*****"

.

8.

Slowly lower jack, remove rear suspension beam from vehicle body.

CAUTION:

Check the stable condition when using a jack.

9.

Remove wheel hub assembly. Refer to

RAX-5, "Removal and Installation"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension beam installation position (rubber bushing), under unladen condi-

tions with tires on level ground.

• Refill with new brake fluid and perform the air bleeding. Refer to

XX-XX, "*****"

.

Inspection

INFOID:0000000006044862

INSPECTION AFTER REMOVAL

Check rear suspension beam and rear suspension beam bracket for deformation, cracks or damage. Replace
the part if necessary.

INSPECTION AFTER INSTALLATION

1.

Rear suspension beam

Refer to

XX-XX, "*****"

 for symbols in the figure.

JPEIB0224GB

RSU-12

< REMOVAL AND INSTALLATION >

REAR SUSPENSION BEAM

1.

Adjust parking brake. Refer to

XX-XX, "*****"

.

2.

Check wheel alignment. Refer to

XX-XX, "*****"

.

3.

Adjust neutral position of steering angle sensor. Refer to

XX-XX, "*****"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-13

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

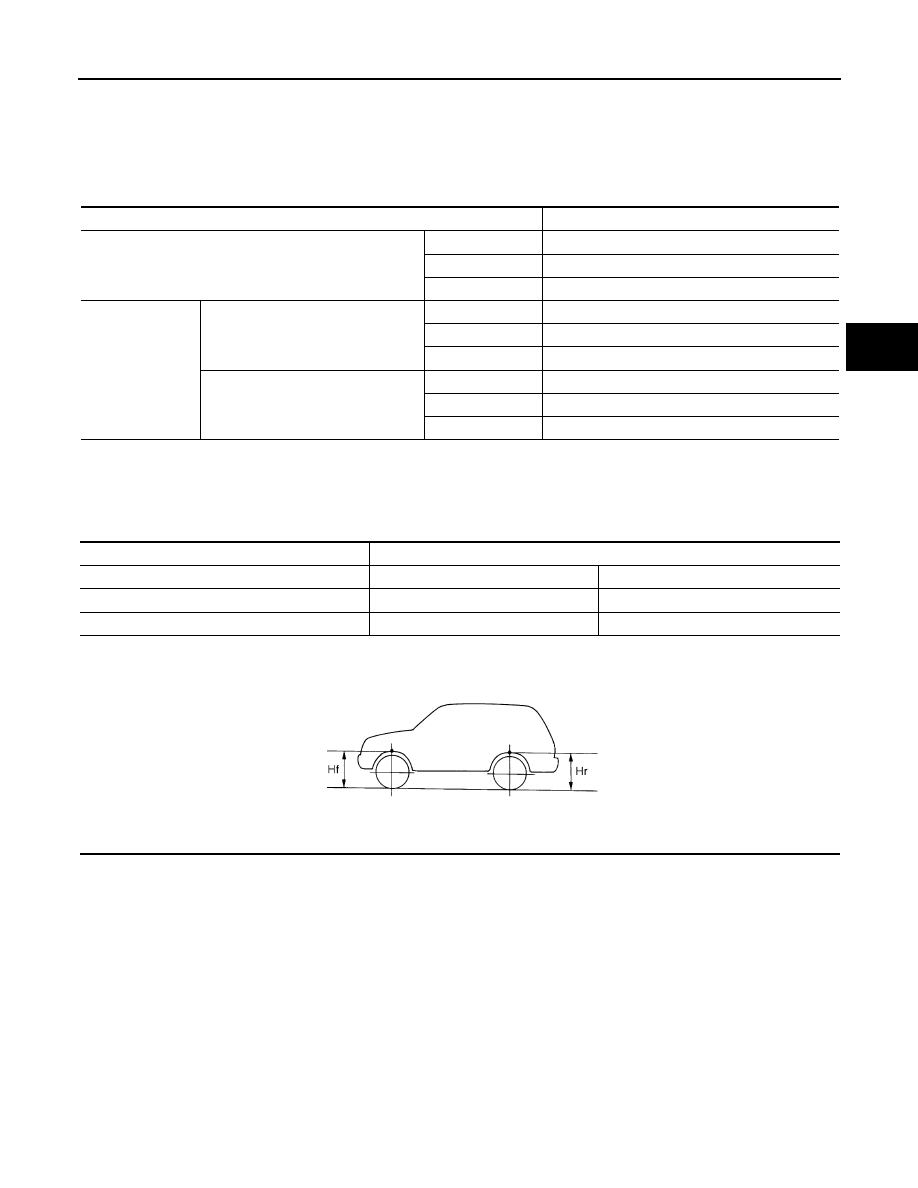

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000006044863

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Wheelarch Height

INFOID:0000000006044864

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Item

Standard

Camber
Degree minute (Decimal degree)

Minimum

2

°

 00

 (

2.00

°

)

Nominal

1

°

 30

 (

1.50

°

)

Maximum

1

°

 00

 (

1.00

°

)

Toe-in

Total toe-in
Distance

Minimum

Out 2.0 mm (Out 0.079 in)

Nominal

In 2.0 mm (In 0.079 in)

Maximum

In 6.0 mm (In 0.236 in)

Toe angle (left wheel or right wheel)
Degree minute (Decimal degree)

Minimum

Out 0

°

 15

 (Out 0.25

°

)

Nominal

In 0

°

 10

 (In 0.17

°

)

Maximum

In 0

°

 35

 (In 0.58

°

)

Item

Standard

Tire size

165/70R14

175/60R15

Front (Hf)

659 mm (25.94 in)

661 mm (26.02 in)

Rear (Hr)

653 mm (25.71 in)

655 mm (25.79 in)

SFA746B

SB-1
