• Check snap ring for wear or cracks. Replace if necessary.

INSPECTION AFTER ASSEMBLY

1.

After installing brake drum on spindle, tighten wheel hub lock nut to the standard torque.

2.

Rotate the wheel hub in both directions ten times each to check for smooth movement.

3.

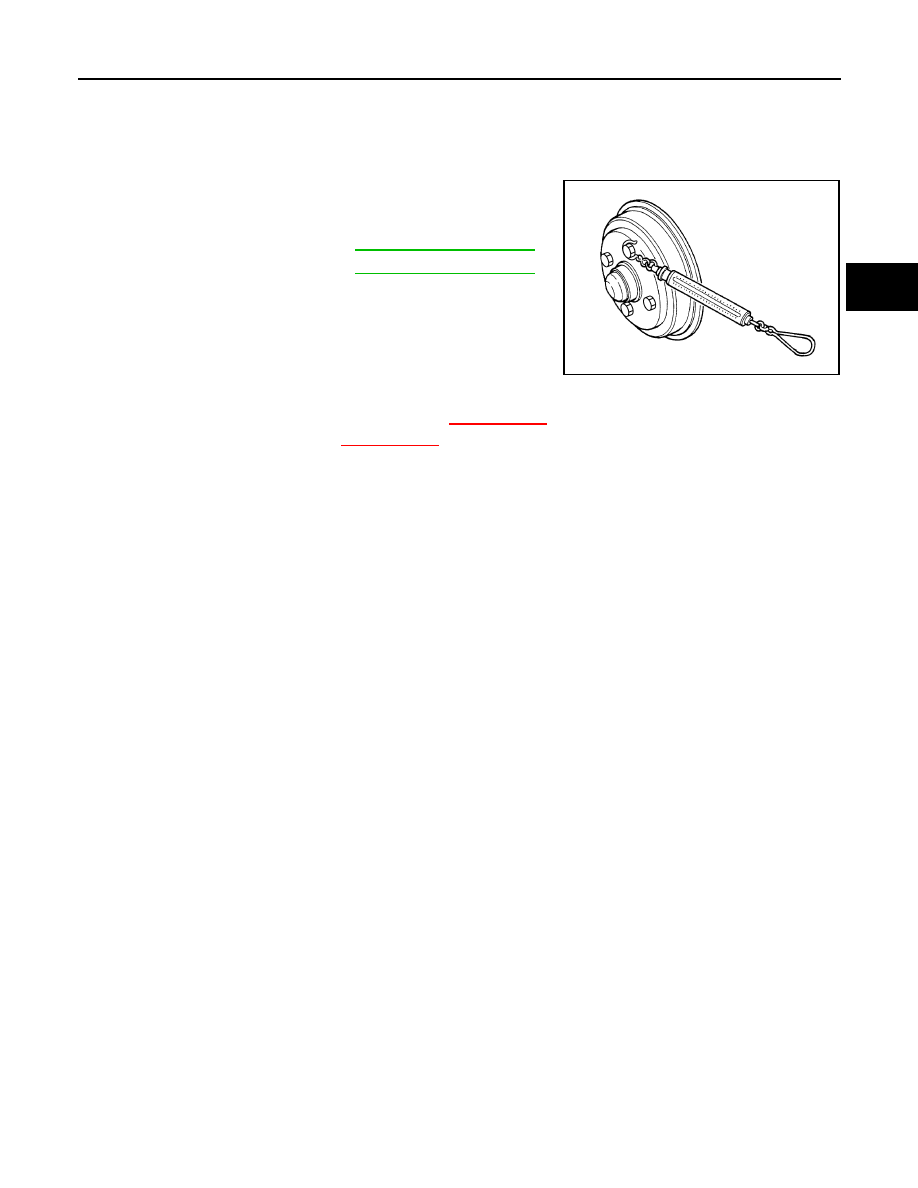

Rotating speed of 8 – 10 rpm, place a spring balance on hub bolt
to measure torque.

INSPECTION AFTER INSTALLATION

1.

Adjust parking brake operation (stroke). Refer to

XX-XX, "*****"

.

2.

Check wheel alignment. Refer to

XX-XX, "*****"

.

Rotating torque

Refer to

RAX-8, "Wheel Bearing"

.

Spring balance
measurement

Refer to

RAX-8, "Wheel Bearing"

.

MDIA0060E

RAX-8

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000006044170

Item

Standard

Axial end play

0.05 mm (0.002 in) or less

Rotating torque

0.20 - 0.95 N·m (0.02 - 0.09 kg-m)

Spring balance measurement

4 - 19 N (0.41 - 1.94 kg)
