< WIRING DIAGRAM >

HARNESS LAYOUT

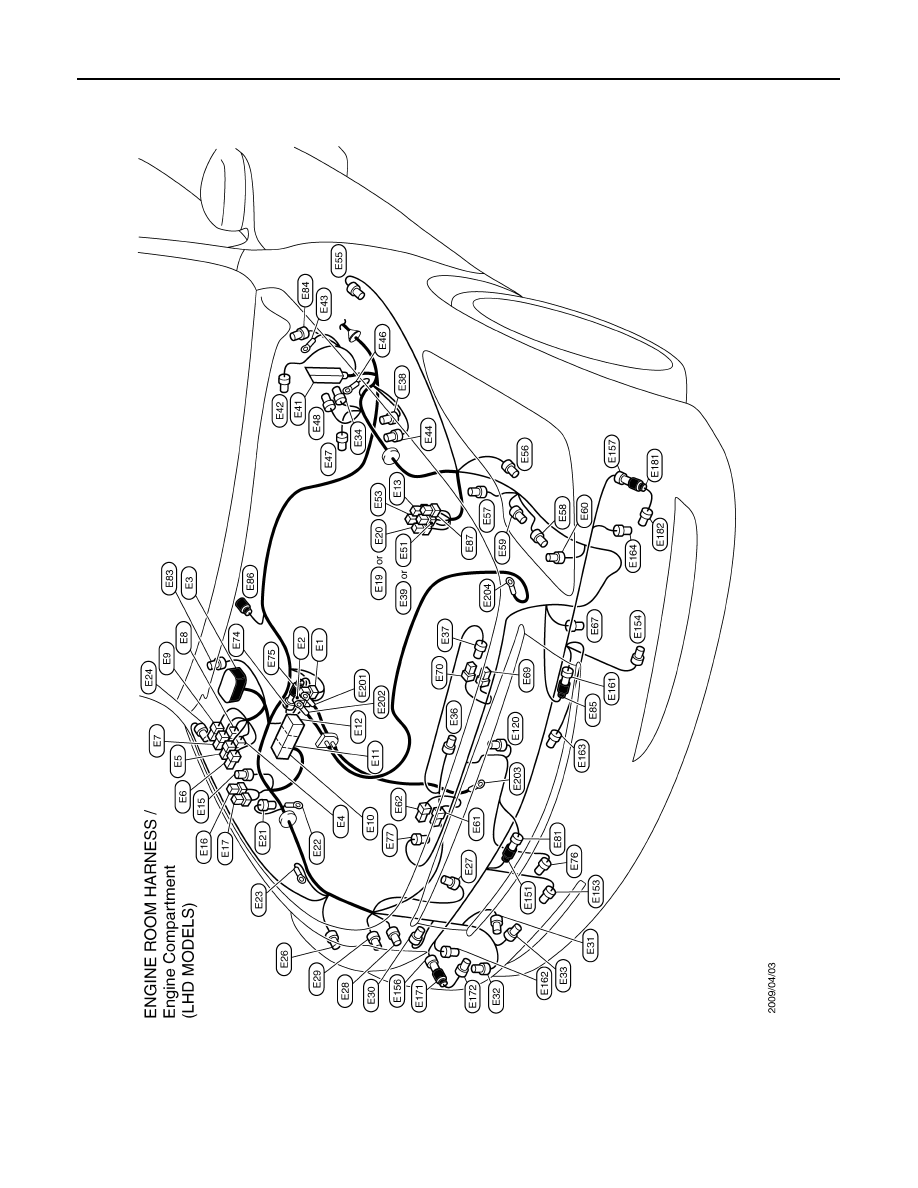

Engine Room Harness

INFOID:0000000006044188

ENGINE COMPARTMENT

JCMIA0594GB

PG

HARNESS LAYOUT

PG-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

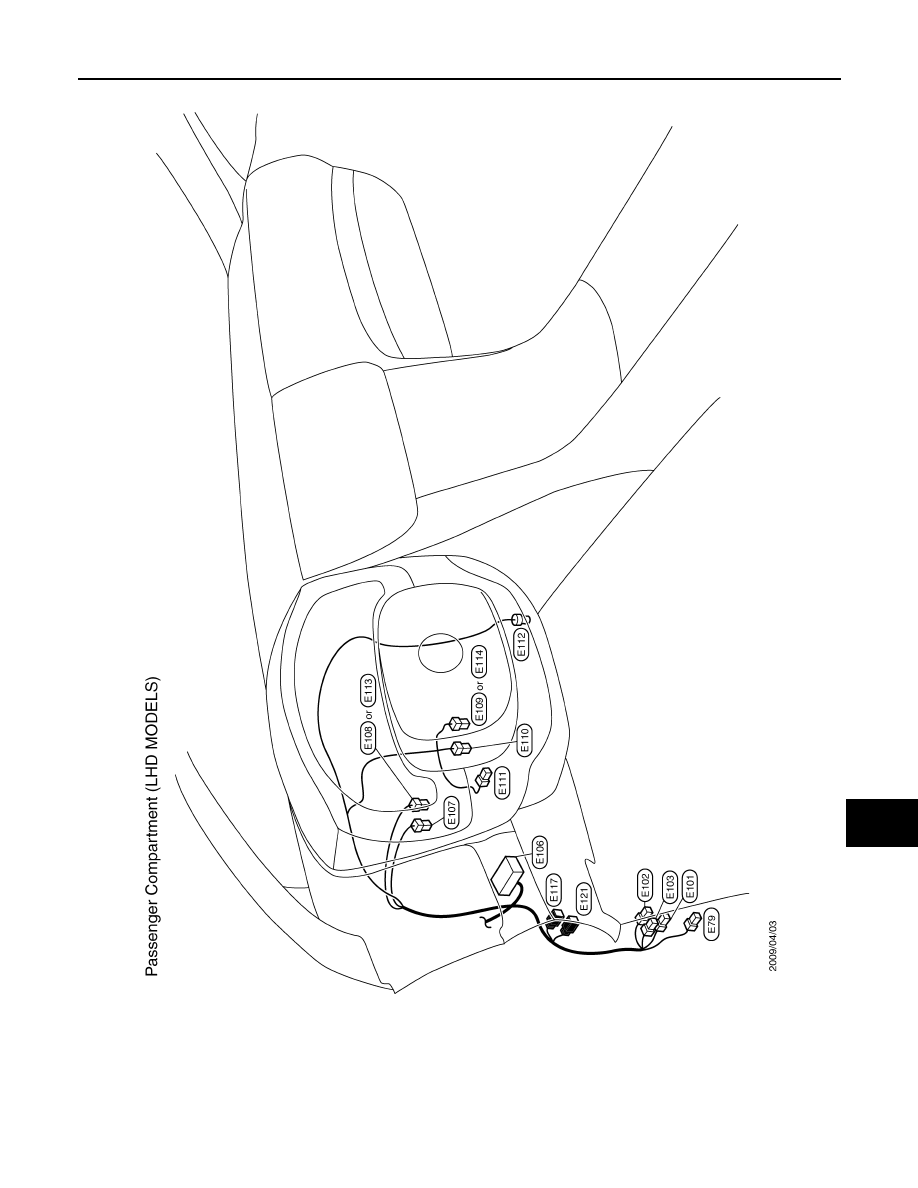

PASSENGER COMPARTMENT

JCMIA0595GB

PG-38

< WIRING DIAGRAM >

HARNESS LAYOUT

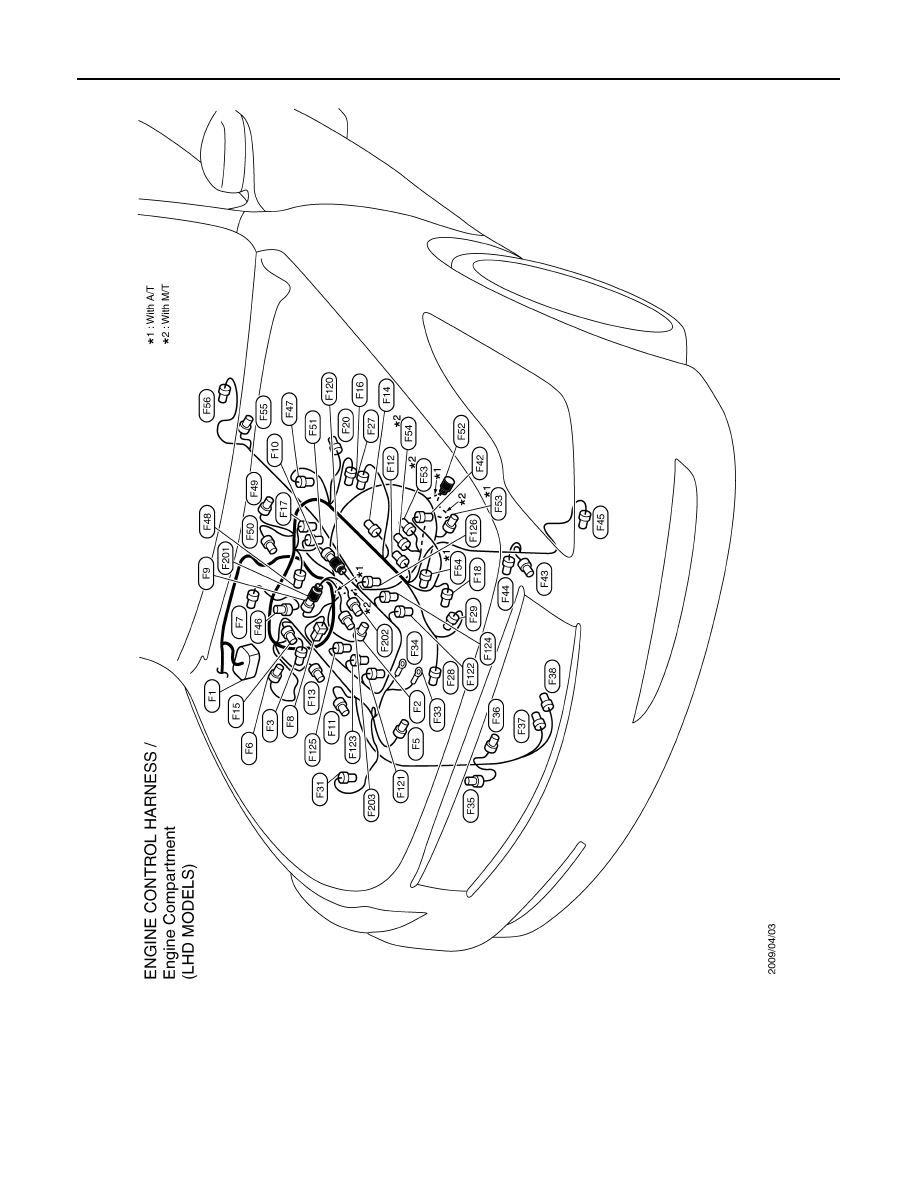

Engine Control Harness

INFOID:0000000006044189

JCMIA0596GB

PG

HARNESS LAYOUT

PG-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

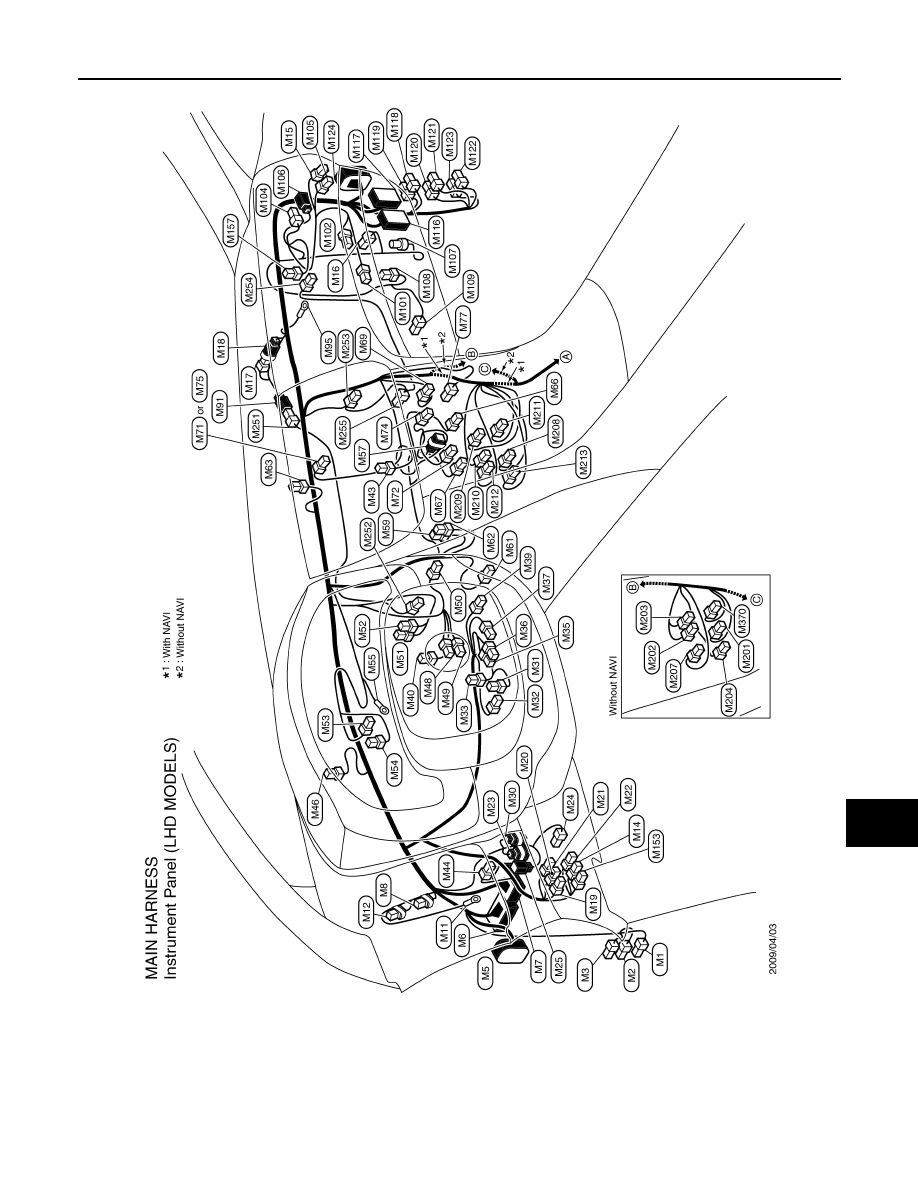

Main Harness

INFOID:0000000006044190

JCMIA0592GB
