PG-28

< WIRING DIAGRAM >

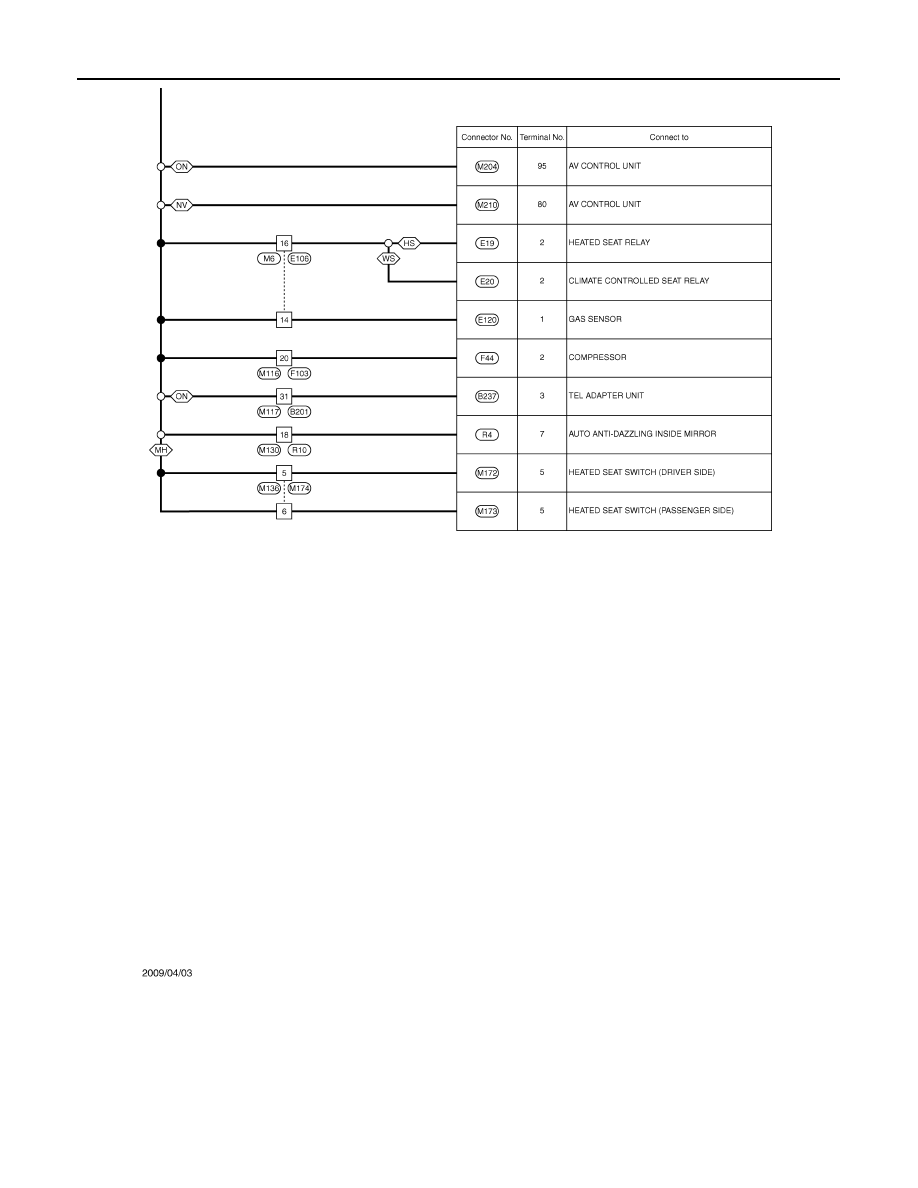

POWER SUPPLY ROUTING CIRCUIT

JCMWA4550GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-29

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 52 -

INFOID:0000000006022785

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4556GB

PG-30

< WIRING DIAGRAM >

OPTION HARNESS

OPTION HARNESS

Wiring Diagram

INFOID:0000000005911850

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4407GB

PG

FUSE BLOCK - JUNCTION BOX (J/B)

PG-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

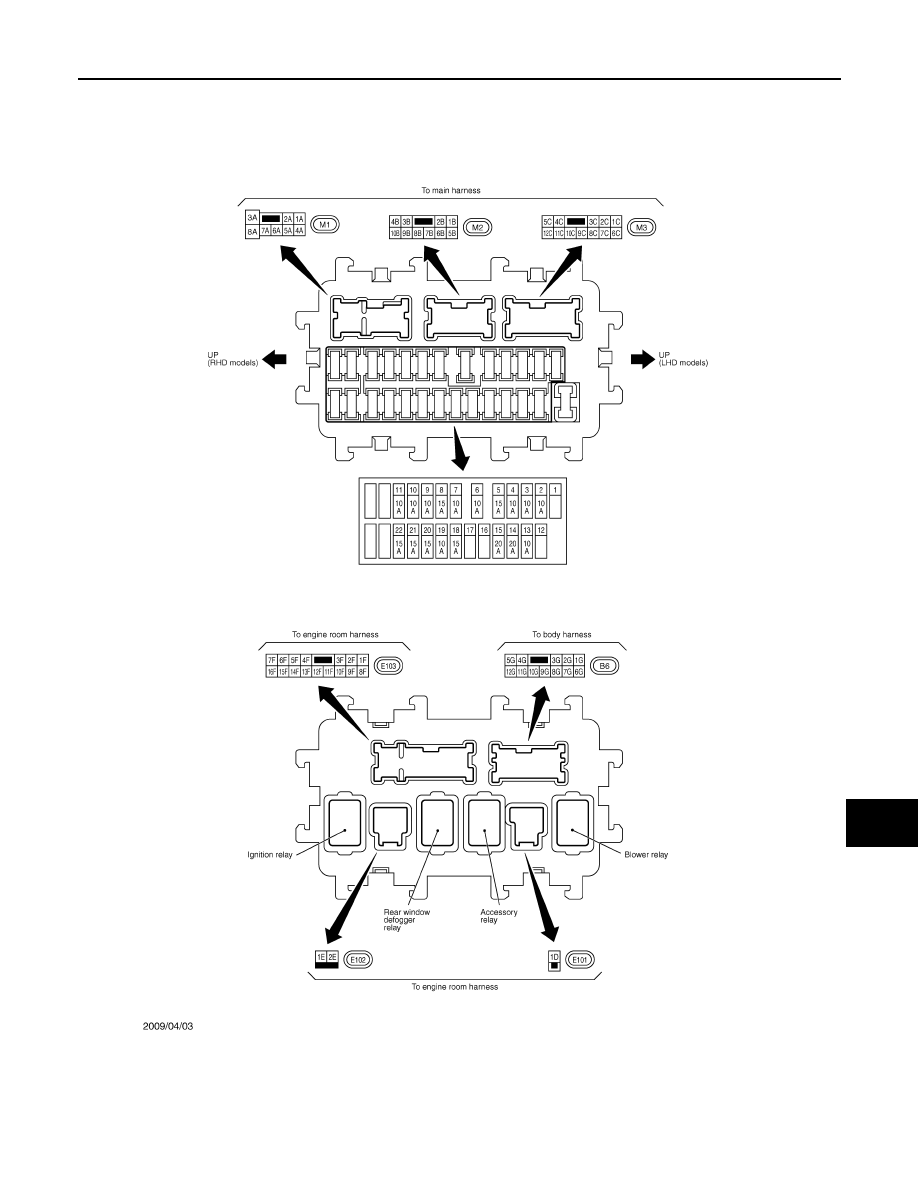

FUSE BLOCK - JUNCTION BOX (J/B)

Fuse, Connector and Terminal Arrangement

INFOID:0000000005911851

JCMWA4564GB
