Nissan March K13. Manual - part 503





PCS-94

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

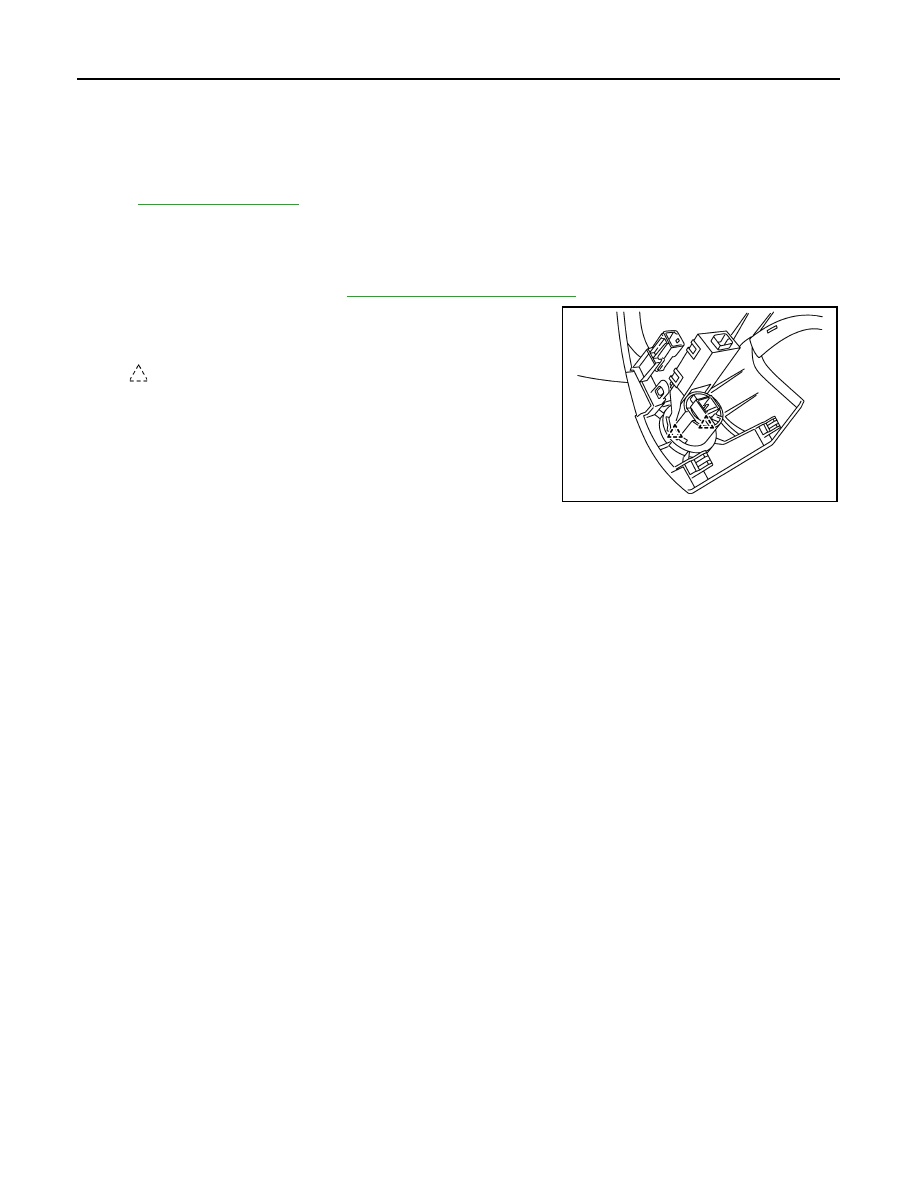

PUSH-BUTTON IGNITION SWITCH

REMOVAL AND INSTALLATION

PUSH-BUTTON IGNITION SWITCH

Exploded View

INFOID:0000000006044505

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000006044506

REMOVAL

1.

Remove the cluster lid A. Refer to

IP-13, "Removal and Installation"

.

2.

Disengage the push-button ignition switch fixing pawl and then
remove push-button ignition switch.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA5306ZZ

PG

PG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PG

A

O

P

N

CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Circuit Breaker  ..........................................................

4

Battery .......................................................................

4

Harness Connector  ...................................................

4

Standardized Relay ...................................................

7

WIRING DIAGRAM  ......................................

10

POWER SUPPLY ROUTING CIRCUIT  ..............

10

Wiring Diagram - BATTERY POWER SUPPLY - ....

10

Wiring Diagram - BATTERY POWER SUPPLY
FUSIBLE LINK No. H - ............................................

13

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 13 - .........................................................

14

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 46 - .........................................................

15

Wiring Diagram - BATTERY POWER SUPPLY
FUSE No. 49 - .........................................................

16

Wiring Diagram - ACCESSORY POWER SUP-
PLY -  .......................................................................

17

Wiring Diagram - ACCESSORY POWER SUP-
PLY FUSE No. 19 -  .................................................

18

Wiring Diagram - IGNITION POWER SUPPLY - ....

19

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 3 - ...........................................................

22

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 6 - ...........................................................

24

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 15 - .........................................................

25

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 48 - .........................................................

26

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 51 -  .........................................................

27

Wiring Diagram - IGNITION POWER SUPPLY
FUSE No. 52 -  .........................................................

29

OPTION HARNESS  ..........................................

30

Wiring Diagram ........................................................

30

FUSE BLOCK - JUNCTION BOX (J/B)  ............

31

Fuse, Connector and Terminal Arrangement  ..........

31

FUSE, FUSIBLE LINK AND RELAY BOX ........

32

Fuse and Fusible Link Arrangement ........................

32

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

33

Fuse, Connector and Terminal Arrangement  ..........

33

HARNESS LAYOUT  .........................................

34

How To Read Harness Layout  ................................

34

Outline .....................................................................

35

Engine Room Harness  ............................................

36

Engine Control Harness  ..........................................

38

Main Harness  ..........................................................

39

Body Harness  ..........................................................

40

Door Harness  ..........................................................

42

Room Lamp Harness ...............................................

47

CONNECTOR INFORMATION  .........................

48

How to Read Connector Type  .................................

48

B Body Harness .......................................................

49

D Door Harness .......................................................

77

E Engine Room Harness  .........................................

83

F Engine Control Harness  .......................................

96

M Main Harness  ....................................................

103

R Room Lamp Harness  .........................................

128

BASIC INSPECTION  .................................

130

BATTERY INSPECTION .................................

130

How to Handle Battery ...........................................

130

Work Procedure .....................................................

132

PG

PRECAUTIONS

PG-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005911806

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.
