Nissan March K13. Manual - part 465





MIR-36

< REMOVAL AND INSTALLATION >

OUTSIDE MIRROR

1.

Remove door mirror corner cover with a remover tool.

2.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Disconnect door mirror harness connector.

4.

Remove door mirror mounting nuts, and remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

REMOVAL

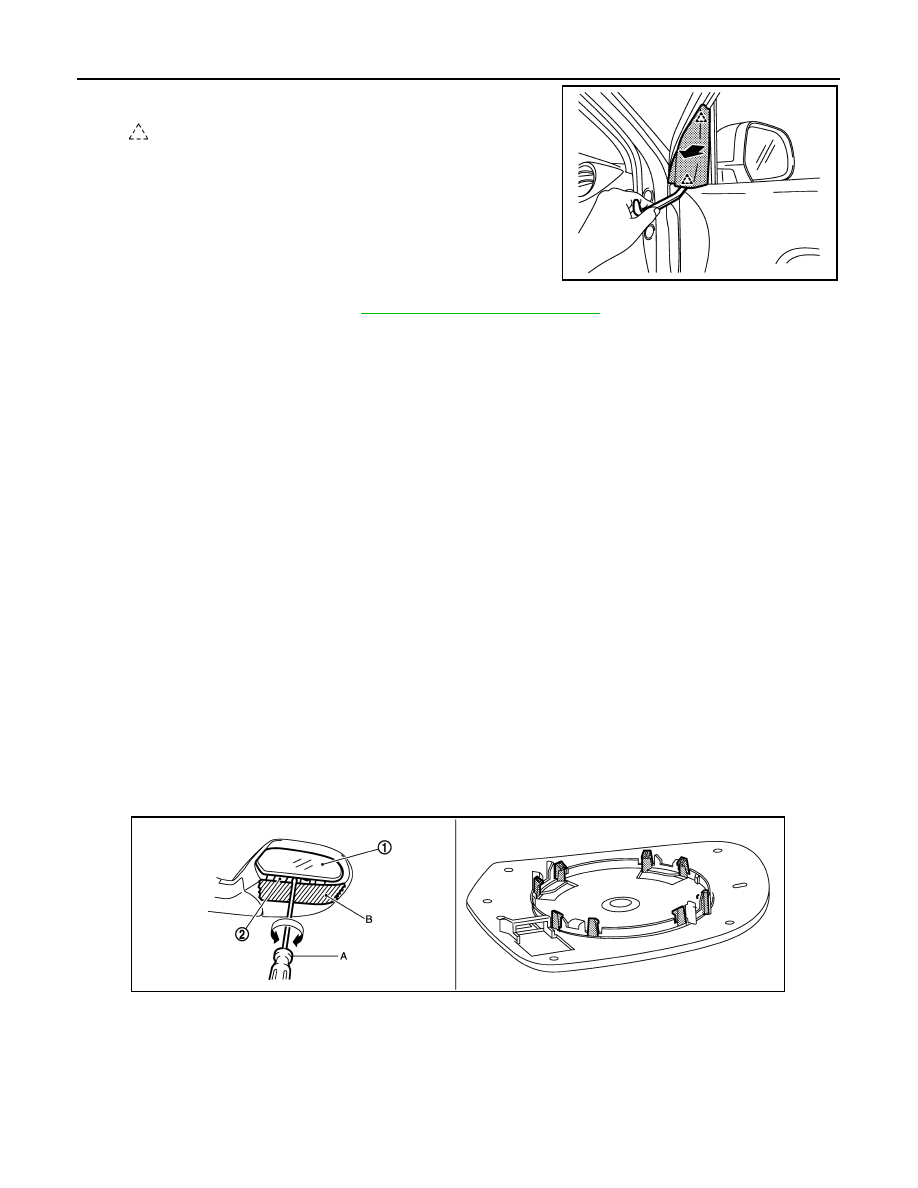

MANUAL MIRROR

1.

Remove door mirror corner cover with a remover tool.

2.

Disengage manual controller lever fixing pawls and remove.

3.

Remove door mirror mounting nuts, and remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

GLASS MIRROR

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000006007927

DISASSEMBLY

1.

Place the glass mirror upward.

2.

Put a strip of protective tape (B) on housing assembly.

3.

Insert a small flat-bladed screwdriver (A) into the recess at lower side between glass mirror (1) and actua-
tor (2), and push up pawls to remove glass mirror lower side.
NOTE:
Insert a small flat-bladed screwdriver into recesses, and push up while rotating (twisting) to make work
easier.

4.

Insert a small flat-bladed screwdriver at (LH/RH) side between glass mirror and actuator, and push up
pawls to remove glass mirror LH/RH side.
NOTE:
Insert a small flat-bladed screwdriver into recesses, and push up while rotating (twisting) to make work
easier.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

: Pawl

JMLIA0989ZZ

JMLIA0990ZZ

OUTSIDE MIRROR

MIR-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

After installation, visually check that pawls are securely engaged.

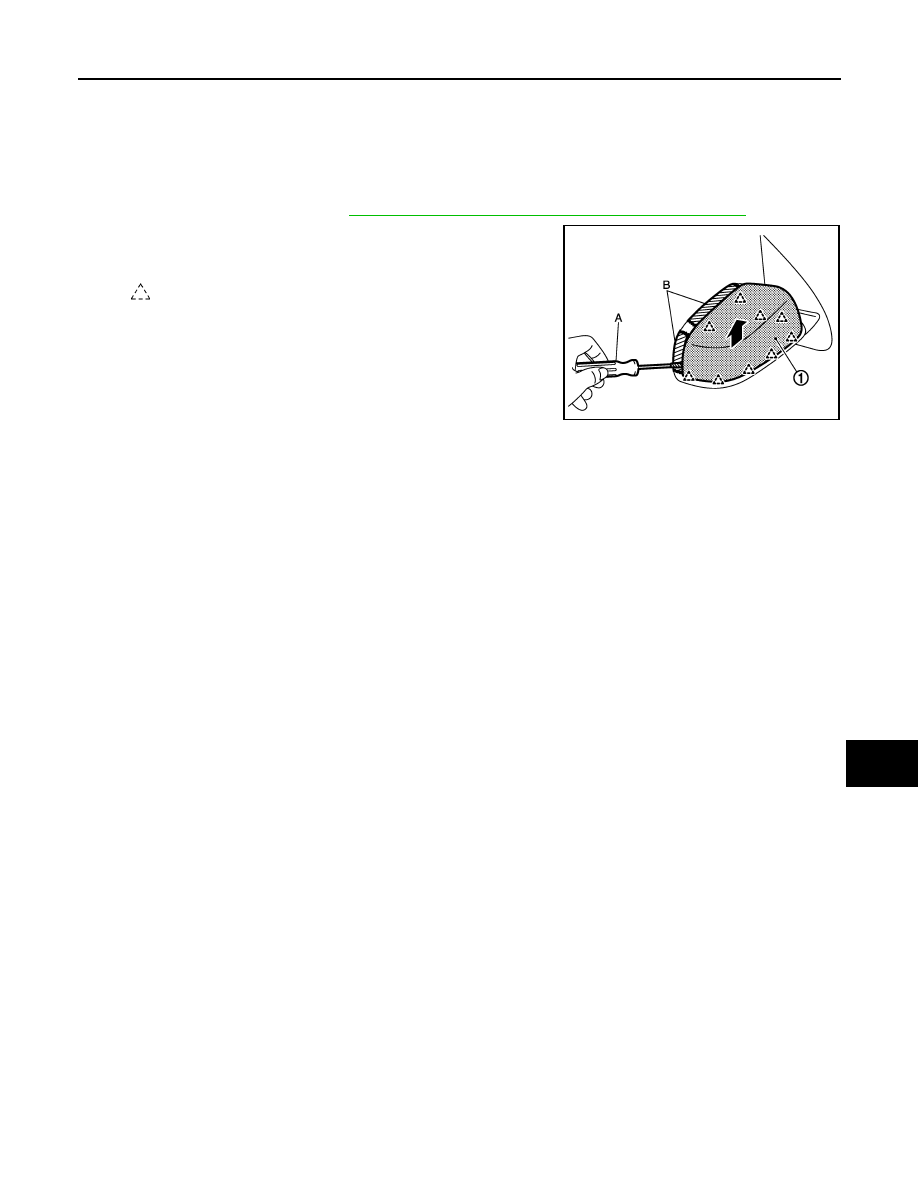

DOOR MIRROR COVER

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000006007929

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-36, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls with a remover tool (A), and disassemble the
door mirror cover (1) from the mirror assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

After installation, visually check that pawls are securely engaged.

: Pawl

B

: Protective tape

JMLIA0991ZZ

MIR-38

< REMOVAL AND INSTALLATION >

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000006007931

REMOVAL

1.

Remove the switch panel. Refer to

IP-13, "Removal and Installation"

2.

Remove door mirror remote control switch from switch panel using flat-bladed screwdriver.

INSTALLATION

Install in the reverse order of removal.

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Battery Service  ..................................

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Component Description .............................................

5

SYSTEM ..............................................................

6

METER SYSTEM  .........................................................

6

METER SYSTEM : System Diagram ........................

6

METER SYSTEM : System Description  ....................

6

METER SYSTEM : Fail-Safe ....................................

7

SPEEDOMETER ..........................................................

8

SPEEDOMETER : System Diagram  .........................

8

SPEEDOMETER : System Description .....................

9

TACHOMETER ............................................................

9

TACHOMETER : System Diagram  ...........................

9

TACHOMETER : System Description  .......................

9

HIGH WATER TEMPERATURE WARNING LAMP

......

9

HIGH WATER TEMPERATURE WARNING
LAMP : System Diagram .........................................
..

9

HIGH WATER TEMPERATURE WARNING
LAMP : System Description  ....................................
..

9

OIL PRESSURE WARNING LAMP ...........................

10

OIL PRESSURE WARNING LAMP : System Dia-
gram ........................................................................

10

OIL PRESSURE WARNING LAMP : System De-
scription ...................................................................

10

METER ILLUMINATION CONTROL  .........................

10

METER ILLUMINATION CONTROL : System Di-
agram ......................................................................

11

METER ILLUMINATION CONTROL : System De-
scription ...................................................................

11

INFORMATION DISPLAY ..........................................

11

INFORMATION DISPLAY : System Diagram ..........

11

INFORMATION DISPLAY : System Description  .....

11

OPERATION .....................................................

16

Switch Name and Function ......................................

16

DIAGNOSIS SYSTEM (COMBINATION
METER) .............................................................

17

On Board Diagnosis Function ..................................

17

CONSULT-III Function  ............................................

18

ECU DIAGNOSIS INFORMATION ..............

22

COMBINATION METER  ...................................

22

Reference Value ......................................................

22

Fail-Safe ..................................................................

26

DTC Index  ...............................................................

27

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

28

List of ECU Reference .............................................

28

WIRING DIAGRAM  ......................................

29

METER SYSTEM  ..............................................

29

LHD ............................................................................

29

LHD : Wiring Diagram ..............................................

29

RHD ............................................................................

30

RHD : Wiring Diagram  .............................................

31

BASIC INSPECTION  ...................................

33

DIAGNOSIS AND REPAIR WORKFLOW  ........

33

Work flow .................................................................

33
