REMOVAL AND INSTALLATION

INSIDE MIRROR

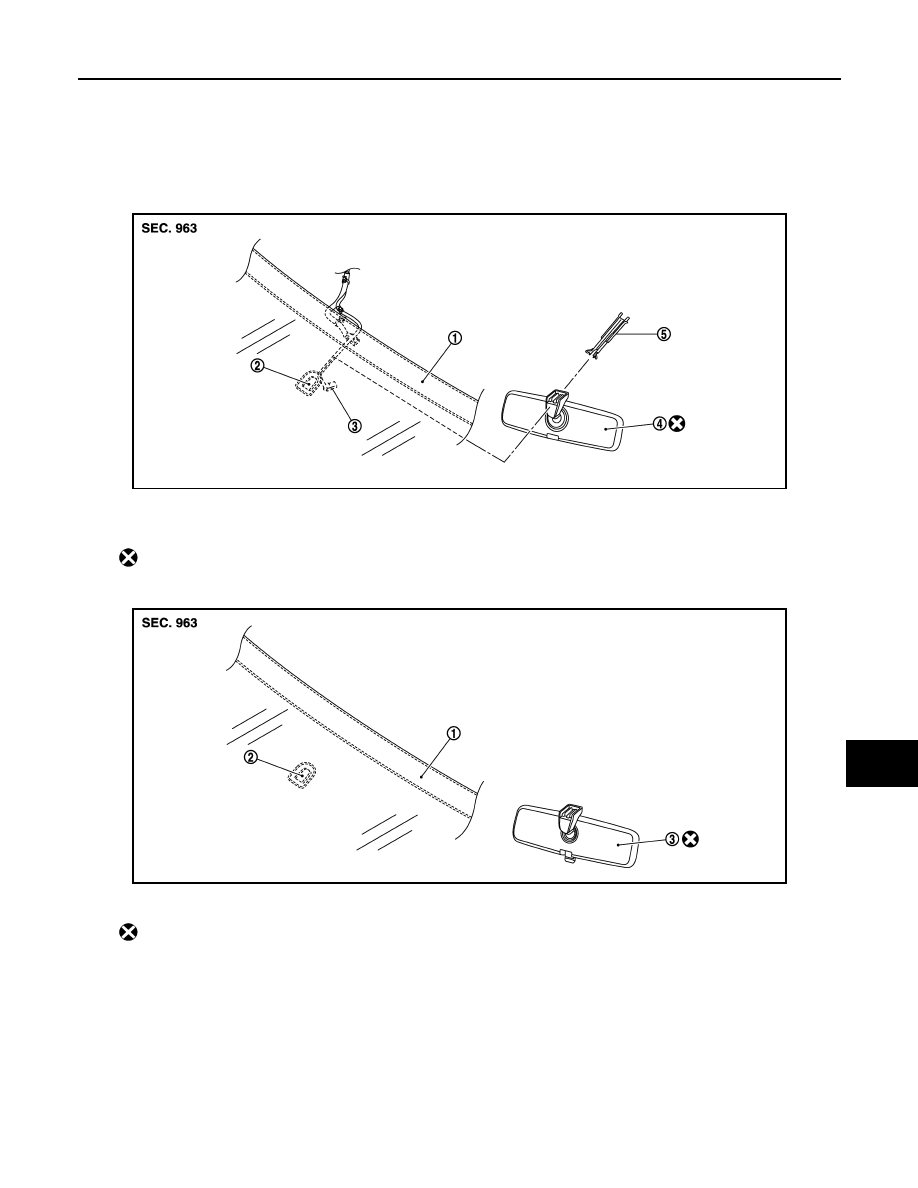

Exploded View

INFOID:0000000006059675

Auto anti-dazzling Type

Manual anti-dazzling Type

Removal and Installation

INFOID:0000000006059674

AUTO ANTI-DAZZLING TYPE

Removal

1.

Remove inside mirror cover.

2.

Disconnect harness connector from inside mirror.

3.

Slide inside mirror upward to remove.

Installation

JMLIA0987ZZ

1.

 Windshield glass

2.

Mirror base

3.

Harness connector

4.

Inside mirror

5.

Inside mirror cover

: Do not reuse

JMLIA0986ZZ

1.

Windshield glass

2.

Mirror base

3.

Inside mirror

: Do not reuse

MIR-34

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

Install in the reverse order of removal.

MANUAL ANTI-DAZZLING TYPE

Removal

Slide inside mirror upward to remove.

Installation

Install in the reverse order of removal.

OUTSIDE MIRROR

MIR-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

OUTSIDE MIRROR

Exploded View

INFOID:0000000006007924

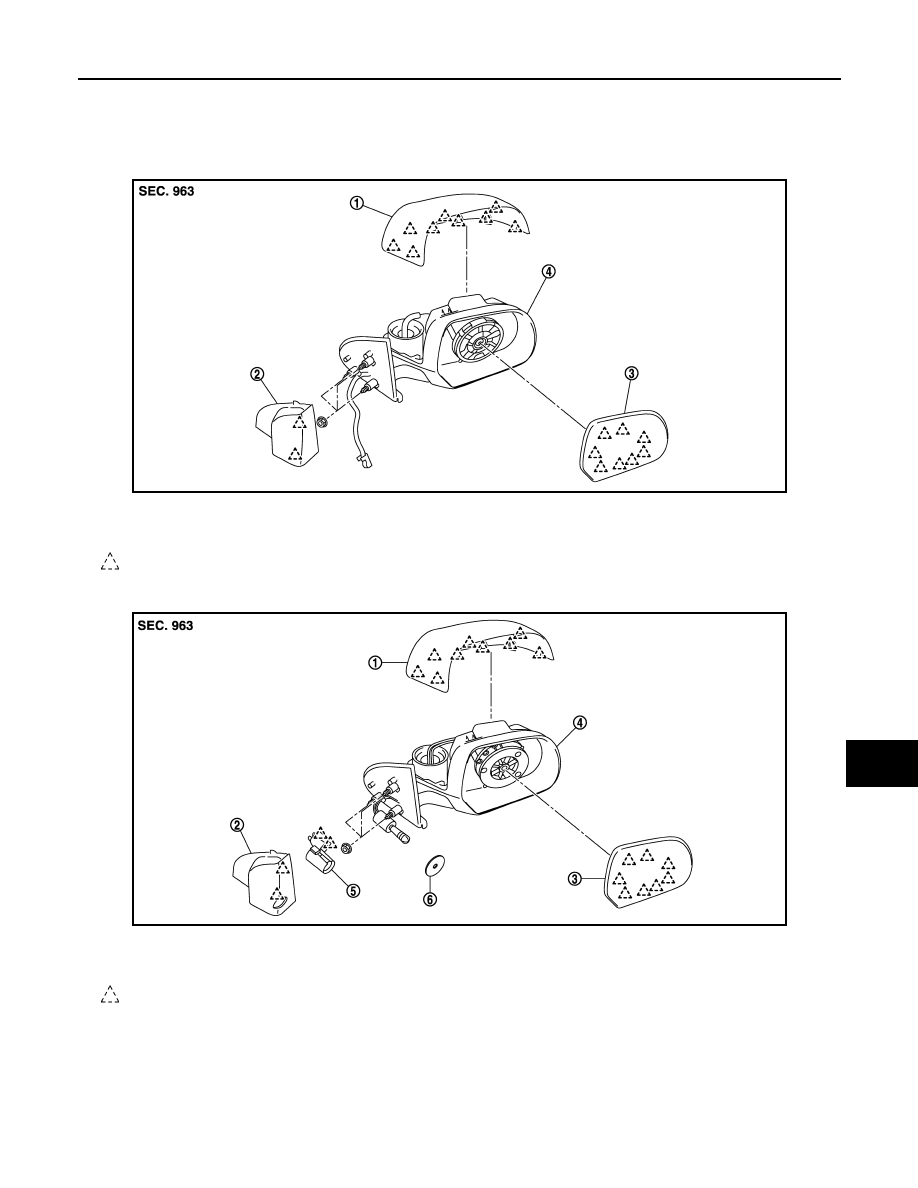

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000006007925

REMOVAL

POWER WINDOW MIRROR

JMLIA0988ZZ

1.

Door mirror cover

2.

Door mirror corner cover

3.

Glass mirror

4.

Door mirror assembly

: Pawl

JMLIA1027ZZ

1.

Door mirror cover

2.

Door mirror corner cover

3.

Glass mirror

4.

Door mirror assembly

5.

Manual controller lever

6.

Grommet

: Pawl
