Nissan March K13. Manual - part 448

OIL PUMP

LU-11

< REMOVAL AND INSTALLATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

REMOVAL AND INSTALLATION

OIL PUMP

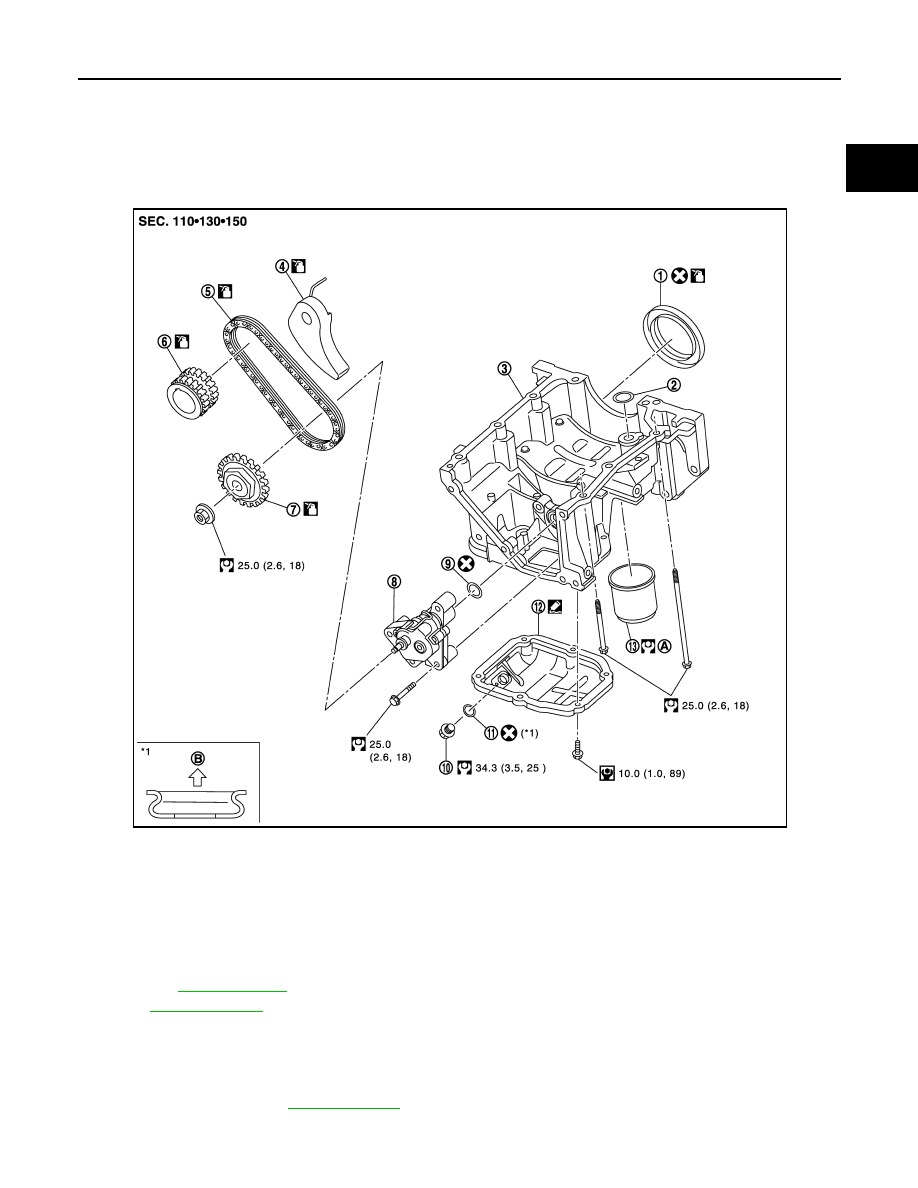

Exploded View

INFOID:0000000006038873

Removal and Installation

INFOID:0000000006038874

REMOVAL

1.

Drain engine oil. Refer to

LU-8, "Draining"

.

2.

Remove timing chain and oil pump drive chain. Refer to EM.

1.

Rear oil seal

2.

O-ring

3.

Oil pan (upper)

4.

Oil pump chain

5.

Oil pump drive chain

6.

Crankshaft sprocket

7.

Oil pump sprocket

8.

Oil pump

9.

O-ring

10. Drain plug

11.

Drain plug washer

12. Oil pan (lower)

13. Oil pan filter

A.

Tightening must be done following
the installation procedure.
Refer to

LU-10, "Inspection"

B.

Oil pan side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3384GB

LU-12

< REMOVAL AND INSTALLATION >

[HR12DE]

OIL PUMP

3.

Remove oil pump.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000006038875

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-7, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-7, "Inspection"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

LU-13

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000005988447

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (US qt, lmp qt)

Engine Oil Pressure

INFOID:0000000005988448

Unit: kPa (kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

Drain and refill

With oil filter change

3.0 (3-1/8, 2-5/8)

Without oil filter change

2.8 (3, 2-4/8)

Dry engine (Overhaul)

3.5 (3-6/8, 3-1/8)

Engine speed

Approximate discharge pressure*

Idle speed

60 (0.61, 9)

2,000 rpm

270 (2.8, 39)

MA-1

MAINTENANCE

C

D

E

F

G

H

I

J

K

L

M

B

MA

SECTION

MA

N

O

A

CONTENTS

MAINTENANCE

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

PERIODIC MAINTENANCE ..........................

4

GENERAL MAINTENANCE  ................................

4

General Maintenance ................................................

4

PERIODIC MAINTENANCE  ................................

5

Periodic Maintenance ................................................

5

RECOMMENDED FLUIDS AND LUBRI-
CANTS .................................................................

8

Fluids and Lubricants  ................................................

8

SAE Viscosity Number  ..............................................

8

Engine Coolant Mixture Ratio  ...................................

9

ENGINE MAINTENANCE ...................................

10

DRIVE BELT  ..............................................................

10

DRIVE BELT : Checking  .........................................

10

DRIVE BELT : Tension Adjustment  ........................

10

ENGINE COOLANT ...................................................

11

ENGINE COOLANT : Inspection .............................

11

ENGINE COOLANT : Draining ................................

11

ENGINE COOLANT : Refilling  ................................

12

ENGINE COOLANT : Flushing  ...............................

13

RESERVOIR TANK CAP  ..........................................

14

RESERVOIR TANK CAP : Inspection .....................

14

RADIATOR ................................................................

14

RADIATOR : Inspection  ..........................................

15

FUEL LINES  ..............................................................

15

FUEL LINES : Inspection  ........................................

15

AIR CLEANER FILTER  .............................................

15

AIR CLEANER FILTER : Removal and Installation

....

15

ENGINE OIL ...............................................................

15

ENGINE OIL : Draining ............................................

15

ENGINE OIL : Refilling  ............................................

16

OIL FILTER  ................................................................

16

OIL FILTER : Removal and Installation  ...................

16

OIL FILTER : Inspection  ..........................................

17

SPARK PLUG  ............................................................

17

SPARK PLUG : Removal and Installation  ...............

17

SPARK PLUG : Inspection  ......................................

17

EVAP VAPOR LINES  ................................................

18

EVAP VAPOR LINES : Inspection ...........................

18

CHASSIS MAINTENANCE  ...............................

19

EXHAUST SYSTEM ...................................................

19

EXHAUST SYSTEM : Inspection ............................

19

CLUTCH FLUID  .........................................................

19

CLUTCH FLUID : Inspection  ...................................

19

CLUTCH FLUID : Draining  ......................................

19

CLUTCH FLUID : Refilling .......................................

20

GEAR OIL  ..................................................................

21

GEAR OIL : Inspection  ............................................

21

GEAR OIL : Draining  ...............................................

21

GEAR OIL : Refilling ................................................

22

WHEELS (BONDING WEIGHT TYPE)  ......................

22

WHEELS (BONDING WEIGHT TYPE) : Tire rota-
tion ...........................................................................

22

BRAKE FLUID LEVEL AND LEAKS .........................

22

BRAKE FLUID LEVEL AND LEAKS : Inspection ....

22

BRAKE LINES AND CABLES ...................................

22

BRAKE LINES AND CABLES : Inspection ..............

23

BRAKE FLUID  ...........................................................

23

BRAKE FLUID : Changing .......................................

23

DISC BRAKE  .............................................................

23
