Nissan March K13. Manual - part 446

PRECAUTIONS

LU-3

< PRECAUTION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

If there are specific instructions in this manual, observe them.

LU-4

< PREPARATION >

[HR12DE]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000005988438

Commercial Service Tools

INFOID:0000000005988439

Tool number
Tool name

Description

KV10111100
Seat cutter

Removing oil pan (lower) etc.

ST25051001
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25

kg/cm

2

, 356 psi)

ST25052000
Hose

Adapting oil pressure gauge to cylinder block

KV10115801
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

NT046

NT050

S-NT559

S-NT375

PREPARATION

LU-5

< PREPARATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Tool name

Description

Deep socket

Removing and installing oil pressure switch
27 mm (1.06 in)

Tube presser

Pressing the tube of liquid gasket

PBIC4066E

NT052

LU-6

< SYSTEM DESCRIPTION >

[HR12DE]

DESCRIPTION

SYSTEM DESCRIPTION

DESCRIPTION

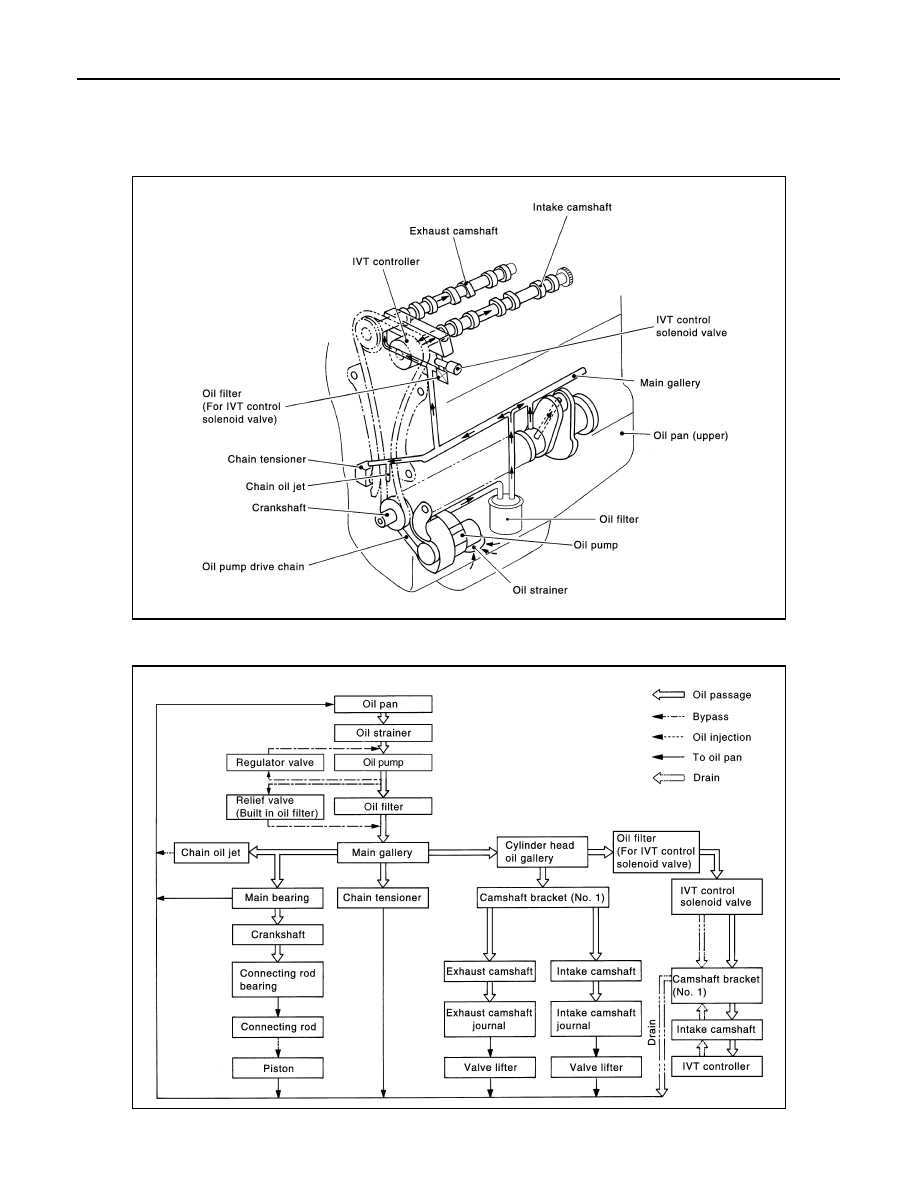

Engine Lubrication System

INFOID:0000000005988440

Engine Lubrication System Schematic

INFOID:0000000005988441

JPBIA3420GB

JPBIA3421GB
