INL-32

< DTC/CIRCUIT DIAGNOSIS >

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

Component Function Check

INFOID:0000000006043808

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION

CONSULT-III ACTIVE TEST

1.

Turn the ignition switch ON.

2.

Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.

3.

With operating the test items, check that the push-button ignition switch illumination turns ON/OFF.

Does the push-button ignition switch illumination turn ON/OFF?

YES

>> Push-button ignition switch illumination circuit is normal.

NO

>> Refer to

INL-32, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006043809

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OUTPUT

1.

Turn the ignition switch OFF.

2.

Disconnect push-button ignition switch connector.

3.

Check voltage between push-button ignition switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OPEN CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and the push-button ignition switch harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harnesses.

3.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY SHORT CIRCUIT

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

 (With intelligent Key),

BCS-99,

"Removal and Installation"

 (Without intelligent Key).

NO

>> Repair or replace harnesses.

On

: Push-button ignition switch illumination ON

Off

: Push-button ignition switch illumination OFF

(+)

(–)

Condition

Voltage

(Approx.)

Push-button ignition switch

Connector

Terminal

M101

5

Ground

Push-button ignition switch il-
lumination

ON

12 V

OFF

0 V

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M71

90

M101

5

Existed

BCM

Ground

Continuity

Connector

Terminal

M71

90

Not existed

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

INL-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

4.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND CIRCUIT

Check continuity between push-button ignition switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace push-button ignition switch.

NO

>> Repair or replace harnesses.

Push-button ignition switch

Ground

Continuity

Connector

Terminal

M101

6

Existed

INL-34

< SYMPTOM DIAGNOSIS >

INTERIOR LIGHTING SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006030919

CAUTION:

Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.

Symptom

Possible cause

Inspection item

• Interior room lamp does not turn ON even

though the door is open.
(It turns ON when turning the interior room
lamp ON.)

• Interior room lamp does not turn OFF even

though the door is closed.

• Harness between BCM and each

door switch

• Harness between BCM and each

interior room lamp

• BCM

Door switch circuit
Refer to

DLK-58

(with Intelligent Key),

XX-XX, "*****"

(without Intelligent

Key).

Interior room lamp control circuit
Refer to

INL-30

.

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

—

Check the interior room lamp setting.
Refer to

INL-15

.

Push-button ignition switch illumination does not
illuminate.

• Harness between BCM and push-

button ignition switch

• Harness between push-button igni-

tion switch and ground

• Push-button ignition switch
• BCM

Push-button ignition switch illumina-
tion circuit
Refer to

INL-32

.

Interior room lamp battery saver does not acti-
vate.

—

Check the interior room lamp battery
saver setting.
Refer to

INL-16

.

MAP LAMP

INL-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

REMOVAL AND INSTALLATION

MAP LAMP

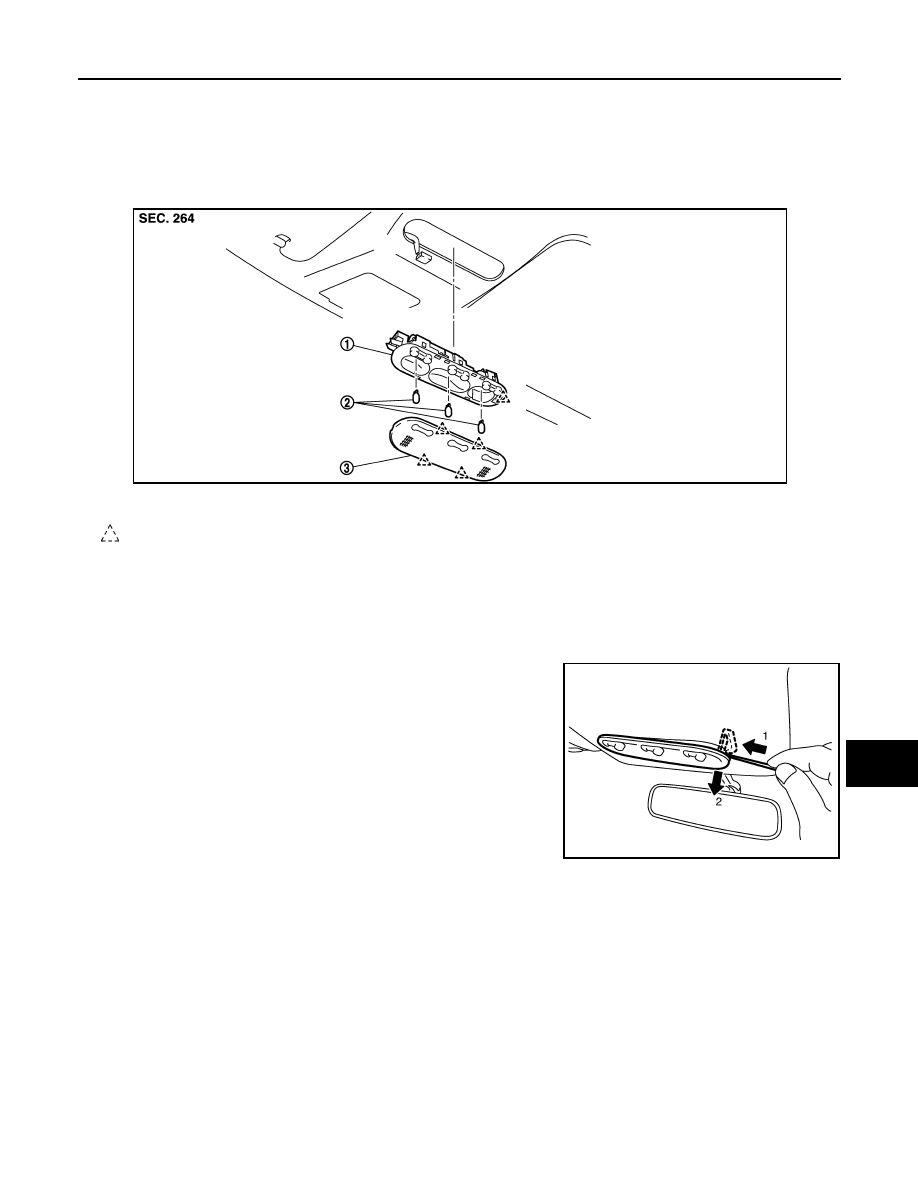

Exploded View

INFOID:0000000006030920

Removal and Installation

INFOID:0000000006030921

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Insert any appropriate tool into the gap between the map lamp
bulb housing to the headlining. And press the pawl and then pull
the map lamp .

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000006030922

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

1.

Map lamp bulb housing

2.

Bulb

3.

Lens

: Pawl

JMLIA0707ZZ

JSLIA0110ZZ
