Nissan March K13. Manual - part 396





HAC-118

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

BLOWER FAN RESISTOR

BLOWER FAN RESISTOR

Exploded View

INFOID:0000000006024155

Refer to

VTL-7, "Exploded View"

Removal and Installation

INFOID:0000000006024156

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect blower fan resistor connector.

3.

Remove mounting screws, and then remove blower fan resistor.

INSTALLATION

Install in the reverse order of removal.

DOOR CABLE

HAC-119

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

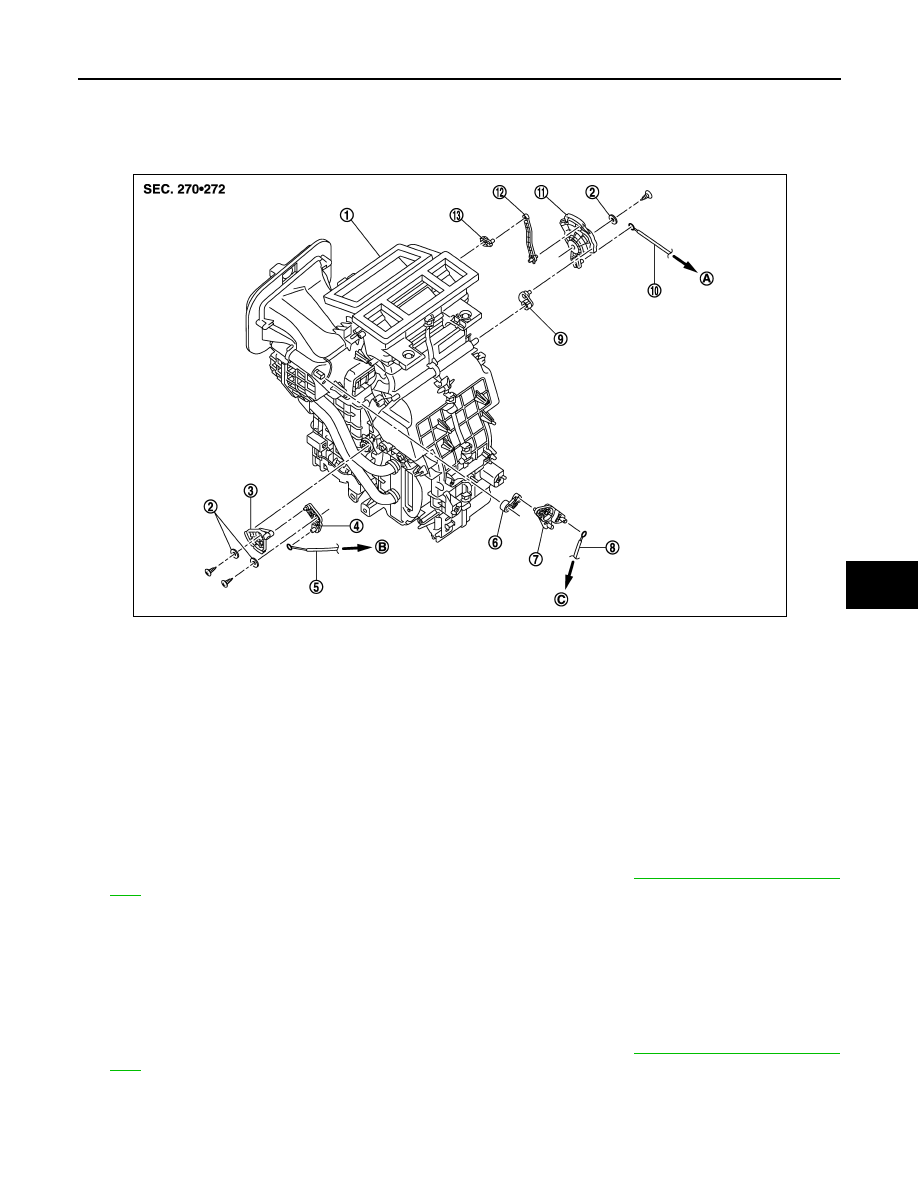

DOOR CABLE

Exploded View

INFOID:0000000006024159

INTAKE DOOR CABLE

INTAKE DOOR CABLE : Removal and Installation

INFOID:0000000006057457

REMOVAL

1.

Remove front passenger air bag module or instrument finisher D. Refer to

IP-13, "Removal and Installa-

tion"

.

2.

Disconnect intake door cable from A/C control.

3.

Disconnect intake door cable from A/C unit assembly, and then remove intake door cable.

INSTALLATION

Install in the reverse order of removal.

INTAKE DOOR CABLE : Adjustment

INFOID:0000000006057458

1.

Remove front passenger air bag module or instrument finisher D. Refer to

IP-13, "Removal and Installa-

tion"

.

1.

A/C unit assembly

2.

Plate

3.

Air mix door link 2

4.

Air mix door link 1

5.

Air mix door cable

6.

Intake door lever

7.

Intake door link

8.

Intake door cable

9.

Foot door lever

10. Mode door cable

11.

Main link

12. Ventilator door rod

13. Ventilator door lever

A.

To A/C control

JMIIA0594ZZ

HAC-120

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

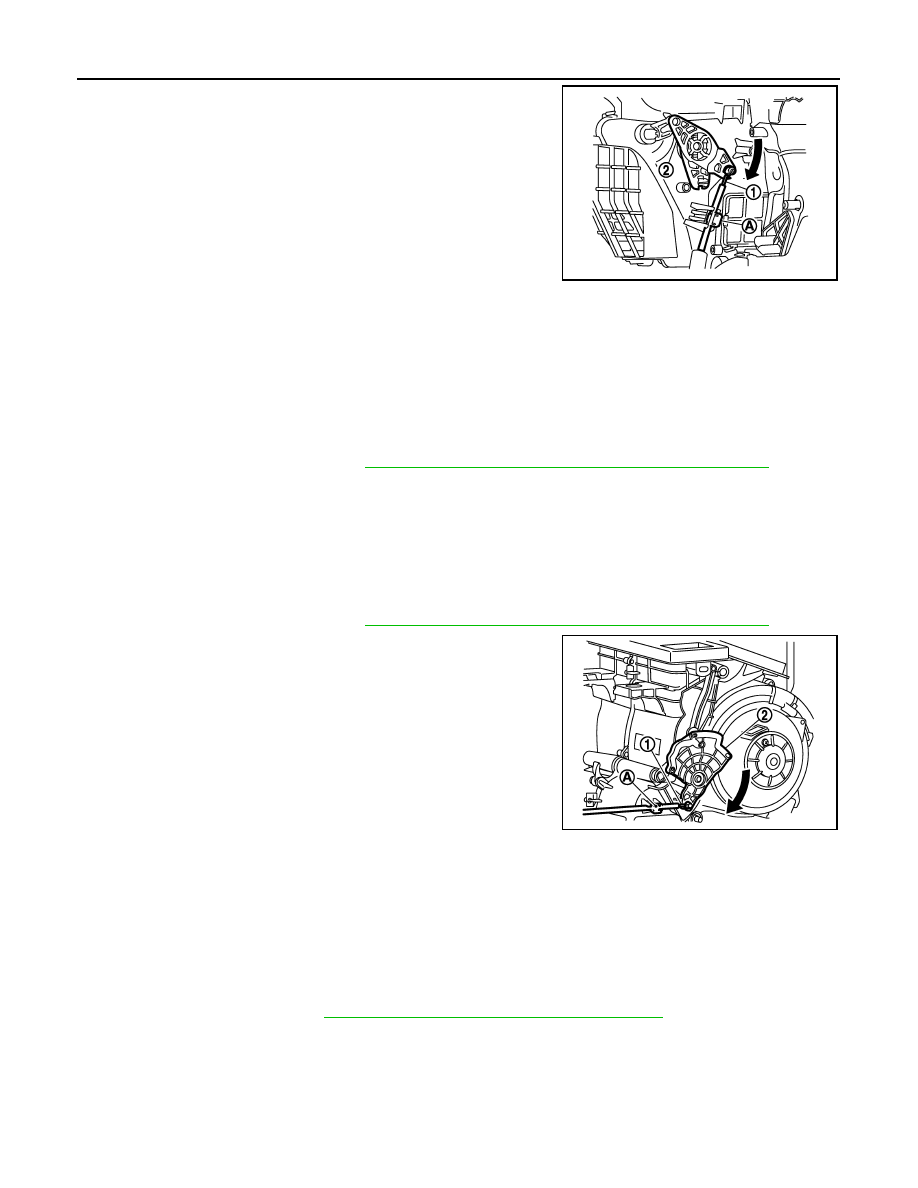

DOOR CABLE

2.

Disconnect intake door cable (1) from clamp (A).

3.

Set intake door lever to REC position.

4.

Push intake door link (2) in the direction shown by the arrow,
and then carefully pulling outer cable to A/C control side, and
connect clamp.

5.

Operate intake door lever to insure that inner cable moves smoothly.

CAUTION:

When clamping the outer cable, never move the inner cable.

MODE DOOR CABLE

MODE DOOR CABLE : Removal and Installation

INFOID:0000000006057459

REMOVAL

1.

Remove A/C unit assembly. Refer to

HA-42, "A/C UNIT ASSEMBLY : Removal and Installation"

.

2.

Disconnect mode door cable from A/C control.

3.

Disconnect mode door cable from A/C unit assembly, and then remove mode door cable.

INSTALLATION

Install in the reverse order of removal.

MODE DOOR CABLE : Adjustment

INFOID:0000000006057460

1.

Remove A/C unit assembly. Refer to

HA-42, "A/C UNIT ASSEMBLY : Removal and Installation"

.

2.

Disconnect mode door cable (1) from clamp (A).

3.

Set mode dial to VENT position.

4.

Push main link (2) in the direction shown by the arrow, and then
carefully pulling outer cable to A/C control side, and connect
clamp.

5.

Operate mode dial to insure that inner cable moves smoothly.

CAUTION:

When clamping the outer cable, never move the inner cable.

AIR MIX DOOR CABLE

AIR MIX DOOR CABLE : Removal and Installation

INFOID:0000000006057461

REMOVAL

1.

Remove foot duct LH. Refer to

VTL-6, "FOOT DUCT : Removal and Installation"

.

2.

Disconnect air mix door cable from A/C control.

3.

Disconnect air mix door cable from A/C unit assembly, and then remove air mix door cable.

INSTALLATION

Install in the reverse order of removal.

JMIIA0617ZZ

JMIIA0618ZZ

DOOR CABLE

HAC-121

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

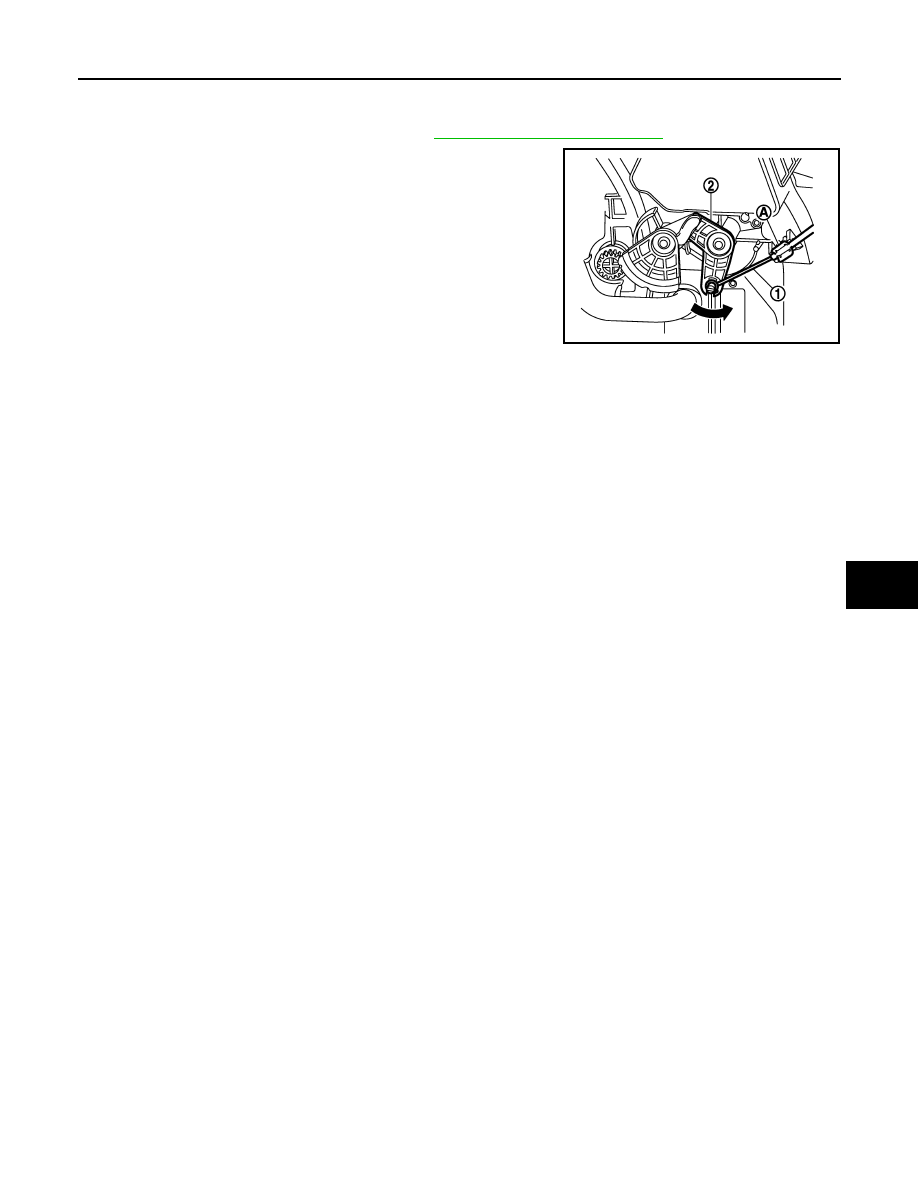

AIR MIX DOOR CABLE : Adjustment

INFOID:0000000006057462

1.

Remove instrument passenger cover. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect air mix door cable (1) from clamp (A).

3.

Set temperature control dial to full cold position.

4.

Push air mix door link (2) in the direction shown by the arrow,
and then carefully pulling outer cable to A/C control side, and
connect clamp.

5.

Operate temperature control dial to insure that inner cable moves smoothly.

CAUTION:

When clamping the outer cable, never move the inner cable.

JMIIA0619ZZ
