Nissan March K13. Manual - part 395





HAC-114

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

COMPRESSOR DOSE DOT OPERATE

Check the blower fan ON signal. Refer to

HAC-108, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair or replace the malfunctioning parts

7.

CHECK THERMO CONTROL AMP.

Check the thermo control amp.  Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> Replace the BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace the malfunctioning parts

A/C CONTROL

HAC-115

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REMOVAL AND INSTALLATION

A/C CONTROL

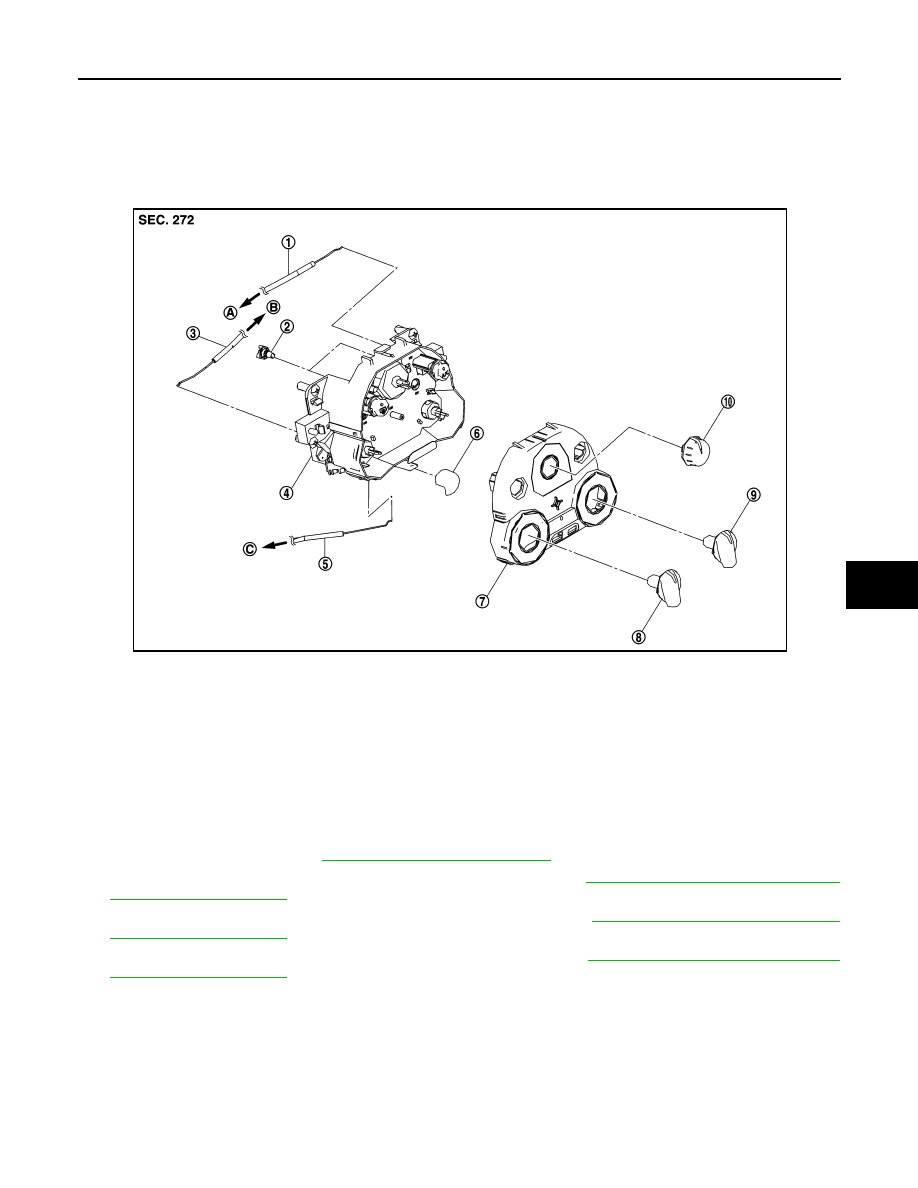

Exploded View

INFOID:0000000006024149

Removal and Installation

INFOID:0000000006024150

REMOVAL

1.

Remove A/C finisher. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the air mix door cable from the A/C unit assembly. Refer to

HAC-120, "AIR MIX DOOR CABLE :

Removal and Installation"

.

3.

Remove the mode door cable from the A/C unit assembly. Refer to

HAC-120, "MODE DOOR CABLE :

Removal and Installation"

.

4.

Remove the intake door cable from the A/C unit assembly. Refer to

HAC-119, "INTAKE DOOR CABLE :

Removal and Installation"

.

5.

Remove each door cable and harness connector the A/C control.

INSTALLATION

Install in the reverse order of removal.

1.

Mode door cable

2.

Illumination bulb

3.

Air mix door cable

4.

A/C control

5.

Intake door cable

6.

Intake door lever knob

7.

A/C control finisher

8.

Mode dial

9.

Temperature dial

10. Fan control dial

A.

To mode door link

B.

To air mix door link

C.

Intake door link

JMIIA0753ZZ

HAC-116

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

THERMO CONTROL AMPLIFIER

THERMO CONTROL AMPLIFIER

Exploded View

INFOID:0000000006024151

Refer to

HA-39, "Exploded View"

.

Removal and Installation

INFOID:0000000006024152

REMOVAL

1.

Remove the evaporator. Refer to

HA-43, "EVAPORATOR : Removal and Installation"

.

2.

Remove the thermo control amp. from the evaporator.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.
• When install the thermo control amp., set the same position before replacement.
• When remove the thermo control amp., never turn the bracket which is equipped the top of the

thermo control amp.

• Check for the leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.

REFRIGERANT PRESSURE SENSOR

HAC-117

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000006057678

Refer to

HA-36, "Exploded View"

.

Removal and Installation

INFOID:0000000006057679

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

22, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Remove refrigerant pressure sensor. Refer to

HA-37, "REFRIGERANT PRESSURE SENSOR : Removal

and Installation"

.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant. Refer to

HA-18, "Leak Test"

.
