GW-22

< REMOVAL AND INSTALLATION >

REAR REGULATOR

REAR REGULATOR

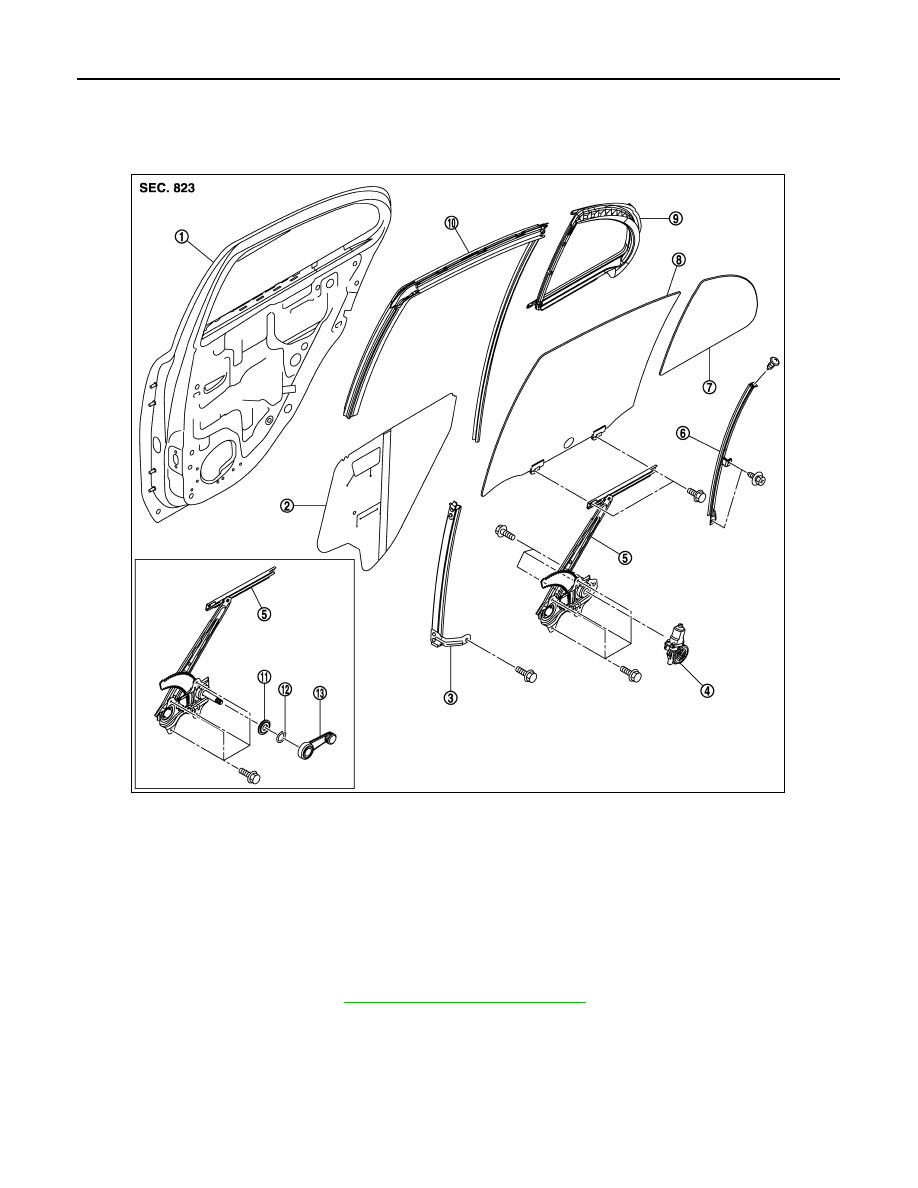

Exploded View

INFOID:0000000006059401

Removal and Installation

INFOID:0000000006059390

REMOVAL

1.

Remove rear door glass. Refer to

GW-20, "Removal and Installation"

.

2.

Disconnect the power window motor harness connector (B) (Power window model only).

3.

Remove the regulator assembly mounting bolts and then remove regulator assembly from door panel.

INSTALLATION

Install in the reverse order of removal.

1.

Rear door panel

2.

Sealing screen

3.

Rear door sash

4.

Power window motor

5.

Regulator assembly

6.

Partition sash

7.

Partition glass

8.

Rear door glass

9.

Partition weather-strip

10. Rear door glass run

11.

Regulator seal

12. Snap pin

13. Regulator handle

JMKIA5304ZZ

REAR REGULATOR

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Disassembly and Assembly

INFOID:0000000006059391

DISASSEMBLY

Remove the power window motor from the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.
• Wire wear
• Regulator deformation

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000006059394

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

XX-XX, "*****"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  .....................................

3

Precaution for Procedure without Cowl Top Cover

......

4

Precautions For Refrigerant System Service  ............

4

Service Equipment  ....................................................

6

PREPARATION ............................................

9

PREPARATION ...................................................

9

Special Service Tool  .................................................

9

Commercial Service Tools .....................................

10

Sealant or/and Lubricant  .........................................

11

SYSTEM DESCRIPTION  .............................

13

COMPONENT PARTS  .......................................

13

Component Parts Location ......................................

13

Component Description ...........................................

13

SYSTEM .............................................................

14

System Diagram ......................................................

14

System Description  .................................................

14

BASIC INSPECTION  ...................................

16

DIAGNOSIS AND REPAIR WORKFLOW  .........

16

Work Flow  ...............................................................

16

REFRIGERANT ..................................................

18

Description ..............................................................

18

Leak Test  ................................................................

18

Recycle Refrigerant .................................................

20

Charge Refrigerant ..................................................

20

LUBRICANT .......................................................

22

Description ..............................................................

22

Inspection ................................................................

22

Perform Lubricant Return Operation  .......................

22

Lubricant Adjusting Procedure for Components
Replacement Except Compressor ...........................

22

Lubricant Adjusting Procedure for Compressor
Replacement ...........................................................

23

PERFORMANCE TEST  ....................................

25

Inspection ................................................................

25

SYMPTOM DIAGNOSIS  ..............................

27

REFRIGERATION SYSTEM SYMPTOMS ........

27

Trouble Diagnosis For Unusual Pressure ................

27

Symptom Table  .......................................................

27

NOISE ................................................................

29

Symptom Table  .......................................................

29

REMOVAL AND INSTALLATION  ...............

30

COMPRESSOR .................................................

30

Exploded View .........................................................

30

COMPRESSOR ..........................................................

30

COMPRESSOR : Removal and Installation ............

31

MAGNET CLUTCH  ....................................................

31

MAGNET CLUTCH : Removal and Installation of
Compressor Clutch ..................................................

31

Inspection ................................................................

32

COOLER PIPE AND HOSE  ..............................

33

Exploded View .........................................................

33

HIGH-PRESSURE FLEXIBLE HOSE  ........................

33

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

33

LOW-PRESSURE FLEXIBLE HOSE .........................

34

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

34

HIGH-PRESSURE PIPE  ............................................

34

HA-2

HIGH-PRESSURE PIPE : Removal and Installa-
tion ..........................................................................

34

CONDENSER ....................................................

36

Exploded View  ........................................................

36

CONDENSER ............................................................

36

CONDENSER : Removal and Installation  ..............

36

LIQUID TANK ............................................................

37

LIQUID TANK : Removal and Installation ...............

37

REFRIGERANT PRESSURE SENSOR ....................

37

REFRIGERANT PRESSURE SENSOR : Remov-
al and Installation ....................................................

37

A/C UNIT ASSEMBLY .......................................

39

Exploded View  ........................................................

39

A/C UNIT ASSEMBLY  ..............................................

42

A/C UNIT ASSEMBLY : Removal and Installation ...

42

EVAPORATOR ..........................................................

43

EVAPORATOR : Removal and Installation .............

43

HEATER CORE  .........................................................

43

HEATER CORE : Removal and Installation ............

43

EXPANSION VALVE  .................................................

44

EXPANSION VALVE : Removal and Installation  ....

44

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

45

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

45

Compressor ............................................................

45

Lubricant .................................................................

45

Refrigerant ..............................................................

45

Engine Idling Speed ................................................

45

Belt Tension  ............................................................

45
