GI-16

< HOW TO USE THIS MANUAL >

TIGHTENING TORQUE OF STANDARD BOLTS

The parts with aluminum or the cast iron washer surface/thread surface are excluded.

NEW STANDARD BASED ON ISO

CAUTION:

1.

Use tightening torque with lubricant for the new standard bolts/nuts in principle. Friction coeffi-
cient stabilizer is applied to the new standard bolts/nuts.

2.

However, use tightening torque without lubricant for the following cases. Friction coefficient stabi-
lizer is not applied to the following bolts/nuts.

-

Grade 4.8, M6 size bolt, Conical spring washer installed

-

Paint removing nut (Size M6 and M8) for fixing with weld bolt

Grade

(Strength

grade)

Bolt
size

Bolt di-
ameter

mm

Hexagonal

width

across flats

mm

Pitch

mm

Tightening torque

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

4.8
(Without
lubricant)

M6

6.0

10

1.0

5.5

0.56

4

49

7

0.71

5

62

M8

8.0

13

1.25

13.5

1.4

10

—

17

1.7

13

—

1.0

13.5

1.4

10

—

17

1.7

13

—

M10

10.0

16

1.5

28

2.9

21

—

35

3.6

26

—

1.25

28

2.9

21

—

35

3.6

26

—

M12

12.0

18

1.75

45

4.6

33

—

55

5.6

41

—

1.25

45

4.6

33

—

65

6.6

48

—

M14

14.0

21

1.5

80

8.2

59

—

100

10

74

—

4.8
(With lu-
bricant)

M6

6.0

10

1.0

4

0.41

3

35

5.5

0.56

4

49

M8

8.0

13

1.25

11

1.1

8

—

13.5

1.4

10

—

1.0

11

1.1

8

—

13.5

1.4

10

—

M10

10.0

16

1.5

22

2.2

16

—

28

2.9

21

—

1.25

22

2.2

16

—

28

2.9

21

—

M12

12.0

18

1.75

35

3.6

26

—

45

4.6

33

—

1.25

35

3.6

26

—

45

4.6

33

—

M14

14.0

21

1.5

65

6.6

48

—

80

8.2

59

—

8.8
(With lu-
bricant)

M6

6.0

10

1.0

8

0.82

6

71

10

1.0

7

89

M8

8.0

13

1.25

21

2.1

15

—

25

2.6

18

—

1.0

21

2.1

15

—

25

2.6

18

—

M10

10.0

16

1.5

40

4.1

30

—

50

5.1

37

—

1.25

40

4.1

30

—

50

5.1

37

—

M12

12.0

18

1.75

70

7.1

52

—

85

8.7

63

—

1.25

70

7.1

52

—

85

8.7

63

—

M14

14.0

21

1.5

120

12

89

—

140

14

103

—

10.9
(With lu-
bricant)

M6

6.0

10

1.0

10

1.0

7

89

12

1.2

9

106

M8

8.0

13

1.25

27

2.8

20

—

32

3.3

24

—

1.0

27

2.8

20

—

32

3.3

24

—

M10

10.0

16

1.5

55

5.6

41

—

65

6.6

48

—

1.25

55

5.6

41

—

65

6.6

48

—

M12

12.0

18

1.75

95

9.7

70

—

110

11

81

—

1.25

95

9.7

70

—

110

11

81

—

M14

14.0

21

1.5

160

16

118

—

180

18

133

—

TIGHTENING TORQUE OF STANDARD BOLTS

GI-17

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

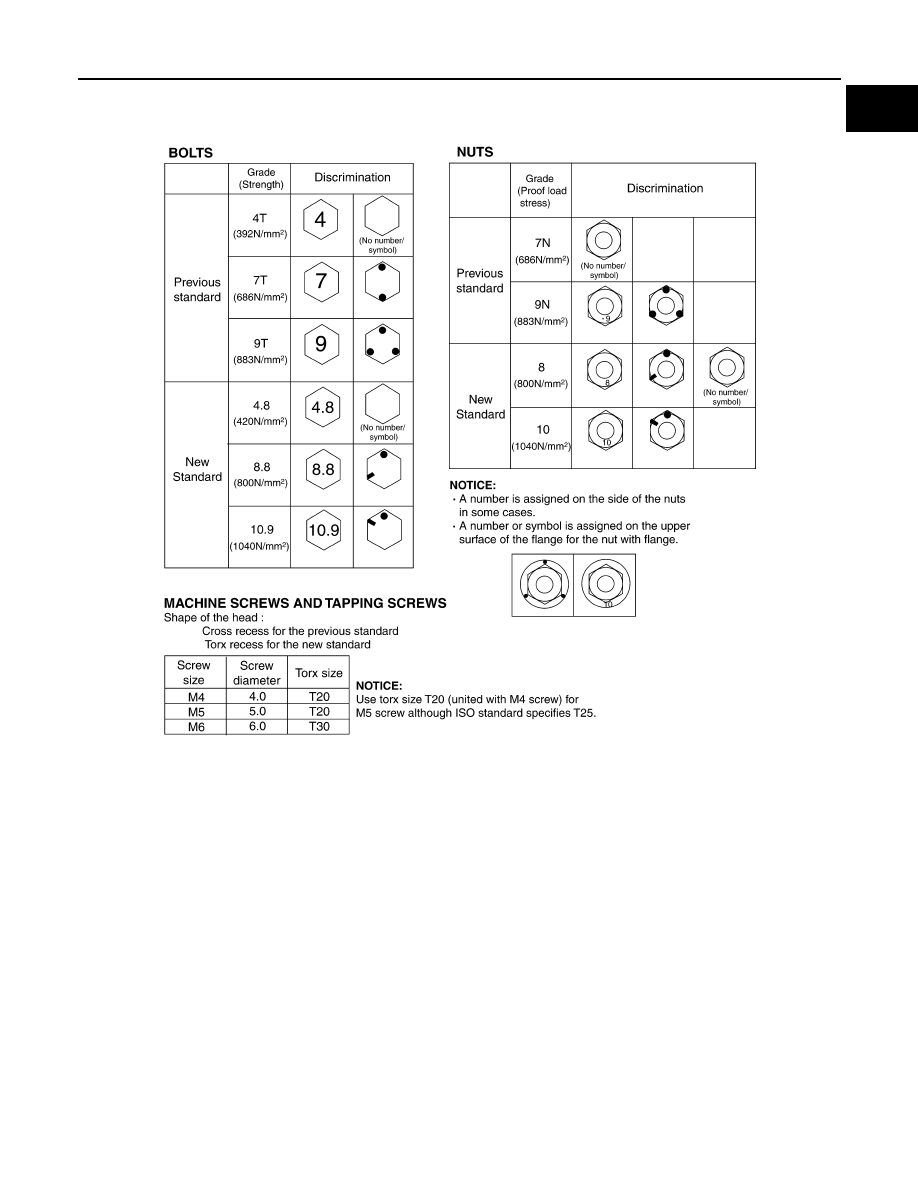

DISCRIMINATION OF BOLTS AND NUTS

SAIA0453E

GI-18

< VEHICLE INFORMATION >

IDENTIFICATION INFORMATION

VEHICLE INFORMATION

IDENTIFICATION INFORMATION

Model Variation

INFOID:0000000006023342

Model variation code (Prefix and suffix designations)

Information About Identification or Model Code

INFOID:0000000006023343

IDENTIFICATION NUMBER

Destination

Body

Engine

Transmission

Axle

Grade

Model

General areas

5

−

door Hatch-

back

HR12DE

5M/T

2WD

KPI

FDWUREG-EH5

Base

FDWURQG-EH5

Middle

FDWURTG-EH5

4A/T

FDWURTA-EH5

Upper

FDWURVA-EH5

Upper Safety

FDWURPA-EH5

5M/T

Base

FDWURQG-XH5

Middle

FDWURTG-XH5

India

Base

FDWURQG-EI5

Middle

FDWURTG-EI5

Upper

FDWURVG-EI5

JPAIA0753GB

IDENTIFICATION INFORMATION

GI-19

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

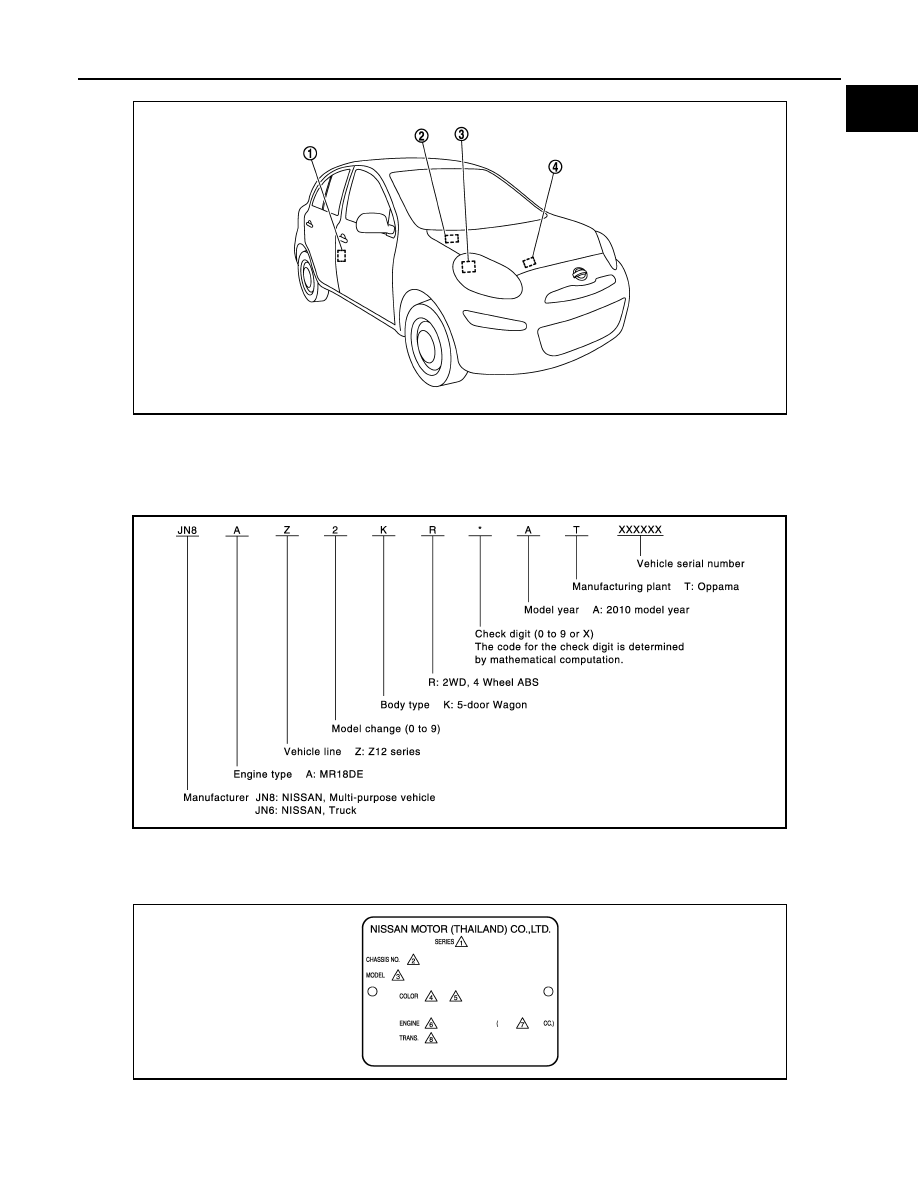

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

IDENTIFICATION PLATE

For General areas

JPAIA0767ZZ

1.

Tire placard

2. Vehicle identification number (Chas-

sis number)

3.

Vehicle identification number plate

4.

Air conditioner specification label

JPAIA0675GB

JPAIA0764ZZ

1.

Type

2.

Vehicle identification number (Chassis number) 3.

Model variation code

4.

Body color code

5.

Trim color code

6.

Engine model
