*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.

SYSTEM DESCRIPTION

Firing order: 1 - 2 - 3
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor (PHASE) sig-
nal. Computing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is revised by the ECM according to the other data stored in
the ECM.
• At starting
• During warm-up
• At  idle
• At low battery voltage
• During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

AIR CONDITIONING CUT CONTROL

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed

*1

Piston position

Ignition timing
control

Ignition coil (with power tran-
sistor)

Camshaft position sensor (PHASE)

Manifold absolute pressure (MAP) sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Park/neutral position (PNP) switch (M/T mod-
els)

PNP signal

Transmission range switch (A/T models)

Battery

Battery voltage

*1

Knock sensor

Engine knocking

Combination meter

Vehicle speed signal

*2

EC-342

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 2)]

SYSTEM

AIR CONDITIONING CUT CONTROL : System Diagram

INFOID:0000000006036819

AIR CONDITIONING CUT CONTROL : System Description

INFOID:0000000006036820

INPUT/OUTPUT SIGNAL CHART

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned off.
• When the accelerator pedal is fully depressed.
• When cranking the engine.
• At high engine speeds.
• When the engine coolant temperature becomes excessively high.
• When operating power steering during low engine speed or low vehicle speed.
• When engine speed is excessively low.
• When refrigerant pressure is excessively low or high.

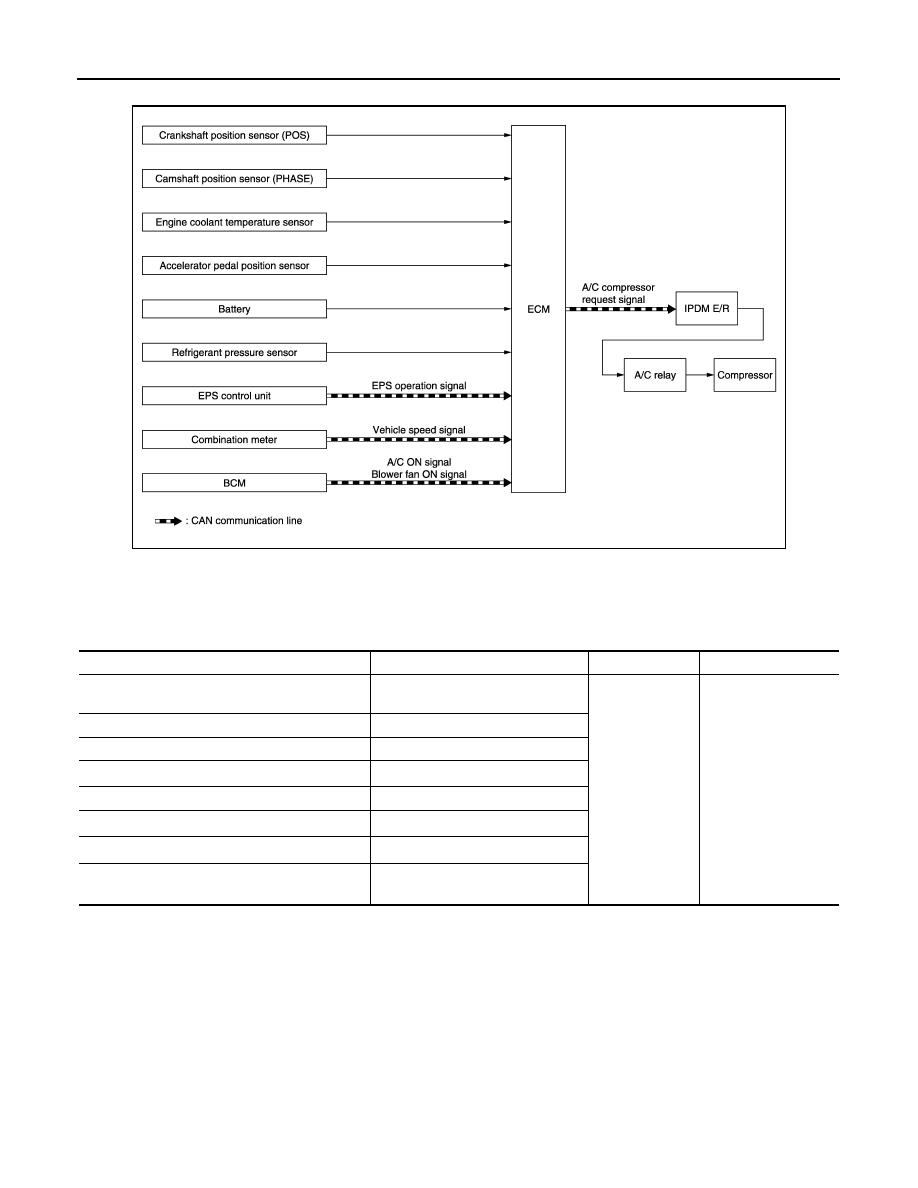

JSBIA0320GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

*1

A/C compressor
repuest signal

IPDM E/R

Air conditioner relay

Compressor

Engine coolant temperature sensor

Engine coolant temperature

Accelerator pedal position sensor

Accelerator pedal position

Battery

Battery voltage

*1

Refrigerant pressure sensor

Refrigerant pressure

EPS control unit

EPS operation signal

*2

Combination meter

Vehicle speed signal

*2

BCM

A/C ON signal

*2

Blower fan ON signal

SYSTEM

EC-343

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CAN COMMUNICATION

CAN COMMUNICATION : System Description

INFOID:0000000006036821

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-23, "CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart"

, about CAN com-

munication for detail.

COOLING FAN CONTROL

COOLING FAN CONTROL : System Diagram

INFOID:0000000006036824

COOLING FAN CONTROL : System Description

INFOID:0000000006036825

INPUT/OUTPUT SIGNAL CHART

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.

SYSTEM DESCRIPTION

ECM controls cooling fan speed corresponding to vehicle speed, engine coolant temperature, refrigerant pres-
sure, air conditioner ON signal. Then control system has 2-step control [HIGH/OFF].

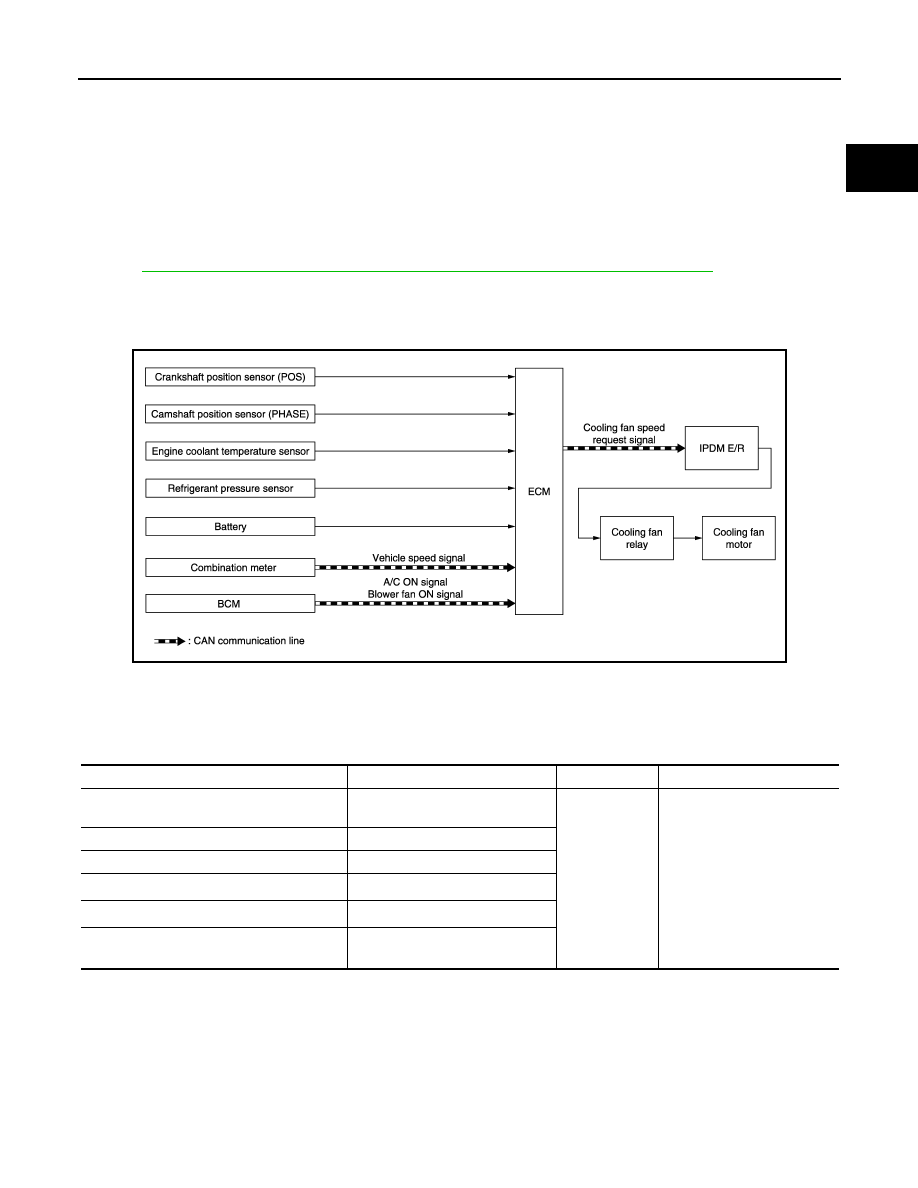

JSBIA0321GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed

*1

Cooling fan
speed request
signal

IPDM E/R

Cooling fan relay

Cooling fan motor

Engine coolant temperature sensor

Engine coolant temperature

Refrigerant pressure sensor

Refrigerant pressure

Battery

Battery voltage

*1

Combination meter

Vehicle speed signal

*2

BCM

A/C ON signal

*2

Blower fan ON signal

EC-344

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 2)]

SYSTEM

Cooling Fan Operation

Cooling Fan Relay Operation

The ECM controls cooling fan relays through CAN communication line.

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM : System Diagram

INFOID:0000000006036828

EVAPORATIVE EMISSION SYSTEM : System Description

INFOID:0000000006036829

INPUT/OUTPUT SIGNAL CHART

JSBIA0415GB

Cooling fan speed

Cooling fan relay

Stop (OFF)

OFF

High (HI)

ON

JSBIA0438GB
