KEY REMINDER FUNCTION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000006069115

1.

CHECK KEY SWITCH

Check key switch.
Refer to

DLK-196, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DRIVER SIDE DOOR SWITCH

Check driver side door switch.
Refer to

DLK-177, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

• Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

DLK-208

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HAZARD REMINDER OPERATION DOES NOT OPERATE

HAZARD REMINDER OPERATION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000005949129

1.

CHECK “HAZARD LAMP SET” SETTING IN “WORK SUPPORT”

1.

Select “MULTI REMOTE ENT” of “BCM” using CONSULT-III.

2.

Select “HAZARD LAMP SET” in “WORK SUPPORT” mode.

3.

Check “HAZARD LAMP SET” setting in “WORK SUPPORT”.
Refer to

DLK-158, "MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Set “MODE 2”, “MODE 3” or “MODE 4” in “HAZARD LAMP SET”.

2.

CHECK HAZARD WARNING LAMP

Check hazard warning lamp.
Refer to

DLK-198, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

• Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

PANIC ALARM FUNCTION DOES NOT OPERATE

DLK-209

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PANIC ALARM FUNCTION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000006046543

1.

CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.
Does door lock/unlock with keyfob button?

YES

>> GO TO 2.

NO

>> Refer to

DLK-205, "Diagnosis Procedure"

.

2.

CHECK HORN OPERATION

1.

Select “IPDM E/R” using CONSULT-III.

2.

Select “HORN” in “ACTIVE TEST” mode.

3.

Touch “On” to check that it works normally.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK “PANIC ALARM SET” SETTING IN “WORK SUPPORT”

1.

Select “MULTI REMOTE ENT” of “BCM”.

2.

Select “PANIC ALARM SET” in “WORK SUPPORT” mode.

3.

Check “PANIC ALARM SET” setting in “WORK SUPPORT”.
Refer to

DLK-158, "MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Set “MODE 1” or “MODE 3” in “PANIC ALARM SET”

4.

REPLACE BCM

• Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

DLK-210

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

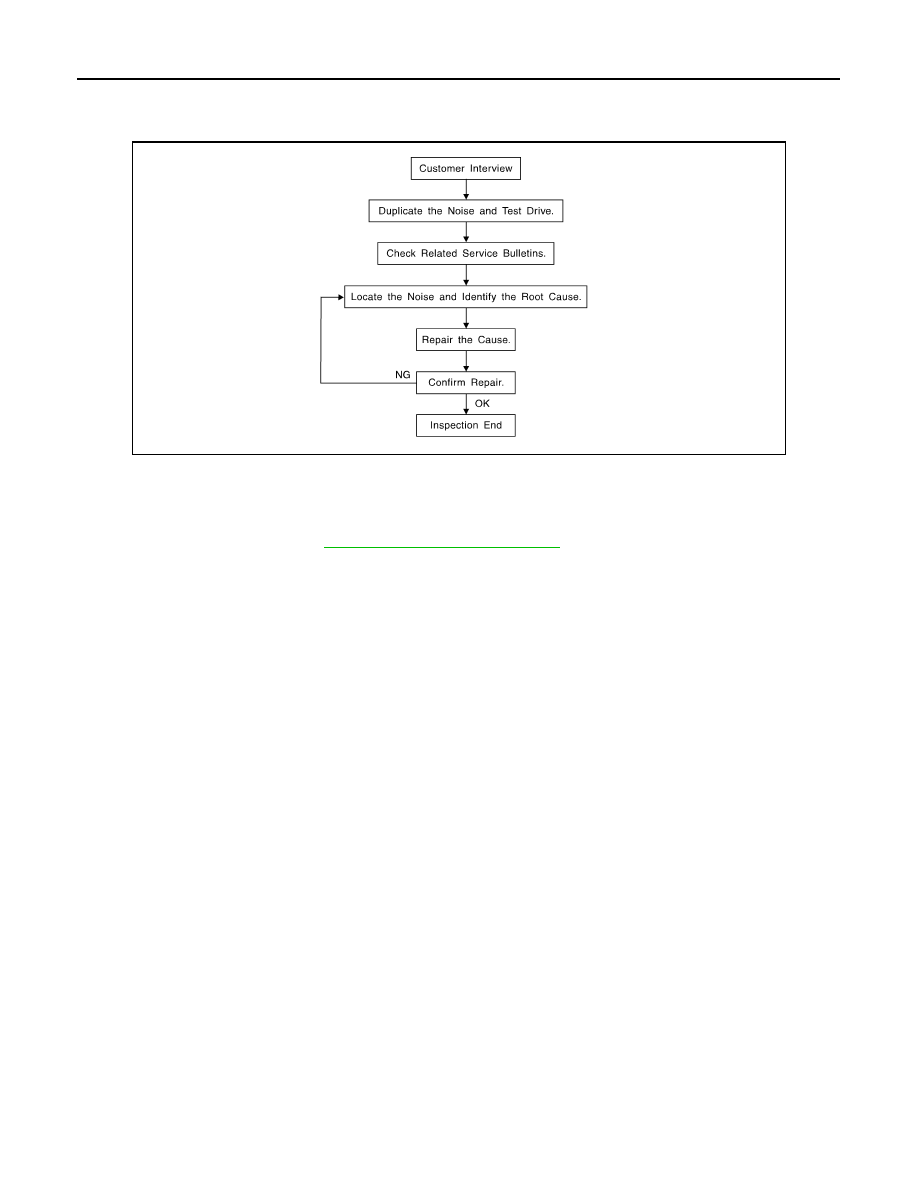

Work Flow

INFOID:0000000006067077

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to

DLK-214, "Diagnostic Worksheet"

. This information is necessary to dupli-

cate the conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.

SBT842
