Nissan March K13. Manual - part 122

KEYFOB BATTERY

DLK-199

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB BATTERY

Component Function Check

INFOID:0000000005949100

1.

CHECK FUNCTION

Check door lock and unlock operation with keyfob button.
Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-199, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005949101

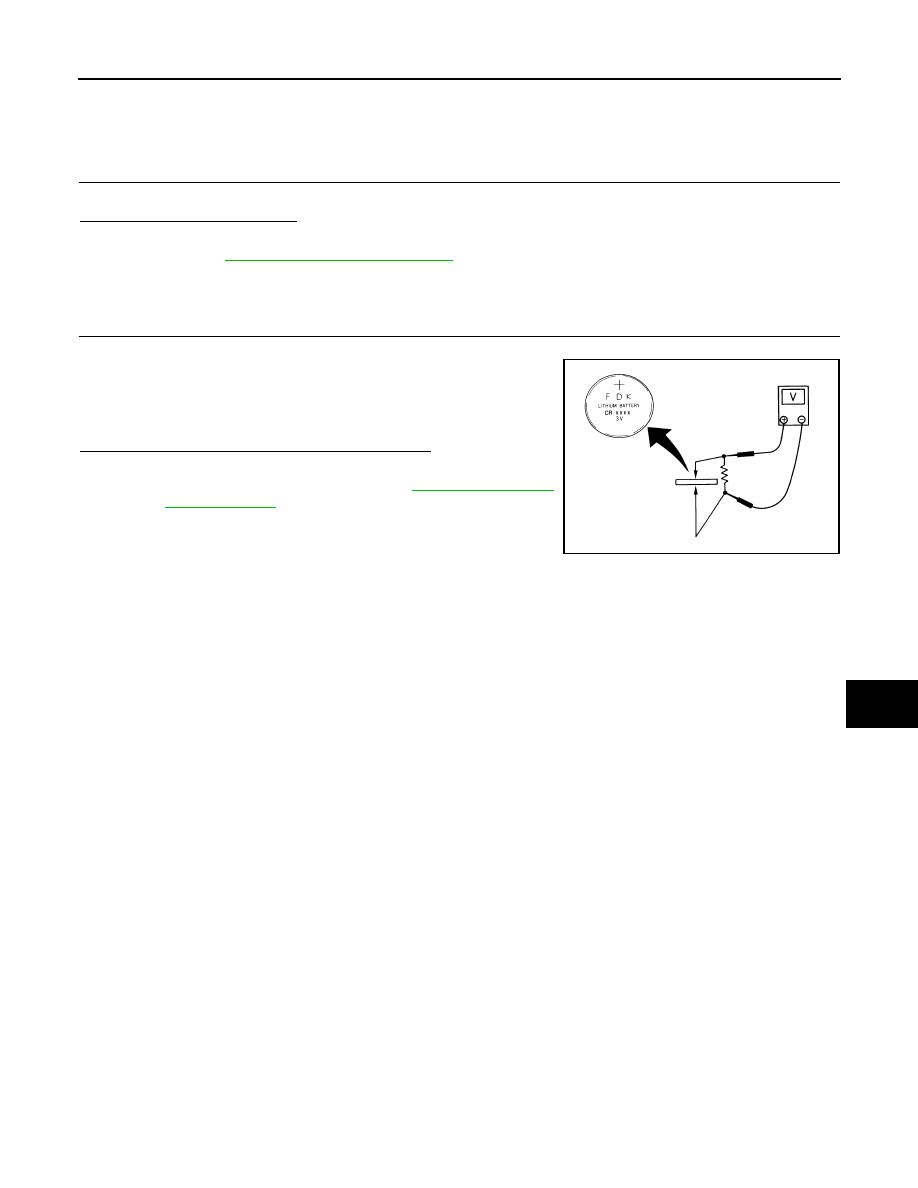

1.

CHECK KEYFOB BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> Replace keyfob.

NO

>> Replace keyfob battery. Refer to

DLK-250, "Removal

and Installation"

.

Standard

: Approx. 2.5 - 3.0V

OCC0607D

DLK-200

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

SYMPTOM DIAGNOSIS

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK
SWITCH

ALL DOOR

ALL DOOR : Description

INFOID:0000000005949109

All doors do not lock/unlock using door lock and unlock switch.

ALL DOOR : Diagnosis Procedure

INFOID:0000000005949110

1.

CHECK DOOR LOCK AND UNLOCK SWITCH

Check door lock and unlock switch.
Refer to

DLK-181, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).
Refer to

DLK-183, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

• Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000005949111

Driver side door does not lock/unlock using door lock and unlock switch.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000005949112

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).
Refer to

DLK-183, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

PASSENGER SIDE

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-201

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PASSENGER SIDE : Description

INFOID:0000000005949113

Passenger side door does not lock/unlock using door lock and unlock switch.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000005949114

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (passenger side).
Refer to

DLK-184, "PASSENGER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

• Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

REAR LH

REAR LH : Description

INFOID:0000000005949115

Rear LH side door does not lock/unlock using door lock and unlock switch.

REAR LH : Diagnosis Procedure

INFOID:0000000005949116

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly LH.
Refer to

DLK-185, "REAR LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

REAR RH

REAR RH : Description

INFOID:0000000005949117

Rear RH side door does not lock/unlock using door lock and unlock switch.

REAR RH : Diagnosis Procedure

INFOID:0000000005949118

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly RH
Refer to

DLK-186, "REAR RH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

DLK-202

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.

BACK DOOR

BACK DOOR : Description

INFOID:0000000005949119

Back door does not lock/unlock using door lock and unlock switch.

BACK DOOR : Diagnosis Procedure

INFOID:0000000005949120

1.

CHECK DOOR LOCK ACTUATOR

Check back door lock assembly.
Refer to

DLK-187, "BACK DOOR : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

• Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-33, "Intermittent Incident"

.
