DOOR LOCK ACTUATOR

DLK-187

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

YES

>> Replace rear door lock assembly RH.

NO

>> GO TO 2.

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1.

Disconnect BCM connector and all door lock actuator.

2.

Check continuity between BCM harness connector and rear door lock assembly RH harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Check for internal short of each door lock actuator.

NO

>> Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

BACK DOOR

BACK DOOR : Component Function Check

INFOID:0000000005949080

1.

CHECK FUNCTION

1.

Select “DOOR LOCK” of “BCM” using CONSULT-III.

2.

Select “DOOR LOCK” in “ACTIVE TEST” mode.

3.

Touch “ALL LOCK” or “ALL UNLK” to check that it works normally.

Is the inspection result normal?

YES

>> Back door lock actuator is OK.

NO

>> Refer to

DLK-187, "BACK DOOR : Diagnosis Procedure"

.

BACK DOOR : Diagnosis Procedure

INFOID:0000000005949081

1.

CHECK BACK DOOR LOCK ACTUATOR INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect back door lock assembly connector.

3.

Check voltage between back door lock assembly harness connector and ground.

BCM

Rear door lock assembly RH

Continuity

Connector

Terminal

Connector

Terminal

M67

65

D45

5

Existed

66

6

BCM

Ground

Continuity

Connector

Terminal

M67

65

Not existed

66

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

M67

65

Ground

Door lock and unlock switch

Lock

12 V

66

Unlock

DLK-188

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK ACTUATOR

Is the inspection result normal?

YES

>> Replace back door lock assembly.

NO

>> GO TO 2

2.

CHECK BACK DOOR LOCK ACTUATOR CIRCUIT

1.

Disconnect BCM connector and all door lock actuator.

2.

Check continuity between BCM harness connector and back door lock assembly harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

2.

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Check for internal short of each door lock actuator.

NO

>> Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

(+)

(–)

Condition

Voltage

(Approx.)

Back door lock assembly

Connector

Terminal

D106

4

Ground

Door lock and unlock switch

Unlock

12 V

2

Lock

BCM

Back door lock assembly

Continuity

Connector

Terminal

Connector

Terminal

M67

65

D106

2

Existed

66

4

BCM

Ground

Continuity

Connector

Terminal

M67

65

Not existed

66

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

M67

65

Ground

Door lock and unlock switch

Lock

12 V

66

Unlock

DOOR KEY CYLINDER SWITCH

DLK-189

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

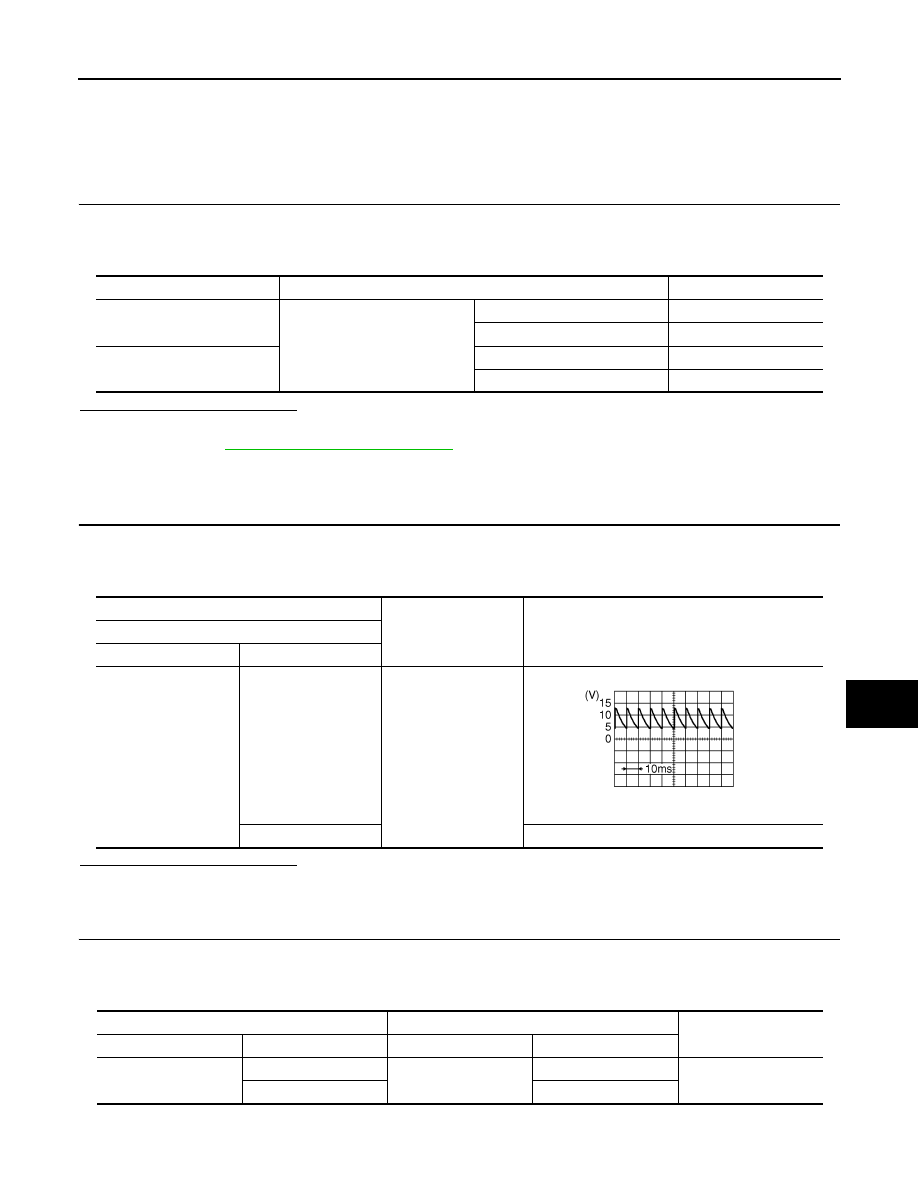

DOOR KEY CYLINDER SWITCH

Component Function Check

INFOID:0000000006059492

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

1.

Select “DOOR LOCK” of “BCM” using CONSULT-III.

2.

Select “KEY CYL LK-SW”, “KEY CYL UN-SW” in “DATA MONITOR” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Door key cylinder switch is OK.

NO

>> Refer to

DLK-189, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006059493

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect front door lock assembly (driver side) connector.

3.

Check voltage between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR KEY CYLINDER SWITCH SIGNAL CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and front door lock assembly (driver side) harness
connector.

3.

Check continuity between BCM harness connector and ground.

Monitor item

Condition

Status

KEY CYL LK-SW

Driver side door key cylinder

Lock

ON

Neutral / Unlock

OFF

KEY CYL UN-SW

Unlock

ON

Neutral / Lock

OFF

(+)

(–)

Voltage (V)

(Approx.)

Front door lock assembly (driver side)

Connector

Terminal

D28

5

Ground

8.0 - 8.5 V

6

Battery voltage

JPMIA0587GB

BCM

Front door lock assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M65

7

D28

5

Existed

8

6

DLK-190

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR KEY CYLINDER SWITCH

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-99, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

Check continuity between front door lock assembly (driver side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR KEY CYLINDER SWITCH

Refer to

DLK-190, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace front door lock assembly (driver side). Refer to

XX-XX, "*****"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-33, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000006059494

1.

CHECK DOOR KEY CYLINDER SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect front door lock assembly (driver side) terminal.

3.

Check continuity between front door lock assembly (driver side) terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace front door lock assembly (driver side). Refer to

XX-XX, "*****"

.

BCM

Ground

Continuity

Connector

Terminal

M65

7

Not existed

8

Front door lock assembly (driver side)

Ground

Continuity

Connector

Terminal

D28

3

Existed

Front door lock assembly (driver side)

Condition

Continuity

Terminal

3

Driver side door key cylinder

Unlock

Existed

Neutral / Lock

Not existed

6

Lock

Existed

Neutral / Unlock

Not existed
