Nissan March K13. Manual - part 83





DIAGNOSIS AND REPAIR WORK FLOW

DLK-43

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

GET INFORMATION FOR SYMPTOM

1.

Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

2.

Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK FOR DTC

1.

Check BCM for DTC.

2.

Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data (print them out with CONSULT-III).

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Are any symptoms described or any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in the “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in the “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to

XX-XX, "*****"

 (BCM) determine trouble diagnosis order.

NOTE:
Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This
simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirmation
Procedure.
Is DTC detected?

YES

>> GO TO 7.

NO

>> Refer to

XX-XX, "*****"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptoms.

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described is based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.

DLK-44

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check voltage of related BCM terminals using CONSULT-III.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.

3.

Check for DTC. If DTC is displayed, erase it.

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC Confirmation Procedure or Component Function Check again,
and then check that the malfunction is completely repaired.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the
symptom is not detected.

Does the symptom reappear?

YES (DTC is detected)>>GO TO 7.
YES (Symptom remains)>>GO TO 6.
NO

>> INSPECTION END

INSPECTION AND ADJUSTMENT

DLK-45

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000005948801

Perform the system initialization when replacing BCM, replacing Intelligent Key or registering an additional
Intelligent Key.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000005948802

Refer to CONSULT-III operation manual for the NATS-IVIS/NVIS.

DLK-46

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

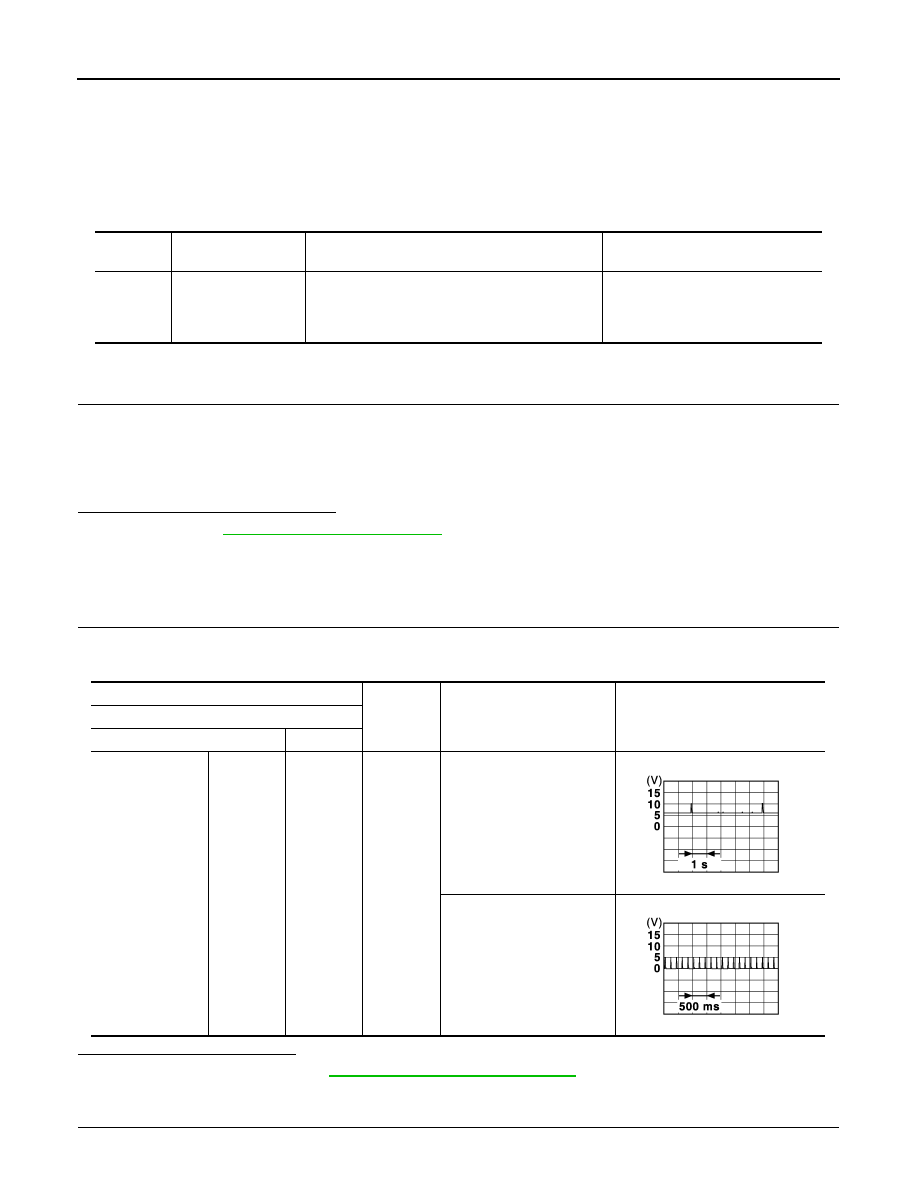

B2621 INSIDE ANTENNA

DTC/CIRCUIT DIAGNOSIS

B2621 INSIDE ANTENNA

DTC Logic

INFOID:0000000005948829

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT-III.

2.

Select “INSIDE ANT DIAGNOSIS” in “WORK SUPPORT” mode.

3.

Perform inside key antenna (“INSIDE ANT DIAGNOSIS”) on “WORK SUPPORT” of “INTELLIGENT
KEY”.

4.

Check BCM for DTC.

Is inside key antenna DTC detected?

YES

>> Refer to

DLK-46, "Diagnosis Procedure"

.

NO

>> Inside key antenna (instrument center) is OK.

Diagnosis Procedure

INFOID:0000000005948830

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

DTC

CONSULT-III display

description

DTC detecting condition

Possible cause

B2621

INSIDE ANTENNA

An excessive high or low voltage from inside anten-
na (instrument center) is sent to BCM

• Inside key antenna (instrument

center)

• Between BCM

Inside key anten-

na (instrument center)

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

Instrument center

M71

84, 85

Ground

When Intelligent Key is in the
antenna detection area

When Intelligent Key is not in
the antenna detection area

JMKIA3839GB

JMKIA3838GB
