Nissan March K13. Manual - part 82

DOOR & LOCK SYSTEM

DLK-39

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JCKWM3583GB

DLK-40

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

DOOR & LOCK SYSTEM

JCKWM3584GB

DOOR & LOCK SYSTEM

DLK-41

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JCKWM3585GB

DLK-42

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

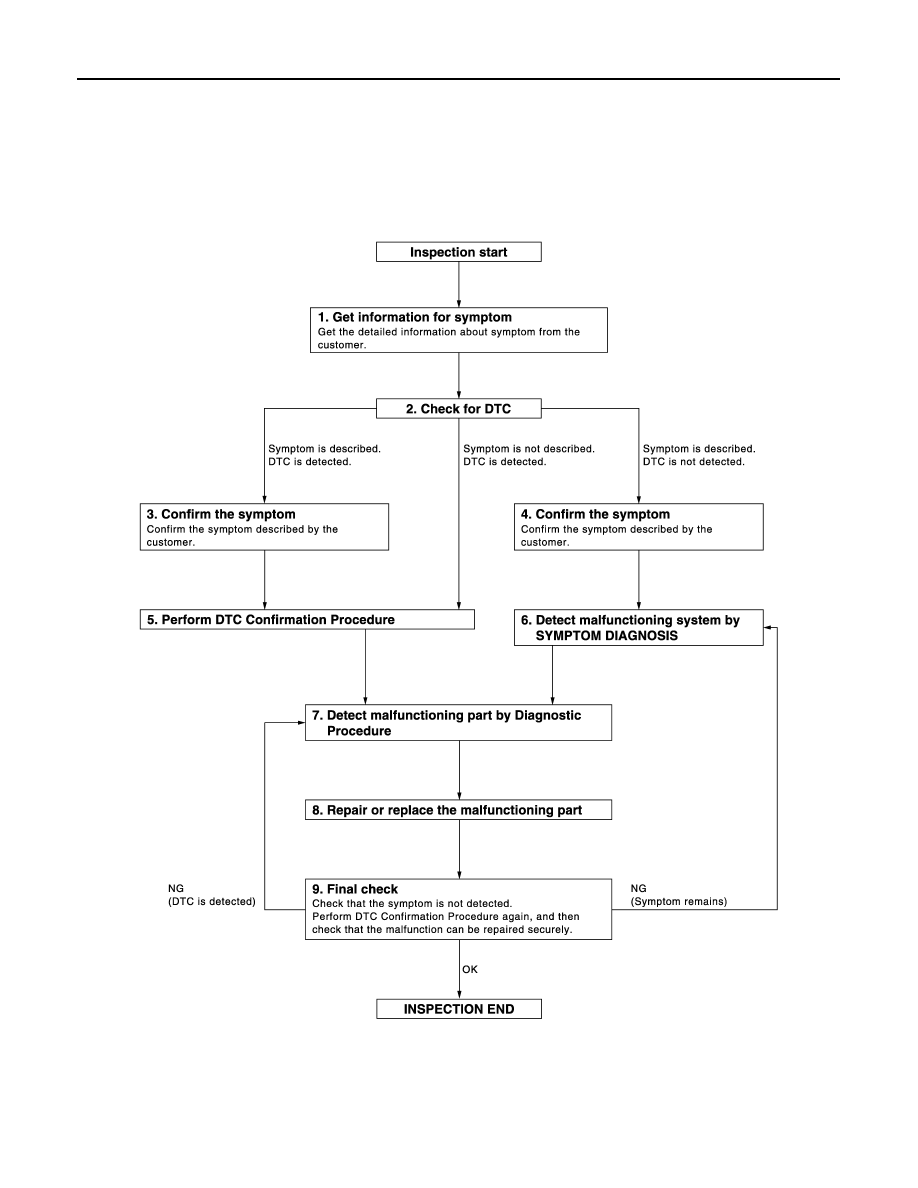

Work Flow

INFOID:0000000005948800

OVERALL SEQUENCE

DETAILED FLOW

JMKIA3620GB
