PRECAUTIONS

DEF-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006067661

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

DEF-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

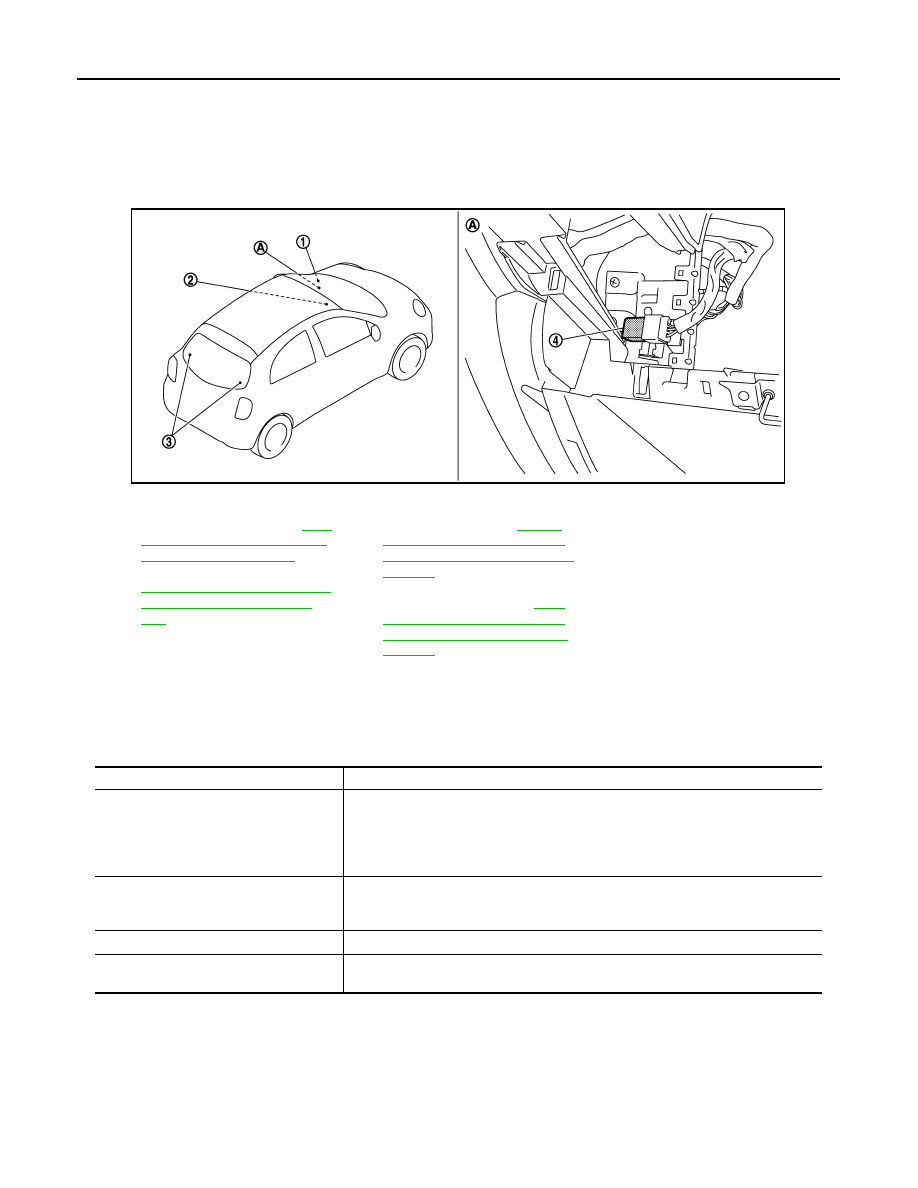

Component Parts Location

INFOID:0000000006067597

Component Description

INFOID:0000000006067598

BCM

INFOID:0000000006067599

• Rear window defogger switch operation is transmitted to IPDM E/R via CAN communication
• Performs the timer control of rear window defogger

IPDM E/R

INFOID:0000000006067600

BCM controls rear window defogger relay via CAN communication, and then operates rear window defogger

1.

BCM
• With intelligent key: Refer to

BCS-

5, "BODY CONTROL SYSTEM :
Component Parts Location"

.

• Without intelligent key: Refer to

BCS-60, "BODY CONTROL SYS-
TEM : Component Parts Loca-
tion"

.

2.

• A/C auto amp.

With auto A/C: Refer to

HAC-7,

"AUTOMATIC AIR CONDITION-
ING SYSTEM : Component Parts
Location"

.

• A/C control

With manual A/C: Refer to

HAC-

86, "MANUAL AIR CONDITION-
ING SYSTEM : Component Part
Location"

.

3.

Rear window defogger connector

4.

Rear window defogger relay

A.

Glove box removed condition

JMLIA1018ZZ

Component parts

Description

A/C auto amp. (with auto A/C)
A/C control (with manual A/C)

• The rear window defogger switch is installed
• The rear window defogger is operated by turning the rear window defogger switch

ON.

• Turns the indicator lamp ON when detecting the operation of rear window defog-

ger

BCM

• Operates the rear window defogger relay with the operation of rear window defog-

ger switch.

• Performs the timer control of rear window defogger.

Rear window defogger relay

Operates the rear window defogger with the control signal from BCM.

Rear window defogger

Heats the heating wire with the power supply from the rear window defogger relay
to prevent the rear window from fogging up.

COMPONENT PARTS

DEF-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

A/C AUTO AMP. / A/C CONTROL

INFOID:0000000006067601

• The rear window defogger switch is installed
• Turns the indicator lamp ON when detecting the operation of rear window defogger

REAR WINDOW DEFOGGER SWITCH

INFOID:0000000006067602

• The rear window defogger is operated by turning the rear window defogger switch ON.
• The indicator lamp in the rear window defogger illuminates when the rear window defogger is operating.

REAR WINDOW DEFOGGER RELAY

INFOID:0000000006067603

Operates the rear window defogger with the control signal from IPDM E/R

RERA WINDOW DEFOGGER

INFOID:0000000006067604

Heats the heating wire with the power supply from the rear window defogger relay to prevent the rear window
from fogging up.

DOOR MIROOR DEFOGGER

INFOID:0000000006067605

Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror
from fogging up.
