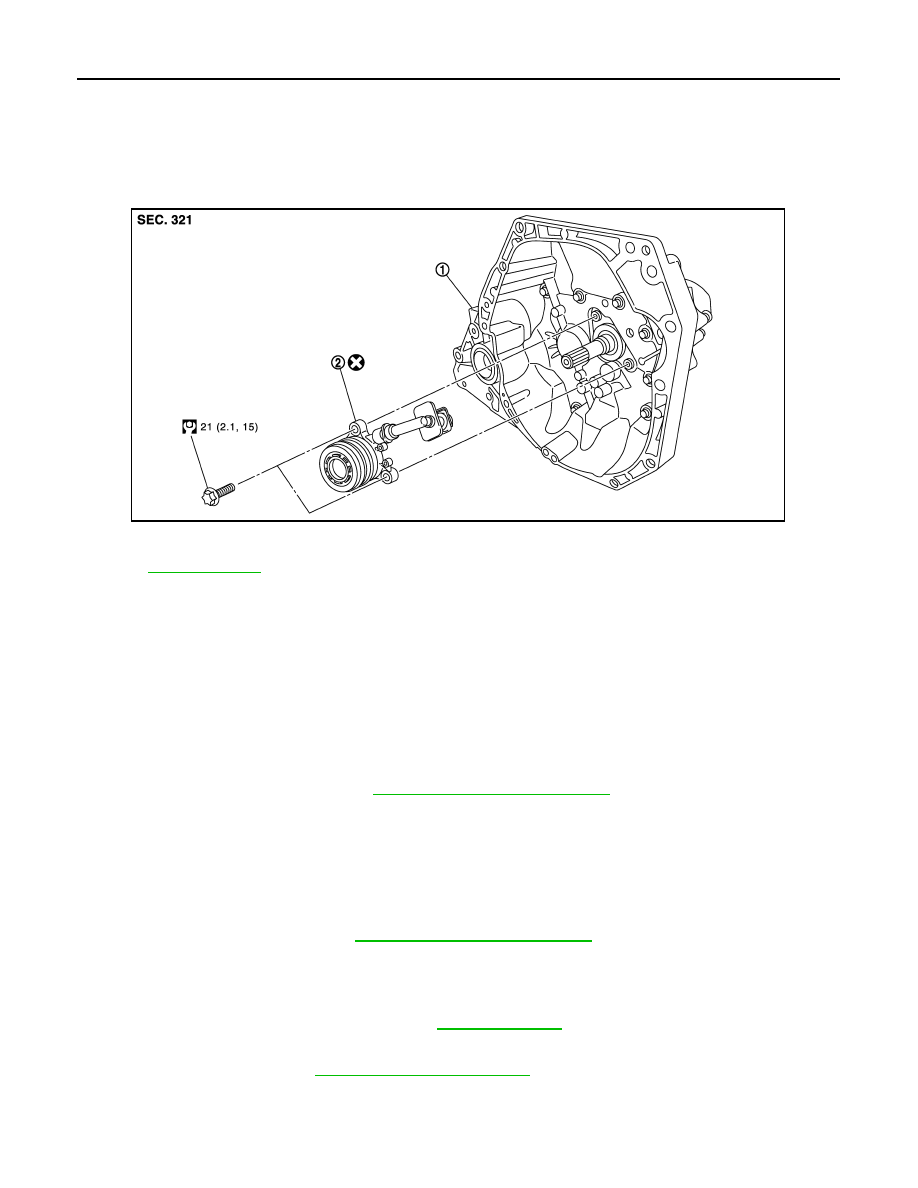

CL-16 < UNIT REMOVAL AND INSTALLATION > CSC (CONCENTRIC SLAVE CYLINDER) UNIT REMOVAL AND INSTALLATION CSC (CONCENTRIC SLAVE CYLINDER) Exploded View INFOID:0000000006056615 Removal and Installation INFOID:0000000006056616 CAUTION: • Never reuse CSC (Concentric Slave Cylinder). Because CSC slides back to the original position every time when removing transaxle assembly. At this timing, dust on the sliding parts may damage • Never disassemble CSC. and wash the affected area with water. REMOVAL 1. Remove transaxle assembly. Refer to TM-19, "Removal and Installation" 2. Remove CSC from clutch housing. INSTALLATION 1. Install CSC to clutch housing and then tighten CSC mounting bolts to the specified torque. CAUTION: • Never reuse CSC. 2. Install transaxle assembly. Refer to TM-19, "Removal and Installation" . Inspection and Adjustment INFOID:0000000006056617 INSPECTION AFTER INSTALLATION Check the fluid leakage and the fluid level. Refer to . ADJUSTMENT AFTER INSTALLATION Perform the air bleeding. Refer to CL-9, "Air Bleeding Procedure" . 1. Transaxle assembly 2. CSC (Concentric Slave Cylinder) Refer to for the symbols in the figure. JPDIB0146GB |
