Nissan March K13. Manual - part 35





FRONT DISC BRAKE

BR-13

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

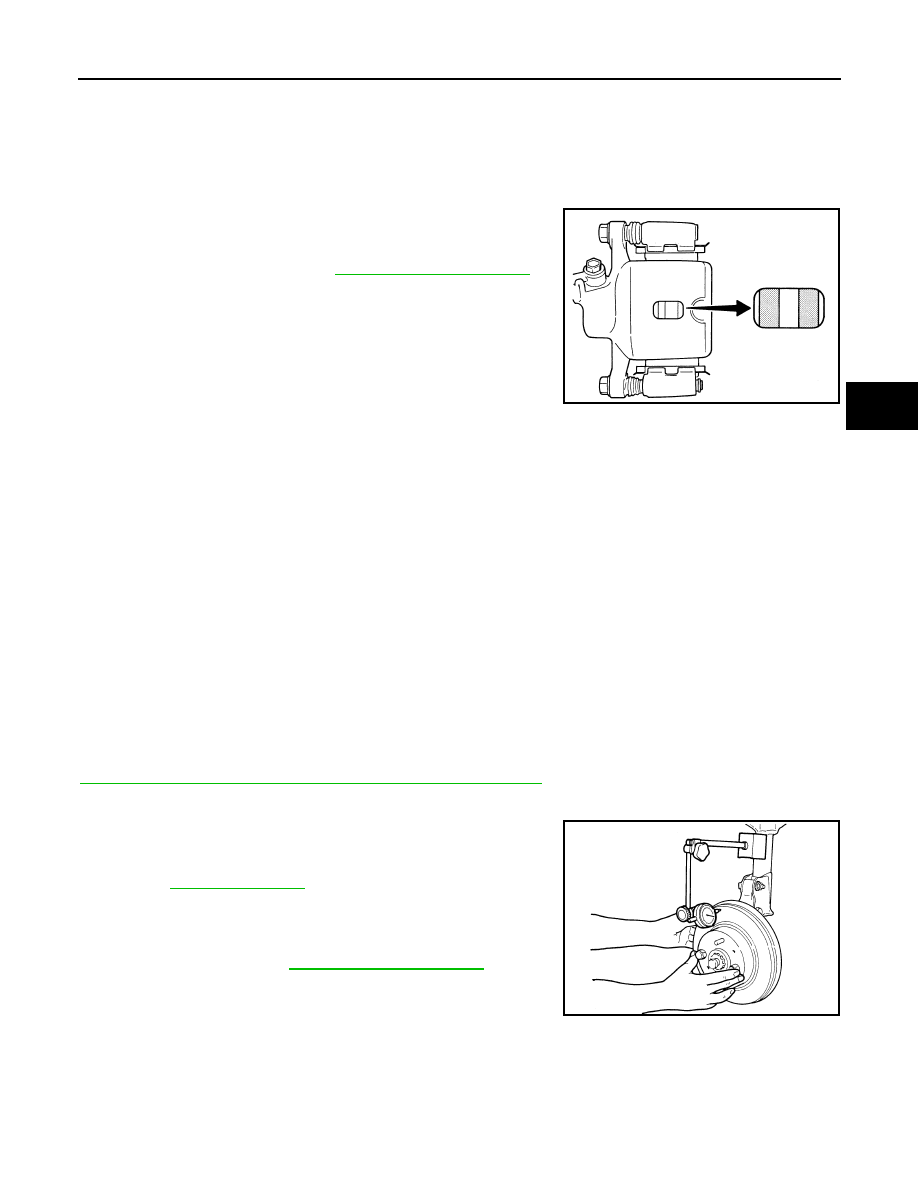

FRONT DISC BRAKE

BRAKE PAD

BRAKE PAD : Inspection and Adjustment

INFOID:0000000005986574

INSPECTION

Check brake pad wear thickness from an inspection hole on cylinder
body. Check using a scale if necessary.

ADJUSTMENT

Burnish contact surfaces between pads according to the following procedure after refinishing or replacing
pads, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate firmly/securely until pads and disc

rotor are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool the brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

DISC ROTOR

DISC ROTOR : Inspection and Adjustment

INFOID:0000000005986575

INSPECTION

Appearance

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace it if necessary. Refer to

BR-35, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

Runout

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Check the wheel bearing axial end play before the inspection.
Refer to

FAX-7, "Inspection"

.

3.

Inspect the runout with a dial indicator to measure at 10 mm
(0.39 in) inside the disc edge.

4.

Find the installation position that has a minimum runout by shift-
ing the disc rotor-to-wheel hub and bearing assembly installation
position by one hole at a time if the runout exceeds the limit
value.

5.

Refinish or replace the disc rotor if the runout is outside the limit even after performing the above opera-
tion.

CAUTION:

If the thickness is less than wear thickness + 0.3 mm (0.012 in), replace the disc rotor.

Wear thickness

: Refer to

BR-42, "Front Disc Brake"

.

BRA0010D

Runout

: Refer to

BR-42, "Front Disc Brake"

.

BRA0013D

BR-14

< PERIODIC MAINTENANCE >

FRONT DISC BRAKE

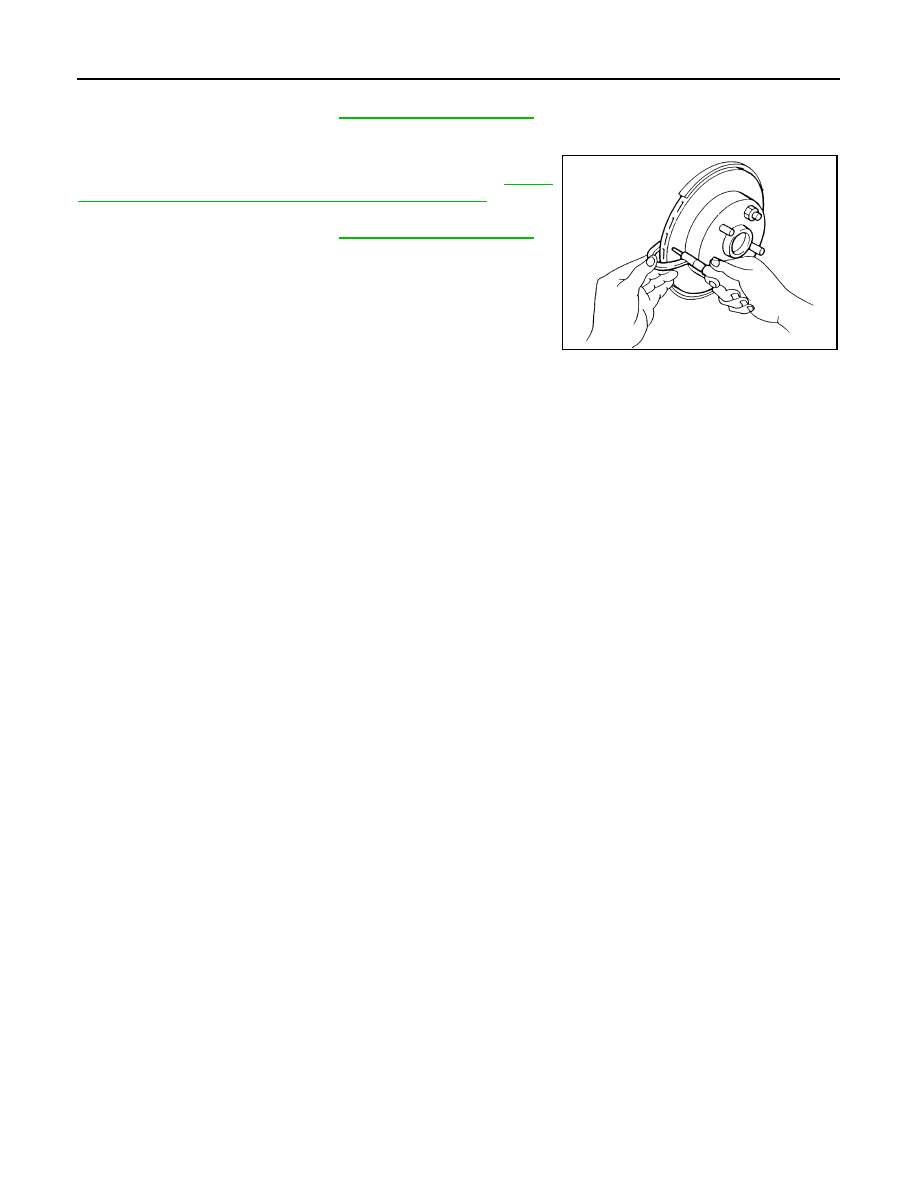

Thickness

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit. Refer to

BR-35,

"BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

ADJUSTMENT

Burnish contact surfaces between disc rotors and pads according to the following procedure after refinishing
or replacing disc rotor, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate firmly/securely until pad and disc

rotor are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool the brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

Wear thickness

: Refer to

BR-42, "Front Disc Brake"

.

Wear thickness

: Refer to

BR-42, "Front Disc Brake"

.

SBR020B

REAR DRUM BRAKE

BR-15

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

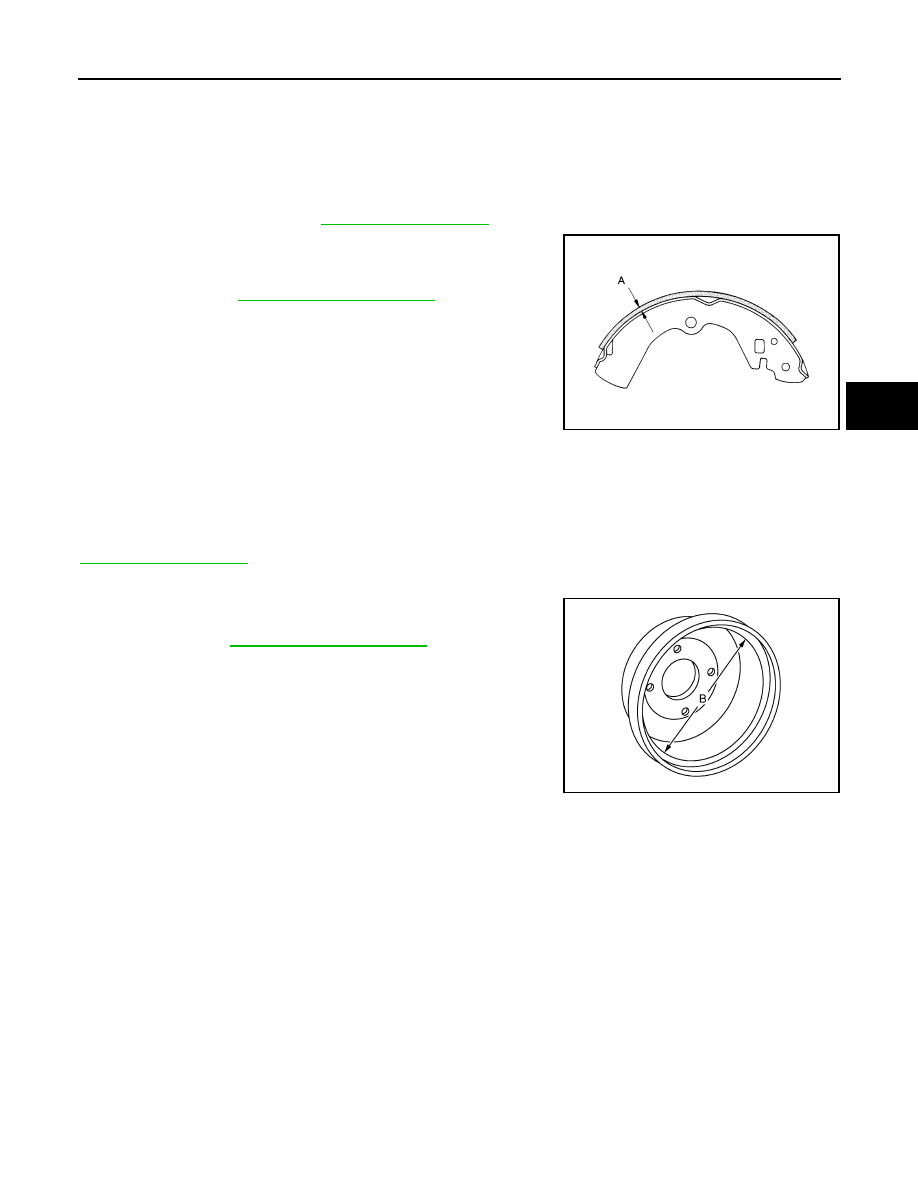

REAR DRUM BRAKE

BRAKE LINING

BRAKE LINING : Inspection

INFOID:0000000005986576

INSPECTION OF BRAKE LINING

1.

Remove brake drum. Refer to

BR-39, "Exploded View"

.

2.

Check brake lining wear thickness (A). Check using a scale nec-
essary.

BRAKE DRUM

BRAKE DRUM : Inspection

INFOID:0000000005986577

APPEARANCE

Check surface of brake drum for uneven wear, cracks and serious damage. Replace it if necessary. Refer to

BR-39, "Exploded View"

.

INSPECTION OF BRAKE DRUM INNER DIAMETER

Check inner diameter (B) of the brake drum.

A

: Refer to

BR-42, "Rear Drum Brake"

.

SBR021A

B : Refer to

BR-42, "Rear Drum Brake"

.

JPFIA0113ZZ

BR-16

< REMOVAL AND INSTALLATION >

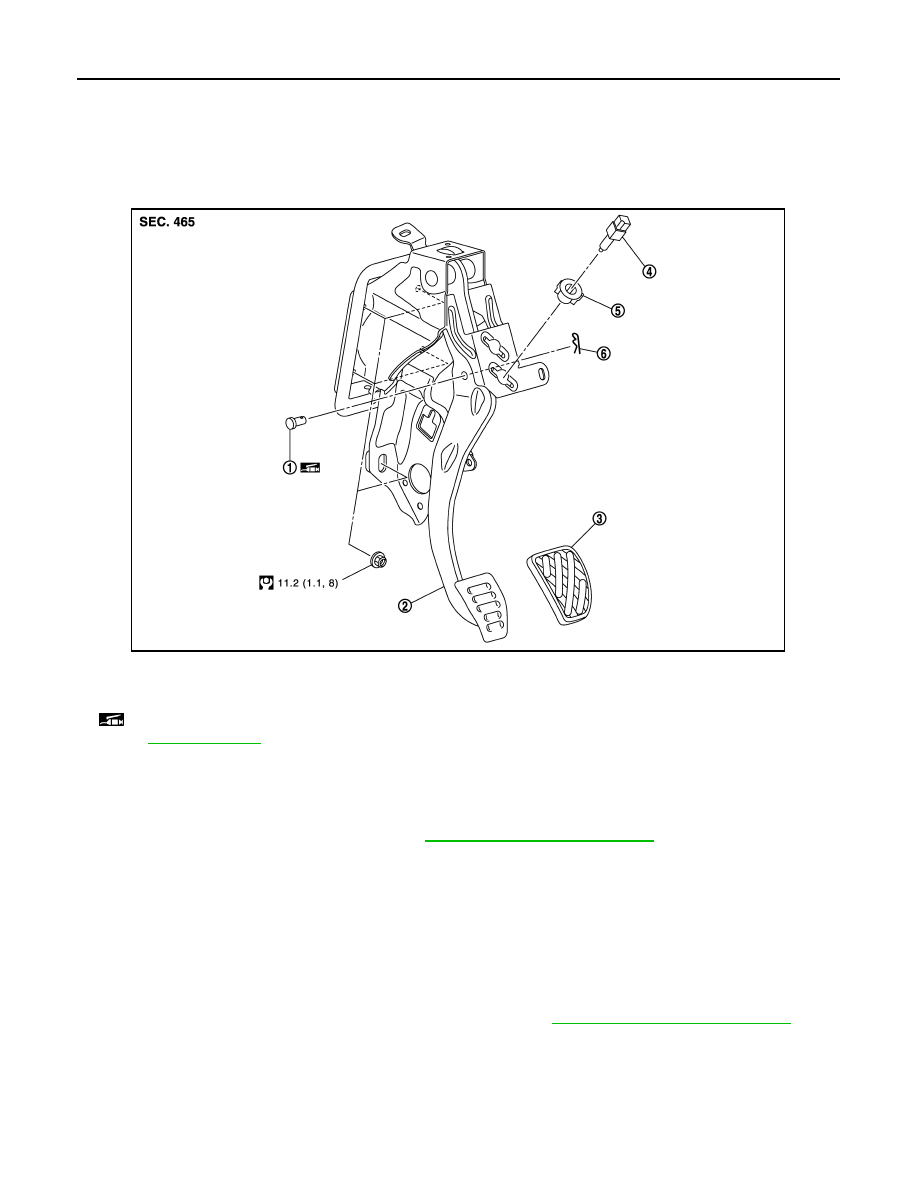

BRAKE PEDAL

REMOVAL AND INSTALLATION

BRAKE PEDAL

Exploded View

INFOID:0000000005986578

Removal and Installation

INFOID:0000000005986579

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect the stop lamp switch harness connectors.

3.

Disconnect the accelerator pedal harness connector.

4.

Remove main harness from brake pedal assembly.

5.

Remove snap pin and clevis pin from clevis.

6.

Remove the brake pedal assembly.

CAUTION:

Hold the brake booster and master cylinder assembly so as not to drop out or contact them other
parts.

7.

Remove accelerator pedal from brake pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)

NOTE:
The clevis pin may be inserted in either direction.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Stop lamp switch

5.

Clip

6.

Snap pin

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0755GB
