REMOVAL AND INSTALLATION

BCM

Removal and Installation

INFOID:0000000006014865

CAUTION:

Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to

BCS-44, "Description"

.

REMOVAL

1.

Remove glove box cover. Refer to

IP-12, "Exploded View"

.

2.

Remove screws.

3.

Disconnect BCM connector.

4.

Remove door mirror open relay, door mirror close relay and rear window defogger relay from bracket.

5.

Remove relay mounting bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
• Be sure to perform the system initialization (NATS) when replacing BCM. Refer to

BCS-44, "Work

Procedure"

.

BCS-58

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

COMBINATION SWITCH

COMBINATION SWITCH

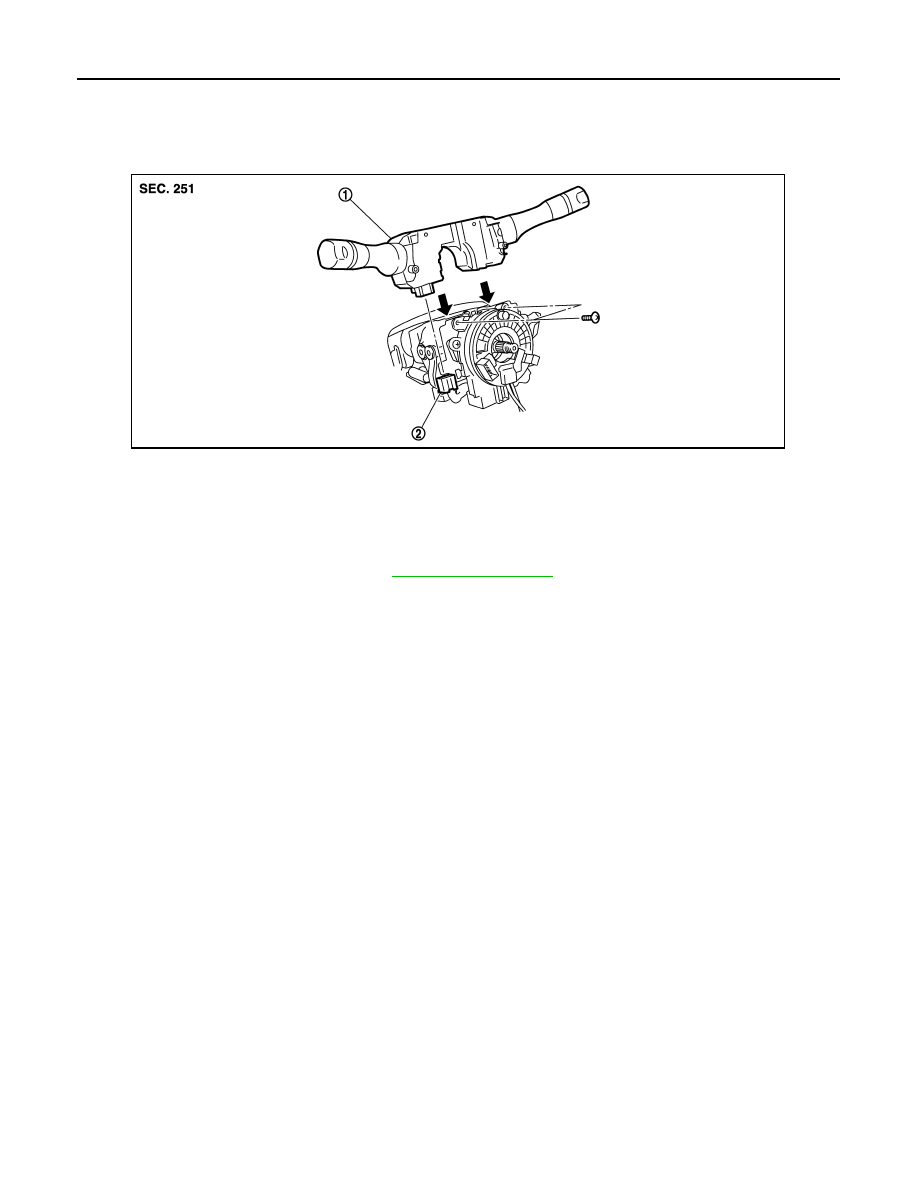

Exploded View

INFOID:0000000006046466

Removal and Installation

INFOID:0000000006014866

REMOVAL

1.

Remove steering column cover. Refer to

IP-12, "Exploded View"

.

2.

Remove screws.

3.

Disconnect the connector.

4.

Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JMMIA0383ZZ

BCS

PRECAUTIONS

BCS-59

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006014867

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

BCS-60

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

BODY CONTROL SYSTEM

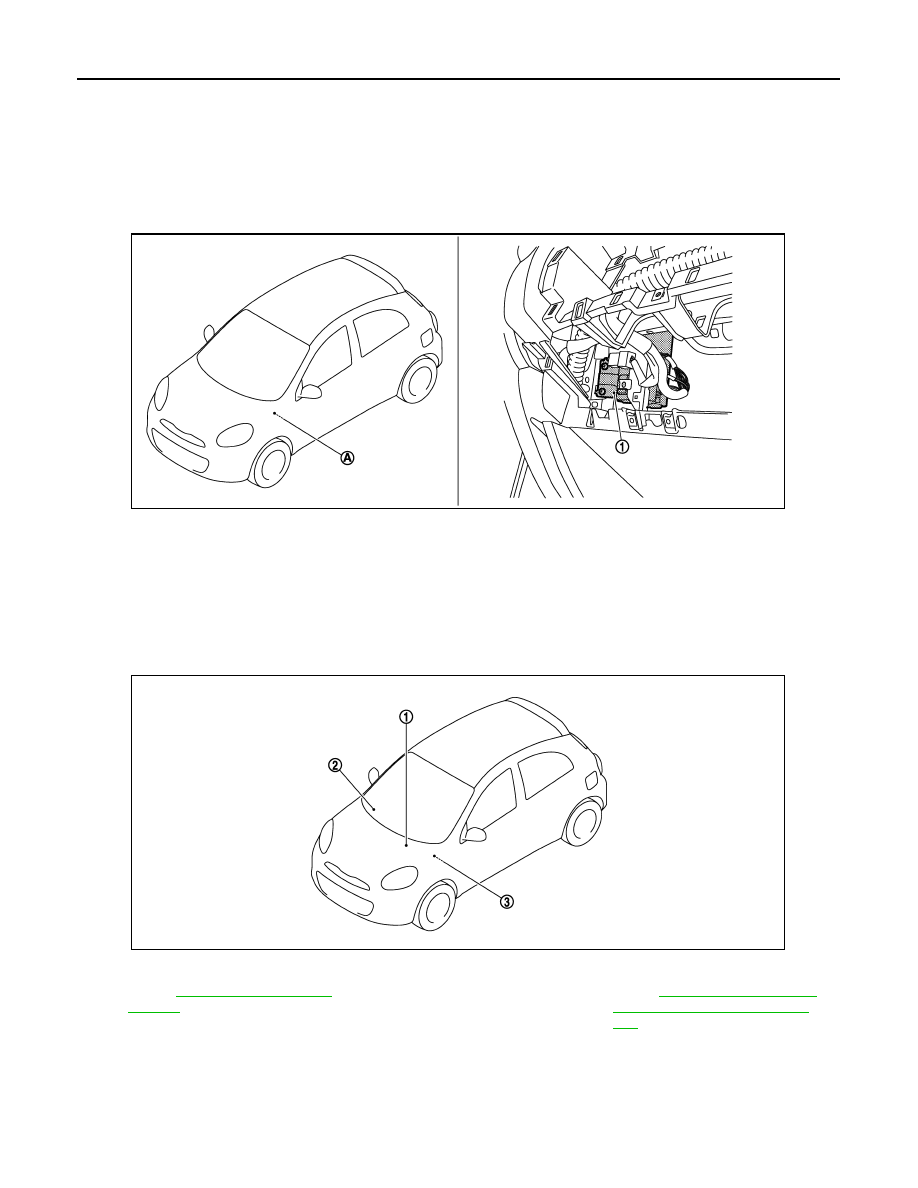

BODY CONTROL SYSTEM : Component Parts Location

INFOID:0000000006046472

POWER CONSUMPTION CONTROL SYSTEM

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

INFOID:0000000006046473

1.

BCM

A.

Left side of glove box

JMMIA0390ZZ

1.

IPDM E/R
Refer to

PCS-30, "Component Parts

Location"

.

2.

Combination meter

3.

BCM
Refer to

BCS-60, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

JMMIA0391ZZ
