U0415 VEHICLE SPEED

Description

INFOID:0000000006014856

U0415 is displayed if any unusual condition is present in the reception status of the vehicle speed signal from
the ABS actuator and electric unit (control unit).

DTC Logic

INFOID:0000000006014857

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION

1.

Erase the DTC.

2.

Turn ignition switch OFF.

3.

Perform the “Self Diagnostic Result” of CONSULT-III, when passed 2 seconds or more after the ignition
switch is turned ON.

Is any DTC detected?

YES

>> Refer to

BCS-49, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006014858

1.

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAG RESULTS

Perform “Self-Diagnostic Result” of ABS actuator and electric unit (control unit) with CONSULT-III. Refer to
BRC section.

Is any DTC detected?

YES

>> Repair or replace the malfunctioning part.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

DTC

 CONSULT-III display

description

DTC Detection Condition

Probable cause

U0415

VEHICLE SPEED

When the vehicle speed signal received from
the ABS actuator and electric unit (control
unit) remains abnormal for 2 seconds or more.

• ABS actuator and electric unit (control unit)
• BCM

BCS-50

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2562 LOW VOLTAGE

B2562 LOW VOLTAGE

DTC Logic

INFOID:0000000006014859

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION

1.

Erase DTC.

2.

Turn ignition switch OFF.

3.

Perform the “Self Diagnostic Result” of CONSULT-III, when passed 120 seconds or more after the ignition
switch is turned ON.

Is any DTC detected?

YES

>> Refer to

BCS-50, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000006014860

1.

CHECK POWER SUPPLY CIRCUIT

Check BCM power supply circuit. Refer to

BCS-51, "Diagnosis Procedure"

.

Is the circuit normal?

YES

>> Replace BCM. Refer to

BCS-57, "Removal and Installation"

.

NO

>> Repair the malfunctioning part.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

B2562

LOW VOLTAGE

When the power supply voltage to BCM remains less
than 8.8 V for 120 seconds or more

Harness or connector (power supply
circuit)

BCS

POWER SUPPLY AND GROUND CIRCUIT

BCS-51

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000006014861

1.

CHECK FUSE AND FUSIBLE LINK

Check that the following fuse and fusible link are not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connectors.

3.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Signal name

Fuse and fusible link No.

Battery power supply

G

9

Terminals

Voltage

(Approx.)

(+)

(

−

)

BCM

Ground

Connector

Terminal

M70

70

Battery voltage

57

BCM

Ground

Continuity

Connector

Terminal

M70

67

Existed

BCS-52

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

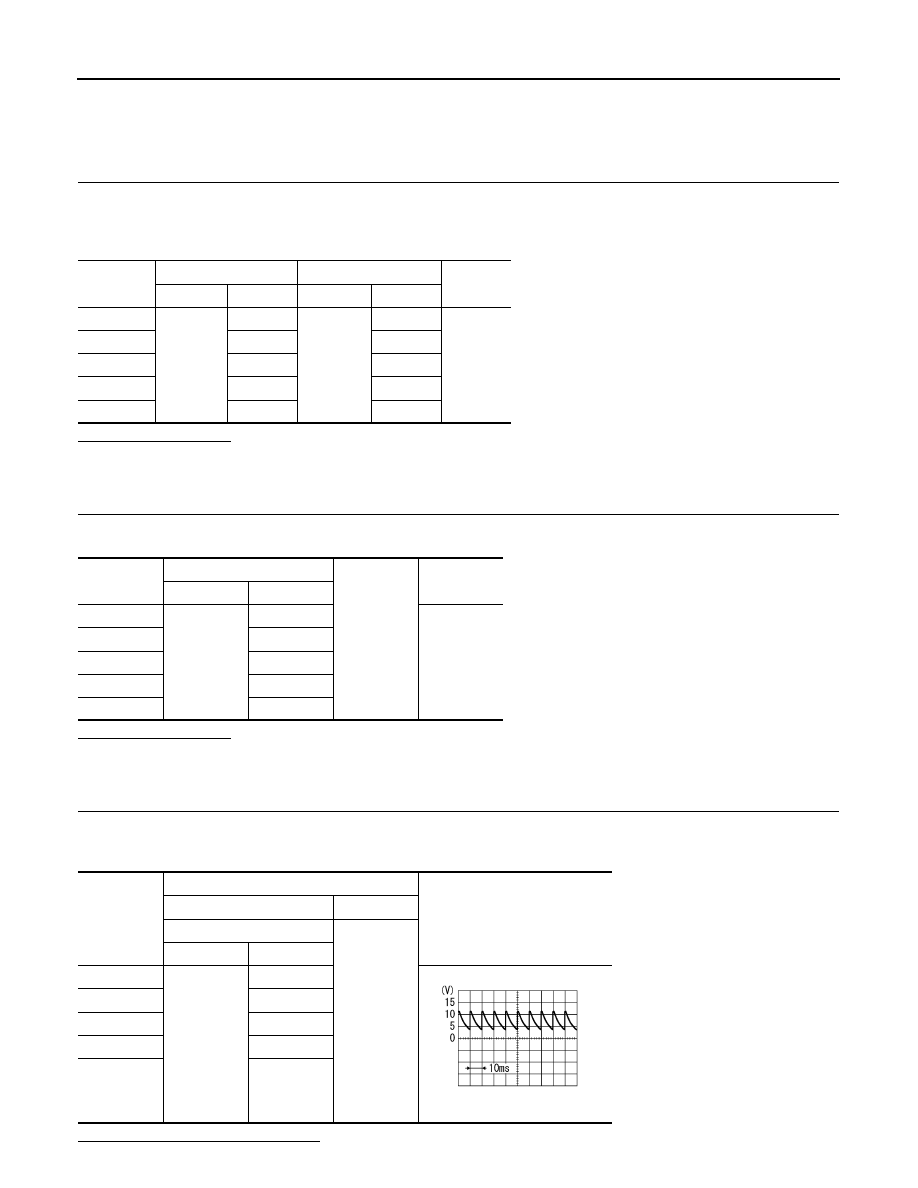

COMBINATION SWITCH OUTPUT CIRCUIT

COMBINATION SWITCH OUTPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000006014862

1.

CHECK OUTPUT 1 - 5 CIRCUIT FOR OPEN

1.

Turn ignition switch OFF.

2.

Disconnect BCM and combination switch connectors.

3.

Check continuity between BCM harness connector and combination switch harness connector.

Does continuity exist?

YES

>> GO TO 2.

NO

>> Repair harnesses or connectors.

2.

CHECK OUTPUT 1 - 5 CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair harnesses or connectors.

NO

>> GO TO 3.

3.

CHECK BCM OUTPUT VOLTAGE

1.

Connect BCM connector.

2.

Check voltage between BCM harness connector and ground.

Is the measurement value normal?

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

OUTPUT 1

M68

36

M27

11

Existed

OUTPUT 2

35

9

OUTPUT 3

34

7

OUTPUT 4

33

10

OUTPUT 5

32

13

System

BCM

Ground

Continuity

Connector

Terminal

OUTPUT 1

M68

36

Not existed

OUTPUT 2

35

OUTPUT 3

34

OUTPUT 4

33

OUTPUT 5

32

System

Terminals

Voltage

(Approx.)

(+)

(

−

)

BCM

Ground

Connector

Terminal

OUTPUT 1

M68

36

7.0 - 8.0 V

OUTPUT 2

35

OUTPUT 3

34

OUTPUT 4

33

OUTPUT 5

32

PKIB4960J
