Nissan March K13. Manual - part 3





AV

SYSTEM

AV-5

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

System Description

INFOID:0000000005911596

AUDIO SYSTEM

When the audio system is on, radio signals are received by the radio antenna. The audio unit then sends
audio signals to the each speaker.

FUNCTION DESCRIPTION

AM/FM Radio Mode

• AM/FM radio tuner is built into audio unit.
• Radio signals are received by radio antenna, next they are input to audio unit.
• Audio unit outputs the sound signal to each speaker.

CD Mode

• CD function is built into audio unit.
• Audio unit outputs sound signal to each speaker when CD is inserted to audio unit.

AUX Connection

• When the external device is connected to the AUX (auxiliary) input jack of the audio unit, the external device

inputs a sound signal to the audio unit.

• When AUX mode is selected, audio unit outputs sound signal to each speaker.

AV-6

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

DIAGNOSIS SYSTEM (AUDIO UNIT)

DIAGNOSIS SYSTEM (AUDIO UNIT)

Diagnosis Description

INFOID:0000000005911604

Self-diagnosis mode can check the following items.
• Display all icons and segments
• Display LCD
• Audio unit hardware/software/EEP versions

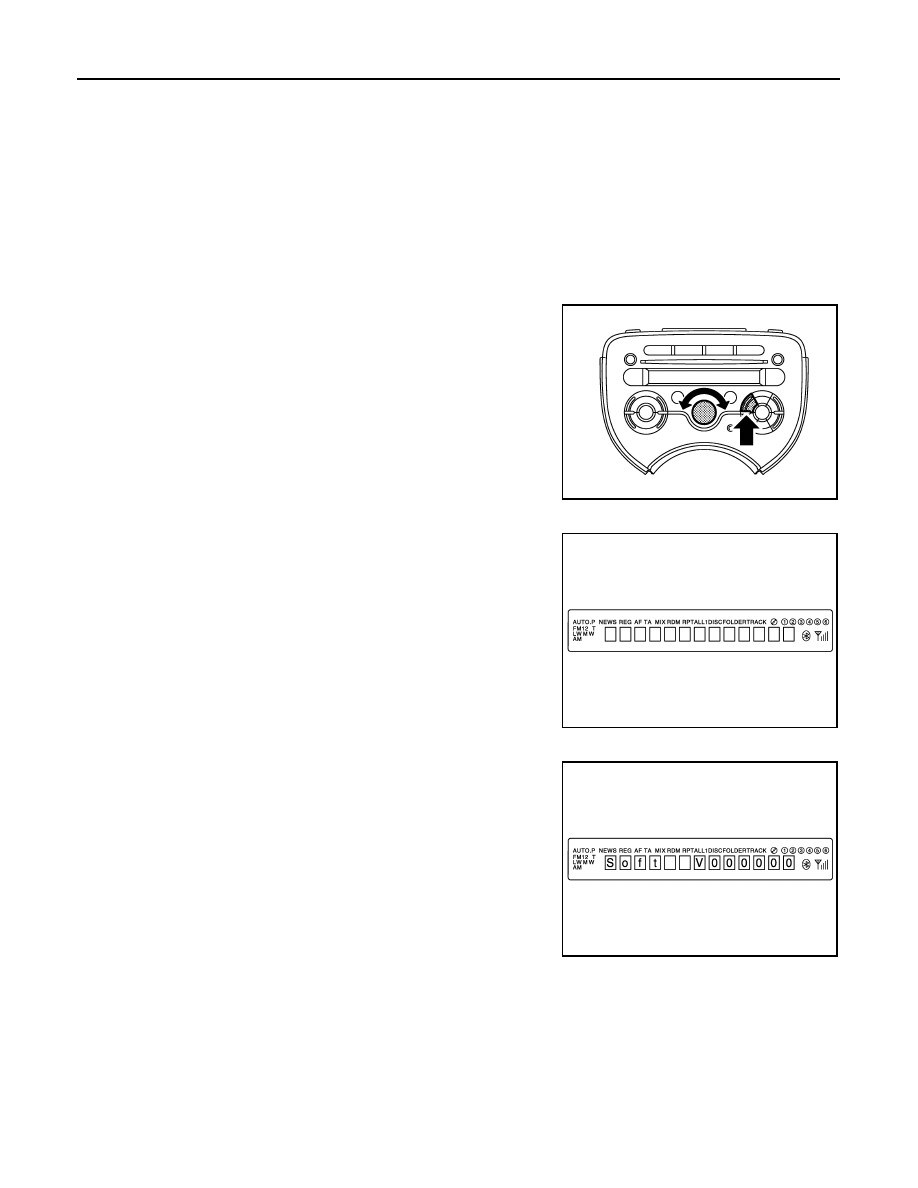

OPERATION PROCEDURE

1.

Turn ignition switch to the ON position.

2.

Turn the audio unit OFF.

3.

While pressing the “1”button, turn the volume control dial clock-
wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Icons, Segments and LCD Check

1.

All display icons and segments will be illuminated for 2 seconds.

2.

Press the “DISP” switch to display LCD check segments pattern.

Version Check

1.

Press the “DISP” switch to enter version diagnostics. “Soft”
(audio software version) is displayed.

JSNIA3030ZZ

JSNIA2093ZZ

JSNIA2094ZZ

AV

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-7

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

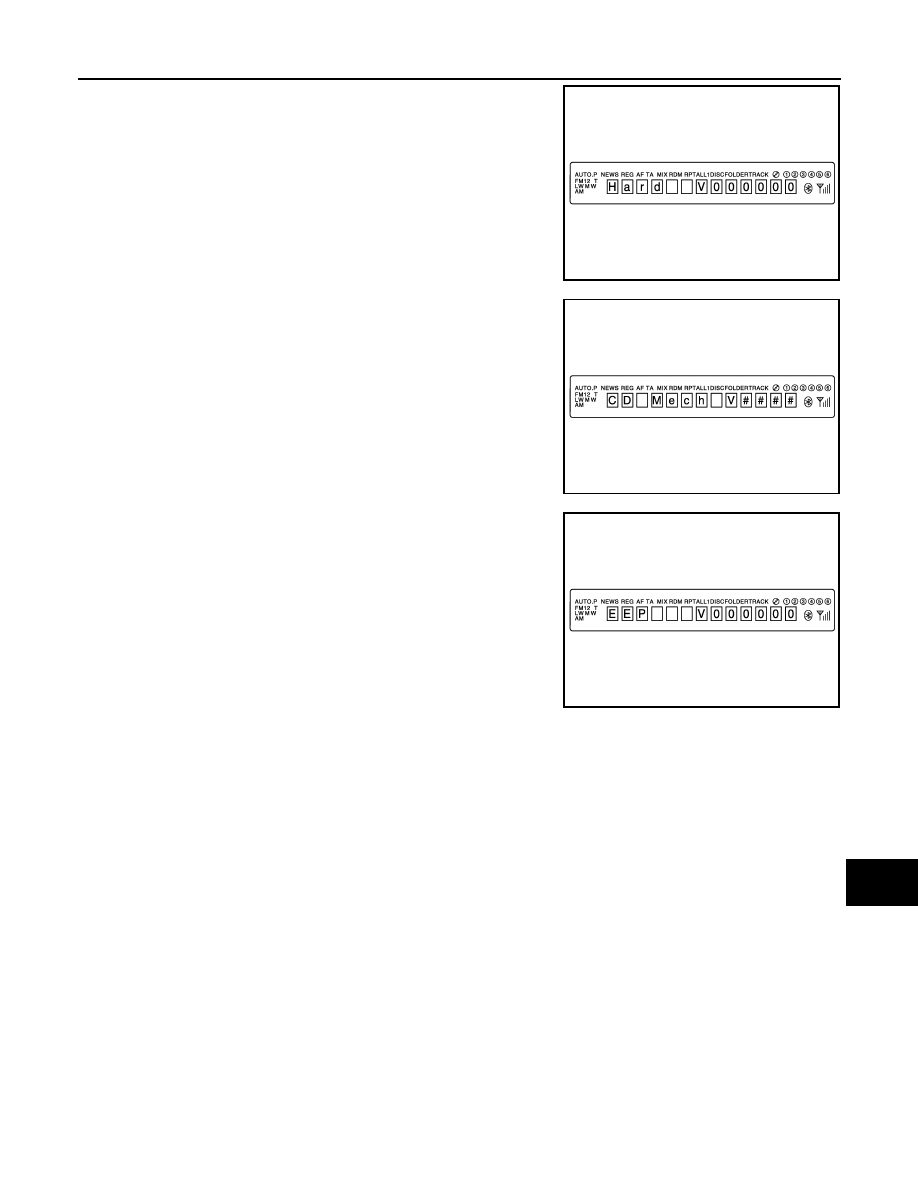

2.

Press the “DISP” switch again to display the “Hard” (audio hard-
ware version).

3.

Press the “DISP” switch again to display the “CD Mech” (CD
mechanism version).

4.

Press the “DISP” switch again to display the “EEP” (audio unit
EEPROM version).

Finishing Self-diagnosis Mode

1.

self-diagnosis mode is canceled when turning the ignition switch OFF.

JSNIA2095ZZ

JSNIA3070ZZ

JSNIA3031ZZ

AV-8

< ECU DIAGNOSIS INFORMATION >

[AUDIO SYSTEM]

AUDIO UNIT

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

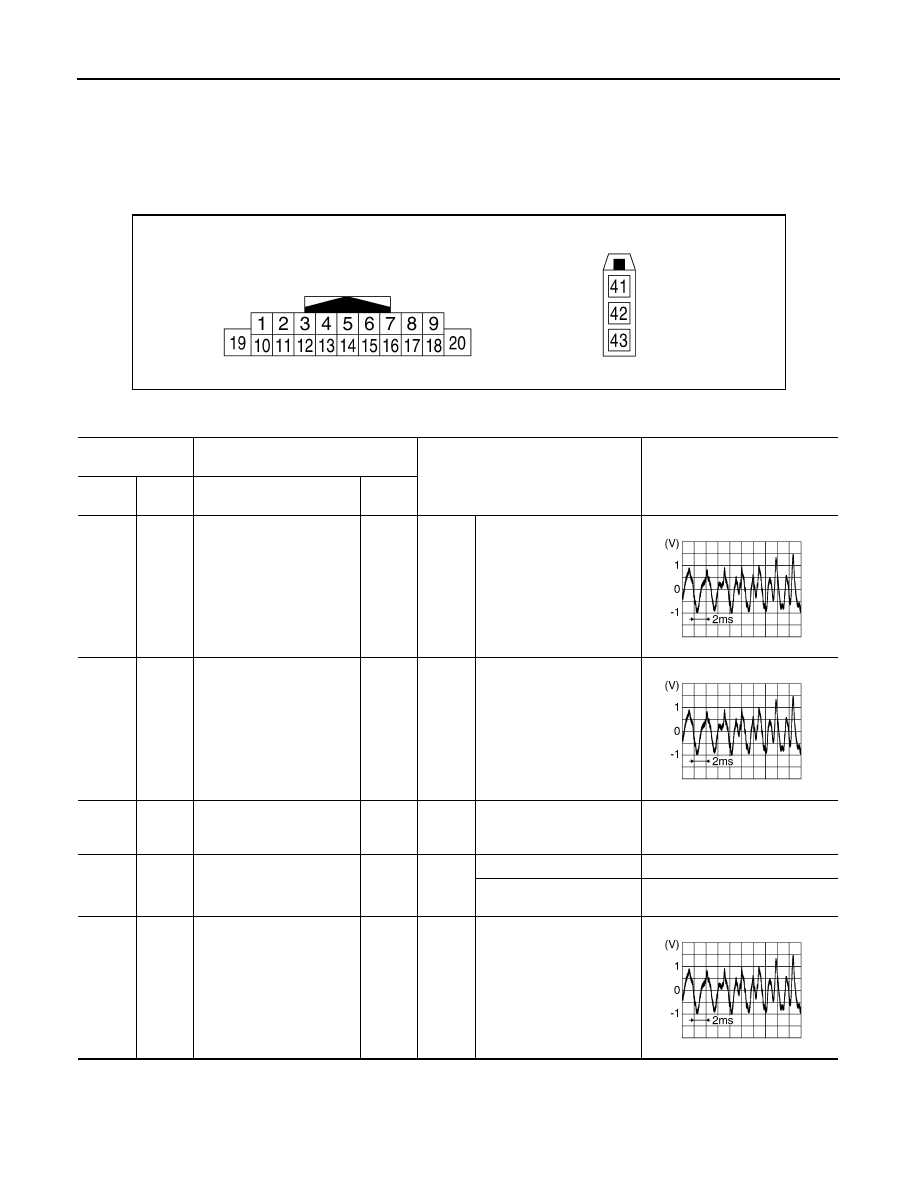

Reference Value

INFOID:0000000005911628

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0217ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

2

(GR)

3

(P)

Sound signal front door
speaker LH

Output

Ignition

switch

ON

Sound signal output

4

(W)

5

(R)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Sound signal output

7

(L)

Ground

ACC power supply

Input

Ignition

switch

ACC

Battery voltage

9

(Y)

Ground

Illumination signal

Input

Ignition

switch

ON

Lighting switch is OFF.

0 V

Lighting switch is 1st or
2nd.

12.0 V

11

(BG)

12

(V)

Sound signal front door
speaker RH

Output

Ignition

switch

ON

Sound signal output

SKIB3609E

SKIB3609E

SKIB3609E
