CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

AUDIO SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

SYSTEM DESCRIPTION  ..............................

3

COMPONENT PARTS  ........................................

3

Component Parts Location ........................................

3

Component Description .............................................

4

SYSTEM ..............................................................

5

System Description  ...................................................

5

DIAGNOSIS SYSTEM (AUDIO UNIT) .................

6

Diagnosis Description  ...............................................

6

ECU DIAGNOSIS INFORMATION ...............

8

AUDIO UNIT  ........................................................

8

Reference Value  .......................................................

8

WIRING DIAGRAM  ......................................

10

AUDIO SYSTEM .................................................

10

Wiring Diagram  .......................................................

10

BASIC INSPECTION  ...................................

11

DIAGNOSIS AND REPAIR WORKFLOW  .........

11

Work Flow ................................................................

11

DTC/CIRCUIT DIAGNOSIS  .........................

13

POWER SUPPLY AND GROUND CIRCUIT  ....

13

AUDIO UNIT ...............................................................

13

AUDIO UNIT : Diagnosis Procedure  .......................

13

SYMPTOM DIAGNOSIS  ..............................

14

AUDIO SYSTEM SYMPTOMS ..........................

14

Symptom Table  .......................................................

14

NORMAL OPERATING CONDITION  ...............

15

Description ...............................................................

15

REMOVAL AND INSTALLATION  ...............

16

AUDIO UNIT ......................................................

16

Removal and Installation  .........................................

16

FRONT DOOR SPEAKER  ................................

17

Removal and Installation  .........................................

17

REAR DOOR SPEAKER  ..................................

18

Removal and Installation  .........................................

18

ANTENNA BASE  ..............................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

ANTENNA FEEDER ..........................................

20

Feeder Layout  .........................................................

20

AV-2

< PRECAUTION >

[AUDIO SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006033855

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

AV

COMPONENT PARTS

AV-3

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

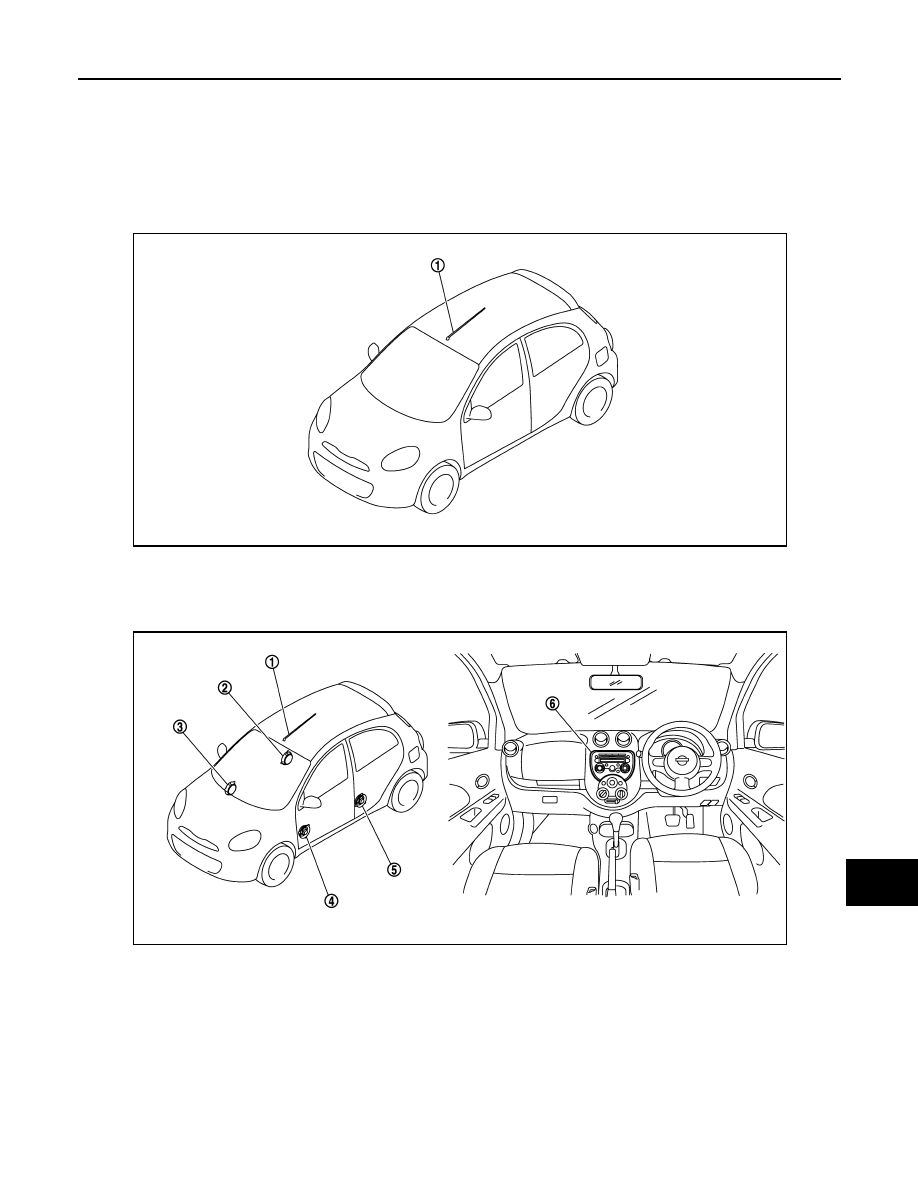

Component Parts Location

INFOID:0000000005911597

AUDIO LESS

AUDIO

1.

Rod antenna

JSNIA2981ZZ

1.

Rod antenna

2.

Rear door speaker RH

3.

Front door speaker RH

4.

Front door speaker LH

5.

Rear door speaker LH

6.

Audio unit

JSNIA2982ZZ

AV-4

< SYSTEM DESCRIPTION >

[AUDIO SYSTEM]

COMPONENT PARTS

Component Description

INFOID:0000000005911598

Part name

Description

Audio unit

• AM/FM radio, replaying function of CD, auxiliary Input functions are integrated.
• Sound signals are output to each speaker.

Front door speaker

• Outputs sound signal from audio unit.
• Outputs high, mid and low range sounds.

Rear door speaker

• Outputs sound signal from audio unit.
• Outputs high, mid and low range sounds.

Rod antenna

Radio signal received by antenna is sent to audio unit.
